Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and Warranty Information.. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle
outside the USA or Canada ............ 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
At a glance.......................................... 19
Cockpit ................................................. 20
Instrument cluster ................................ 22
Multifunction steering wheel ................ 24
Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey ......... 30
Unlocking with KEYLESS-GO*......... 32
Adjusting .............................................. 34
Seats .............................................. 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts ................. 40
Starting the engine ......................... 42
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Problems while driving .................... 48
Parking and locking .............................. 49
Parking brake ................................. 50
Switching off headlamps................. 50
Turning off engine ........................... 51

Contents
Engine compartment ......................... 237
Hood ............................................ 237
Engine oil ..................................... 238
Transmission fluid level ................ 242
Active Body Control (ABC)
fluid level...................................... 242
Coolant ........................................ 242
Battery ......................................... 243
Windshield washer system and
headlamp cleaning system ........... 244
Tires and wheels ................................ 246
Important guidelines .................... 246
Life of tires ................................... 247
Direction of rotation ..................... 247
Checking tire inflation pressure ... 247
Rotating wheels ........................... 251
Winter driving .................................... 252
Winter tires .................................. 252
Block heater* ............................... 253
Snow chains................................. 253Maintenance....................................... 254
Clearing the service indicator ....... 254
Service term exceeded ................. 254
Calling up the service indicator..... 255
Resetting the service indicator ..... 255
Vehicle care........................................ 256
Cleaning and care of vehicle ......... 256
Practical hints.................................. 263
What to do if …? ................................. 264
Lamps in instrument cluster ......... 264
Lamp in center console................. 269
Messages in the display ................ 270
Where will I find...? ............................. 295
First aid kit .................................... 295
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ............ 295
Unlocking/locking in an emergency... 297
Unlocking the vehicle.................... 297
Locking the vehicle ....................... 298
Changing batteries........................ 299
Fuel filler flap ................................ 300Opening/closing in an emergency ..... 301
Sliding/pop-up roof ...................... 301
Replacing bulbs .................................. 302
Bulbs............................................. 302
Replacing bulbs for front lamps .... 304
Replacing bulbs for rear lamps ..... 305
Replacing wiper blades ...................... 307
Removing ...................................... 307
Installing ....................................... 307
Flat tire............................................... 308
Preparing the vehicle .................... 308
Mounting the spare wheel ............ 308
Battery ............................................... 313
Disconnecting the battery ............ 314
Removing the battery ................... 314
Charging and reinstalling
the battery .................................... 314
Reconnecting the battery ............. 315
Jump starting...................................... 316
Towing the vehicle.............................. 318
Installing towing eye bolt .............. 321

19 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

21 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
46


Windshield wipers
47


High beam
111
2
Cruise control lever

Cruise control
176


Distronic*
179
3
Instrument cluster
22,
111
4
Multifunction steering
wheel
24,
118
5
Gear range indicator, clock
22
Item
Page
6
Lever for voice control sys-
tem* (see separate operat-
ing instructions)
7
Parking assist* (Parktronic)
right front area warning in-
dicator
195
8
Overhead control panel
27
9
Glove box lock
199
10
Glove box lid release
199
11
Glove box
199
12
Center console
25,
26
13
Starter switch
31
14
Horn
Item
Page
15
Steering wheel adjustment
stalk
37
Heated steering wheel*
208
16
Parking brake pedal
44
17
Hood lock release
237
18
Parking brake release
44
19
Door control panel
28
20
Exterior lamp switch
46,
108
21
Headlamp washer button
154
22
Parking assist* (Parktronic)
left front area warning indi-
cator
195

25 At a glance

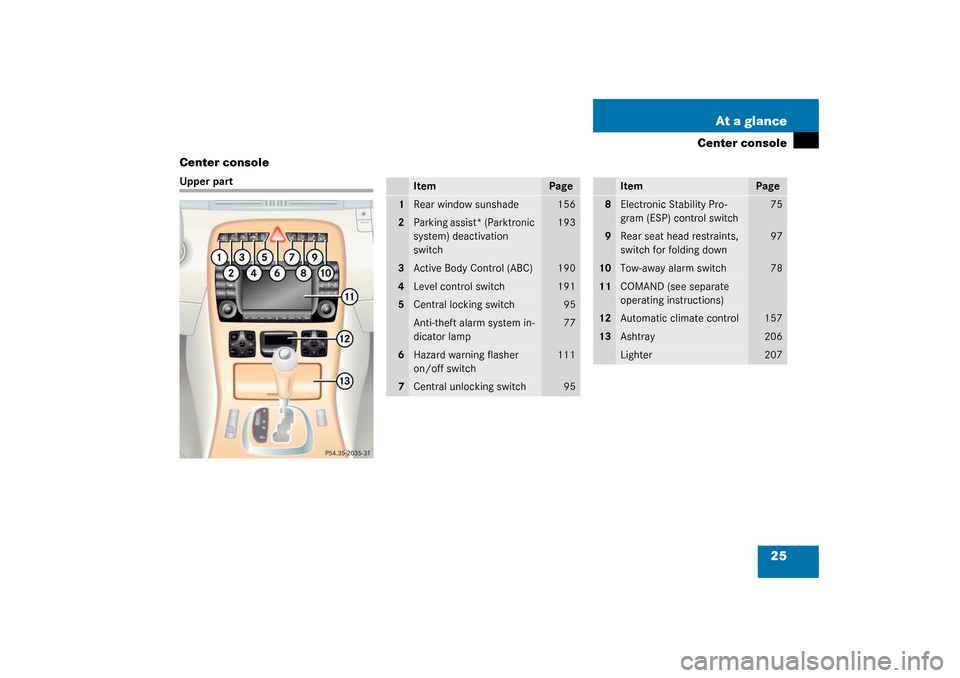

Center console
Center console
Upper part
Item
Page
1
Rear window sunshade
156
2
Parking assist* (Parktronic
system) deactivation
switch
193
3
Active Body Control (ABC)
190
4
Level control switch
191
5
Central locking switch
95
Anti-theft alarm system in-
dicator lamp
77
6
Hazard warning flasher
on/off switch
111
7
Central unlocking switch
95
Item
Page
8
Electronic Stability Pro-
gram (ESP) control switch
75
9
Rear seat head restraints,
switch for folding down
97
10
Tow-away alarm switch
78
11
COMAND (see separate
operating instructions)
12
Automatic climate control
157
13
Ashtray
206
Lighter
207

26 At a glanceCenter consoleLower part
Item
Page
1
KEYLESS-GO* start / stop
button
33, 43
2
Selector lever for
automatic transmission
43,
145
3
PASSENGER AIRBAG OFF
indicator lamp
65
4
Thumbwheel for setting
distance in Distronic*
187
5
Distance warning func-
tion* on / off switch
187
6
Program mode selector for
automatic transmission
147

59 Safety and Security
Occupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.
Front airbags
Driver and passenger airbags are de-
ployed:

in the event of a frontal impact


if impact exceeds a preset deployment
threshold


independently of the side impact air-
bags
The airbags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.The front passenger airbag will only be de-
ployed if:


the front passenger seat is occupied.


the PASSENGER AIRBAG OFF indicator
lamp in the center console is not lit
(page 65).


the impact exceeds a preset deploy-
ment threshold
1Driver’s airbag
2Passenger airbagSide impact airbags, window curtain
airbags
The side impact airbags and window cur-
tain airbags are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front airbags
In addition, the window curtain airbags 1
are deployed:


in certain vehicle rollovers
The side impact airbags2and3 are not
deployed in impacts which do not exceed
the system’s deployment threshold.!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.

66 Safety and SecurityOccupant safetySpecial BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM air-
bag deactivation system. With the special
child seat properly installed, the passenger
front airbag will not deploy.
The PASSENGER AIRBAG OFF indicator
lamp1 located in the center console will
be illuminated, except with the key re-
moved or in the starter switch position0.
Self-test BabySmart
TM
without special
child seat installed
After turning the key in the starter switch
to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the PASSENGER AIRBAG OFF indi-cator lamp1 located in the center console
lights up for approx. 6 seconds and then
goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
More information can be found in the
“Practical hints” section (
page 269).
iThe system does not deactivate the
side impact airbag and the emergency
tensioning device.
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front airbag will not deploy only if
the PASSENGER AIRBAG OFF indicator lamp
remains illuminated.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the front passenger seat until the system
has been repaired.
