2003 MERCEDES-BENZ CL500 mirror controls

ContentsSafety and Security........................... 53
Occupant safety................................... 54
Airbags ........................................... 55
Seat belts ....................................... 60
Children in the vehicle .................... 63
Blocking of rear window operation . 69
Panic alarm .......................................... 70
Activating ....................................... 70
Deactivating ................................... 70
Driving safety systems ......................... 71
ABS ................................................ 71
BAS ................................................ 73
ESP ................................................. 73
Anti-theft systems................................ 76
Immobilizer..................................... 76
Anti-theft alarm system .................. 77
Tow-away alarm ............................. 78
Controls in detail............................... 79
Locking and unlocking ......................... 80
SmartKey ....................................... 80
KEYLESS-GO card* ........................ 83
Opening the doors
from the inside ............................... 87
Opening the trunk lid
from the inside ............................... 88
Opening the trunk lid
from the outside............................. 89
Trunk lid emergency release .......... 89
Closing the trunk lid ....................... 90
Separately locking the trunk .......... 90
Separately unlocking the trunk ...... 91
Trunk lid
opening / closing system* .............. 91
Power closing assist
for doors and trunk lid.................... 94
Automatic central locking .............. 94
Locking and unlocking
from the inside ............................... 95Seats .................................................... 96
Lumbar support .............................. 96
Easy-entry / exit feature .................. 96
Head restraints ............................... 97
Multicontour seat*.......................... 99
Folding forward
front seat backrests ..................... 100
Seat ventilation* .......................... 102
Seat heating................................. 103
Memory function ............................... 105
Storing positions into memory ..... 106
Recalling positions
from memory ............................... 106
Storing exterior rear
view mirror parking position ........ 107
Lighting ............................................. 108
Exterior lamp switch .................... 108
Combination switch ..................... 111
Hazard warning flasher ................ 111
Interior lighting ............................ 112
Courtesy lighting .......................... 113

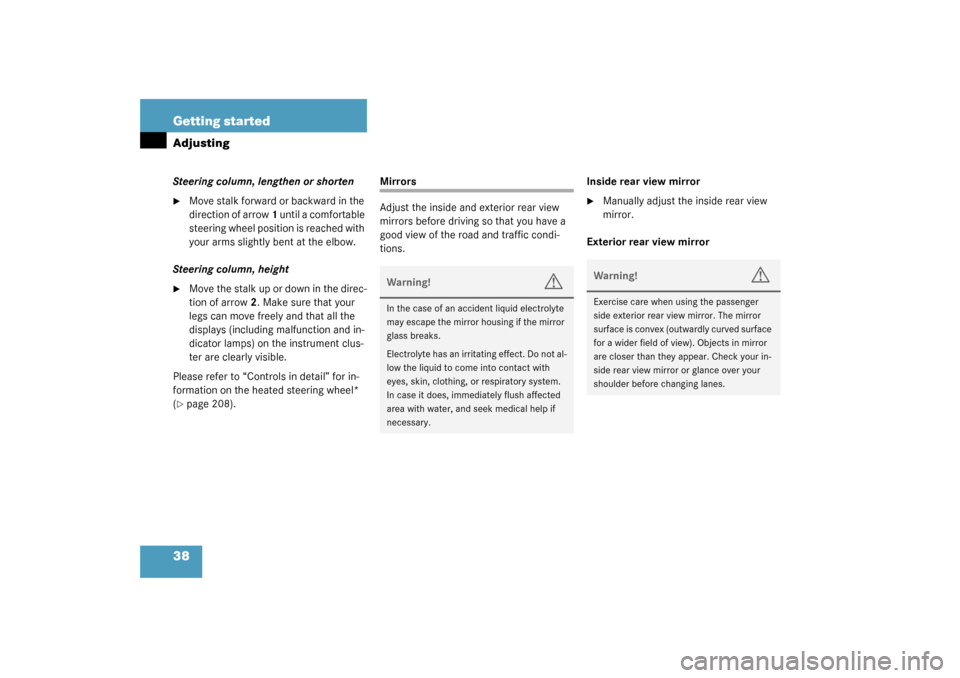

38 Getting startedAdjustingSteering column, lengthen or shorten
Move stalk forward or backward in the
direction of arrow 1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move the stalk up or down in the direc-
tion of arrow 2. Make sure that your
legs can move freely and that all the
displays (including malfunction and in-
dicator lamps) on the instrument clus-
ter are clearly visible.
Please refer to “Controls in detail” for in-
formation on the heated steering wheel*
(
page 208).
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Inside rear view mirror

Manually adjust the inside rear view
mirror.
Exterior rear view mirror
Warning!
G
In the case of an accident liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.

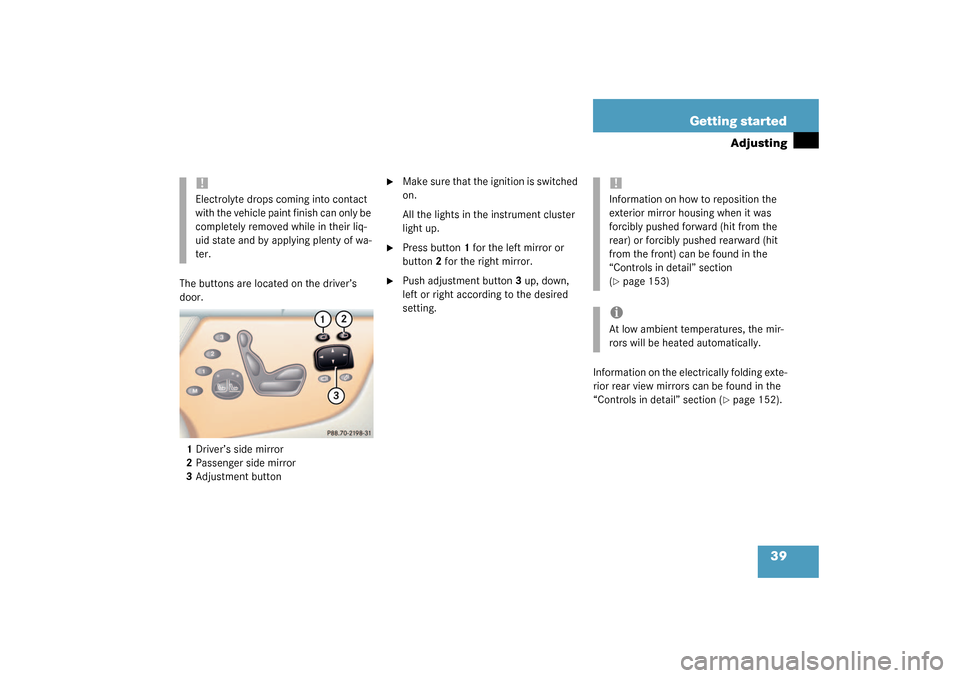

39 Getting started
Adjusting
The buttons are located on the driver’s
door.
1Driver’s side mirror
2Passenger side mirror
3Adjustment button

Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left or right according to the desired
setting.
Information on the electrically folding exte-
rior rear view mirrors can be found in the
“Controls in detail” section (
page 152).
!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.
!Information on how to reposition the
exterior mirror housing when it was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front) can be found in the
“Controls in detail” section
(page 153)
iAt low ambient temperatures, the mir-
rors will be heated automatically.

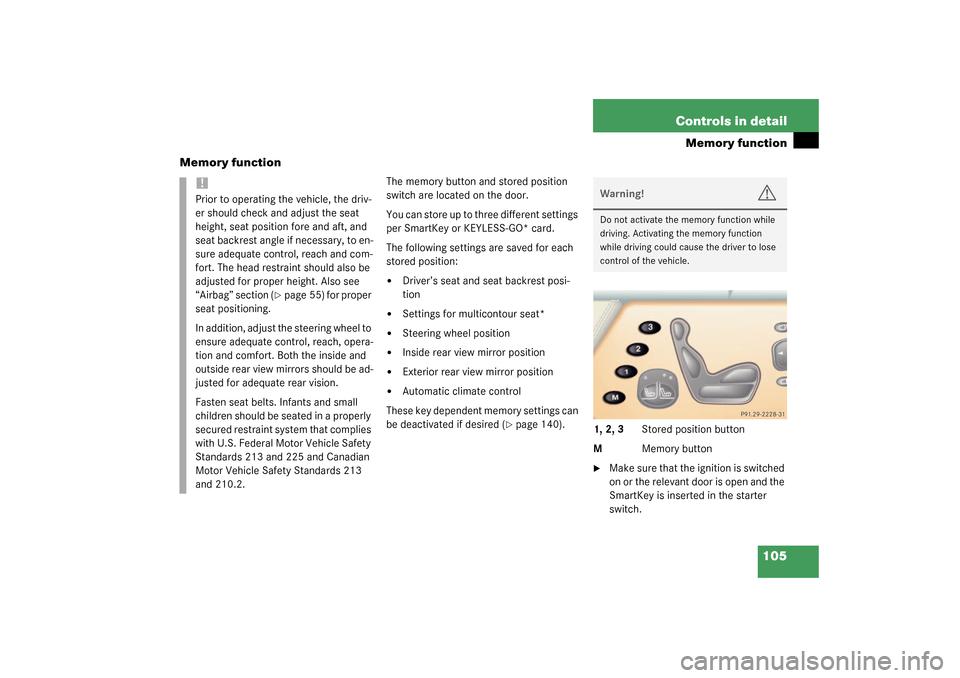

105 Controls in detail
Memory function
Memory function
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey or KEYLESS-GO* card.
The following settings are saved for each
stored position:

Driver’s seat and seat backrest posi-
tion


Settings for multicontour seat*


Steering wheel position


Inside rear view mirror position


Exterior rear view mirror position


Automatic climate control
These key dependent memory settings can
be deactivated if desired (
page 140).
1, 2, 3 Stored position button
MMemory button

Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
switch.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see
“Airbag” section (
page 55) for proper
seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

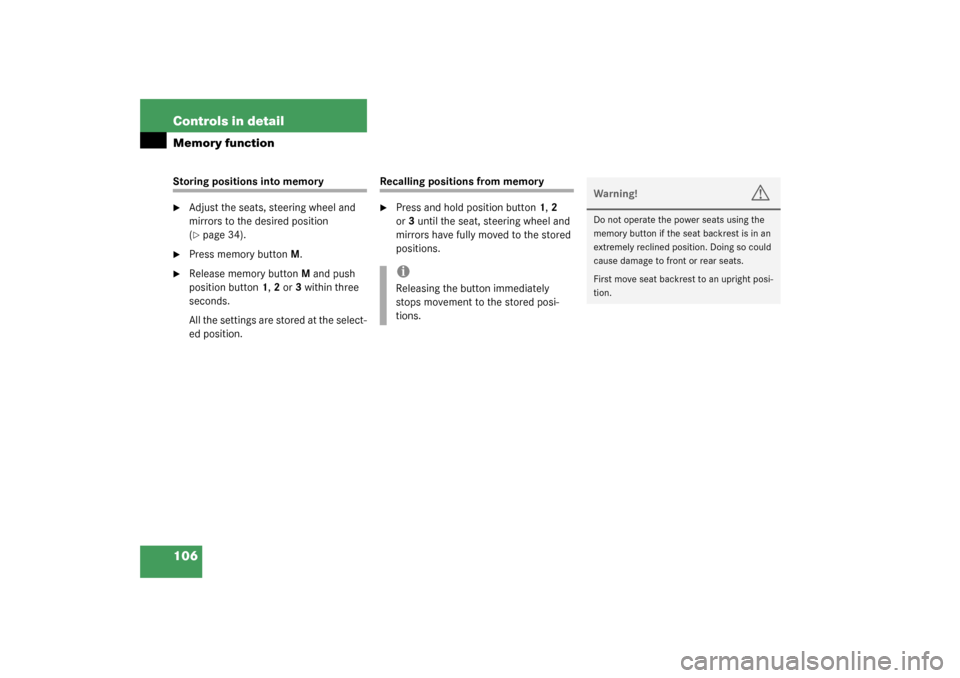

106 Controls in detailMemory functionStoring positions into memory
Adjust the seats, steering wheel and
mirrors to the desired position
(page 34).

Press memory buttonM.

Release memory buttonM and push
position button1, 2 or3 within three
seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Press and hold position button1, 2
or3 until the seat, steering wheel and
mirrors have fully moved to the stored
positions.iReleasing the button immediately
stops movement to the stored posi-
tions.
Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
extremely reclined position. Doing so could
cause damage to front or rear seats.
First move seat backrest to an upright posi-
tion.

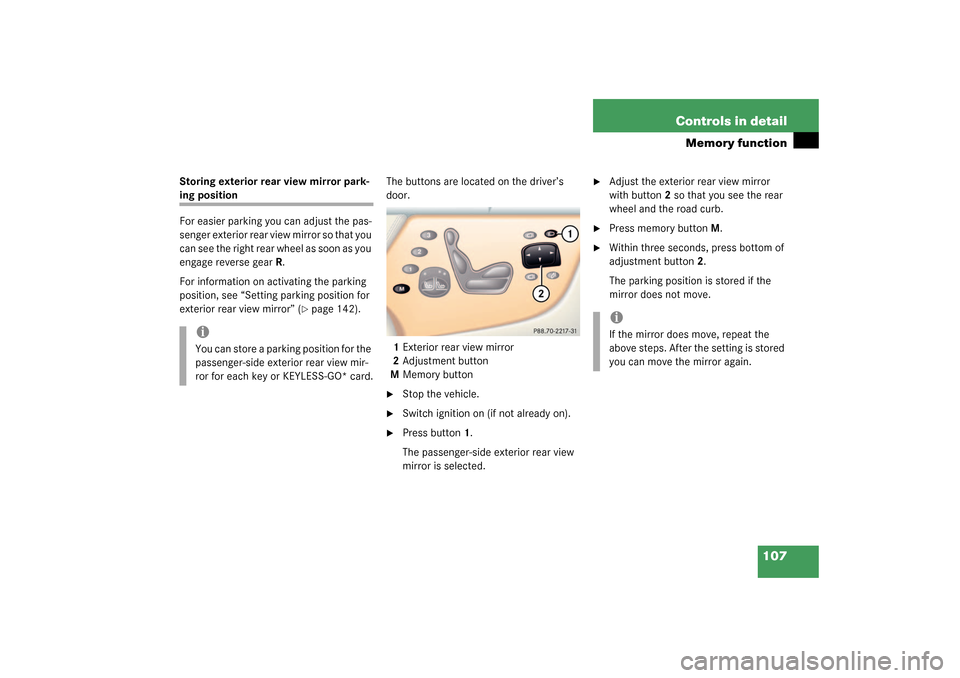

107 Controls in detail
Memory function
Storing exterior rear view mirror park-ing position
For easier parking you can adjust the pas-
senger exterior rear view mirror so that you
can see the right rear wheel as soon as you
engage reverse gearR.
For information on activating the parking
position, see “Setting parking position for
exterior rear view mirror” (
page 142).The buttons are located on the driver’s
door.
1Exterior rear view mirror
2Adjustment button
MMemory button

Stop the vehicle.

Switch ignition on (if not already on).

Press button1.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press memory button M.

Within three seconds, press bottom of
adjustment button2.
The parking position is stored if the
mirror does not move.
iYou can store a parking position for the
passenger-side exterior rear view mir-
ror for each key or KEYLESS-GO* card.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

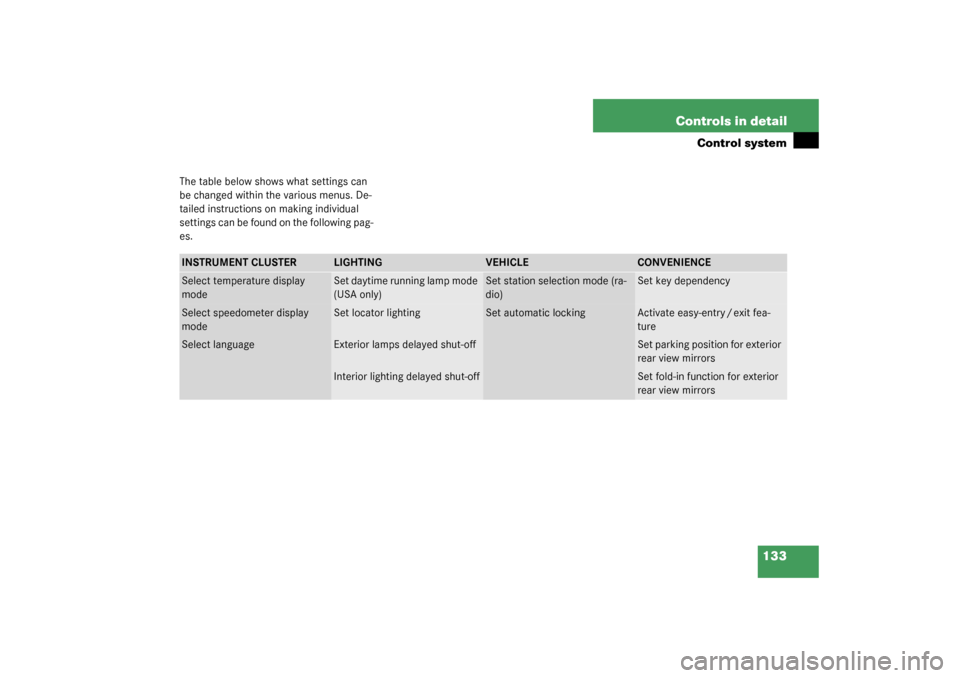

133 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Select temperature display
mode
Set daytime running lamp mode
(USA only)
Set station selection mode (ra-
dio)
Set key dependency
Select speedometer display
mode
Set locator lighting
Set automatic locking
Activate easy-entry / exit fea-
ture
Select language
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirrors
Interior lighting delayed shut-off
Set fold-in function for exterior
rear view mirrors

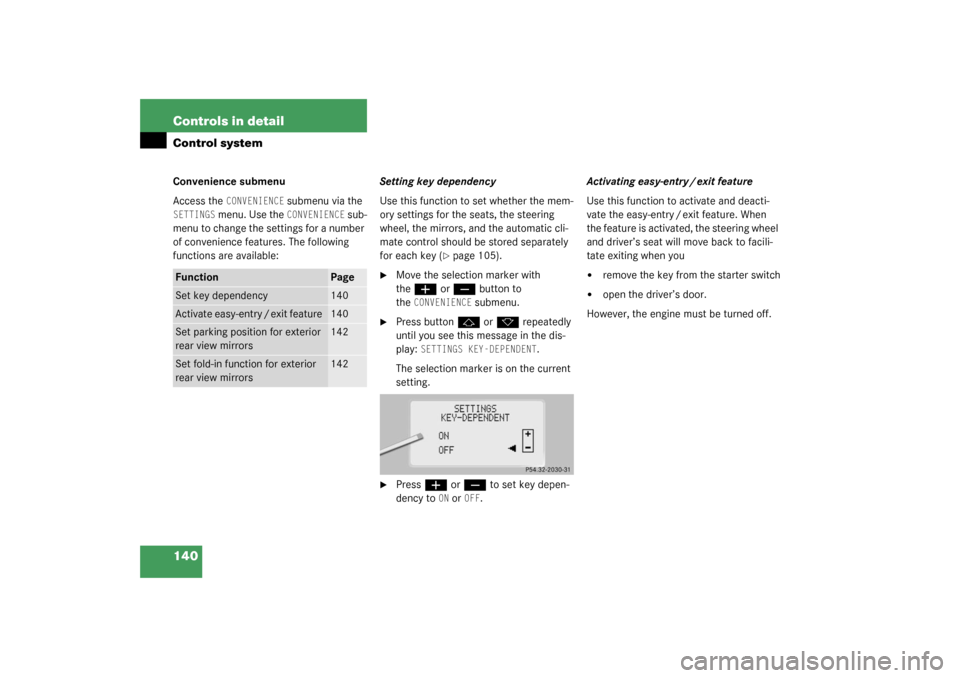

140 Controls in detailControl systemConvenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel, the mirrors, and the automatic cli-
mate control should be stored separately
for each key (
page 105).

Move the selection marker with
the
æ
or
ç
button to
the
CONVENIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
. Activating easy-entry / exit feature
Use this function to activate and deacti-
vate the easy-entry / exit feature. When
the feature is activated, the steering wheel
and driver’s seat will move back to facili-
tate exiting when you


remove the key from the starter switch


open the driver’s door.
However, the engine must be turned off.
Function
Page
Set key dependency
140
Activate easy-entry / exit feature
140
Set parking position for exterior
rear view mirrors
142
Set fold-in function for exterior
rear view mirrors
142
