14 IntroductionWhere to find it
Where to find itThis Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. For you to
find information quickly each section has
its own reference color:At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
H e r e y o u w i l l f i n d d e s c r i p t i o n s o f t h e s a f e t y
features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual


the Service Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.
S203 MY03_A.book Page 14 Tuesday, January 28, 2003 2:22 PM

16 IntroductionOperating safety
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:

the safety precautions in this manual


the “Technical data” section in this
manual


traffic rules and regulations


motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modification made may
produce an undesired effect on other sys-
tems.
Electronic system malfunctions could seri-
ously impair the operating safety of your ve-
hicle.
Ensure that any repairs or modifications to
electronic components are carried out by an
authorized Mercedes-Benz Center.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
S203 MY03_A.book Page 16 Tuesday, January 28, 2003 2:22 PM

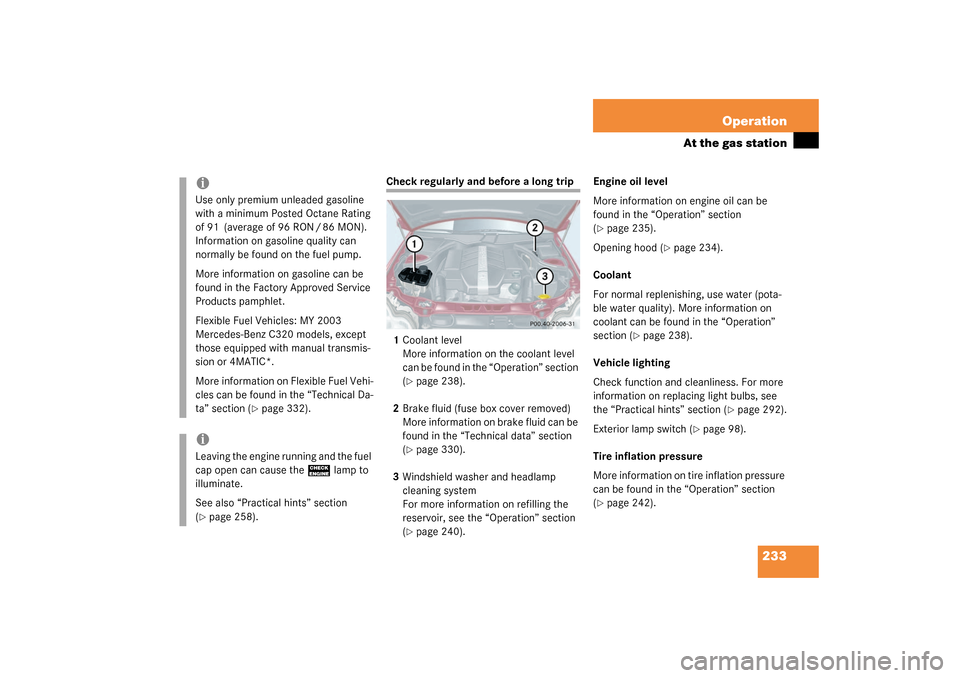

233 Operation
At the gas station
Check regularly and before a long trip
1Coolant level
More information on the coolant level
can be found in the “Operation” section
(
page 238).
2Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
(page 330).
3Windshield washer and headlamp
cleaning system
For more information on refilling the
reservoir, see the “Operation” section
(page 240).Engine oil level
More information on engine oil can be
found in the “Operation” section
(
page 235).
Opening hood (
page 234).
Coolant
For normal replenishing, use water (pota-
ble water quality). More information on
coolant can be found in the “Operation”
section (
page 238).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the “Practical hints” section (
page 292).
Exterior lamp switch (
page 98).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 242).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Flexible Fuel Vehicles: MY 2003
Mercedes-Benz C320 models, except
those equipped with manual transmis-
sion or 4MATIC*.
More information on Flexible Fuel Vehi-
cles can be found in the “Technical Da-
ta” section (
page 332).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
See also “Practical hints” section
(
page 258).
S203 MY03_A.book Page 233 Tuesday, January 28, 2003 2:22 PM

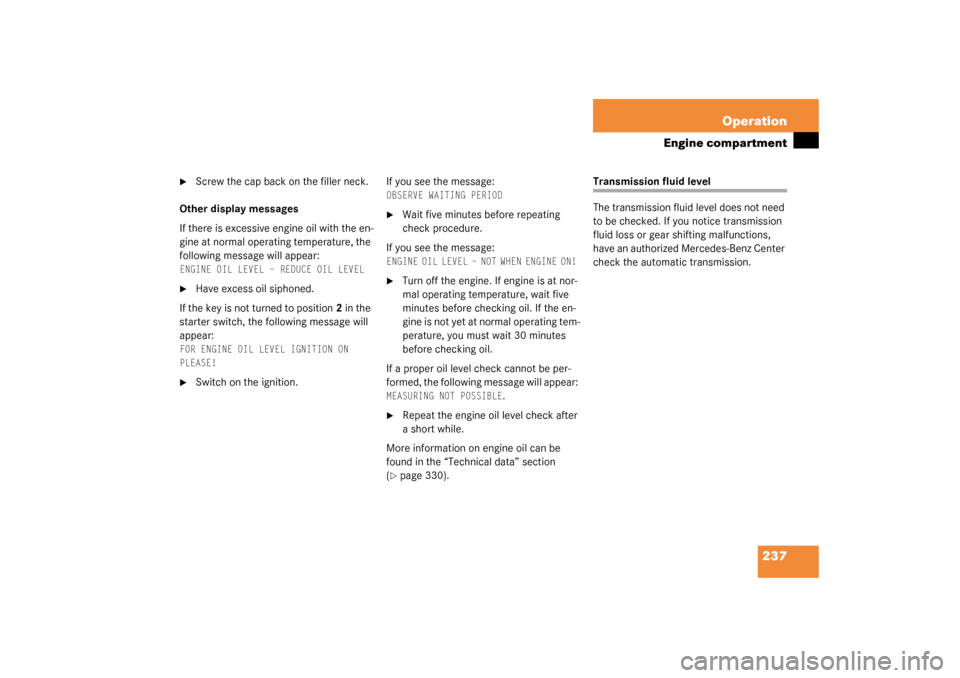

237 Operation
Engine compartment

Screw the cap back on the filler neck.
Other display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:
ENGINE OIL LEVEL – REDUCE OIL LEVEL
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch, the following message will
appear:
FOR ENGINE OIL LEVEL IGNITION ON
PLEASE!
Switch on the ignition.If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL – NOT WHEN ENGINE ON!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.
If a proper oil level check cannot be per-
formed, the following message will appear:
MEASURING NOT POSSIBLE
.

Repeat the engine oil level check after
a short while.
More information on engine oil can be
found in the “Technical data” section
(
page 330).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
S203 MY03_A.book Page 237 Tuesday, January 28, 2003 2:22 PM

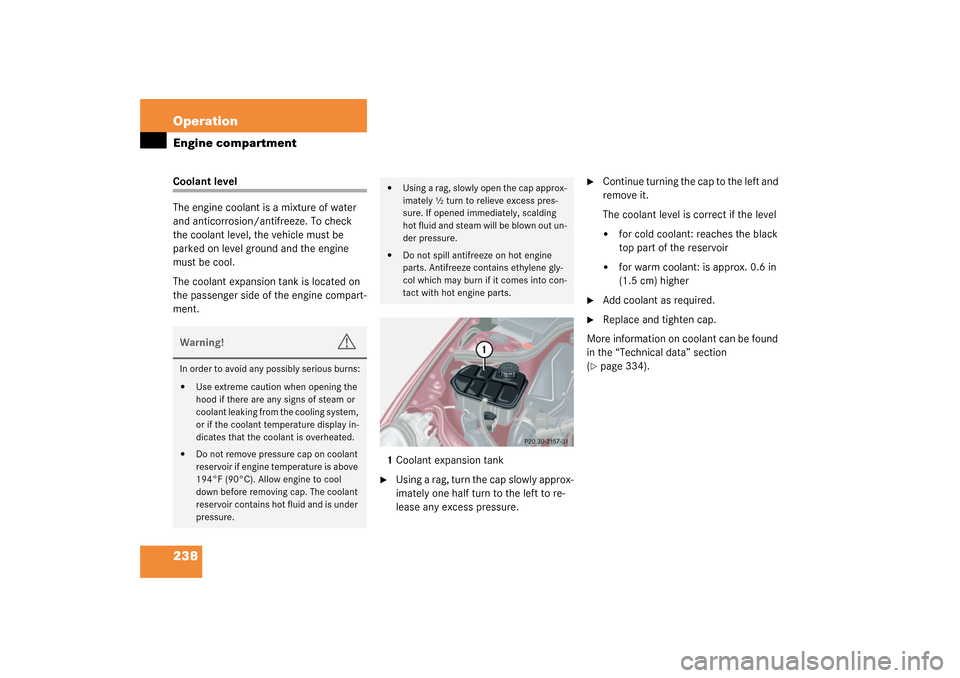

238 OperationEngine compartmentCoolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank

Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level

for cold coolant: reaches the black
top part of the reservoir


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
More information on coolant can be found
in the “Technical data” section
(
page 334).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display in-
dicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately ½ turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
S203 MY03_A.book Page 238 Tuesday, January 28, 2003 2:22 PM

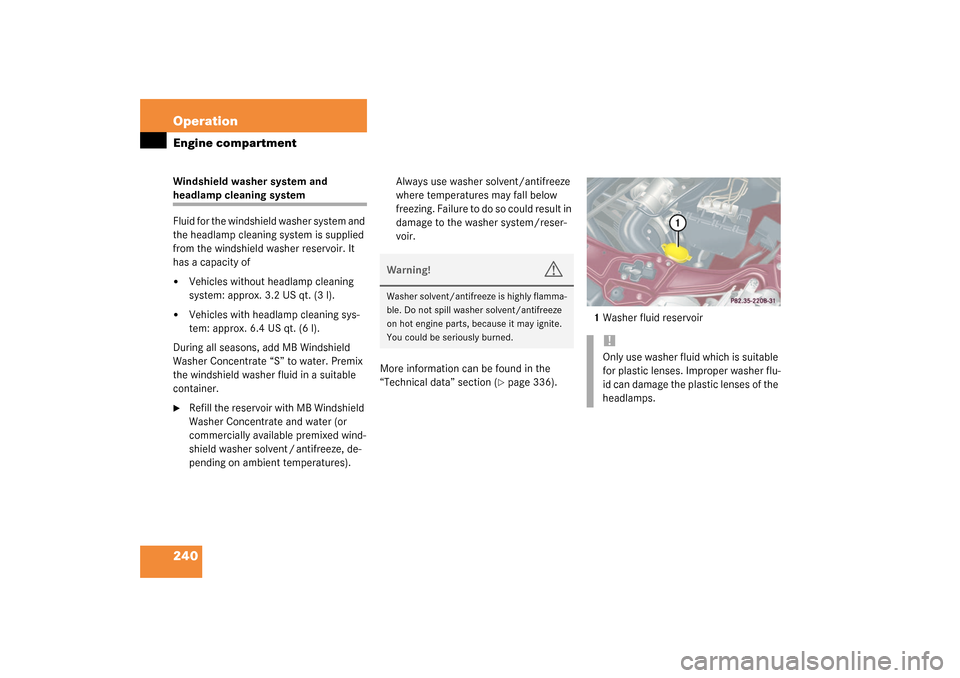

240 OperationEngine compartmentWindshield washer system and headlamp cleaning system
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of

Vehicles without headlamp cleaning
system: approx. 3.2 US qt. (3 l).


Vehicles with headlamp cleaning sys-
tem: approx. 6.4 US qt. (6 l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent / antifreeze, de-
pending on ambient temperatures).Always use washer solvent/antifreeze
where temperatures may fall below
freezing. Failure to do so could result in
damage to the washer system/reser-
voir.
More information can be found in the
“Technical data” section (
page 336).1Washer fluid reservoir
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite.
You could be seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.
S203 MY03_A.book Page 240 Tuesday, January 28, 2003 2:22 PM

283 Practical hints
Where will I find ...?
3Arrow
4Minispare wheel
5Luggage bowl
Remove luggage bowl5.

Remove Minispare wheel4.Storing the Minispare wheel

Place Minispare wheel4 in wheel well.

Place luggage bowl5 in Minispare
wheel.

Place storage well casing2 and turn
the retaining screw1 clockwise as far
as it will go to secure the Minispare
wheel.
In the case of a flat tire, you may tempo-
rarily use the Minispare wheel when ob-
serving the following restrictions:


Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
More information can be found in the
“Technical data” section (
page 317).
iThe arrow3 on luggage bowl5 must
point in the direction of travel, other-
wise you cannot place the storage well
casing on top and secure the Minispare
wheel with the retaining screw.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The spare wheel should only be used tempo-
rarily, and replaced with a regular road
wheel as quick as possible.
S203 MY03_A.book Page 283 Tuesday, January 28, 2003 2:22 PM

317 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information
S203 MY03_A.book Page 317 Tuesday, January 28, 2003 2:22 PM
