114 Controls in detailControl systemOperate the cassette player
Turn on the radio and select the cas-
sette player (
page 170) Vehicles
with COMAND*: Refer to separate op-
erating instructions.

Press button
è
or
ÿ
repeatedly
until the settings for the cassette cur-
rently being played are shown in the
display.
1Current side

Press button
j
to fast forward to
the next track.

Press button
k
to rewind the cas-
sette to the beginning of the current
track.
NAVI menu
The
NAV
menu contains the functions need-
ed to operate your navigation system.

Press button
è
or
ÿ
repeatedly
until you see the message NAV
in the
display.


If the navigation system is switched off,
the message
NAV OFF
is shown in the
display.


If the navigation system is on, the mes-
sage
NAV ACTIVE
is shown in the dis-
play.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iTo select the reverse side of the tape,
press button below track number on
the audio system display, or enter re-
quest on the COMAND* system locat-
ed in the center dashboard.
S203 MY03_A.book Page 114 Tuesday, January 28, 2003 2:22 PM

125 Controls in detail
Control system
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio
(page 113).

Move the selection marker with
the
æ
or
ç
button to the
VEHI-
CLE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
PRESS BUTTON IN AUDIO MODE
.The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired station selection mode. You can
select:


STATION SEARCH


MEMORY
selects next stored stationSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
the
æ
or
ç
button to the “Vehi-
cle submenu”.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
AUTOMAT-
IC DOOR LOCK
ON or
OFF
.
S203 MY03_A.book Page 125 Tuesday, January 28, 2003 2:22 PM

163 Controls in detail
Audio system
Item
Page
1
CD mode selector
174
2
Manual tuning
(radio)
168
Fast forward/reverse
(cassette, CD)
172,
176
Speed dialing memory
(telephone*)
181
3
Radio mode selector
167
4
Display
Item
Page
5
Alpha-numeric keypadBand selection,
station buttons (radio)
167
CD selection (CD)
175
Telephone number entry,
retrieving speed dialing
memory (telephone*)
178
6
Scanning (radio, cas-
sette, CD)
169,
172,
176
7
Function button
168
8
Soft keys
164
Item
Page
9
Cassette eject
171
10
Cassette mode selector
170
11
Telephone* mode selec-
tor
178
12
Seek tuning (radio)
168
Track search (cassette,
CD)
171,
176
Speed dialing memory
(telephone*)
181
13
On /off
164
Volume
164
S203 MY03_A.book Page 163 Tuesday, January 28, 2003 2:22 PM

167 Controls in detail
Audio system
You can select from among the follow-
ing settings:

DRV
: The tone level is set to the
“Driver” position, sound is directed
toward the passengers.


SP: The tone level is set for
“Speech”, optimizing the sound for
spoken language.


AMB
: The tone level is set for “Ambi-
ence”, producing a three-dimen-
sional sound.


OFF
: The audio system sound selec-
tion is turned off.
Telephone* muting
If a telephone has been installed in the ve-
hicle, the radio will switch to telephone
mode when a call is received. The current
audio source is muted.
Radio mode
Selecting radio mode
Press the
b
button.
Selecting the band
You can select from among FM, AM or WB
frequency bands.
FM frequency band:
FM (ultra-short wave) 87.9......107.9 MHz
AM frequency bands:
MW (medium wave) 530......1710 KHz
WB (long wave) approx. 162 KHzSelecting FM band

Press the
FM function button.
FM appears in the upper right-hand cor-
ner of the display.
Selecting AM band

Press the
AM function button.
AM appears in the upper right-hand cor-
ner of the display.
Selecting a station
The following options are available for se-
lecting a station:


Direct frequency band input


Manual tuning


Automatic seek tuning


Scan tuning


Station buttons


Automatic station memory (Autostore)
S203 MY03_A.book Page 167 Tuesday, January 28, 2003 2:22 PM

216 Controls in detailUseful featuresUpgrade signals
The Tele Aid system processes calls using
the following priority.

Automatic emergency – First priority


Manual emergency – Second priority


Roadside assistance – Third priority


Information – Fourth priority
Should a higher priority call be initiated
while you are connected, an upgrade (al-
ternating) tone will be heard, and the ap-
propriate indicator lamp will flash. If
certain information such as vehicle identi-
fication number or customer information is
not available, the operator may need to re-
transmit.
During this time you will hear a beep and
voice contact will be interrupted. Voice
contact will resume once the retransmis-
sion is completed. Once a call is conclud-
ed, a beep will be heard and the
appropriate indicator lamp will stop flash-
ing. The COMAND* system operation will
resume.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Cus-
tomer Service at 1-800-387-0100 in
Canada.iThe indicator lamp in the respective
button flashes until the call is conclud-
ed. Calls can only be terminated by a
Response Center or Customer Assis-
tance Center representative except
Roadside Assistance and Information
calls, which can also be terminated by
pressing button
ì
on the multifunc-
tion steering wheel.
iWhen a Tele Aid call has been initiated,
the audio system or the COMAND* sys-
tem audio is muted and the selected
mode (radio, tape or CD) pauses. The
optional cellular phone (if installed)
switches off. If you must use this
phone, the vehicle must be parked. Dis-
connect the coiled cord and place the
call. The COMAND* navigation system
(if engaged) will continue to run. The
display in the instrument cluster is
available for use and spoken com-
mands are only available by pressing
the RPT button on the COMAND* unit.
A pop-up window will appear in the
COMAND* display to indicate that a
Tele Aid call is in progress.
S203 MY03_A.book Page 216 Tuesday, January 28, 2003 2:22 PM

358 Index
Tailgate 277
Tele Aid* 277
Telephone* 277
Washer fluid 278
Multifunction steering wheel 24, 108,
341
Buttons 108
N
Navigation system
Operating 114
See separate COMAND* operating in-
structions
Network provider 131
Night security illumination 100
Setting 122
O
Occupant safety 56
Airbags 57
Children and airbags 58
Children in the vehicle 65
Fastening the seat belt 40
Infant and child restraint systems 65
LATCH child seat anchors 70
Seat belts 40, 59
Odometer, main 23Oil
Adding 236
Checking level 235
Consumption 235
Dipstick 235
Filler neck 236
Oil level
Checking 233
One-touch gearshifting 136
Canceling gear range limit 136
Downshifting 136
Upshifting 136
Opening
Ashtray 207
Doors from the inside 88
Fuel filler flap 232
Fuel filler flap manually 288
Glove box 203
Hood 234
Side windows 185
Sliding/pop-up roof 187, 290
Sliding/pop-up roof in an
emergency 290
Sliding/pop-up roof with
SmartKey 188
Tailgate 87Windows 184
Windows with SmartKey 186
Operating
Audio system 161
Cassette player 114
CD player 113
COMAND* see separate operating in-
structions
Garage door opener 220
Integrated remote control 220
Navigation system 114
Radio 113
Radio transmitter 230
Safety 16
Telephone 161
Telephone* 131, 178
Vehicle outside the USA and
Canada 13
Operating safety 16
Audio system 161
Operator’s Manual 10
Ornamental moldings 250
Outer seats
Rear seat head restraints 92
Outside temperature indicator 106
Overdue service 246
S203 MY03_A.book Page 358 Tuesday, January 28, 2003 2:22 PM

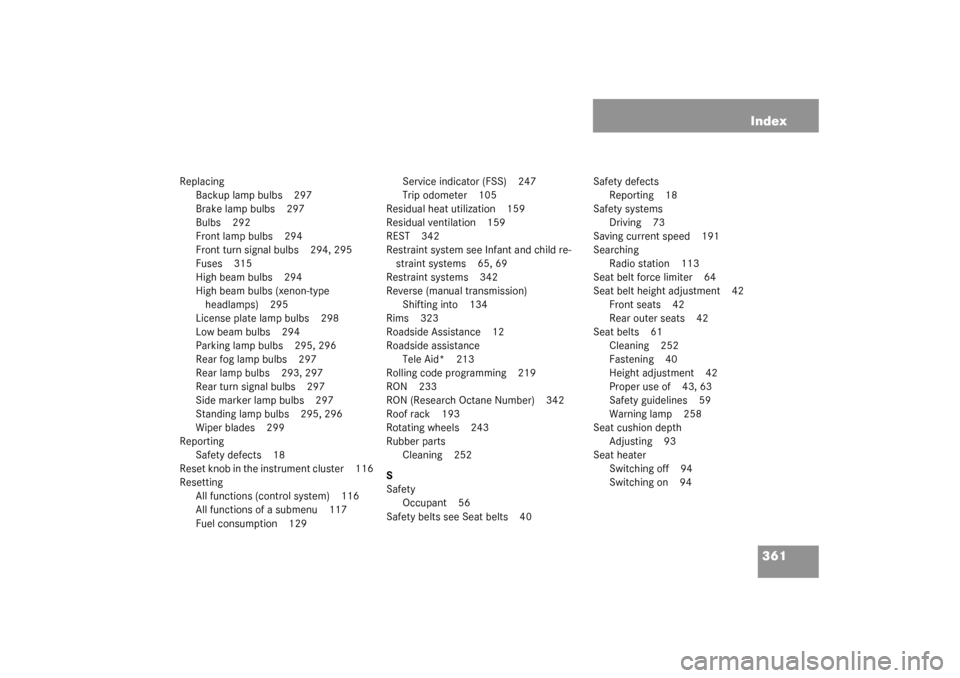

361 Index
Replacing
Backup lamp bulbs 297
Brake lamp bulbs 297
Bulbs 292
Front lamp bulbs 294
Front turn signal bulbs 294, 295
Fuses 315
High beam bulbs 294
High beam bulbs (xenon-type
headlamps) 295
License plate lamp bulbs 298
Low beam bulbs 294
Parking lamp bulbs 295, 296
Rear fog lamp bulbs 297
Rear lamp bulbs 293, 297
Rear turn signal bulbs 297
Side marker lamp bulbs 297
Standing lamp bulbs 295, 296
Wiper blades 299
Reporting
Safety defects 18
Reset knob in the instrument cluster 116
Resetting
All functions (control system) 116
All functions of a submenu 117
Fuel consumption 129Service indicator (FSS) 247
Trip odometer 105
Residual heat utilization 159
Residual ventilation 159
REST 342
Restraint system see Infant and child re-
straint systems 65, 69
Restraint systems 342
Reverse (manual transmission)
Shifting into 134
Rims 323
Roadside Assistance 12
Roadside assistance
Tele Aid* 213
Rolling code programming 219
RON 233
RON (Research Octane Number) 342
Roof rack 193
Rotating wheels 243
Rubber parts
Cleaning 252
S
Safety
Occupant 56
Safety belts see Seat belts 40Safety defects
Reporting 18
Safety systems
Driving 73
Saving current speed 191
Searching
Radio station 113
Seat belt force limiter 64
Seat belt height adjustment 42
Front seats 42
Rear outer seats 42
Seat belts 61
Cleaning 252
Fastening 40
Height adjustment 42
Proper use of 43, 63
Safety guidelines 59
Warning lamp 258
Seat cushion depth
Adjusting 93
Seat heater
Switching off 94
Switching on 94
S203 MY03_A.book Page 361 Tuesday, January 28, 2003 2:22 PM

364 IndexStanding water
Driving instructions 229
Starter switch 21, 31
Positions 31
Starting difficulties 45
Starting position 31
Starting the engine 44
Station (radio)
Search 113
Station selection
Setting 125
Steel rims
Technical data 323
Steering column
Height adjustment 37, 38
Length adjustment 37, 38
Steering gear oil
Message in display 276
Steering wheel
Adjusting 37
Buttons 24
Cleaning 251
Electrical adjustment 38
Height adjustment 38
Manual adjustment 37Stolen vehicle
Tracking services 217
Stopping
Sliding/pop-up roof 188
Windows 185
Storage compartments
Armrest 205
Cargo compartment 197
Glove box 203
Ventilated compartments 150
Storage spaces
Cup holder 204
Storing (Memory function*)
Positions into memory 96
Submenus 111
Convenience 126
For settings 109
In control system 111
Instrument cluster 118
Lighting 121
Resetting functions in Control
system 117
Selecting 116
Settings menu 116
Vehicle 124
Sun visors 143Switching
Fuel (Flexible fuel vehicle) 332
Switching off
Audio system 164
Automatic central locking (control
system) 125
Engine 52
ESP 77
Hazard warning flasher 101
Headlamps 52
Seat heating 94
Switching on
Audio system 164
Automatic central locking (control
system) 125
ESP 77
Front fog lamps 100
Hazard warning flasher 101
Headlamps 47
High beams 101
Rapid seat heating 94
Rear fog lamp 100
Seat heating 94
Windshield wipers 48S203 MY03_A.book Page 364 Tuesday, January 28, 2003 2:22 PM
