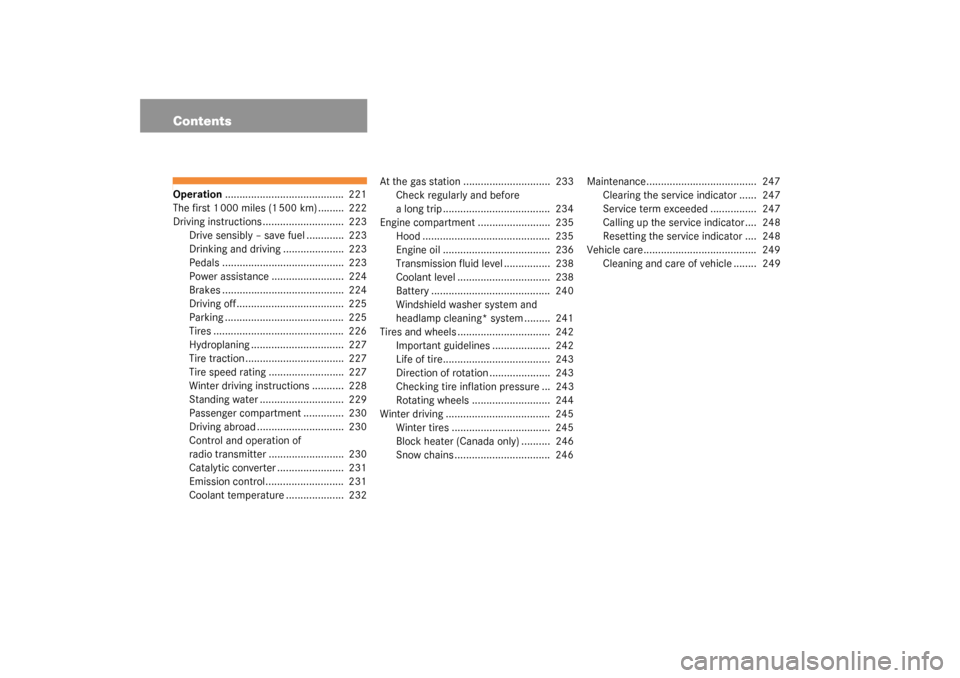

ContentsOperation......................................... 221
The first 1 000 miles (1 500 km) ......... 222
Driving instructions ............................ 223
Drive sensibly – save fuel ............. 223
Drinking and driving ..................... 223
Pedals .......................................... 223
Power assistance ......................... 224
Brakes .......................................... 224
Driving off..................................... 225
Parking ......................................... 225
Tires ............................................. 226
Hydroplaning ................................ 227
Tire traction .................................. 227
Tire speed rating .......................... 227
Winter driving instructions ........... 228
Standing water ............................. 229
Passenger compartment .............. 230
Driving abroad .............................. 230
Control and operation of
radio transmitter .......................... 230
Catalytic converter ....................... 231
Emission control........................... 231
Coolant temperature .................... 232At the gas station .............................. 233
Check regularly and before
a long trip ..................................... 234
Engine compartment ......................... 235
Hood ............................................ 235
Engine oil ..................................... 236
Transmission fluid level ................ 238
Coolant level ................................ 238
Battery ......................................... 240
Windshield washer system and
headlamp cleaning* system ......... 241
Tires and wheels ................................ 242
Important guidelines .................... 242
Life of tire..................................... 243
Direction of rotation ..................... 243
Checking tire inflation pressure ... 243
Rotating wheels ........................... 244
Winter driving .................................... 245
Winter tires .................................. 245
Block heater (Canada only) .......... 246
Snow chains ................................. 246Maintenance...................................... 247
Clearing the service indicator ...... 247
Service term exceeded ................ 247
Calling up the service indicator .... 248
Resetting the service indicator .... 248
Vehicle care....................................... 249
Cleaning and care of vehicle ........ 249

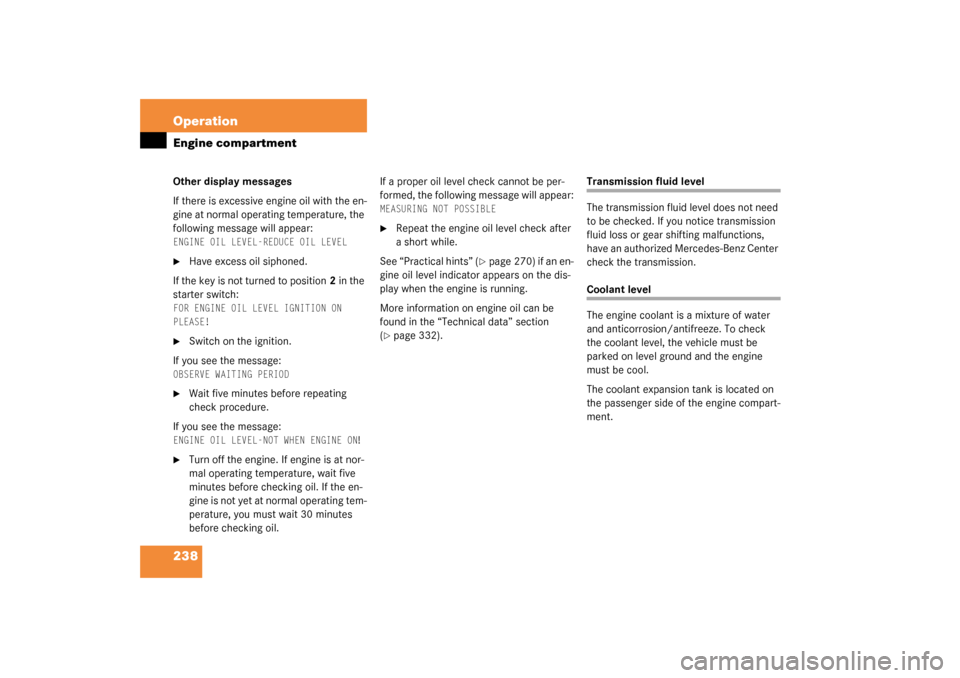

238 OperationEngine compartmentOther display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear: ENGINE OIL LEVEL-REDUCE OIL LEVEL
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch:
FOR ENGINE OIL LEVEL IGNITION ON
PLEASE!
Switch on the ignition.
If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL-NOT WHEN ENGINE ON
!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.If a proper oil level check cannot be per-
formed, the following message will appear:
MEASURING NOT POSSIBLE
Repeat the engine oil level check after
a short while.
See “Practical hints” (
page 270) if an en-
gine oil level indicator appears on the dis-
play when the engine is running.
More information on engine oil can be
found in the “Technical data” section
(
page 332).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
349 Index
Automatic transmission 138
Accelerator position 143
Emergency operation
(Limp Home Mode) 143
Fluid level 238
Gear ranges 140
Gear selector lever position 141
Gear shifting malfunctions 143
Kickdown 143
Manual shifting 139
One-touch gearshifting 139
Program mode selector switch 142
Selector lever position 138
Starting with 44
Transmission fluid 238
Winter program mode 142
Auxiliary fuse box 313
B
BabySmart
TM
Airbag deactivation system 67, 341
Compatible child seats 67, 341
Self-test 67
Backrest
Folding forward 200
Folding rearward 200
Backrest tilt 33Backup lamps 291, 295
Bulbs 291
BAS 74, 341
Messages in display 263
Batteries, SmartKey
Changing 286, 287
Check lamp 85
Checking 86
Battery discharged
Jump starting 306
Battery, vehicle 240, 303
Charging 304
Disconnecting 304
Messages in display 278
Reconnecting 305
Reinstalling 304
Removing 304
Bi-Xenon headlamps* 341
Bi-Xenon type*
Front lamp bulbs 293
Block heater 246
Blocking
Rear door window operation 71
Bolts
For Minispare wheel 284
For spare wheel 282Brake assist system (BAS) 341
Brake fluid 332
Checking 234
Brake lamp bulbs 291
Brake lamp, high mounted 291
Brake pads
Message in display 265
Brakes 224
Warning lamp 258
Break-in period 222
Bulbs, replacing 290
Additional turn signals 290
Backup lamps 291
Brake lamps 291
Fog lamps 290
Front lamps 290
High beam 290
High mounted brake lamp 291
License plate lamps 291, 295
Low beam 290
Parking lamps 290, 291, 293, 294
Rear fog lamp 291, 295
Side marker lamps 290, 294
Standing lamps 290, 291, 293, 294
Tail lamp assemblies 291, 295
Turn signal lamps 290, 291
