Page 251 of 376
251 Operation
Vehicle care
Vehicle washing
Do not use hot water or wash your vehicle
in direct sunlight. Use only a mild car wash
detergent, such as Mercedes-Benz
approved Car Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water. Direct only a very weak
spray towards the ventilation intake. Use
plenty of water and rinse the sponge and
chamois frequently.
Rinse with clear water and thoroughly dry
with a chamois. Do not allow cleaning
agents to dry on the finish.
Due to the width of the vehicle, fold in out-
side mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the underbody, do not for-
get to clean the inner sides of the wheels.Ornamental moldings
For regular cleaning and care of very dirty
chrome-plated parts, use a chrome
cleaner.
Headlamps, tail lamps, turn signal
lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
To prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the lenses. Do not at-
tempt to wipe dirty lenses with a dry cloth
or sponge.
Wiper blades
Clean the wiper blade inserts with a clean
cloth and detergent solution.Window cleaning
Use a window cleaning solution on all glass
surfaces. An automotive glass cleaner is
recommended.
iFor safety reasons, switch off wipers
and remove key from starter switch be-
fore cleaning the wiper blades, other-
wise the wiper motor can suddenly turn
on and cause injury.!Fold the windshield wiper arms back
onto the windshield before turning the
key in the starter switch.iFor safety reasons, switch off wipers
and remove key from starter switch be-
fore cleaning the windshield, otherwise
the wiper motor can suddenly turn on
and cause injury.
Page 261 of 376
261 Practical hints
What to do if …
Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 118) displays
both cleared and uncleared messages.
High-priority messages appear in the
multifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset knob.
Other messages of high priority and
messages of less immediate priority can
be cleared from the multifunction display
using the reset knob (page 22) and are
then stored in the malfunction message
memory (
page 118).On the pages that follow, you will find a
compilation of all the messages that may
appear in the display.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.
iTurning the key in starter switch to
position2, causes all lamps as well as
the multifunction display to come on.
Ensure that they are all in working
order before starting your journey.
Page 273 of 376
273 Practical hints
What to do if …
.
TURN SIGNAL, LR
CHECK LAMPS!
The left rear turn signal lamp is
malfunctioning.
Replace the bulb as soon as possible.
TURN SIGNAL, RR
CHECK LAMPS!
The right rear turn signal lamp is
malfunctioning.
Replace the bulb as soon as possible.
TURN SIG. IN MIRROR L
CHECK LAMPS!
The left turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.
Have the LEDs replaced as soon as
possible.
TURN SIG. IN MIRROR R
CHECK LAMPS!
The right turn signal in the side mirror is
malfunctioning. This message will only
appear if all light emitting diodes have
stopped working.
Have the LEDs replaced as soon as
possible.
TURN SIGNAL, LF
CHECK LAMPS!
The left front turn signal lamp is
malfunctioning.
Replace the bulb as soon as possible.
TURN SIGNAL, RF
CHECK LAMPS!
The right front turn signal lamp is
malfunctioning.
Replace the bulb as soon as possible.
BRAKE LAMP
VISIT WORKSHOP!
Brake lamp illumination is delayed or
lamp is permanently on.
Visit an authorized Mercedes-Benz
Center as soon as possible.
BRAKE LAMP, L
CHECK LAMPS!
The left brake lamp is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
BRAKE LAMP, R
CHECK LAMPS!
The right brake lamp is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Display
Possible cause
Suggested solution
Page 290 of 376
290 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
Bulbs Front lamps
iBackup bulbs will be brought into use
when the following lamps malfunction:
Standing lamps
Tail lamps
Rear fog lamp
Lamp
Type
1
Additional turn
signal lamps
LED
2
Turn signal lamp
Halogen
Turn signal lamp
Bi-Xenon*
1156 A
2357 A
3
Low beam Halogen
Low and high beam
H7 (55 W)
Bi-Xenon*
4
High beam
H7 (55 W)
Parking and
standing lamps
W5W
5
Fog lamp
HB4/9006
(55 W)
6
Side marker lamp
W5W
Page 291 of 376

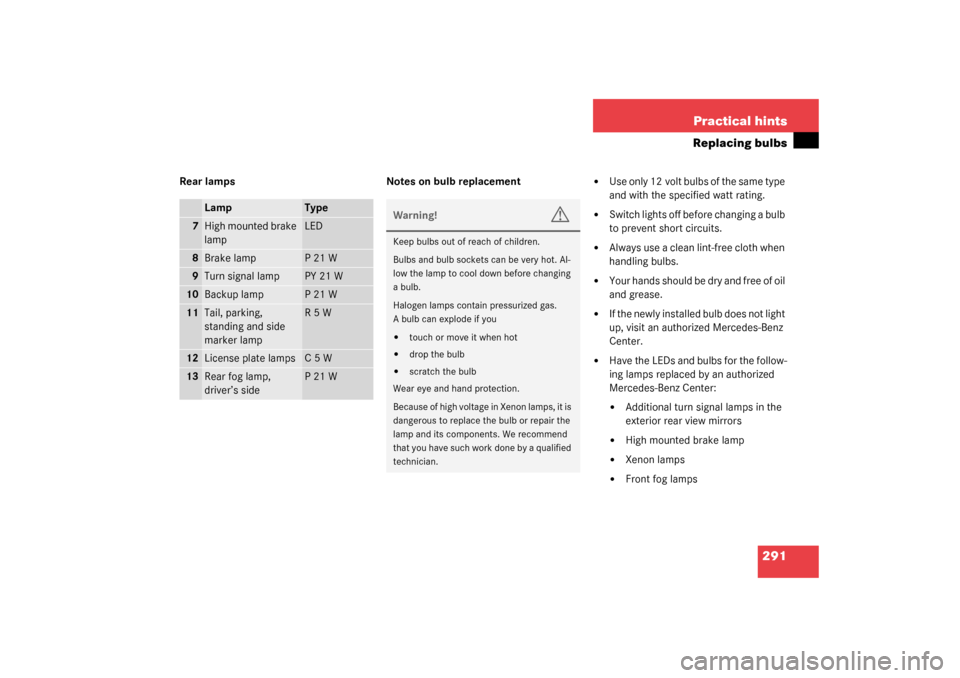

291 Practical hints
Replacing bulbs
Rear lamps Notes on bulb replacement
Use only 12 volt bulbs of the same type
and with the specified watt rating.
Switch lights off before changing a bulb
to prevent short circuits.
Always use a clean lint-free cloth when
handling bulbs.
Your hands should be dry and free of oil
and grease.
If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.
Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center:
Additional turn signal lamps in the
exterior rear view mirrors
High mounted brake lamp
Xenon lamps
Front fog lamps
Lamp
Type
7
High mounted brake
lamp
LED
8
Brake lamp
P21W
9
Turn signal lamp
PY 21 W
10
Backup lamp
P21W
11
Tail, parking,
standing and side
marker lamp
R5W
12
License plate lamps
C5W
13
Rear fog lamp,
driver’s side
P21W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas.
A bulb can explode if you
touch or move it when hot
drop the bulb
scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
Page 292 of 376
292 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Halogen headlamps
1Bulb socket for turn signal lamp
2Headlamp cover for high beam head-
lamp, parking and standing lamp
3Headlamp cover for low beam head-
lamp4Low beam headlamp bulb
5High beam headlamp bulb
6Bulb socket for parking and standing
lamp bulb
Low and high beam bulb
Switch off the lights.
Open the hood (
page 235).
Press the clamp and remove headlamp
cover2 or 3.
Pull electrical connector off.
Unclip the retainer springs and take out
the bulb.
Insert the new bulb so that the base
locates in the recess on the holder.
Clip the retainer springs and plug the
connector onto the bulb.
Align headlamp cover2 or 3 and click
into place.
Front turn signal lamp bulb
Switch off the lights.
Open the hood (
page 235).
Twist bulb socket1 counterclockwise
and pull out.
Push bulb into socket, turn counter-
clockwise and remove.
Insert new bulb in socket, push in and
twist clockwise.
Reinsert bulb socket in lamp and twist
clockwise.
Page 293 of 376
293 Practical hints
Replacing bulbs
Parking and standing lamp bulb
Switch off the lights.
Open the hood (
page 235).
Press the clamp and remove headlamp
cover2.
Pull out the bulb socket6 with the
bulb.
Pull the bulb out of the bulb socket.
Insert a new bulb in the socket.
Reinstall the bulb socket.
Align headlamp cover2 and click into
place.Bi-Xenon* headlamps
1Bulb socket for turn signal lamp
2Headlamp cover for high beam head-
lamp, parking and standing lamp
3Headlamp cover for Bi-Xenon lamp4High beam headlamp bulb
5Bayonet socket for high beam
headlamp bulb
6Bulb socket for parking and standing
lamp bulb
High beam bulb
Switch off the lights.
Open the hood (
page 235).
Press the clamp and remove headlamp
cover2.
Pull electrical connector4 off.
Warning!
G
Do not remove the cover3 for the Bi-Xenon
headlamp. Because of high voltage in
Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.
Page 294 of 376
294 Practical hintsReplacing bulbs
Twist bayonet socket5 counterclock-
wise to the stop (do not remove).
Pull the bulb out of the socket.
Insert the new bulb so that the base
locates in the recess in the bayonet
socket5.
Twist bayonet socket clockwise until
you hear it snap into place.
Plug the connector onto the bulb.
Align headlamp cover2 and click into
place.
Front turn signal lamp bulb
Switch off the lights.
Open the hood (
page 235).
Twist bulb socket1 counterclockwise
and pull out.
Push bulb into socket, turn counter-
clockwise and remove.
Insert new bulb in socket, push in and
twist clockwise.
Reinsert bulb socket in lamp and twist
clockwise.
Parking and standing lamp bulb
Switch off the lights.
Open the hood (
page 235).
Press the clamp and remove headlamp
cover2.
Pull out the bulb socket6 with the
bulb.
Pull the bulb out of the bulb socket.
Insert a new bulb in the socket.
Reinstall the bulb socket.
Align headlamp cover2 and click into
place.
Side marker lamp bulb
Switch off the lights.
Carefully slide lamp towards rear.
Remove front end first.
Twist bulb socket counterclockwise
and pull out.
Pull bulb out of the bulb socket.
Insert new bulb in socket.
Reinstall bulb socket, push in and twist
clockwise.
To reinstall lamp, set rear end in
bumper and let front end snap into
place.
