Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q94-EA-02G

Speedometer

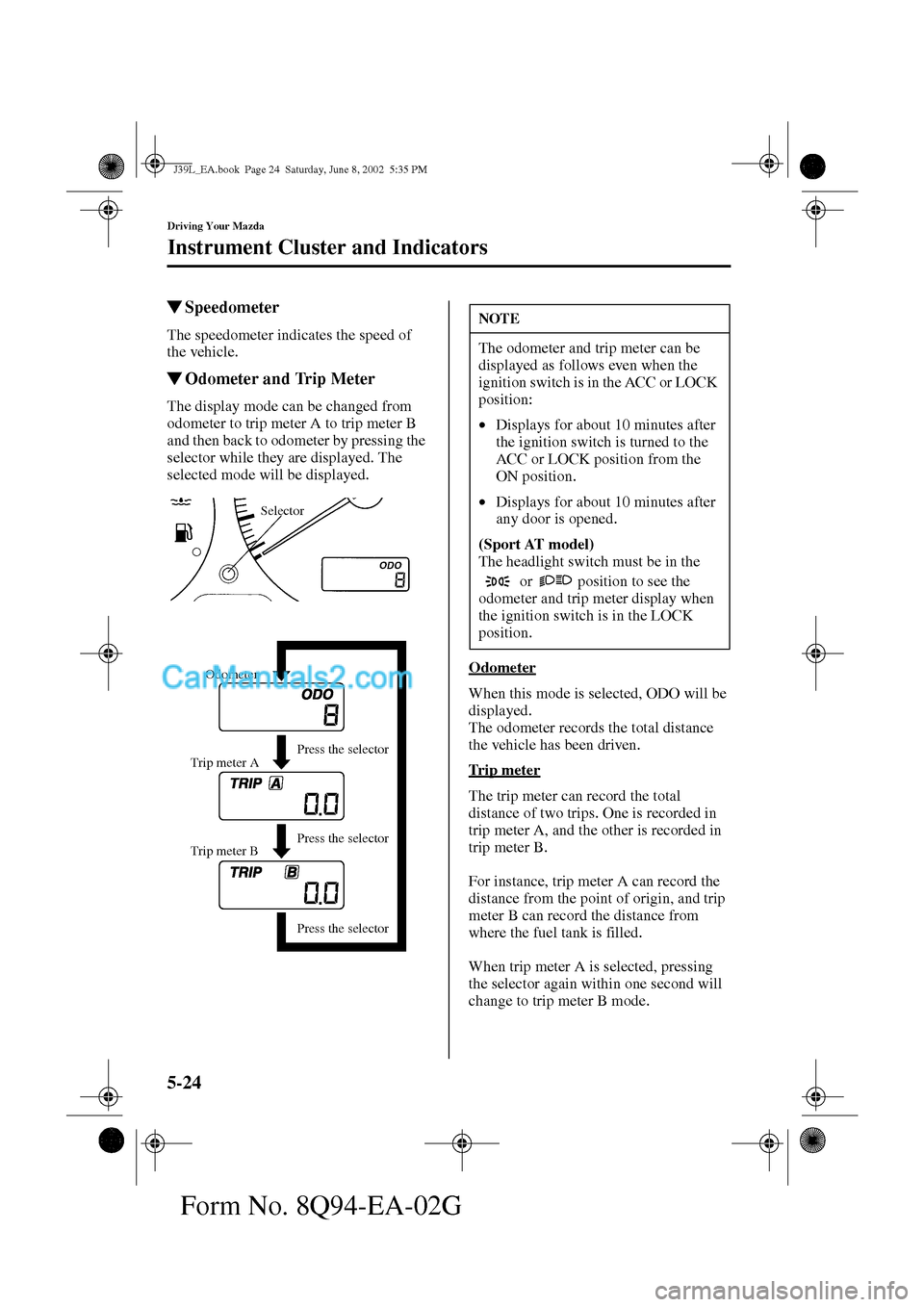

The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while they are displayed. The
selected mode will be displayed.
Odometer
When this mode is selected, ODO will be
displayed.
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
Selector
Odometer
Trip meter A Press the selector
Press the selector
Press the selector Trip meter B
NOTE
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the ACC or LOCK
position:
•Displays for about 10 minutes after
the ignition switch is turned to the
ACC or LOCK position from the
ON position.
•Displays for about 10 minutes after
any door is opened.
(Sport AT model)

The headlight switch must be in the
or position to see the
odometer and trip meter display when
the ignition switch is in the LOCK
position.
J39L_EA.book Page 24 Saturday, June 8, 2002 5:35 PM

5-25
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q94-EA-02G
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when;
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 999.9
km (mile).
Red zone
Don’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Driving with an overheated engine can
cause serious engine damage
(page 7-13).
CAUTION
CAUTION
J39L_EA.book Page 25 Saturday, June 8, 2002 5:35 PM

6-18
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G

Power/Volume/Sound Controls
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume knob to turn the
audio system on.
Press the power/volume knob again to
turn the audio system off.Volume adjustmentTo adjust the volume, turn the power/
volume knob.
Turn the power/volume knob to the right
to increase volume, to the left to decrease
it.
Display
Audio control knob Power/Volume knob
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period when the
engine is not running.
J39L_EA.book Page 18 Saturday, June 8, 2002 5:35 PM

6-19
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G
Audio sound adjustment
1. Press the audio control knob to select
bass, mid-range, treble, fade or balance
control. The selected function will be
indicated.
*If your vehicle is not equipped with
rear speakers, adjust the power/volume
knob so level is even.
2. Turn the audio control knob to adjust
the selected functions as follows:
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-rangeIncrease
mid-range
Decrease
trebleIncrease
treble
Shift the sound
to the frontShift the sound
to the rear
Shift the sound
to the leftShift the sound
to the right
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control knob for 2
seconds. The unit will beep and "CL"
will be displayed.
J39L_EA.book Page 19 Saturday, June 8, 2002 5:35 PM

6-20
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. To advance the hours, press the hour
set button ( ). To advance the minutes,
press the minute set button ( ) while
the time is flashing.
3. Press the clock button ( ) again
to start the clock.Exact hour adjustment 1. To set the exact hour, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. Press the clock button ( ) again
and the time will be adjusted as
follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00
Display Clock button
Hour set
button
Minute set
button
NOTE
If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle’s battery is disconnected), the
clock will need to be reset.
J39L_EA.book Page 20 Saturday, June 8, 2002 5:35 PM

6-21
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G
Changing the display mode
The display on the unit can be changed by
pressing the clock button ( ). This
alternates the display between time and
audio. When the clock mode has been
selected, the time will be displayed.
NOTE
If audio operation is selected while the
time mode is on, the selected audio
mode will be displayed for ten
seconds, then the display will revert to
the time mode.
J39L_EA.book Page 21 Saturday, June 8, 2002 5:35 PM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G

Operating the Radio
Radio ON
Press a band selector button ( or
) to turn the radio on.
Band selection
Choose AM by pressing the AM button
( ) and FM by pressing the FM1/2
button ( ).
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tu n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Turning the manual tuning knob will
change the frequency higher or lower.
Band selector buttons Display
Channel preset buttonsScan button
Auto memory
button
Manual tunin
g knob Seek tuning:
Higher
frequency
Lower
frequency
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
J39L_EA.book Page 22 Saturday, June 8, 2002 5:35 PM

6-23
Interior Comfort
Au di o S ys t em
Form No. 8Q94-EA-02G
Seek tuning
Pressing the seek tuning button ( , )
will cause the tuner to seek a higher or
lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The six preset channels can be used to
store 6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the station you want.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
