In Case of an Emergency
Overheating
Form No. 8Q94-EA-02G
Cooling System Caps:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove either
cooling system cap when the engine
and radiator are hot.
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made.
WARNING
CAUTION
J39L_EA.book Page 14 Saturday, June 8, 2002 5:35 PM

7-15
In Case of an Emergency
Form No. 8Q94-EA-02G
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and
hold it there.
2. Turn the ignition switch to the START
position and hold it there—for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it
without using the accelerator—for up
to 10 seconds.Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one
with a low fluid level is dangerous. It
may rupture or explode, causing
serious injury.
Don’t jump-start a frozen battery or
one with a low fluid level.
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J39L_EA.book Page 15 Saturday, June 8, 2002 5:35 PM

7-16
In Case of an Emergency
Emergency Starting
Form No. 8Q94-EA-02G
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.

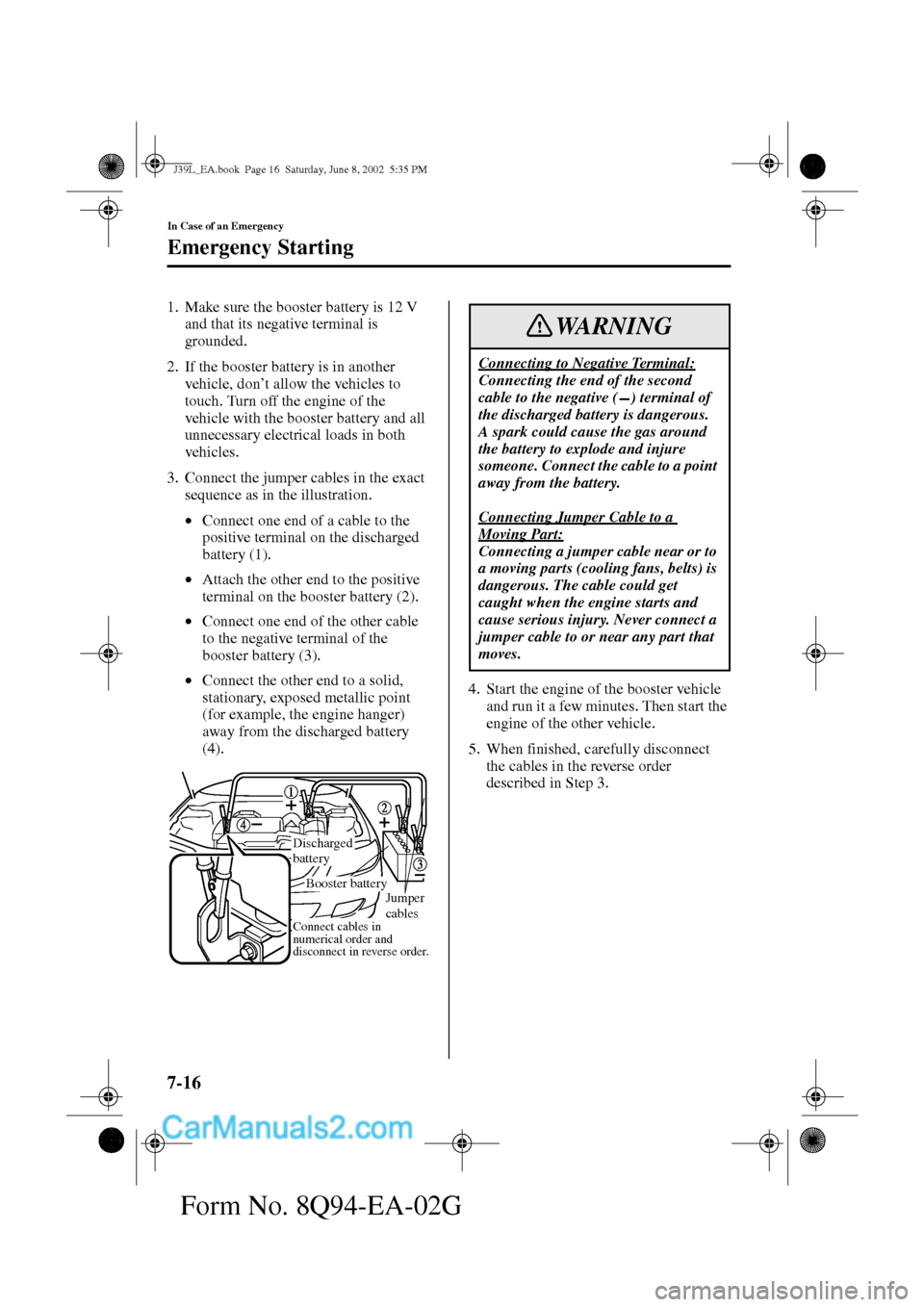

3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Booster battery Discharged
batteryJumper
cables
Connect cables in
numerical order and
disconnect in reverse order
.
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative ( ) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
Connecting Jumper Cable to a
Moving Part:
Connecting a jumper cable near or to
a moving parts (cooling fans, belts) is
dangerous. The cable could get
caught when the engine starts and
cause serious injury. Never connect a
jumper cable to or near any part that
moves.
WARNING
J39L_EA.book Page 16 Saturday, June 8, 2002 5:35 PM

7-17
In Case of an Emergency
Emergency Starting
Form No. 8Q94-EA-02G
You can’t start a vehicle with an automatic
transaxle by pushing it.
Push-Starting
Towing a Vehicle to Start It:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured. Never tow a vehicle to start it.
You shouldn’t push-start a vehicle that
has a manual transaxle. It can damage
the emission control system.
WARNING
CAUTION
J39L_EA.book Page 17 Saturday, June 8, 2002 5:35 PM

8-1
Form No. 8Q94-EA-02G
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-6
Owner Maintenance Schedule ................................................... 8-6
Owner Maintenance Precautions ............................................... 8-7
Engine Compartment Overview ................................................ 8-8
Engine Oil .................................................................................. 8-9
Engine Coolant ........................................................................ 8-12
Brake/Clutch Fluid .................................................................. 8-14
Power Steering Fluid ............................................................... 8-16
Automatic Transaxle Fluid (ATF) ........................................... 8-16
Washer Fluid ............................................................................ 8-18
Body Lubrication ..................................................................... 8-19
Air Filter .................................................................................. 8-19
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-23
Tires ......................................................................................... 8-24
Light Bulbs .............................................................................. 8-29
Fuses ........................................................................................ 8-38
Appearance Care
......................................................................... 8-42
How to Minimize Environmental Paint Damage ..................... 8-42
Exterior Care ........................................................................... 8-44
Interior Care ............................................................................ 8-47
J39L_EA.book Page 1 Saturday, June 8, 2002 5:35 PM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8Q94-EA-02G

Schedule 1
I
: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R
: Replace
L
: Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*1 According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage period to ensure long-term reliability.
Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine valve clearanceI
Engine timing belt Inspect at 96,000km (60,000 miles)
Replace every 168,000 km (105,000 miles)
Drive belts (tension) II
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Idle speedII
Air filterRR
Fuel lines and hoses
*1II
Hoses and tubes for emission*1I
Spark plugsRR
Brake lines, hoses and connectionsII
Disc brakesII
Drum brakesII
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Refrigerant amountIIII
Compressor operationIIII
J39L_EA.book Page 4 Saturday, June 8, 2002 5:35 PM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8Q94-EA-02G

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R
: Replace
L
: Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*1 According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage period to ensure long-term reliability
*2 If the vehicle is operated in cold districts { below -18 degrees C (0 degrees F) }, replace the timing belt at
96,000 km (60,000 miles).
Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine valve clearanceI
Engine timing belt
*2Inspect at 96,000 km (60,000 miles)
Replace every 168,000 km (105,000 miles)
Drive belts (tension) II
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Idle speedII
Air filter
I
*1R
I*1R
Fuel lines and hoses*1II
Hoses and tubes for emission*1I
Spark plugsRR
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake and clutch fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakesII
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
J39L_EA.book Page 5 Saturday, June 8, 2002 5:35 PM

8-6
Maintenance and Care
Form No. 8Q94-EA-02G
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•Brake and clutch fluid level (page 8-14)
•Engine coolant level (page 8-12)
•Engine oil level (page 8-9)
•Washer fluid level (page 8-18)

At Least Monthly
•Tire inflation pressures (page 8-25)

At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transaxle fluid level (page 8-16)
•Power steering fluid level (page 8-16)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•Air filter (page 8-19)
•Engine coolant (page 8-12)
•Engine oil (page 8-10)
Owner Maintenance Schedule
J39L_EA.book Page 6 Saturday, June 8, 2002 5:35 PM
