3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
Dehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the position.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner.
Foggy Windshield:
Using the position with the
temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the position.
NOTE
• For maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
• If warm air is desired at the floor,
set the mode selector dial to the
position.
WARNING
1
23
45
J07R_8R09_EA_02G_Edition4.book Page 9 Monday, February 3, 2003 1:16 PM

8-9
Maintenance and Care
Scheduled Maintenance
Form No. 8R09-EA-02G
I:Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
T: Tig hten
L: Lubricate
EXHAUST EMISSION CONTROL SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
*5If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, change the brake fluid annually.
*6This is a full function check of electrical systems such as lights, wiper and washer systems (including wiper
blades), and power windows.
Maintenance Interval
(Number of months or kilometers (miles),
whichever comes first) Months 6 121824303642485460667278849096
× 1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
× 1000 miles 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
E.G.R. system IIIIIIII
All electrical system
*6 IIIIIIII
Head light alignment IIIII
Brake pedals and clutch pedals IIIIIIIIIIIIIIII
Brake lines, hoses and connections IIIIIIII
Clutch fluid IIIIIIIIIIIIIIII
Brake fluid
*5I I IRI I IRI I IRI I IR
Parking brake IIIIIIIIIIIIIIII
Power brake unit and hoses IIIIIIII
Disc brakes IIIIIIIIIIIIIIII
Power steering fluid and lines IIIIIIIIIIIIIIII
Steering operation and gear housing IIIIIIII
Steering linkages, tie rod ends and arms IIIIIIII
Manual transmission oil RR
Rear differential oil RR
Front and rear suspension and ball joints IIII
Automatic transmission fluid level IIII III
Automatic transmission fluid RRR
Wheel nuts TTTTTTTT
Drive shaft dust boots IIII
Bolts and nuts on chassis and body TTTTTTTT
Exhaust system heat shields IIII
Tire (including spare tire)
(with inflation pressure adjustment) IIIIIIII
Hinges and catches LLLLLLLL
Road test IIIIIIIIIIIIIIII
J07R_8R09_EA_02G_Edition4.book Page 9 Monday, February 3, 2003 1:16 PM

8-24
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
2. Lift off the air filter cover and remove the filter.
3. Wipe inside the air cleaner housing with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3). Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Air filter cover
Air filter
Wiper Blades
Hot waxes applied by automatic car
washes have been known to affect the
cleanability of windows.
To prevent damage to the wiper blades,
don’t use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
CAUTION
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 24 Monday, February 3, 2003 1:16 PM

8-40
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
Fuse panel (Driver’s side)
DESCRIPTION FUSE
RATING PROTECTED
COMPONENT
1 AD FAN 20A Add fan motor,
Magnet clutch
2 HEAD.LH 15A Headlights (LH)
3 HEAD.RH 15A Headlights (RH)
4 —— —
5ST.SIG 7.5A Instrument
cluster, Cruise
control
6 —— —
7 CIGAR 20A Cigar lighter
8 RADIO 10A Audio
9 F.FOG 15A Fog lights
10 TAIL 15A Taillights, Front
parking lights,
Side-marker
lights
11 ENGINE 15A Engine control
system
12 METER 15A Instrument
clusterDESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
13 TURN 7.5A Turn signal
lights
14 A/B 10A Supplemental
restraint system,
Antilock brake
system
15 WIPER 20A Windshield
wipers and
washer
16 P.WIND 30A Power windows
17 A/C 7.5A Air conditioner
18 HAZARD 10A Turn signal
lights
19 D.LOCK 10A Power door lock
20 AUDIO 20A Audio amp
21 DEFOG 15A Rear defroster
22 ROOM 10A Interior light,
Auto antenna,
Warning buzzers
J07R_8R09_EA_02G_Edition4.book Page 40 Monday, February 3, 2003 1:16 PM

8-46
Maintenance and Care
Appearance Care
Form No. 8R09-EA-02G

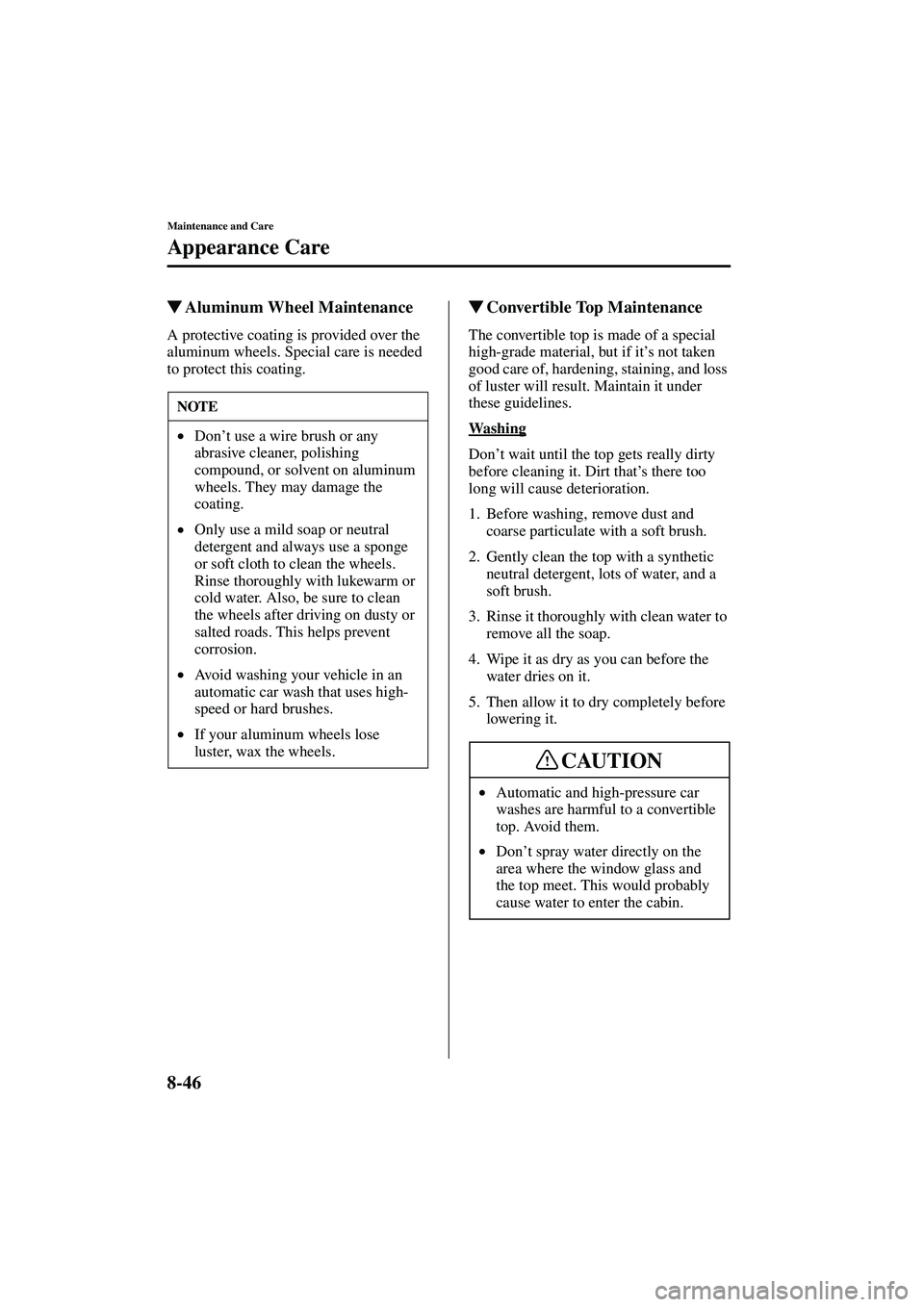

Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

Convertible Top Maintenance
The convertible top is made of a special
high-grade material, but if it
’s not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Wa s h i n g
Don ’t wait until the top gets really dirty
before cleaning it. Dirt that ’s there too
long will cause deterioration.
1. Before washing, remove dust and coarse particulate with a soft brush.
2. Gently clean the top with a synthetic neutral detergent, lots of water, and a
soft brush.
3. Rinse it thoroughly with clean water to remove all the soap.
4. Wipe it as dry as you can before the water dries on it.
5. Then allow it to dry completely before lowering it.
NOTE
•Don
’t use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
• Only use a mild soap or neutral
detergent and always use a sponge
or soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean
the wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
• Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
• If your aluminum wheels lose
luster, wax the wheels.
•Automatic and high-pressure car
washes are harmful to a convertible
top. Avoid them.
• Don
’t spray water directly on the
area where the window glass and
the top meet. This would probably
cause water to enter the cabin.
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 46 Monday, February 3, 2003 1:16 PM

8-49
Maintenance and Care
Appearance Care
Form No. 8R09-EA-02G

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
Don ’t scrape or scratch the inside of
the rear window. You may damage the
rear window defroster grid.
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 49 Monday, February 3, 2003 1:16 PM

11-2
Form No. 8R09-EA-02G
Index
A
Add-On Non-Genuine Parts and
Accessories
...................................... 9-10
Air Bag Systems
.............................. 2-20
Air Filter
.......................................... 8-23
Antenna
............................................ 6-10
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-7
Appearance Care
.............................. 8-41
Ashtray
............................................. 6-38
Audio System
................................... 6-10
Audio set
................................... 6-17
Operating tips for
audio system
............................. 6-10
Safety certification
.................... 6-36
Automatic Transmission Driving tips
............................... 5-13
Fluid
.......................................... 8-20
Overdrive
.................................. 5-12
Shift-lock override
.................... 5-12
Shift-lock system
...................... 5-11
Transmission ranges
................. 5-10
B
Battery Emergency starting
................... 7-13
Maintenance
............................. 8-26
Specifications
........................... 10-4
Beeps Ignition key reminder
............... 5-29
Lights-on reminder
................... 5-29
Seat belt warning beep
.............. 5-29
Before Starting the Engine
................. 4-5
After getting in
........................... 4-5
Before getting in
......................... 4-5
Body Lubrication
............................. 8-23
Brake Fluid
.......................................... 8-17
B
BrakesAnti-lock brake system (ABS)
....5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-6
Break-In Period
.................................. 4-6
Bulb Replacement
............................ 8-31
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-4
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-11
Center Console
................................. 6-40
Child Restraint Child restraint precautions
........ 2-13
LATCH child-restraint
systems
...................................... 2-18
Cigarette Lighter
.............................. 6-38
Climate Control System
.....................6-2
Gas specification
....................... 10-5
Clutch Fluid
.......................................... 8-18
Convertible Top
............................... 3-17
Cruise Control
.................................. 5-14
Cup Holder
....................................... 6-39
Customer Assistance
.......................... 9-2
D
Dashboard Illumination .................... 5-21
Daytime Running Lights
.................. 5-32
Defroster Rear window
............................. 5-34
Detachable Hardtop
.......................... 3-22
Dimensions
....................................... 10-5
J07R_8R09_EA_02G_Edition4.book Page 2 Monday, February 3, 2003 1:16 PM

11-4
Index
Form No. 8R09-EA-02G
I
IgnitionKeys
............................................ 3-2
Switch
......................................... 5-2
Immobilizer System
......................... 3-28
Indicator Lights
................................ 5-22
Cruise set
.................................. 5-28
Headlight high-beam
................ 5-28
O/D OFF
................................... 5-28
Instrument Cluster
........................... 5-17
Interior Care
..................................... 8-48
Interior Light
.................................... 6-37
J
Jump-Starting ................................... 7-13
K
Keyless Entry System ........................ 3-3
Keys
................................................... 3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-31
Light Bulbs Replacement
............................. 8-31
Specifications
........................... 10-6
Lighter
.............................................. 6-38
Lighting Control
.............................. 5-30
Lubricant Quality
............................. 10-4
M
Maintenance Introduction
................................. 8-2
Owner maintenance
precautions
................................ 8-11
Owner maintenance
schedule
.................................... 8-10
Scheduled
.................................... 8-3
Manual Transmission Operation
........ 5-8
Recommendations for shifting
....5-9
Mesh Pocket
..................................... 6-41
Meters and Gauges
........................... 5-17
Mirrors Outside mirrors
......................... 3-31
Rearview mirror
........................ 3-32
Money-Saving Suggestions
................ 4-6
O
Odometer and Trip Meter ................ 5-18
Outside Mirrors
................................ 3-31
Overhead Light
................................ 6-37
Overheating
...................................... 7-11
Overloading
...................................... 4-10
P
Paint Damage ................................... 8-41
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
............................. 3-8
Power Steering
................................. 5-13
Fluid
.......................................... 8-19
Power Windows
............................... 3-13
Push-Starting
.................................... 7-15
J07R_8R09_EA_02G_Edition4.book Page 4 Monday, February 3, 2003 1:16 PM
