2003 MAZDA MODEL MPV engine coolant

4-6
Before Driving Your Mazda
Form No. 8R21-EA-02G

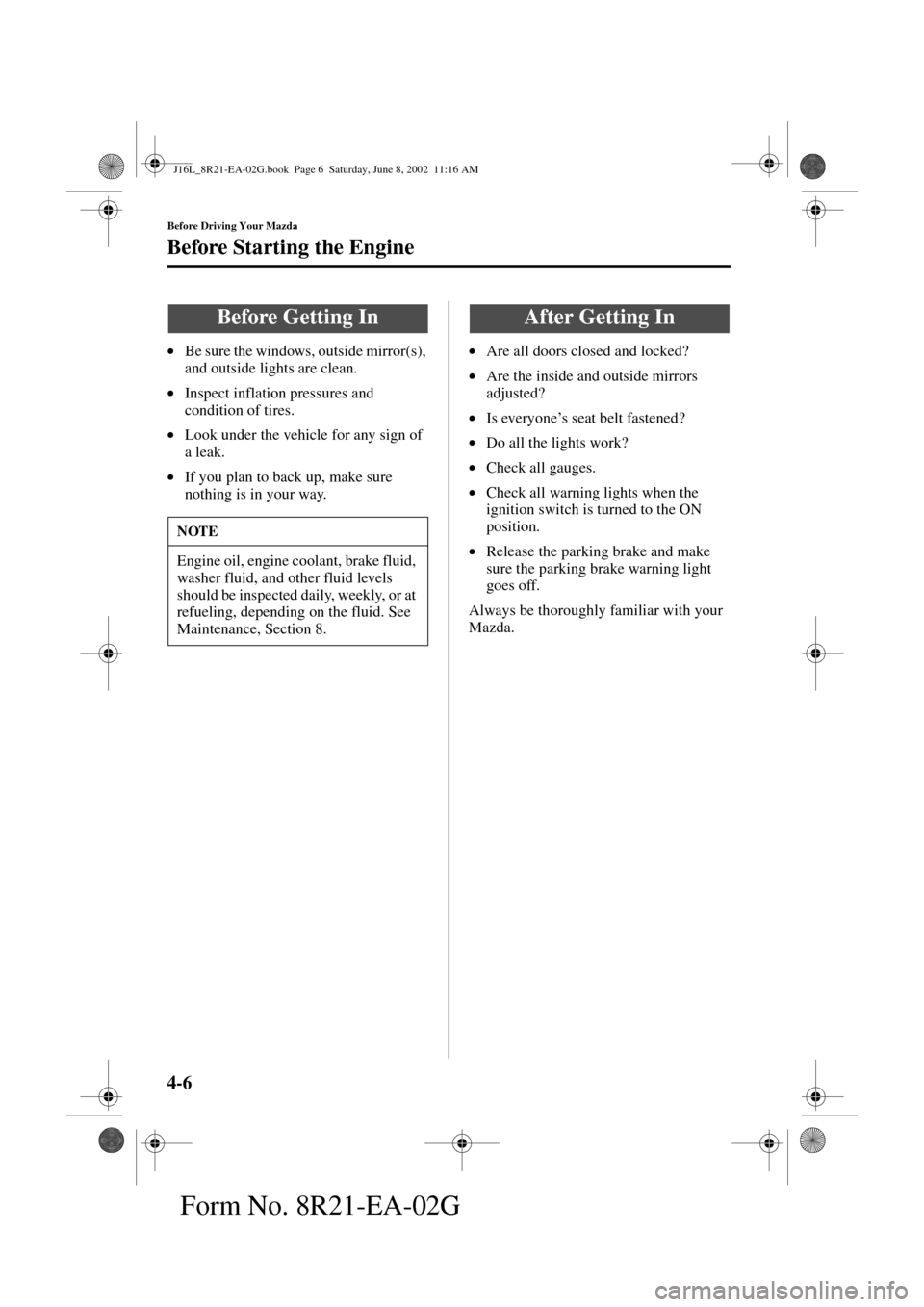

Before Starting the Engine
•Be sure the windows, outside mirror(s),
and outside lights are clean.
•Inspect inflation pressures and
condition of tires.
•Look under the vehicle for any sign of
a leak.
•If you plan to back up, make sure
nothing is in your way.•Are all doors closed and locked?
•Are the inside and outside mirrors
adjusted?
•Is everyone’s seat belt fastened?
•Do all the lights work?
•Check all gauges.
•Check all warning lights when the
ignition switch is turned to the ON
position.
•Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake fluid,
washer fluid, and other fluid levels
should be inspected daily, weekly, or at
refueling, depending on the fluid. See
Maintenance, Section 8.
After Getting In
J16L_8R21-EA-02G.book Page 6 Saturday, June 8, 2002 11:16 AM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8R21-EA-02G
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•Have the proper ratio of antifreeze in
the radiator.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use only cold-weather engine oil
(page 8-9).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-16).
•Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P and block the
rear wheels.

Snow Tires
Use snow tires on all four wheels
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 30 kPa (0.3 kgf/cm
2, 4.3
psi) more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J16L_8R21-EA-02G.book Page 9 Saturday, June 8, 2002 11:16 AM

5-19
Driving Your Mazda
Form No. 8R21-EA-02G
Instrument Cluster and Indicators
1 Speedometer ..............................................................................................................5-20
2 Odometer and Trip Meter ..........................................................................................5-20
3 Tachometer ................................................................................................................5-21
4 Engine Coolant Temperature Gauge..........................................................................5-21
5 Fuel Gauge................................................................................................................ 5-22
Meters and Gauges
J16L_8R21-EA-02G.book Page 19 Saturday, June 8, 2002 11:16 AM

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8R21-EA-02G
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when
the vehicle is driven over 999.9 km
(mile).
Don’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Red zone
CAUTION
Driving with an overheated engine can
cause serious engine damage
(page 7-15).
CAUTION
J16L_8R21-EA-02G.book Page 21 Saturday, June 8, 2002 11:16 AM

7-15
In Case of an Emergency
Form No. 8R21-EA-02G
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
If this happens:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
Apply the parking brake.
3. Turn off the air conditioner.4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don’t go near the front of the vehicle.
Stop the engine. Then turn the ignition
switch to the ON position without
starting the engine.
The radiator cooling fans will start to
cool the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools. If this doesn’t lower the
temperature, stop the engine and let it
cool.
5. Check the coolant level.
If it’s low, look for leaks in the radiator
hoses and connections, heater hoses
and connections, radiator, and water
pump.
If you find a leak or other damage, or if
coolant is still leaking, stop the engine
and call an Authorized Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious, carefully
add coolant as required (page 8-11).
Overheating
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
F
L
Cooling
system cap
Coolant reservoir
J16L_8R21-EA-02G.book Page 15 Saturday, June 8, 2002 11:16 AM

7-16
In Case of an Emergency
Overheating
Form No. 8R21-EA-02G
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made.
WARNING
CAUTION
J16L_8R21-EA-02G.book Page 16 Saturday, June 8, 2002 11:16 AM

8-1
Form No. 8R21-EA-02G
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................. 8- 2
Introduction ............................................................................. 8- 2
Scheduled Maintenance
.............................................................. 8- 3
Scheduled Maintenance ........................................................... 8- 3
Owner Maintenance
.................................................................... 8- 6
Owner Maintenance Schedule ................................................. 8- 6
Owner Maintenance Precautions ............................................. 8- 7
Engine Compartment Overview .............................................. 8- 8
Engine Oil ................................................................................ 8- 9
Engine Coolant ........................................................................ 8-11
Brake Fluid .............................................................................. 8-13
Power Steering Fluid ............................................................... 8-14
Automatic Transaxle Fluid (ATF) ........................................... 8-15
Washer Fluid ............................................................................ 8-16
Body Lubrication ..................................................................... 8-17
Air Filter .................................................................................. 8-17
Wiper Blades ........................................................................... 8-18
Battery ..................................................................................... 8-22
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-38
How to Minimize Environmental Paint Damage ..................... 8-38
Exterior Care ........................................................................... 8-40
Interior Care ............................................................................ 8-43
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
C:
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability. Maintenance Interval
(Number of months
or kilometers (miles),
whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterCR C
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Brake lines, hoses and connectionsII
Brake fluidRR
Disc brakesII
Drum brakesII
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM
