2003 MAZDA MODEL MPV clock

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

Locking, Unlocking with Key
To lock the liftgate with the key, insert the
key and turn it counterclockwise.
To unlock the liftgate with the key, insert
the key and turn it clockwise.
The liftgate can be locked/unlocked by
inserting the key into the key slot of any
door, refer to Power Door Locks (page 3-
10).
NOTE
•If there is a problem with the power
sliding doors and you want to
operate them manually, press the
power sliding doors main switch to
the OFF position and they can be
operated manually.
•If the power sliding doors main
switch is pressed to the OFF
position while the doors are
opening/closing electrically, the
buzzer sounds and the sliding
door(s) stop.
If you press the power sliding doors
main switch to the ON position
again, the door(s) can be opened/
closed electrically.
•When a sliding door is half open
and the system is switched to
manual operation, the door can be
operated manually by first sliding it
forward and back, and then in the
desired direction.
Liftgate
Open Liftgate:
An open liftgate in a moving vehicle
will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate could cause
occupants to fall out in accident. Do
not drive with the liftgate open.
WARNING
LockUnlock
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

3-23
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To replace the filler cap, turn it clockwise
until it clicks.
NOTE
The fuel-filler lid cannot be opened
when the left-side sliding door is open.
Close the sliding door to open the fuel-
filler lid.
Remote fuel-filler
lid release
Open
Close
Make sure the fuel-filler cap is
tightened securely. The check engine
light comes on when the cap isn’t
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
CAUTION
J16L_8R21-EA-02G.book Page 23 Saturday, June 8, 2002 11:16 AM

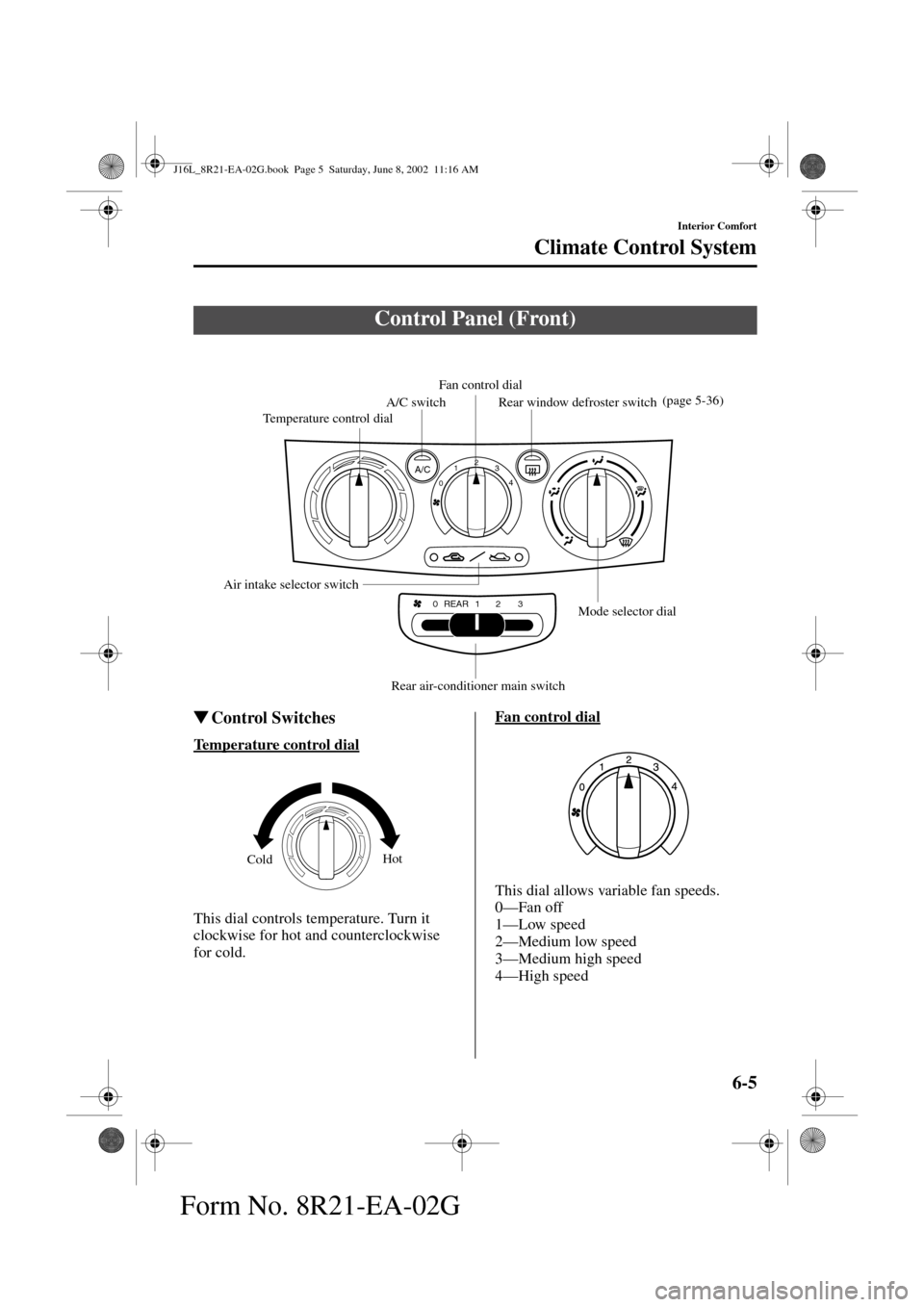

6-5
Interior Comfort
Climate Control System
Form No. 8R21-EA-02G

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Control Panel (Front)
A/C0123
4
0123REAR
Temperature control dialA/C switch Rear window defroster switchFan control dial
Air intake selector switch
Rear air-conditioner main switchMode selector dial
(page 5-36)
ColdHot
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM

6-13
Interior Comfort
Climate Control System
Form No. 8R21-EA-02G
Fan control dial
This dial allows variable fan speeds.
0
—Fan off
1
—Low speed
2
—Medium speed
3
—High speed
Temperature control dial (Type B)
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Mode selector dial (Type B)
Turn the mode selector dial to select
airflow mode (page 6-11).
NOTE
When the rear air-conditioner main
switch is not set to the REAR position,
the fan control dial of the rear air-
conditioner control panel does not
work.
The front air-conditioner controls
override the rear controls.
021
3
Hot Cold
J16L_8R21-EA-02G.book Page 13 Saturday, June 8, 2002 11:16 AM

6-14
Interior Comfort
Form No. 8R21-EA-02G
Audio System

Detachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is security
installed.
Radio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
FM characteristics
An FM broadcast range is usually about
40—50 km (25—30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
Antenna
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
CAUTION
Operating Tips for Audio
System
Ionosphere
Station 1 Station 2
FM Station
40—50 km
(25—30 miles)
J16L_8R21-EA-02G.book Page 14 Saturday, June 8, 2002 11:16 AM

6-21
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Power/Volume/Sound Controls ............................................................................................. 6-22
Clock ..................................................................................................................................... 6-24
Operating the Radio ............................................................................................................... 6-26
Operating the Cassette Tape Player ....................................................................................... 6-28
Operating the Mini Disc (MD) Player ................................................................................... 6-30
Operating the Compact Disc (CD) Player ............................................................................. 6-32
Operating the In-Dash CD Changer ...................................................................................... 6-34
Error Indications .................................................................................................................... 6-37
Audio Set
CD Player In-dash CD Changer
Cassette Tape Player Mini Disc (MD) PlayerIllustration is of a representative audio unit.
J16L_8R21-EA-02G.book Page 21 Saturday, June 8, 2002 11:16 AM

6-24
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. To advance the hours, press the hour
set button ( ). To advance the
minutes, press the minute set button
( ) while the time is flashing.
3. Press the clock button ( ) again
to start the clock.Exact hour adjustment 1. To set the exact hour, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock’s current time will flash.
2. Press the clock button ( ) again
and the time will be adjusted as
follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00
Display
Clock button
Hour set
button
Minute set
button
NOTE
If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle’s battery is disconnected), the
clock will need to be reset.
J16L_8R21-EA-02G.book Page 24 Saturday, June 8, 2002 11:16 AM

6-25
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Changing the display mode
The display on the unit can be changed by
pressing the clock button ( ). This
alternates the display between time and
audio. When the clock mode has been
selected, the time will be displayed.
NOTE
If audio operation is selected while the
time mode is on, the selected audio
mode will be displayed for 10 seconds,
then the display will revert to the time
mode.
J16L_8R21-EA-02G.book Page 25 Saturday, June 8, 2002 11:16 AM
