2003 MAZDA MODEL B4000 engine

3. Remove the jumper cable from the positive (+) terminal of thebooster vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearn its idle conditions.
+–+–
+–+–
Roadside Emergencies
163

AMERICAN SAMOA
Polynesia Motors, Inc.
P.O. Box 1120, Pago Pago, American Samoa 96799
TEL: (684) 699–1854
ADD-ON NON-GENUINE PARTS AND ACCESSORIES
Non-genuine parts and accessories for Mazda vehicles can be found in
stores. These may fit your vehicle, but they are not approved by the
manufacturer for use with Mazda vehicles. When you install non-genuine
parts or accessories, they could affect your vehicle’s performance or
safety system; the manufacturer’s warranty doesn’t cover this. Before you
install any non-genuine parts or accessories, consult an Authorized
Mazda Dealer.WARNING: Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories could be
dangerous. Improperly designed parts or accessories could
seriously affect your vehicle’s performance or safety system.
This could cause you to have an accident or increase your
chances of injuries in an accident. Always consult an Authorized
Mazda Dealer before you install non-genuine parts or
accessories.
WARNING: Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or
choosing an improper installer could be dangerous. Essential
systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS inactivation, or a fire in the vehicle. Be
very careful in choosing and installing add-on electrical
equipments, such as mobile telephones, two-way radios, stereo
systems, and car alarm systems.
Mazda assumes no responsibility for death, injury, or expenses that may
result from the installation of add-on non-genuine parts or accessories.
WARRANTIES FOR YOUR MAZDA
• New Vehicle Limited Warranty
• Safety Restraint System Limited Warranty
• Anti-perforation Limited Warranty
• Federal Emission Control Warranty
– Emission Defect Warranty
– Emission Performance Warranty
Customer Assistance
171

•California Emission Control Warranty (if applicable)
• Replacement Parts and Accessories Limited Warranty
• Tire Warranty
NOTE: Detailed warranty information is provided with your Mazda
portfolio.
OUTSIDE THE UNITED STATES AND CANADA
Government regulations in the United States require that automobiles
meet specific emission regulations and safety standards. Therefore,
vehicles built for use in the United States, its territories, and Canada may
differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle
to receive satisfactory servicing in other countries. We strongly
recommend that you NOT take your Mazda outside these areas.
You may have these problems if you do:
• Recommended fuel may be unavailable. Any kind of leaded fuel or
low-octane fuel will affect vehicle performance and damage the
emission controls and engine.
• Proper repair facilities, tools, testing equipment, and replacement
parts may not be available.
The manufacturer’s warranty applies only to Mazda vehicles registered
and normally operated in the United States, its territories, and Canada.
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
your Mazda importer/distributor.
If NHTSA receives similar complaints, it may open an investigation, and
if it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However NHTSA cannot become involved in
individual problems between you, your dealer, or your Mazda
importer/distributor).
To contact NHTSA, you may either call the Auto Safety Hotline toll-free
at 1 (800) 424–9393 (or 366–0123 in Washington, D.C. area) or write to:
NHTSA, U.S. Department of Transportation. Washington, D.C. 20590. You
can also obtain other information about motor vehicle safety from the
Hotline.
Customer Assistance
172

REPAIRING PAINT CHIPS
Minor scratches or paint damage from road debris may be repaired with
Genuine Mazda Touch-Up Paint. Observe the application instructions on
the products.
Remove particles such as bird droppings, tree sap, insect remains, tar
spots, road salt and industrial fallout immediately.
CLEANING THE WHEELS
Wash with the same detergent as the body of your vehicle. Do not use
acid-based or alcohol-based wheel cleaners, steel wool, fuel or strong
detergents. Never use abrasives that will damage the finish of special
wheel surfaces. Use a tar remover to remove grease and tar.
The brushes used in some automatic car washes may damage the
finish on your wheels. Before going to a car wash, find out if the
brushes are abrasive.
ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
• Never spray the engine or other engine components with water. Water
will damage the engine or other engine components.
• Spray Engine Shampoo and Degreaser, available at your authorized
Mazda dealer, on all parts that require cleaning and pressure rinse
clean.

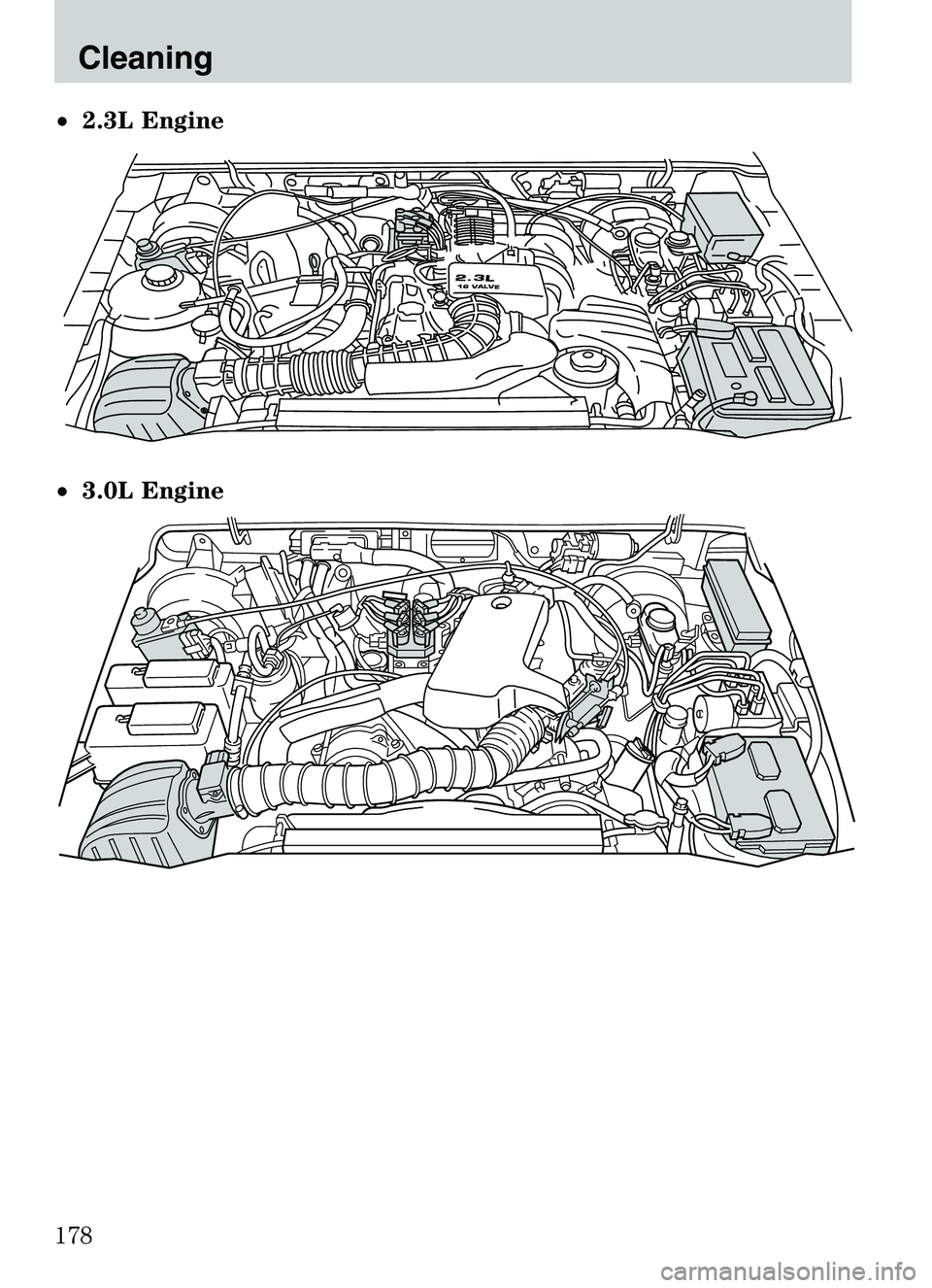

• Cover the highlighted areas to prevent water damage when cleaning
the engine.
Cleaning
177

•2.3L Engine
• 3.0L Engine
2.3L16 VALVE
Cleaning
178

•4.0L Engine
• Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
CLEANING NON-PAINTED PLASTIC EXTERIOR PARTS
Use vinyl cleaner for routine cleaning. Clean with a tar remover if
necessary. Do not clean plastic parts with thinners, solvents or
petroleum-based cleaners.
CLEANING MIRRORS
Do not clean your mirrors with a dry cloth or abrasive materials. Use a
soft cloth and mild detergent and water. Be careful when removing ice
from outside mirrors because you may damage the reflective surface.
CLEANING THE EXTERIOR LAMPS
Wash with the same detergent as the exterior of your vehicle. If
necessary, use a tar remover.
To avoid scratching the lamps, do not use a dry paper towel, chemical
solvents or abrasive cleaners.
CLEANING THE WIPER BLADES, WINDSHIELD AND REAR
WINDOW
If the wiper blades do not wipe properly, clean the wiper blade rubber
element with undiluted windshield washer solution or a mild detergent.
To avoid damaging the blades, do not use fuel, kerosene, paint thinner or
other solvents.
If the wiper still does not wipe properly, this could be caused by
substances on the windshield or rear window such as tree sap and some
Cleaning
179

INSIDE WINDOWS
Use glass cleaner for the inside windows if they become fogged.
Leather seats (if equipped)
Your leather seating surfaces have a clear, protective coating over the
leather.
•To clean, use a soft cloth with Deluxe Leather and Vinyl Cleaner. Dry
the area with a soft cloth.
• To help maintain its resiliency and color, use the Deluxe Leather Care
Kit, available at your authorized Mazda dealer.
• Do not use household cleaning products, alcohol solutions, solvents or
cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based
leather conditioners. These products may cause premature wearing of
the clear, protective coating.
UNDERBODY
Flush the complete underside of vehicle frequently. Keep body drain
holes unplugged. Inspect for road damage.
MAZDA CAR CARE PRODUCTS
Your Mazda dealer has many quality products available to clean your
vehicle and protect its finishes. These quality products have been
specifically engineered to fulfill your automotive needs; they are custom
designed to complement the style and appearance of your vehicle. Each
product is made from high quality materials that meet or exceed rigid
specifications. For best results, use these products or products of
equivalent quality. These products are available at your authorized Mazda
dealer.
Cleaning
181

CHART SYMBOLS
I: Inspect, and if necessary correct, clean or replace
A: Adjust
R: Replace
L: Lubricate
Normal driving service intervals – perform at the months or distances
shown, whichever occurs first.
Maintenance ItemMaintenance Interval (Number of months or Miles (km),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60 (x 1000 km) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE
Engine oil — every 6 months R RRRRRRRRRR R
Oil filter — every 6 months R RRRRRRRRRR R
PCV valve
AIR CLEANER
Air cleaner filter R R
IGNITION SYSTEM
Spark plugs *4
COOLING SYSTEM
Engine Coolant (green) Replace at first 45,000 miles (72,000 km) or 36 months, after that, every 30,000 miles(48,000 km) or 24 months
Engine Coolant (yellow) Replace at first 100,000 miles (160,000 km) or 60 months; after that, every 50,000 miles(80,000 km) or 36 months
Coolant condition and protection,
hoses and clamps — annually —prior
to cold weather every 12 months III I
CHASSIS AND BODY
Wheel lug nut torque *1 I IIIIIIIIII I
Inspect tires for wear and rotate
(X = recommended interval for
optimal tire life) IXIXXIXXIXX I
Clutch reservoir fluid level I IIIII
Maintenance and Specifications
183
