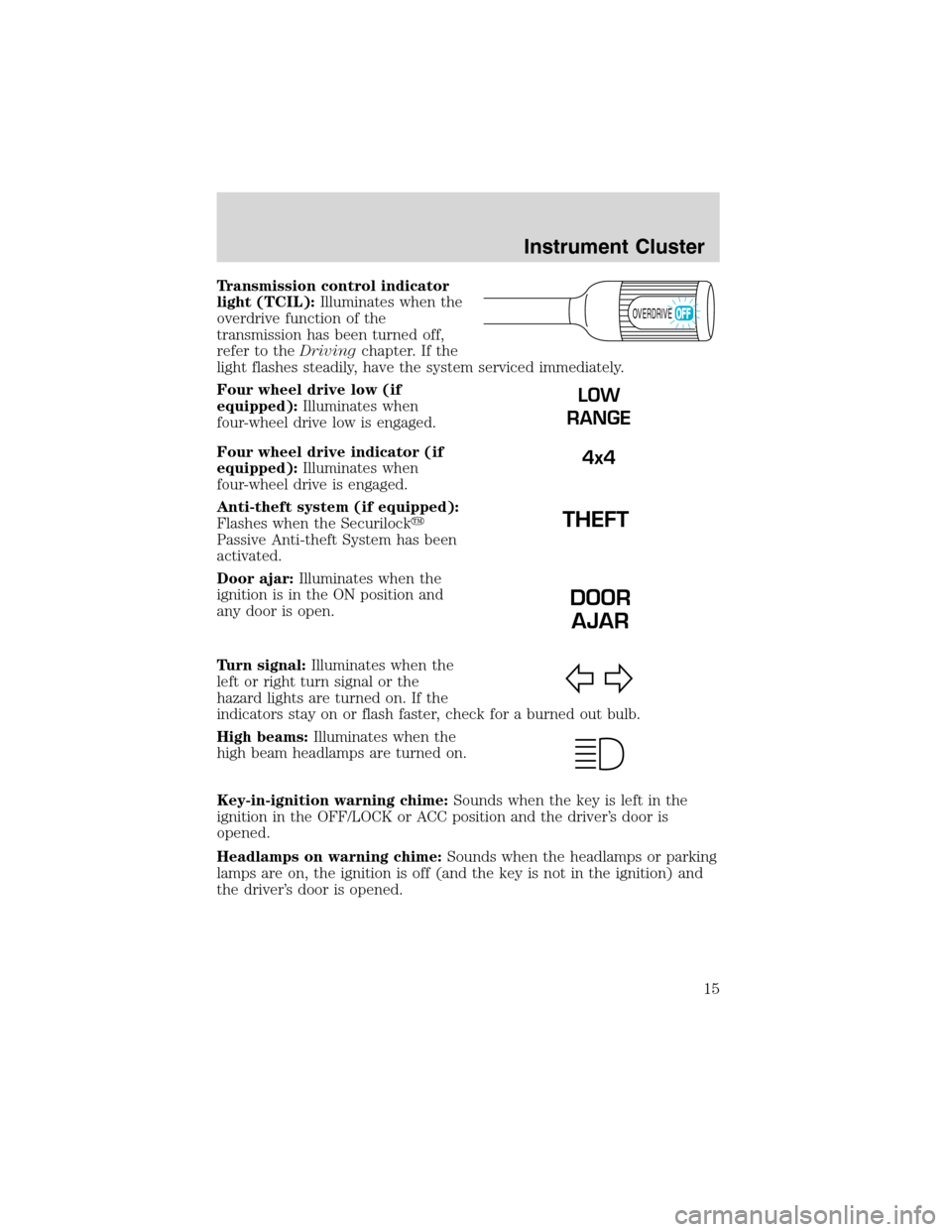

Transmission control indicator
light (TCIL):Illuminates when the
overdrive function of the
transmission has been turned off,
refer to theDrivingchapter. If the
light flashes steadily, have the system serviced immediately.
Four wheel drive low (if
equipped):Illuminates when
four-wheel drive low is engaged.
Four wheel drive indicator (if
equipped):Illuminates when
four-wheel drive is engaged.
Anti-theft system (if equipped):
Flashes when the Securilock

Passive Anti-theft System has been
activated.
Door ajar:Illuminates when the
ignition is in the ON position and
any door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACC position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (and the key is not in the ignition) and
the driver’s door is opened.
OVERDRIVE
LOW
RANGE
4x4
DOOR
AJAR
Instrument Cluster
15

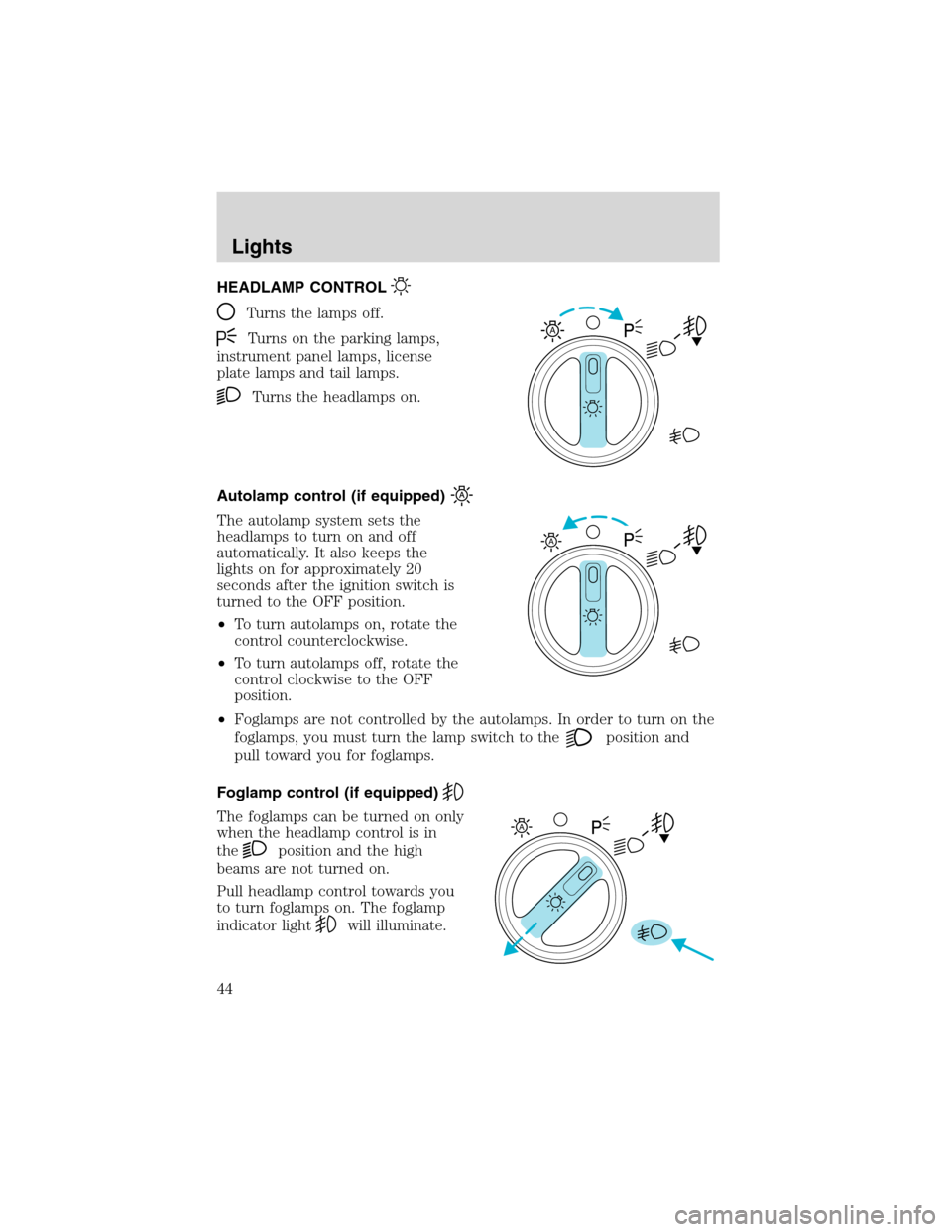

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped)
The autolamp system sets the
headlamps to turn on and off
automatically. It also keeps the
lights on for approximately 20
seconds after the ignition switch is
turned to the OFF position.
•To turn autolamps on, rotate the
control counterclockwise.
•To turn autolamps off, rotate the
control clockwise to the OFF
position.
•Foglamps are not controlled by the autolamps. In order to turn on the
foglamps, you must turn the lamp switch to the
position and
pull toward you for foglamps.
Foglamp control (if equipped)
The foglamps can be turned on only
when the headlamp control is in
the
position and the high
beams are not turned on.
Pull headlamp control towards you
to turn foglamps on. The foglamp
indicator light
will illuminate.
A
A
A
Lights
44

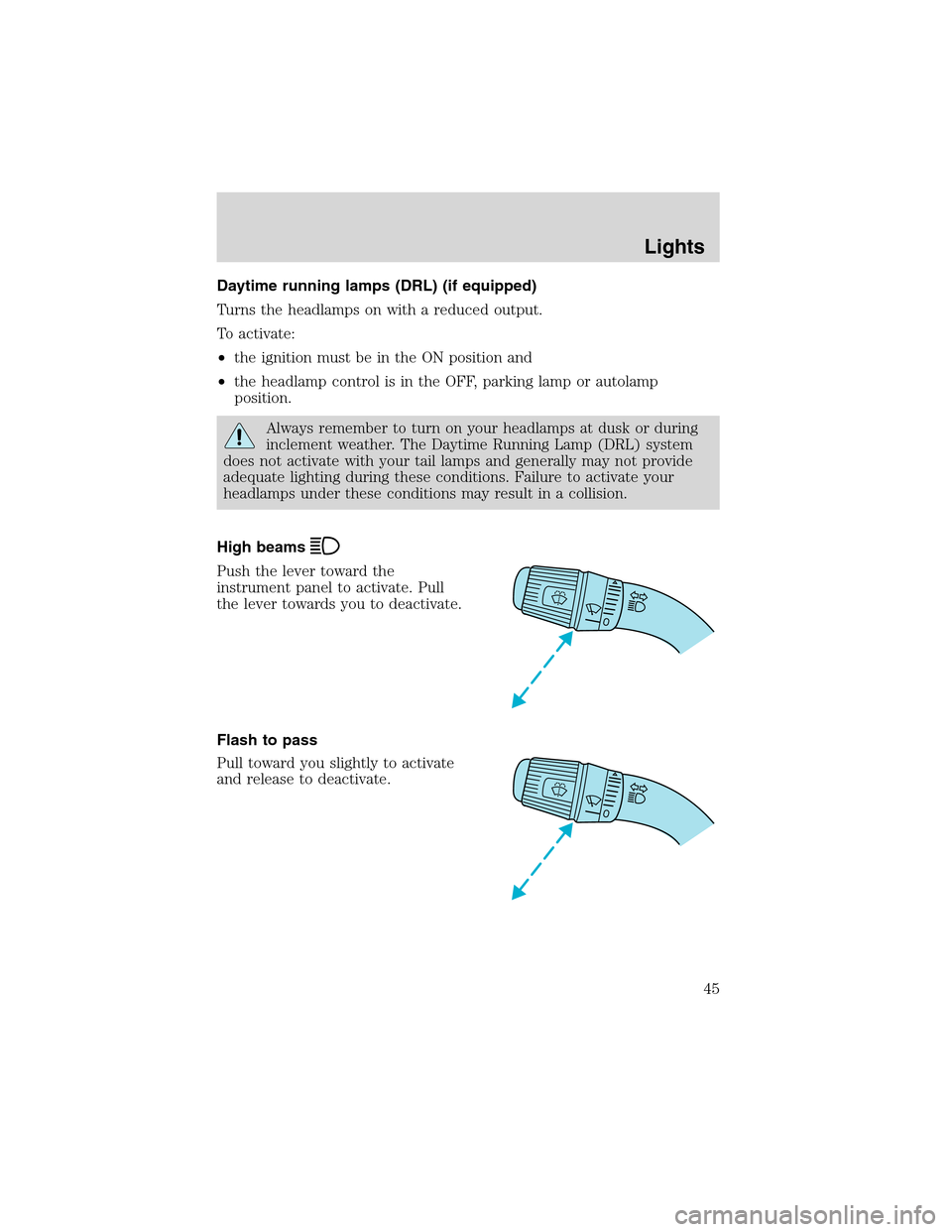

Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position and
•the headlamp control is in the OFF, parking lamp or autolamp
position.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system
does not activate with your tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
Lights
45

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
23 10A Trailer tow battery Charge relay,
Turn/Hazard flasher, 4x4
solenoids, 4x4 relays, Overhead
console, 4–Wheel Anti-lock Brake
System (4WABS) module, EC
mirror, Heated seats
24 10A Function selector switch assembly
25 10A Heated mirrors
26 10A Right-hand low beam headlamp
27 5A Foglamp relay and foglamp
indicator, Main light switch
(upstream)
28 10A Left-hand low beam headlamp
29 5A Autolamp module, Transmission
overdrive control switch, Central
security module, Beltminder
30 30A Passive Anti-theft transceiver,
Cluster, Ignition coils, PCM relay,
Coil on plugs, Radio noise
capacitor, ECC diode
31—Not used
Relay 1—Interior lamp relay
Relay 2—Battery saver relay
Relay 3—Not used
Relay 4—One-touch down window relay
Relay 5—Accessory delay relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Roadside Emergencies
180

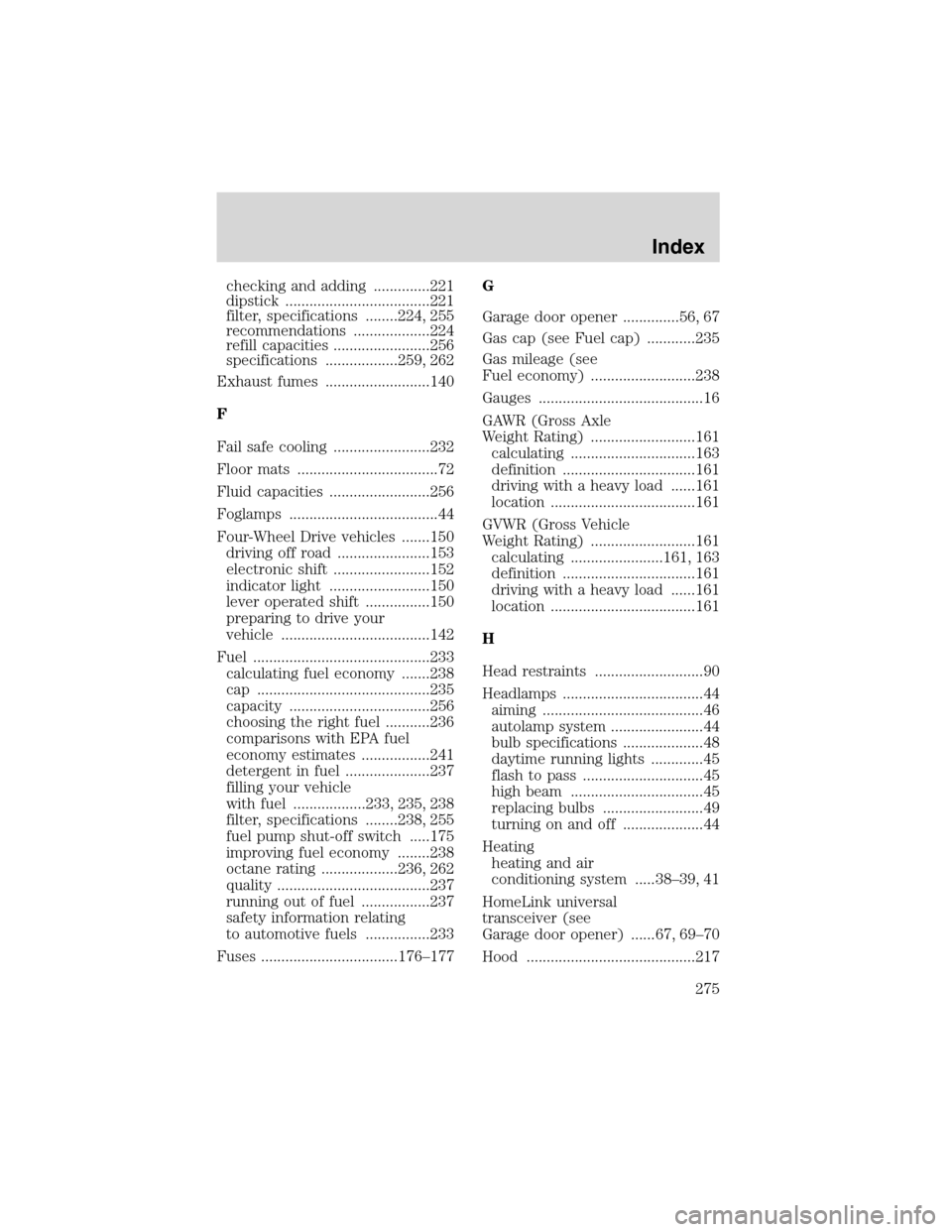

checking and adding ..............221
dipstick ....................................221
filter, specifications ........224, 255
recommendations ...................224
refill capacities ........................256
specifications ..................259, 262
Exhaust fumes ..........................140
F
Fail safe cooling ........................232
Floor mats ...................................72
Fluid capacities .........................256
Foglamps .....................................44
Four-Wheel Drive vehicles .......150
driving off road .......................153
electronic shift ........................152
indicator light .........................150
lever operated shift ................150
preparing to drive your
vehicle .....................................142
Fuel ............................................233
calculating fuel economy .......238
cap ...........................................235
capacity ...................................256
choosing the right fuel ...........236
comparisons with EPA fuel
economy estimates .................241
detergent in fuel .....................237
filling your vehicle
with fuel ..................233, 235, 238
filter, specifications ........238, 255
fuel pump shut-off switch .....175
improving fuel economy ........238
octane rating ...................236, 262
quality ......................................237
running out of fuel .................237
safety information relating
to automotive fuels ................233
Fuses ..................................176–177G
Garage door opener ..............56, 67
Gas cap (see Fuel cap) ............235
Gas mileage (see
Fuel economy) ..........................238
Gauges .........................................16
GAWR (Gross Axle
Weight Rating) ..........................161
calculating ...............................163
definition .................................161
driving with a heavy load ......161
location ....................................161
GVWR (Gross Vehicle
Weight Rating) ..........................161
calculating .......................161, 163
definition .................................161
driving with a heavy load ......161
location ....................................161
H
Head restraints ...........................90
Headlamps ...................................44
aiming ........................................46
autolamp system .......................44
bulb specifications ....................48
daytime running lights .............45
flash to pass ..............................45
high beam .................................45
replacing bulbs .........................49
turning on and off ....................44
Heating
heating and air
conditioning system .....38–39, 41
HomeLink universal
transceiver (see
Garage door opener) ......67, 69–70
Hood ..........................................217
