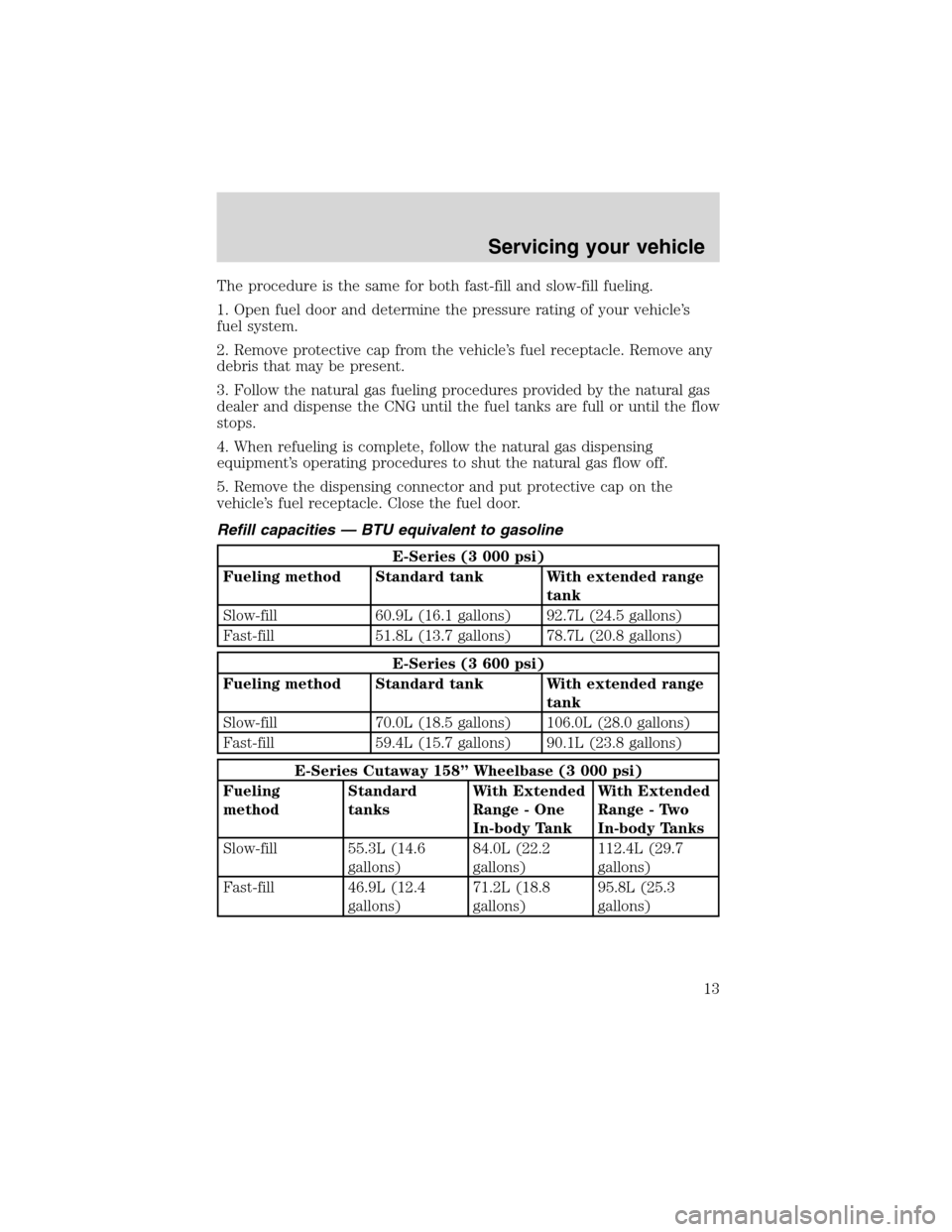

The procedure is the same for both fast-fill and slow-fill fueling.
1. Open fuel door and determine the pressure rating of your vehicle’s
fuel system.
2. Remove protective cap from the vehicle’s fuel receptacle. Remove any
debris that may be present.
3. Follow the natural gas fueling procedures provided by the natural gas
dealer and dispense the CNG until the fuel tanks are full or until the flow
stops.
4. When refueling is complete, follow the natural gas dispensing
equipment’s operating procedures to shut the natural gas flow off.
5. Remove the dispensing connector and put protective cap on the
vehicle’s fuel receptacle. Close the fuel door.
Refill capacities — BTU equivalent to gasoline
E-Series (3 000 psi)
Fueling method Standard tank With extended range
tank
Slow-fill 60.9L (16.1 gallons) 92.7L (24.5 gallons)
Fast-fill 51.8L (13.7 gallons) 78.7L (20.8 gallons)
E-Series (3 600 psi)
Fueling method Standard tank With extended range
tank
Slow-fill 70.0L (18.5 gallons) 106.0L (28.0 gallons)
Fast-fill 59.4L (15.7 gallons) 90.1L (23.8 gallons)
E-Series Cutaway 158” Wheelbase (3 000 psi)
Fueling
methodStandard
tanksWith Extended
Range - One
In-body TankWith Extended
Range - Two
In-body Tanks
Slow-fill 55.3L (14.6
gallons)84.0L (22.2
gallons)112.4L (29.7
gallons)
Fast-fill 46.9L (12.4
gallons)71.2L (18.8
gallons)95.8L (25.3
gallons)
Servicing your vehicle
13

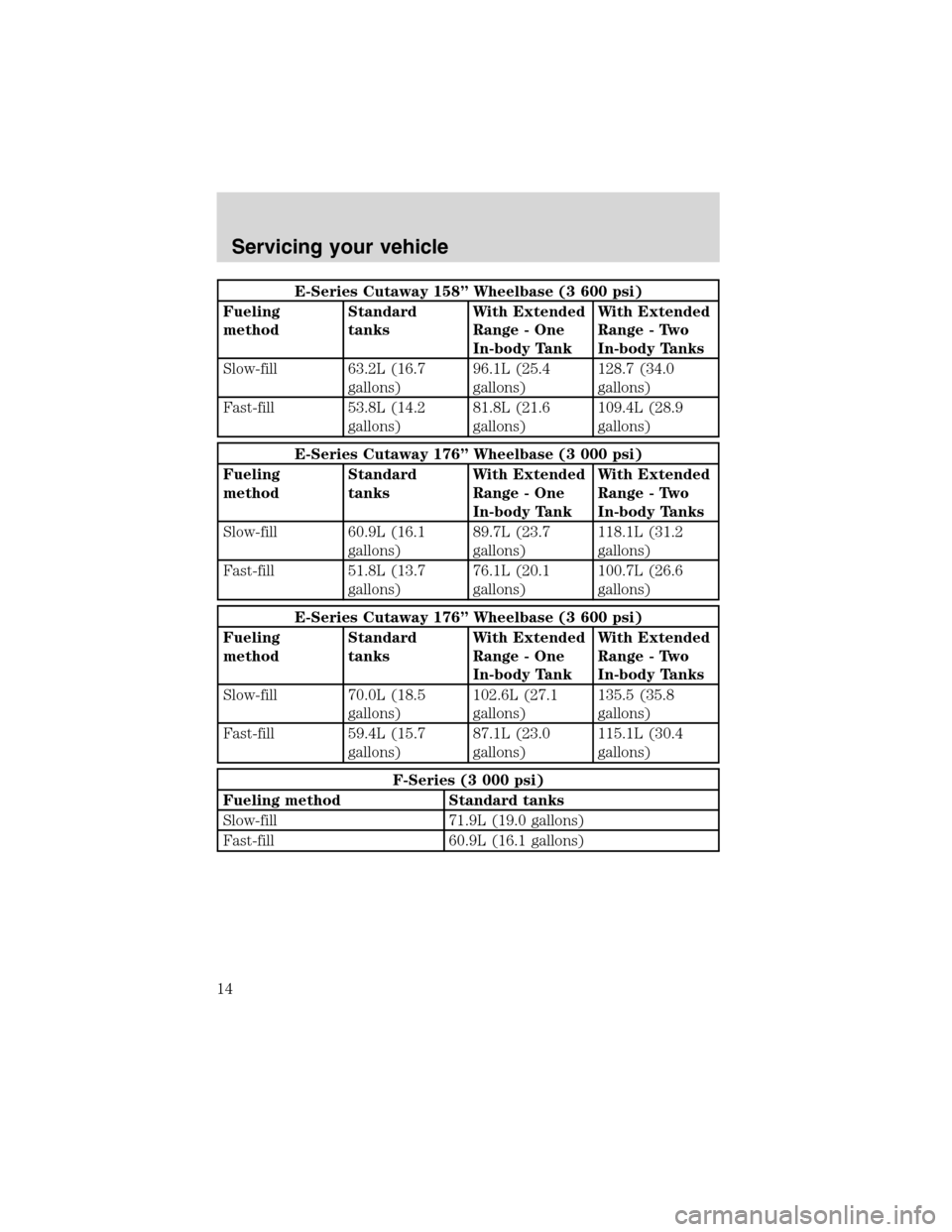

E-Series Cutaway 158”Wheelbase (3 600 psi)
Fueling
methodStandard
tanksWith Extended
Range - One
In-body TankWith Extended
Range - Two
In-body Tanks
Slow-fill 63.2L (16.7
gallons)96.1L (25.4
gallons)128.7 (34.0
gallons)
Fast-fill 53.8L (14.2
gallons)81.8L (21.6
gallons)109.4L (28.9
gallons)
E-Series Cutaway 176”Wheelbase (3 000 psi)
Fueling
methodStandard
tanksWith Extended
Range - One
In-body TankWith Extended
Range - Two
In-body Tanks
Slow-fill 60.9L (16.1
gallons)89.7L (23.7
gallons)118.1L (31.2
gallons)
Fast-fill 51.8L (13.7
gallons)76.1L (20.1
gallons)100.7L (26.6
gallons)
E-Series Cutaway 176”Wheelbase (3 600 psi)
Fueling
methodStandard
tanksWith Extended
Range - One
In-body TankWith Extended
Range - Two
In-body Tanks
Slow-fill 70.0L (18.5
gallons)102.6L (27.1
gallons)135.5 (35.8
gallons)
Fast-fill 59.4L (15.7
gallons)87.1L (23.0
gallons)115.1L (30.4
gallons)
F-Series (3 000 psi)
Fueling method Standard tanks
Slow-fill 71.9L (19.0 gallons)
Fast-fill 60.9L (16.1 gallons)
