DO-IT-YOURSELF MAINTENANCE 6- 29

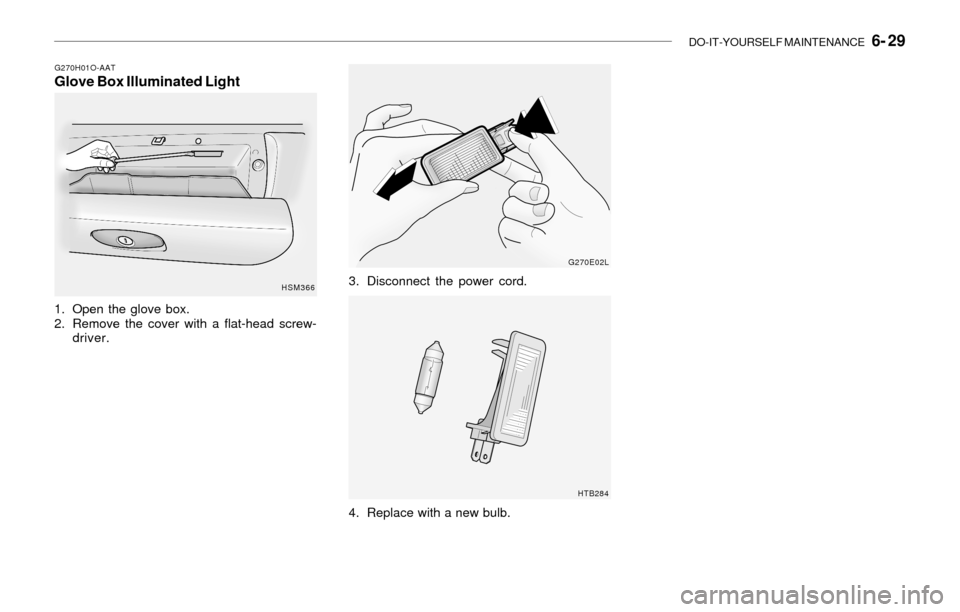

G270H01O-AATGlove Box Illuminated Light
1. Open the glove box.
2. Remove the cover with a flat-head screw-
driver.
HSM366
G270E02L
HTB284
3. Disconnect the power cord.
4. Replace with a new bulb.

6- 30 DO-IT-YOURSELF MAINTENANCE

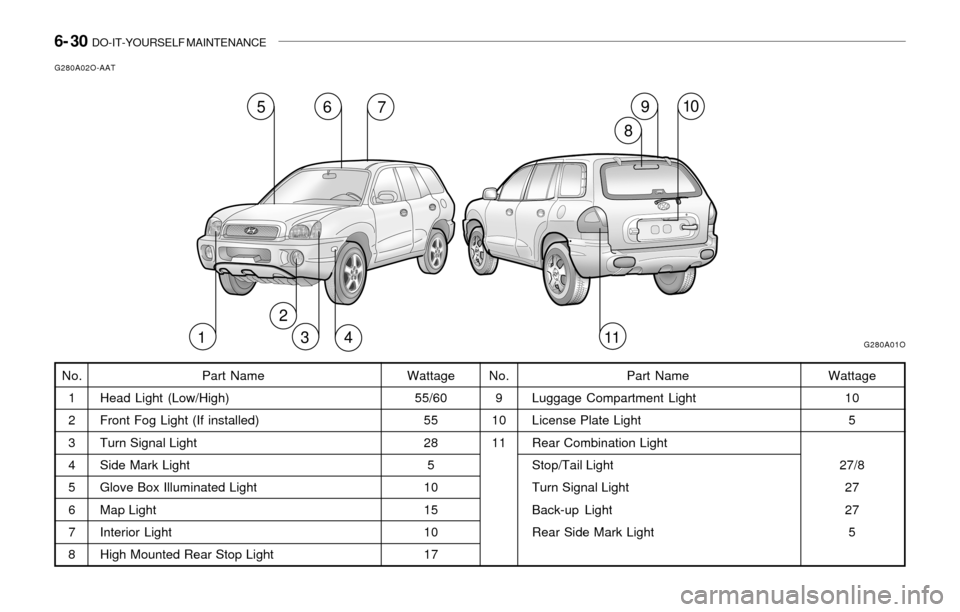

G280A02O-AAT
No.
1
2
3
4
5
6
7
8Part Name
Head Light (Low/High)
Front Fog Light (If installed)
Turn Signal Light
Side Mark Light
Glove Box Illuminated Light
Map Light
Interior Light
High Mounted Rear Stop LightWattage
55/60
55
28
5
10
15
10
17No.
9
10
11Wattage
10
5
27/8
27
27
5 Part Name
Luggage Compartment Light
License Plate Light
Rear Combination Light
Stop/Tail Light
Turn Signal Light
Back-up Light
Rear Side Mark Light
12
34 56
7
89
11G280A01O
10

INDEX 10- 3
D
Defrosting / Defogging ......................................................................1-77
Door
Locking, unlocking front door with a key ...................................... 1-4
Drink Holder ......................................................................................1-49
Drive Belts .........................................................................................6-19
Driving
Driving for economy .....................................................................2-16
Smooth cornering .........................................................................2-17
Winter driving ...............................................................................2-17
E
Emission Control System ................................................................... 7-2
Engine
Before starting the engine .............................................................. 2-3
Compartment (2.4 DOHC) ............................................................ 6-2
Compartment (2.7 V6) ................................................................... 6-3
Compartment (3.5 V6) ................................................................... 6-4
Coolant ........................................................................................... 6-8
Coolant temperature gauge .........................................................1-41
If the engine overheats .................................................................. 3-3
Number........................................................................................... 8-2
Oil ................................................................................................... 6-6
Starting ........................................................................................... 2-5
Engine Exhaust Can Be Dangerous .................................................. 2-2
F
Fan Speed Control ............................................................................1-70
Floor Mat Anchor ..............................................................................1-64
Fog Light
Front.............................................................................................1-46Front Seats
Adjustable front seats ..................................................................1-10
Adjustable headrests ...................................................................1-12
Adjusting seat forward and rearward ..........................................1-11
Adjusting seatback angle .............................................................1-11
Fuel
Auto fuel cut switch ......................................................................1-62
Capacity......................................................................................... 9-2
Gauge...........................................................................................1-40
Recommendations......................................................................... 1-2
Fuel Filler Lid
Remote release ............................................................................1-62
Full-time 4WD Operation ..................................................................2-13
Fuses................................................................................................6-20
G
General Checks .................................................................................. 6-5
Glove Box ..........................................................................................1-53
H
Hazard Warning System ..................................................................1-46
Heating and Cooling Control .............................................................1-69
Heating and Ventilation
Air flow control ..............................................................................1-71
Air intake control ..........................................................................1-70
Bi-level heating .............................................................................1-75
Defrosting / Defogging .................................................................1-77
Fan speed control (Blower control) .............................................1-70
Temperature control ....................................................................1-74
High-Mounted Rear Stoplight ............................................................1-61
Homelink Mirror .................................................................................1-56
