1- 10 FEATURES OF YOUR HYUNDAI
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter. HEF193
Battery
1. Carefully separate the case with a blade screwdriver as shown in the illustration. HEF-192A
Screwdriver Case
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:B060A03L-AAT POWER WINDOWS
Open Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rearwindows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switchand closed by pulling up the switch. To open the window on the driver's side, press the switch(1) halfway down. Thewindow moves as long as the switch is operated. To fully open the driver's window automatically, press the switchfully down. In automatic operation, the window will fully open even if you let go of the switch. To stop at the desiredopening, pull up and release the switch. HXG025-1
(1)
(2)

FEATURES OF YOUR HYUNDAI 1- 35
o The SRS can function only when
the ignition key is in the "ON" position. If the SRS SRI does not come on, or continuously re- mains on after flashing for about6 seconds when the ignition key is turned to the "ON" position, or after the engine is started, comeson while driving, the SRS is not working properly. If this occurs, have your vehicle immediatelyinspected by your Hyundai dealer.
o Before you replace a fuse or dis- connect a battery terminal, turnthe ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout thevehicle. These conditions are normal and are not hazardous. However, the fine dust generatedduring airbag deployment may cause skin irritation. Wash your hands and face thoroughly withlukewarm water and a mild soap after an accident in which the airbags were deployed.
!
Passenger's Airbag
CAUTION:
When installing a container of liq- uid air freshener inside a vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (Instrument cluster, instru- ment panel pad or air ventilator), it may damage these parts. If the liq-uid from air freshener does leak onto these areas, wash them with water immediately.
B240B05L
B240B04L
Passenger's Airbag
After complete inflation, the airbagimmediately starts deflating, enabling the driver to maintain forward visibility.
!

FEATURES OF YOUR HYUNDAI 1- 55

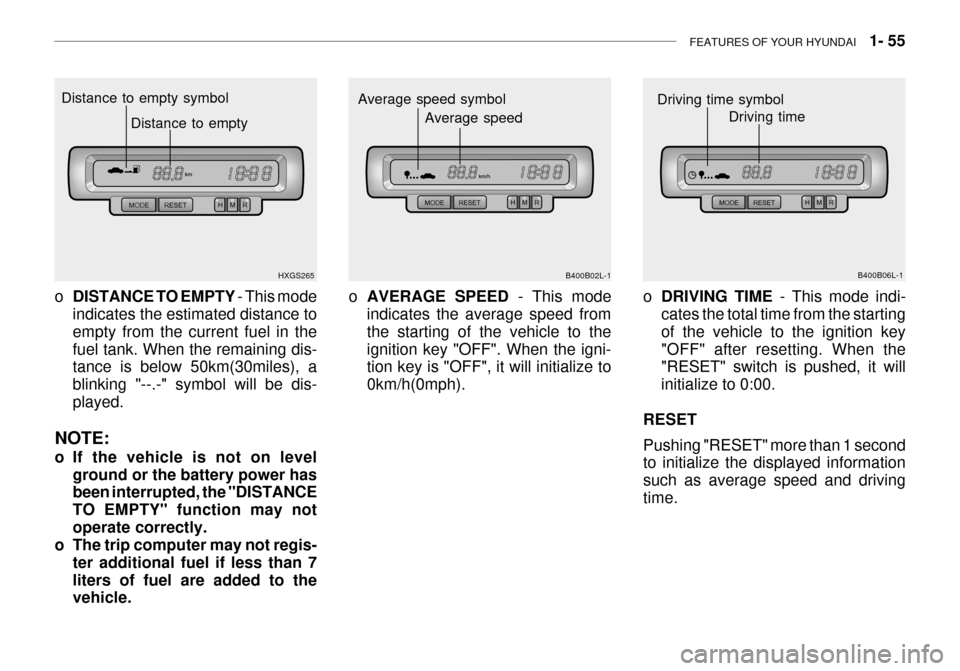

B400B06L-1
Driving time symbol
Driving time
B400B02L-1
Average speed symbol
Average speed
oDRIVING TIME - This mode indi-
cates the total time from the starting of the vehicle to the ignition key"OFF" after resetting. When the "RESET" switch is pushed, it will initialize to 0:00.
RESET Pushing "RESET" more than 1 second to initialize the displayed information such as average speed and drivingtime.
HXGS265 oAVERAGE SPEED - This mode
indicates the average speed from the starting of the vehicle to theignition key "OFF". When the igni- tion key is "OFF", it will initialize to 0km/h(0mph).
Distance to empty symbol
Distance to empty
o DISTANCE TO EMPTY - This mode
indicates the estimated distance to empty from the current fuel in thefuel tank. When the remaining dis- tance is below 50km(30miles), a blinking "--.-" symbol will be dis-played.
NOTE:
o If the vehicle is not on level ground or the battery power has been interrupted, the "DISTANCE TO EMPTY" function may notoperate correctly.
o The trip computer may not regis-
ter additional fuel if less than 7liters of fuel are added to the vehicle.

2- 4 DRIVING YOUR HYUNDAI
C070C01E
C070C01A-AAT
To Remove The Ignition Key
1. Turn the ignition key to the "ACC"
position.
2. Simultaneously push and turn the ignition key counterclockwise from the "ACC" position to the "LOCK"position.
3. The key can be removed in the
"LOCK" position. C050A01A-AAT STARTING
C050A01E
WARNING:
Never run the engine in a closed or poorly ventilated area any longer than is needed to move your car in or out of the area. The carbon mon-oxide gas emitted is odorless and can cause serious injury or death.
LOCK
ACC
ON
START
o "START" The engine is started in this position. It will crank until you release the key. NOTE: Do not hold the key in the "START" position for more than 15 seconds.
o "ON" When the key is in the "ON" position, the ignition is on and all accessories may be turned on. If the engine is notrunning, the key should not be left in the "ON" position. This will discharge the battery and may also damage theignition system.
o "ACC" With the key in the "ACC" position, some electrical accessories (radio, etc.)may be operated.
o "LOCK" The key can be removed or inserted in this position. To protect against theft, the steering wheel locks by removing the key. NOTE: To unlocking the steering wheel, insert the key, and then turn the steering wheel and key simulta-neously.
!

3- 2 WHAT TO DO IN AN EMERGENCY
D010A01A-AAT IF THE ENGINE WILL NOT START
WARNING:
If the engine will not start, do not push or pull the car to start it. Thiscould result in a collision or cause other damage. In addition, push or pull starting may cause the cata-lytic converter to be overloaded and create a fire hazard. D010B01A-AAT If Engine Doesn't Turn Over or Turns Over Slowly 1. If your car has an automatic
transaxle, be sure the gear selector lever is in "N" or "P" and the emer-gency brake is set.
2. Check the battery connections to be
sure they are clean and tight.
3. Turn on the interior light. If the light dims or goes out when you operatethe starter, the battery is discharged.
4. Check the starter connections to be sure they are securely tightened.
5. Do not push or pull the vehicle to start it. See instructions for "Jump Starting" on the following pages. D010D01A-AAT If Engine Stalls While Driving
1. Reduce your speed gradually, keep-
ing a straight line. Move cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Try to start the engine again. If your
vehicle will not start, contact a Hyundai dealer or seek other quali- fied assistance.
D010C01Y-AAT If Engine Turns Over Normally but Does Not Start
1. Check fuel level.
2. With the key in the off position, check all connectors at ignition, coils and spark plugs. Reconnect any that may be disconnected or loose.
3. Check the fuel line in the engine room.
4. If engine still refuses to start, call a
Hyundai dealer or seek other quali- fied assistance.
D010B01L
D020A02A-AAT JUMP STARTING
HXG554J
Dischargedbattery
Booster battery
!
