2003 Hyundai Grandeur audio

1- 114 FEATURES OF YOUR HYUNDAI
INDICATION
Er2 Er3Er6 Er8
HHH
no CD
B890A01Y-AAT AUDIO FAULT CODE If you see any error indication in the display while using the system in the CD or Tape mode, find the cause in the chart below .
If you cannot clear the error indication, take the car to your Hyundai dealer.
SOLUTION
After resetting the audio system, push the eject button. If disc is not ejected, consult your hyundai dealer. Make sure the disc is not scratched or damaged. Press the eject button and pull out the disc.Then insert a normal cd disc. Check if the disc is inserted correctly in the cd player. Make sure the disc is not scratched or damaged. After resetting the audio system, push the eject button. If tape does not eject, consult your Hyundai dealer.Fault code will reset automatically when the temperature returns to normal. Insert disc in magazine or insert cd magazine in the auto changer.
CAUSE
CD DECK MECHANICAL ERROR (EJECT ERROR, LOADING ERROR) FOCUS ERROR DATA READ ERROR DISC ERROR TAPE DECK ERROR TAPE EJECT ERROR TEMPERATURE IS TOO HIGH NO DISC IN MAGAZINE NO CD MAGAZINE IN THE AUTO CHANGER

1- 116 FEATURES OF YOUR HYUNDAI

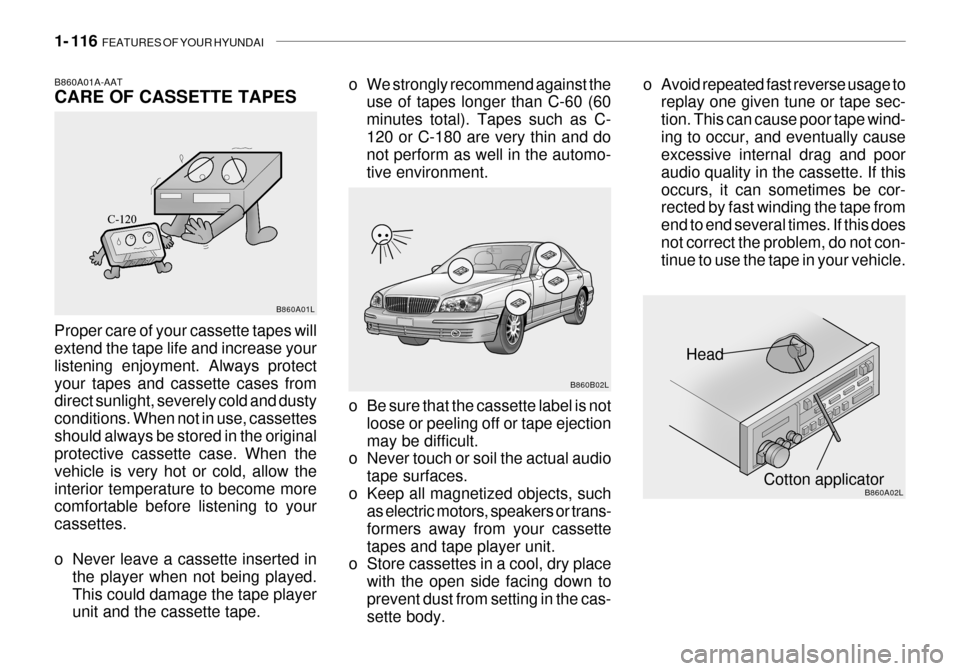

Head
Cotton applicator
B860B02L
B860A02L
o Be sure that the cassette label is not
loose or peeling off or tape ejection may be difficult.
o Never touch or soil the actual audio
tape surfaces.
o Keep all magnetized objects, such as electric motors, speakers or trans-formers away from your cassettetapes and tape player unit.
o Store cassettes in a cool, dry place
with the open side facing down toprevent dust from setting in the cas- sette body.
o We strongly recommend against the
use of tapes longer than C-60 (60 minutes total). Tapes such as C-120 or C-180 are very thin and do not perform as well in the automo- tive environment. o Avoid repeated fast reverse usage to
replay one given tune or tape sec-tion. This can cause poor tape wind-ing to occur, and eventually cause excessive internal drag and poor audio quality in the cassette. If thisoccurs, it can sometimes be cor- rected by fast winding the tape from end to end several times. If this doesnot correct the problem, do not con- tinue to use the tape in your vehicle.
B860A01A-AAT CARE OF CASSETTE TAPES Proper care of your cassette tapes will extend the tape life and increase your listening enjoyment. Always protectyour tapes and cassette cases from direct sunlight, severely cold and dusty conditions. When not in use, cassettesshould always be stored in the original protective cassette case. When the vehicle is very hot or cold, allow theinterior temperature to become more comfortable before listening to your cassettes.
o Never leave a cassette inserted in
the player when not being played. This could damage the tape player unit and the cassette tape. B860A01L

FEATURES OF YOUR HYUNDAI 1- 117
o The playback head, capstan and
pinch rollers will develop a coating of tape residue that can result in dete-rioration of sound quality, such as a wavering sound. They should be cleaned monthly using a commer-cially available head cleaning tape or special solution available from audio specialty shops. Follow the supplier'sdirections carefully and never oil any part of the tape player unit.

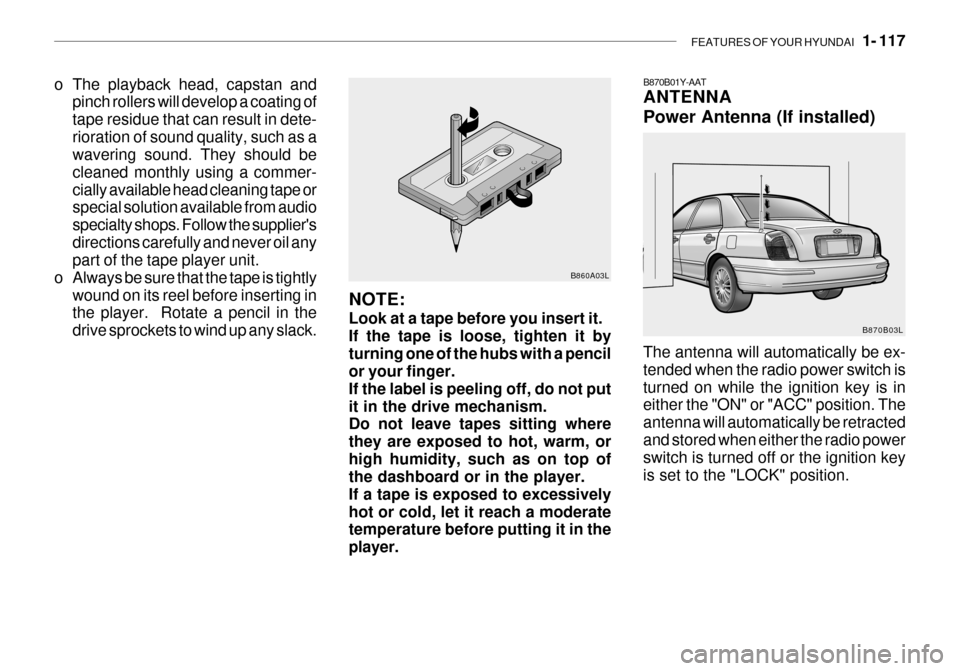

o Always be sure that the tape is tightly wound on its reel before inserting inthe player. Rotate a pencil in the drive sprockets to wind up any slack. B860A03L
NOTE: Look at a tape before you insert it. If the tape is loose, tighten it byturning one of the hubs with a pencil or your finger. If the label is peeling off, do not putit in the drive mechanism. Do not leave tapes sitting where they are exposed to hot, warm, orhigh humidity, such as on top of the dashboard or in the player. If a tape is exposed to excessivelyhot or cold, let it reach a moderate temperature before putting it in the player.B870B01Y-AAT ANTENNA Power Antenna (If installed) The antenna will automatically be ex- tended when the radio power switch isturned on while the ignition key is in either the "ON" or "ACC" position. The antenna will automatically be retractedand stored when either the radio power switch is turned off or the ignition key is set to the "LOCK" position. B870B03L

6- 34 DO-IT-YOURSELF MAINTENANCE
G200C01L-GAT JUNCTION BOX DESCRIPTION Under Hood Junction Box
G200C01L
NOTE: Not all junction box description in this manual
may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the junction box on your vehicle, refer to the junction box label. DESCRIPTION
FUEL PUMP
HEAD LIGHT(Lo-LH) ABS
INJECTOR
A/C COMPRESSOR A/T
MAIN
IGNITION COIL
OXYGEN SENSOR EGR
HORN
HEAD LIGHT(HI)
HEAD LIGHT(Lo-RH) DRL
FOG LIGHT DIODE 1
SPARE
SPARE
SPARE
SPARE
DIODE 2
BLOWER
POWER FUSE 2 POWER AMPSUNROOF
TAIL LIGHT
POWER FUSE 1 ECU
REAR DEFOGGER CONDENSER
POWER WINDOW IGNITION1/2ABS 1/2
RADIATOR FUSE
RATING
20A15A10A10A10A20A30A 20A 15A 15A10A15A20A15A15A 30A 20A15A10A 30A 30A20A15A20A30A10A30A20A40A
30A/30A30A/30A 30A PROTECTED COMPONENTS
Fuel pump relay
Head light relay (Low-LH)
ABS controls, Cruise control module, ETS control module
Limp home valve, ETS controls, Injector
A/C relay
A/T control relay, TCM, Engine control relayMFI controls
Ignition coil, A/T pulse generator, ECM, Ignition failure
sensor, E/TCM
ETS relay, MFI controls
A/C relay, MFI controls, EGR solenoid
Horn relay
Head light relay (High)
HID head light relay
DRL control module, Siren
Fog light relay - -----
Blower relayFuse 4, 20, 24, 25
Audio amp module
Data link connector, Sunroof relay, Home link connector
Tail light relayFuse 1, 7, 17, 18, 19
ETS control module, ECM, E/TCM, Generator
Rear window defogger relay
A/C fan relay #1
Power window relay, IMS controls
Ignition switchABS controlsRadiator fan relay

DO-IT-YOURSELF MAINTENANCE 6- 35
FUSE RATING
25A 20A10A15A10A10A10A15A10A10A15A 10A 10A 10A20A10A 15A 10A15A10A10A15A10A20A 10A 10A 10A 10A10A10A 10A 10A PROTECTED COMPONENTS
Power seat
Seat warmerEPS controls
ETS relay
(HID) Head lights, DRL controls, AQS sensor
Blower & A/C controls
Turn & Hazard controlsNot used
Cruise switch, Instrument cluster
Head light leveling switch, Rain sensor, IMS controls
Rain sensor relay, Wiper & Washer controls
Home link connector, Left (Right) vanity lights, Sunroof, Blower & A/C controls,Electronic chrome mirrorNot used
Audio
Front (Rear) cigarette lighter, Accessory socket
IMS controls, Driver door module, RheostatNot used
Rear for light relay
Stop lights, Left (Right) personal lights, Left (Right) rear door lights
Door warning & Ignition key illumination, Courtesy lightsInstrument clusterSRS controls
Automatic transaxle controls, Back-up light switch, Vehicle speed sensor
Fuel filler door & Trunk lid opener, Driver (Assister) door module
Multipurpose check connector, Audio, lmmobiilizer controls, Trip computers, Digital
clock, Blower & A/C controls, Instrument cluster
Left (Right) inside lights, (HID) Head lights, Fog light relay, Right HID turn signal light,Right rear combination light
Stop light failure relay
Immobilizer controls, TCS switch, Trip computers, Instrument cluster
ETACM, Hazard switch, Auto light sensor
Antenna, Blower & A/C controls, Left (Right) outside mirror motor & Folding motor
(HID) Head lights, Front (Rear) cigarette lighters, Left (Right) license lights, Left HID
Turn signal light, Left rear combination lightBurglar alarm relay, Transaxle range switch, Start relay, ETS controlsDESCRIPTION
P/SEAT
S/HTR EPSETS
H/LP
A/CON SW HAZARDSPARE
CRUISE IMS
WIPER
ETACS
SPARE AUDIO
C/LIGHTER MIRRORSPARE
RR FOG
STOP LP
ROOM LP
A/BAG IND A/BAGB/UP
T/LID
D/CLOCK
RH TAILSPARE
CLUSTER T/SIG
RR HTD IND
LH TAIL
START
G200D01L-GAT
Instrument Panel Junction Box
G200D01L

10- 2 INDEX
A Accessory Box .......................................................... 1-69
Air Bag .......................................................... 1-32 ~ 1-39
Air Cleaner Filter ....................................................... 6-11
Air Conditioning Care ....................................................................... 6-17
Operation ..................................................... 1-84, 6-17
Switch ..................................................................... 1-84
Antenna ..................................................... 1-117 ~ 1-118
Ashtray .......................................................... 1-56 ~ 1-57 Audio Remote Control Switch ....................... 1-76 ~ 1-77
Automatic Heating and Cooling Control System
................................................................... 1-86 ~ 1-92
B
Battery ............................................................. 2-16, 6-23 Bi-Level Heating ........................................................ 1-82
Brake
Anti-lock brake system ..................... ..................... 2-11
Checking the brakes .............................................. 6-15
Fluid ....................................................................... 6-15
Pedal clearance ..................................................... 6-20
Pedal freepl ay ........................................................ 6-20
Practices .................................................... 2-13 ~ 2-14
Breaking-In your New Hyundai ................................... 1-3
Bulbs wattage ........................................................... 6-33C Care of Cassette Tapes
........................... 1-116 ~ 1-117
Cassette Tape Player Operation (H940B, H940A) ........................................... 1-98 ~1-99, 1-106 ~ 1-107
Catalytic Converter ..................................................... 7-3
CD Auto changer .......................................... 1-70 ~ 1-71 CD Auto changer (H940B, H940A) ...................................... 1-100 ~ 1-102, 1-111 ~ 1-113
Child-Protector Rear Door Lock ................................. 1-7
Child Restraint S ystem ................................. 1-24 ~ 1-29
Cigarette Lighter ....................................................... 1-56
Clock ......................................................................... 1-54
Clutch Checking fluid ........................................................ 6-16
Pedal freepl ay ........................................................ 6-20
Combination Light
Headlight flasher .................................................... 1-51
Headlight swi tch ..................................................... 1-49
High-beam switc h .................................................. 1-50
Lane change si gnal ................................................ 1-49
Turn signal oper ation............................................. 1-49
Compact Disc Player Operation (H940A) . 1-108 ~ 1-110Cooling Fans ............................................................. 6-23
Corrosion protection
Cleaning the interior ....................................... 4-5 ~ 4-6
Protecting your Hyundai from corrosion ........ 4-1 ~ 4-6 Washing and waxing ...................................... 4-3 ~ 4-5
Cruise Control ............................................... 1-74 ~ 1-76
