2003 Hyundai Getz Owner's Manual

Page 409 of 444

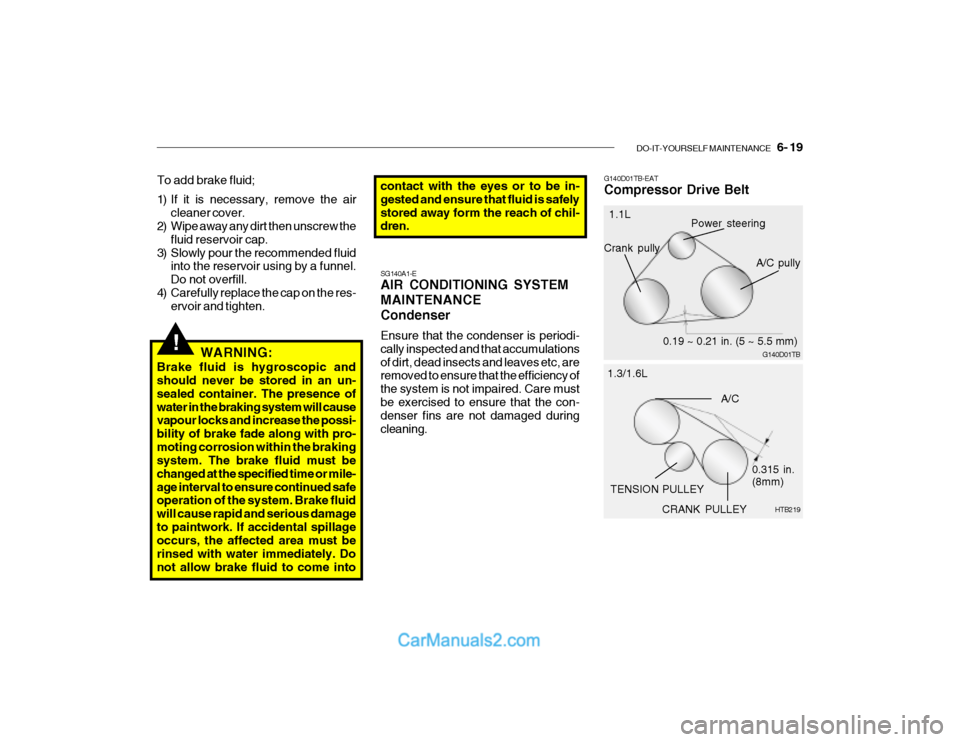

Hyundai Getz 2003  Owners Manual DO-IT-YOURSELF MAINTENANCE    6- 19
!WARNING:
Brake fluid is hygroscopic and should never be stored in an un- sealed container. The presence ofwater in the braking system will cause vapour locks and i

Page 410 of 444

Hyundai Getz 2003  Owners Manual 6- 20  DO-IT-YOURSELF MAINTENANCE
B145A01TB-EAT CHANGING THE POLLEN FIL-
TER  (In Front of evaporator unit)(Not all models) The pollen filter is located in front of the evaporator unit behind the glo

Page 411 of 444

Hyundai Getz 2003  Owners Manual DO-IT-YOURSELF MAINTENANCE    6- 21
SG150A1-E STEERING WHEEL FREEPLAY Steering wheel freeplay should be checked to ensure that the specified value is not exceeded.
HTB293-D
4. Replace the two filters.

Page 412 of 444

Hyundai Getz 2003  Owners Manual 6- 22  DO-IT-YOURSELF MAINTENANCE
G180A01A-GAT CHECKING BRAKE PEDAL CLEARANCE
G180A01L
1.78 in. (45.1 mm)
You need a helper to check the brake pedal clearance. With the engine run- ning, have your hel

Page 413 of 444

Hyundai Getz 2003  Owners Manual DO-IT-YOURSELF MAINTENANCE    6- 23
The various engine drive belts must be checked for condition, tension and free- dom from damage and excessive wear.The tension of a new belt must be checked after t

Page 414 of 444

Hyundai Getz 2003  Owners Manual 6- 24  DO-IT-YOURSELF MAINTENANCE
!
!
SG200A1-E FUSIBLE LINKS The fusible link prevents damage to the wiring harness in the event of an elec-trical system malfunction. Failure of a fusiblelink is indi

Page 415 of 444

Hyundai Getz 2003  Owners Manual DO-IT-YOURSELF MAINTENANCE    6- 25
!
!
o If battery electrolyte is spilled onto
skin or into eyes, the effected area must be flushed with copiousamounts of water and medical assis- tance sought.
o If

Page 416 of 444

Hyundai Getz 2003  Owners Manual 6- 26  DO-IT-YOURSELF MAINTENANCE
HTB287
SG230B1-E POWER STEERING HOSES Power steering hoses should be checked for damage, deterioration andleakage at each service.
steering fluid level is between the
