2003 HONDA ODYSSEY remove

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Put the inner f ender in place.
Install the two holding clips. Lock
each clip in place by pushing on
the center.Determine which of the two bulbs
is burned out: stop/taillight/side
marker light or turn signal light. Pull the taillight assembly out of
thebodybyslidingitbackward.
Use a Phillips-head screwdriver to
remove the taillight assembly
mounting screw under each cover. Open the tailgate. Release the
covers by inserting a f lat-tip
screwdriver into the slot until the
cover bows slightly. Then pivot
the screwdriver 90° and pull it
straight out of the slot.
Turn on the lights to make sure
the new bulb is working.
1.
2. 3.
4.
4.
5.
6.
7.
8.
9.
Lights
Maint enance
Replacing Rear Bulbs
(in Fenders)
334

Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
When reinstalling the taillight
assembly, align and pop the snap
f asteners in place. Tighten the two
mounting screws and reinstall the

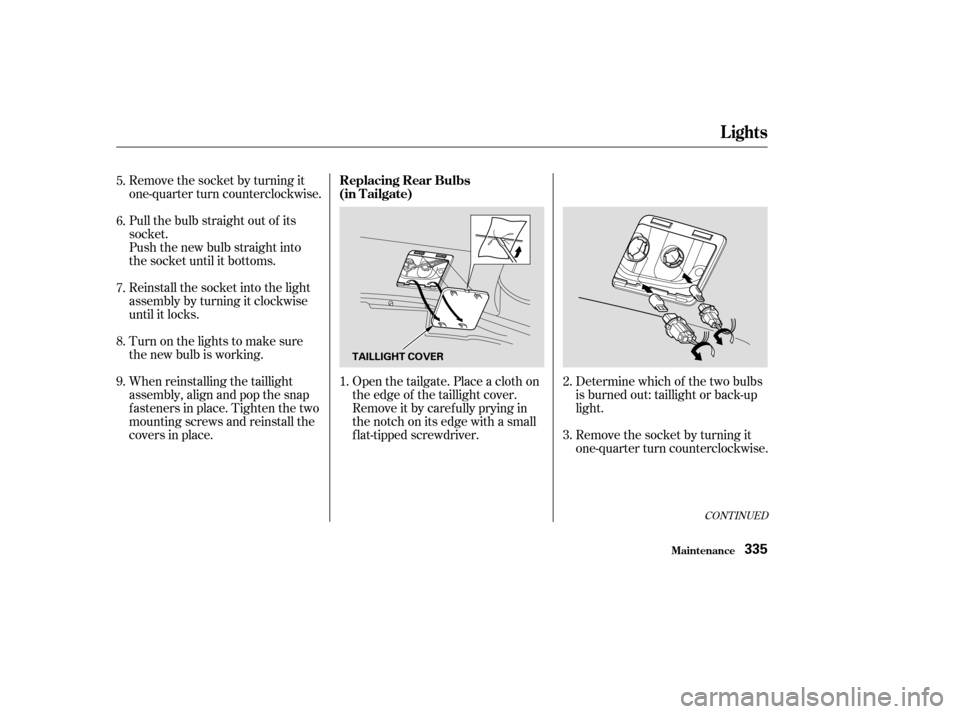

covers in place.Open the tailgate. Place a cloth on
the edge of the taillight cover.
Remove it by caref ully prying in
the notch on its edge with a small
f lat-tipped screwdriver.Determine which of the two bulbs
is burned out: taillight or back-up
light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Turn on the lights to make sure
the new bulb is working.
2.
3.
5.
6.
7.
8.
9.
1.
CONT INUED
Lights
Maint enance
Replacing Rear Bulbs
(in Tailgate)
335
TAILLIGHT COVER

Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
Reinstall the taillight cover.Pull the light assembly out of the
tailgate.
Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.

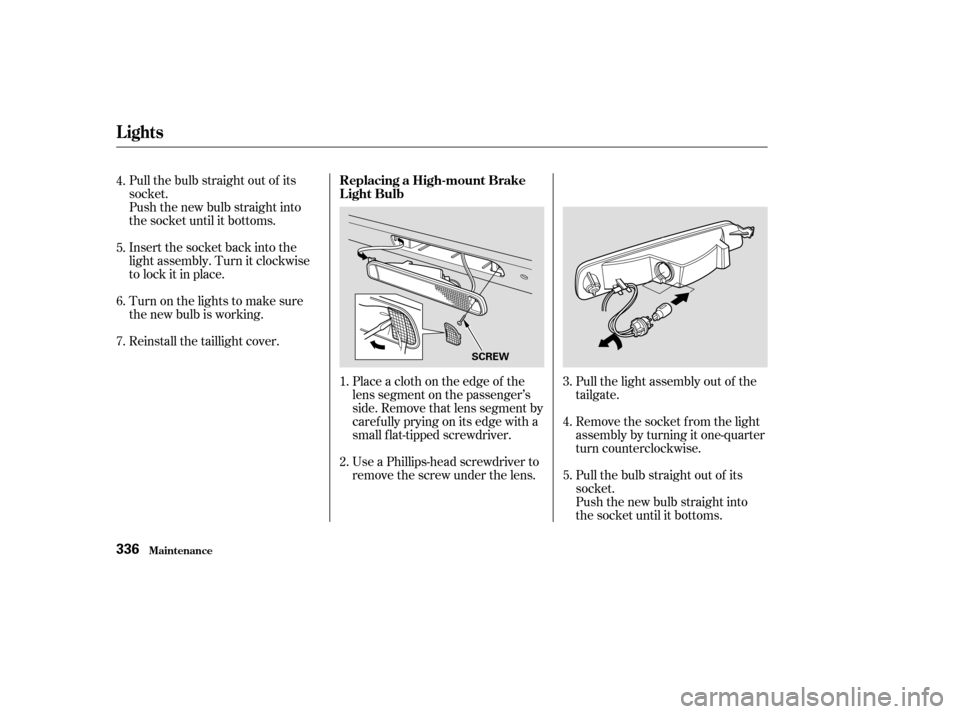

Place a cloth on the edge of the
lens segment on the passenger’s
side. Remove that lens segment by
caref ully prying on its edge with a
small f lat-tipped screwdriver.
Use a Phillips-head screwdriver to
remove the screw under the lens.
Turn on the lights to make sure
the new bulb is working.
1.
2. 3.
4.
5.
6.
7.
4.
5.
Lights
Maint enance
Replacing a High-mount Brake
Light Bulb
336
SCREW

CONT INUED
Put the socket back into the light
assembly and turn it clockwise to

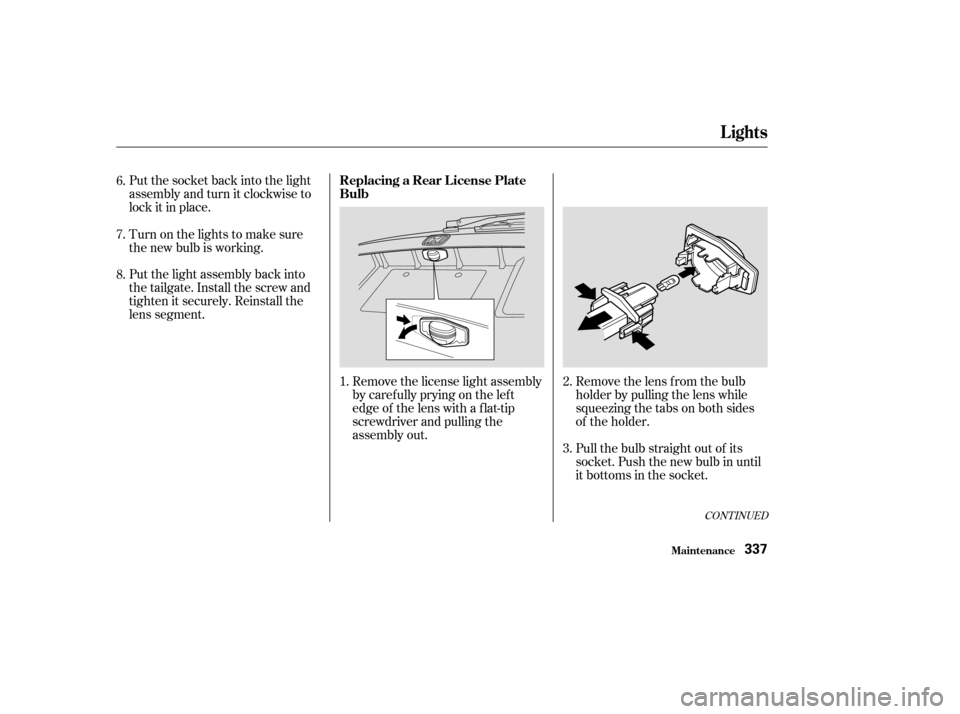

lock it in place.Remove the license light assembly
by caref ully prying on the lef t
edge of the lens with a f lat-tip
screwdriver and pulling the
assembly out.Remove the lens f rom the bulb
holder by pulling the lens while
squeezing the tabs on both sides
of the holder.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.
Put the light assembly back into
the tailgate. Install the screw and
tighten it securely. Reinstall the
lens segment. Turn on the lights to make sure
the new bulb is working.
2.
3.
6.
7.
8.
1.
Lights
Maint enance
Replacing a Rear License Plate
Bulb
337

Turn on the parking lights and
check that the new bulb is
working.
Put the lens back on the bulb
holder and push it until it latches.
Slide the lef t side of the light
assembly into the hole. Push on
the right side to latch the
assembly into place.The individual map lights, cargo area
light, and the vanity mirror lights
come apart the same way. They do
not all use the same type of bulbs.
Removethelensbycarefully
prying on the edge of the lens with
a f ingernail f ile or a small f lat-tip
screwdriver. Do not pry on the
edge of the housing around the
lens.
1.
4.
5.
6.
Lights
Maint enance
Replacing Bulbs in the Interior
Lights
338
FRONT INDIVIDUAL MAP LIGHT

Remove the bulb by pulling it
straight out of its metal tabs.Push the new bulb into the metal
tabs. Snap the lens back in place.

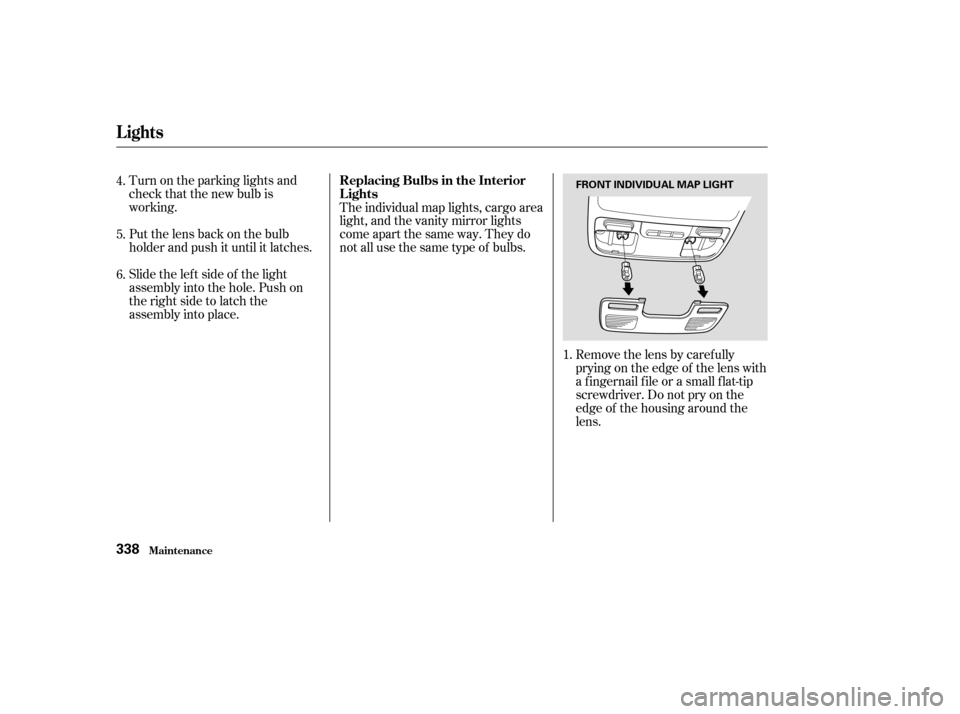

Front individual map light:
Pry on the f ront edge in f ront of both
map lights.

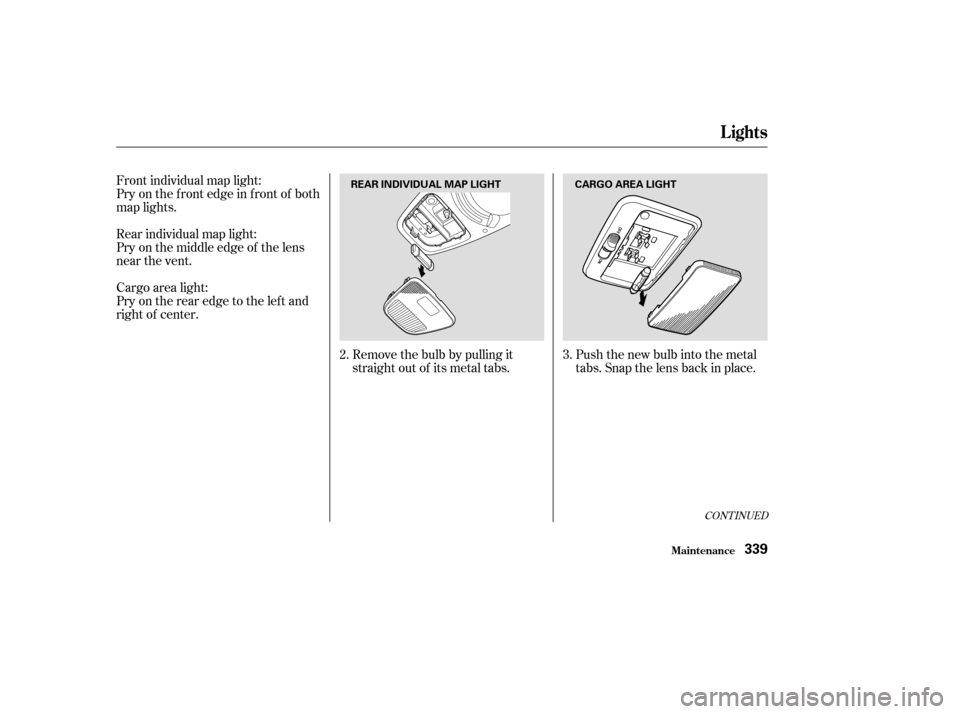

Rear individual map light:
Pry on the middle edge of the lens
near the vent.
Cargo area light:
Pry on the rear edge to the lef t and
right of center.
3.
2.
CONT INUED
Lights
Maint enance339
REAR INDIVIDUAL MAP LIGHT CARGO AREA LIGHT

Frequent washing helps preserve
your vehicle’s beauty. Dirt and grit
can scratch the paint, while tree sap
and bird droppings can permanently
ruin the f inish.
Wash your vehicle in a shady area,
not in direct sunlight. If the vehicle is
parked in the sun, move it into the
shade and let the exterior cool down
bef ore you start.When you have washed and rinsed
the whole exterior, dry it with a
chamois or sof t towel. Letting it
air-dry will cause dulling and water
spots.
As you dry the vehicle, inspect it f or
chips and scratches that could allow
corrosion to start. Repair them with
touch-up paint (see page ).
Rinse the vehicle thoroughly with
cool water to remove loose dirt.
Only use the solvents and cleaners
recommendedinthisOwner’s
Manual. Fill a bucket with cool water. Mix
in a mild detergent, such as
dishwashing liquid or a product
made especially f or car washing.
Wash the vehicle using the water
and detergent solution and a sof t-
bristle brush, sponge, or sof t cloth.
Start at the top and work your way
down. Rinse f requently.
Check the body f or road tar, tree
sap, etc. Remove these stains with
tar remover or turpentine. Rinse it
of f immediately so it does not
harm the f inish. Remember to re-
wax these areas, even if the rest of
the vehicle does not need waxing.
Your vehicle is equipped with an
antenna on the f ront right f ender.
Bef ore using a ‘‘drive-through’’ car
wash, make sure you remove the
antenna by unscrewing it by hand.
This prevents the antenna f rom
being damaged by the car wash
brushes.345
Exterior Care
Appearance Care
Washing
344
Chemical solvents and strong cleaners
can damage the paint, metal, and
plastic on your vehicle.

µ
µ Your dealer has touch-up paint to
match your vehicle’s color. The color
code is printed on a sticker on the
driver’s doorjamb. Take this code to
your dealer so you are sure to get
the correct color.
Inspect your vehicle f requently f or
chips or scratches in the paint.
Repair them right away to prevent
corrosion of the metal underneath.
Use the touch-up paint only on small
chips and scratches. More extensive
paint damage should be repaired by
a prof essional.
Always wash and dry the whole
vehiclebeforewaxingit.Youshould
wax your vehicle, including the metal
trim, whenever water sits on the
surf ace in large patches. It should
formintobeadsordropletsafter
waxing.
The wheels have a protective clear-
coat that keeps the aluminum from
corroding and tarnishing. Using
harsh chemicals, including some
commercial wheel cleaners, or stif f
brushes can damage this clear-coat.
Only use a mild detergent and sof t
brush or sponge to clean the wheels. Clean your Honda’s aluminum alloy
wheels as you do the rest of the
exterior.Washthemwiththesame
solution, and rinse them thoroughly. Cleaning tar, insects, etc. with
removers also takes off the wax.
Remember to re-wax those areas,
even if the rest of the vehicle does
not need waxing.
Polishes Polishes and cleaner/
waxes can restore the shine to paint
that has oxidized and lost some of its
shine. They normally contain mild
abrasives and solvents that remove the top layer of the f inish. You
should use a polish on your Honda if
the f inish does not have its original
shine af ter using a wax.
Waxes A wax coats the finish and
protects it f rom damage by exposure
to sunlight, air pollution, etc. You
should use a wax on your Honda
when it is new. You should use a quality liquid or
paste wax. Apply it according to the
instructions on the container. In
general, there are two types of
products:
On some models
Exterior Care
Appearance Care
Paint T ouch-up
Waxing
A luminum Wheels
345
