2003 HONDA ELEMENT radio controls

For inf ormation, see page .
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
You operate the CD player with the
same controls used f or the radio.
With the ignition switch in
ACCESSORY (I) or ON (II), insert
the disc into the CD slot. Push the
disc in half way, the drive will pull it
in the rest of the way and begin to
play. The number of the track that is
playing is shown in the display.You can also play 3-inch (8-cm) discs
without using an adapter ring. Play
only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
77
143
Comf ort and Convenience Feat ures
Audio System
Radio Frequencies and Reception
A udio System L ighting
Operating the CD Player
132
EJECT BUTTON
CD SLOT
CD BUTTON
PWR/VOL KNOB SEEK/SKIP BAR A.SEL/RDM BUTTON
RAMDOM INDICATOR REPEAT INDICATOR

You operate the CD player with the
same controls used f or the radio.
With the ignition switch in
ACCESSORY (I) or ON (II), insert
the disc into the CD slot. Push the
disc in half way, the drive will pull it
in the rest of the way and begin to
play. The number of the track that is
playing is shown in the display.
You can also play 3-inch (8-cm) discs
without using an adapter ring. In all
cases, play only standard round discs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
Operating the CD Player
145

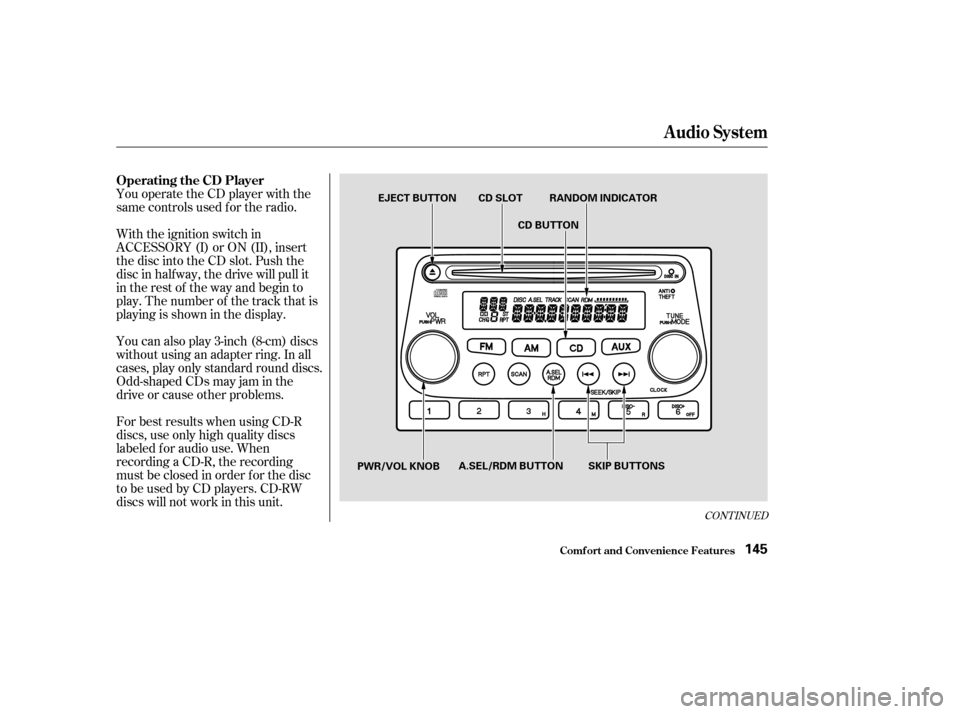

PWR/VOL KNOBSKIP BUTTONS
A.SEL/RDM BUTTON CD BUTTON
CD SLOT
EJECT BUTTON RANDOM INDICATOR

µIf you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the vehicle’s
electrical system.
If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables f rom
the terminals. Always disconnect the
negative ( ) cable f irst and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease. If your vehicle’s battery is
disconnected or goes dead, the audio
system will disable itself . The next
timeyouturnontheradioyouwill
see ‘‘CODE’’ in the f requency display.
Use the preset buttons to enter the
f ive-digit code (see page ). You
will then have to set the clock and
enter your station presets.
152
On EX models
Battery
Maint enance241
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance. Charging the battery with the cables
connected can seriously damage your
vehicle’s electronic controls. Detach
the battery cables bef ore connecting
the battery to a charger.

This indicator should come on when
the ignition switch is ON (II), and go
out af ter the engine starts. If it
comes on brightly when the engine
is running, it indicates that the
charging system has stopped
charging the battery.Immediately turn of f all electrical
accessories: radio, heater, A/C, rear
def ogger, cruise control, etc. Try not
to use other electrically-operated
controls such as the power windows.
Keep the engine running and take
extra care not to stall it. Starting the
engine will discharge the battery
rapidly.
By eliminating as much of the
electrical load as possible, you can
drive several miles (kilometers)
before the battery is too discharged
to keep the engine running. Drive to
a service station or garage where
you can get technical assistance.
Charging System Indicator
T aking Care of t he Unexpect ed291
CHARGING SYSTEM INDICATOR

CONT INUED
......................
Power Door Locks .87
..........
DOT Tire Quality Grading . 308
Downshif ting, 5-speed Manual
.............................
Transmission .176
.......................................
Drive Belt .248
...........................................
Driving .171
....................................
Economy .164
.........................
In Bad Weather .189
................
In Foreign Countries . 312
........................
Driving Guidelines .172
..................
Dust and Pollen Filter . 246
..............................
Economy, Fuel .164
............
Emergencies on the Road . 275
.............
Battery, Jump Starting . 285
...........
Brake System Indicator . 294
................
Changing a Flat Tire . 277
.....
Charging System Indicator . 291
..................
Checking the Fuses . 296
.....
Low Oil Pressure Indicator . 290
...
Malf unction Indicator Lamp . 292
..................
Overheated Engine . 288
.........................
Emergency Brake .111
......................
Emergency Flashers .81 ......................
Emergency Towing .301
.......................
Emissions Controls .313
.............
Emissions Testing, State . 316
Engine ....
Coolant Temperature Gauge . 74
...................................
Drive Belt .248
......
Engine Speed Limiter . 177,182
Malf unction Indicator ................................
Lamp .66, 292
........
Oil Pressure Indicator . 66,290
..............
Oil, What Kind to Use . 221
...............................
Overheating .288
............................
Specif ications .306
.......................................
Starting .174
......................
Ethanol in Gasoline .311
.
Evaporative Emissions Controls . 313
...............................
Exhaust Fumes .60
Expectant Mothers, Use of Seat ........................................
Belts by .21
..................
Exterior, Cleaning the . 268
............................
Fabric, Cleaning .271
...................................
Fan, Interior .118 Features, Comfort and
..............................
Convenience .117
....................
Filling the Fuel Tank . 159
Filters ................................
Air Cleaner .236
.........................
Dust and Pollen .246
...............................................
Oil .223
5-speed Manual Transmission ...............
Checking Fluid Level . 232
................................
Shif ting the .176
.............
Flashers, Hazard Warning . 81
...................
Flat Tire, Changing a . 277
Fluids ..........
Automatic Transmission . 231
..........................................
Brake .234
.........................................
Clutch .235
..............
Manual Transmission . 232
..........................
Power Steering .235
.......................
Rear Differential .233
..................
Windshield Washer . 230
FM Stereo Radio ...................................
Reception .143
...........................
Folding Rear Seat .99
.....
Foreign Countries, Driving in . 312
