2003 HONDA ACCORD engine

Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
for fuel.
Check the reservoir’s f luid level by
removing the cap and looking at the
level gauge attached to the cap.
The low washer level indicator will
light when the level is low (see page).
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather. When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
The windshield washer reservoir is
located behind the right headlight.
62
Canadian Models
Windshield Washers
Maint enance279
LEVEL GAUGE
4-cylinder models 6-cylinder models LEVEL GAUGE
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.
——yy
(yy

Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth.
Check the f luid level with the engine
at normal operating temperature.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Park the car on level ground. Shut
of f the engine. If the level is below the lower
mark, add f luid into the tube to
bring it to the upper mark. Always
use Honda ATF-Z1 (Automatic
Transmission Fluid). If it is not
available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect shift quality. Have
the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient.
1. 2. 3.5.
4.
4-cylinder models
Automatic Transmission
T ransmission Fluid
Maint enance280
DIPSTICK UPPER MARK
LOWER MARK
——y
y
(yy

6-cylinder models
Check the f luid level with the engine
at normal operating temperature.Park the car on level ground. Shut
of f the engine.
Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your Honda dealer.
To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1 (Automatic
Transmission Fluid), then drive the
car a short distance. Do this three
times. Then drain and ref ill the
transmission a f inal time.
1. 2.
6.
CONT INUED
Automatic Transmission
T ransmission Fluid
Maint enance281
DIPSTICK
——y
y
(yy

If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives and continued use can
cause stif f er shif ting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your Honda dealer.
Check the f luid level with the
transmission at normal operating
temperature and the car sitting on
level ground. Remove the
transmission f iller bolt and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual Transmis-
sion Fluid (MTF) until it starts to
run out of the hole. Reinstall the
f iller bolt and tighten it securely.
6.
5-speed Manual Transmission
T ransmission Fluid
Maint enance283
FILLER BOLT
Correct level
——yy
(yy

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.
Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.Check the level when the engine is
cold. Look at the side of the
reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
CONT INUED
Clutch System Power Steering
Brake and Clutch Fluid, Power Steering
Maint enance285
MAX
MIN UPPER LEVEL
4-cylinder models LOWER LEVEL LOWER LEVELUPPER LEVEL
6-cylinder models
——yy
(yy

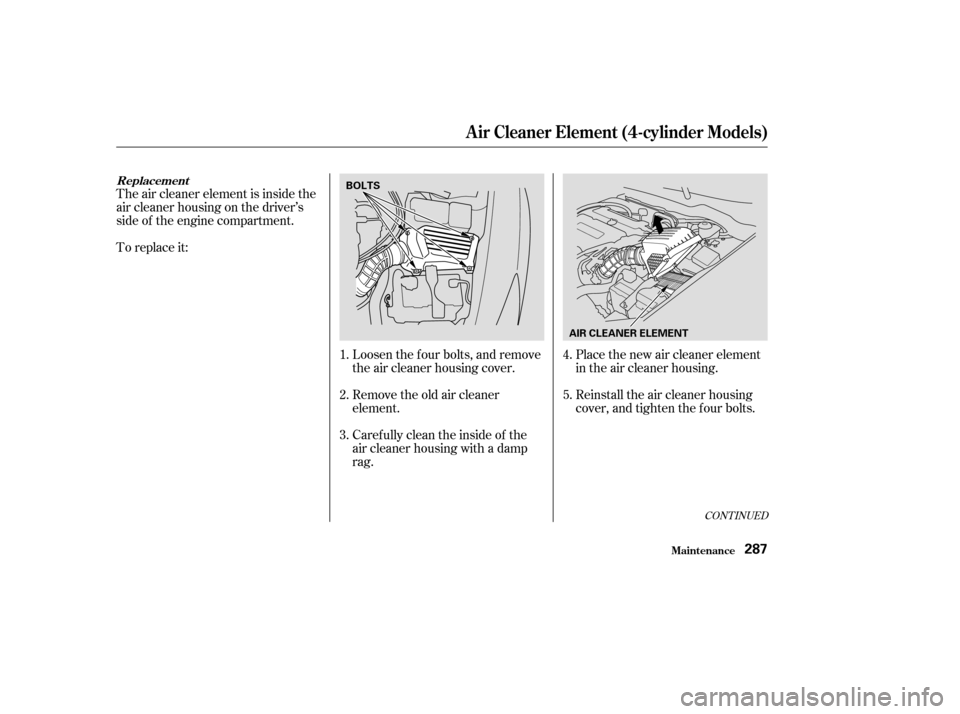

Place the new air cleaner element
in the air cleaner housing.
Loosen the f our bolts, and remove
the air cleaner housing cover.
Remove the old air cleaner
element.
Caref ully clean the inside of the
air cleaner housing with a damp
rag. Reinstall the air cleaner housing
cover, and tighten the four bolts.
The air cleaner element is inside the
air cleaner housing on the driver’s
side of the engine compartment.
To replace it:
1. 3.4. 5.
2.
CONT INUED
Replacement
A ir Cleaner Element (4-cylinder Models)
Maint enance287
BOLTS
AIR CLEANER ELEMENT
——yy
(yy

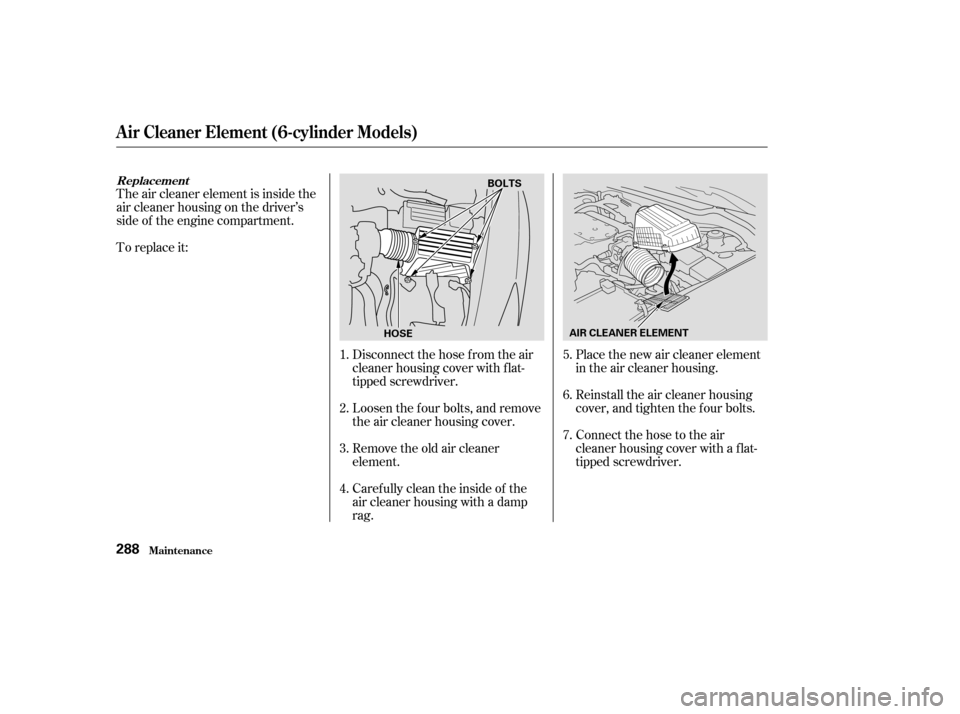

Place the new air cleaner element
in the air cleaner housing.
Reinstall the air cleaner housing
cover, and tighten the four bolts.
The air cleaner element is inside the
air cleaner housing on the driver’s
side of the engine compartment.
To replace it:
Disconnectthehosefromtheair
cleaner housing cover with f lat-
tipped screwdriver.
Loosen the f our bolts, and remove
the air cleaner housing cover.
Remove the old air cleaner
element.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.Connectthehosetotheair
cleaner housing cover with a f lat-
tipped screwdriver.
1. 3. 4. 5.
2. 6.7.
Replacement
A ir Cleaner Element (6-cylinder Models)
Maint enance288
BOLTS
AIR CLEANER ELEMENT
HOSE
——y
y
(y
y

Install the ignition coil into the
hole.
Connect the wire connector to the
ignition coil. Make sure it locks in
place.
Push the ignition coil down all the
way. Install the bolt.
Repeat this procedure f or the
other three spark plugs.
Reinstall the coil cover, and
tighten the f our nuts.The spark plugs in your car are a
special iridium-tipped design f or
longer lif e. The spark plugs should
be replaced according to the distance
recommendation in the maintenance
schedule.
9.
10. 11. 12.13. NGK:
DENSO:
NGK:
DENSO:
On some models
CONT INUED
Specif ications: Spark Plugs (6-cylinder Models)
Spark Plugs (4-cylinder Models), Spark Plugs (6-cylinder Models)
Maint enance291
IZFR6K-11
SKJ20DR-M11 IZFR6K-13
SKJ20DR-M13
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.
