The generic electronic module (GEM) is on the ISO 9141 network. The GEM module controls a variety
of systems including one touch down windows, wipers, perimeter anti-
theft, and warning chimes. For
additional information, refer to Section 419 - 10 .
The anti- lock brake control module communicates over the ISO 9141 communication network when
not equipped with traction control and communicates over the SCP communication network when it is
equipped with the traction control option. The anti- lock brake control module controls the brake
pressure to the four wheels to keep the vehicle under control while braking. For additional information
on anti- lock brake control module without traction control, refer to Section 206 - 09A . For additional
information on anti- lock brake control module with traction control, refer to Section 206 - 09B .
The instrument cluster is on the SCP communication network. The instrument cluster displays driver
information. The instrument cluster incorporates the PATS control module functions. For additional
information on the PATS system, refer to Section 419 - 01 . For additional information on the instrument
cluster, refer to Section 413 - 01 .
Inspection and Verification 1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.
3. If the concern remains after the inspection, connect diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from diagnostic
tool menu. If diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check that the correct version of the program card is installed.
z check the connections to the vehicle.
z check the ignition switch position.
If the diagnostic tool still does not communicate with the vehicle, go to Pinpoint Test H. 4. Go to Pinpoint Test PC.
System Precheck Visual Inspection Chart Electrical
z
Central junction box (CJB) Fuse 31 (5A)
z Damaged wiring harness
z Loose or corroded connections
z Anti- lock brake control module without traction control (optional)
z Anti- lock brake control module with traction control (optional)
z Generic electronic module (GEM)
z Restraint control module (RCM)
z Powertrain control module (PCM)
z Instrument cluster Klj . 2 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Anti-
Theft — Passive Anti- Theft System (PATS)
Refer to Wiring Diagrams Cell 112 , Anti-
Theft for schematic and connector information.
Refer to Wiring Diagrams Cell 60 , Instrument Cluster for schematic and connector information.
Inspection and Verification
NOTE: PATS must be reconfigured upon installment of a new instrument cluster. Refer to Section 418 -
00 .
1. Verify the customer concern by duplicating the condition.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool
Visual Inspection Chart Mechanical Electrical
z
Ignition lock cylinder
z Encoded ignition key (PATS key)
z Use of non- encoded ignition key (key without the molded plastic
head, non- PATS key)
z Use of a non- programmed encoded ignition key z
Central junction box
fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z PATS transceiver
z Connectors
z Ignition switch Klj . 1 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

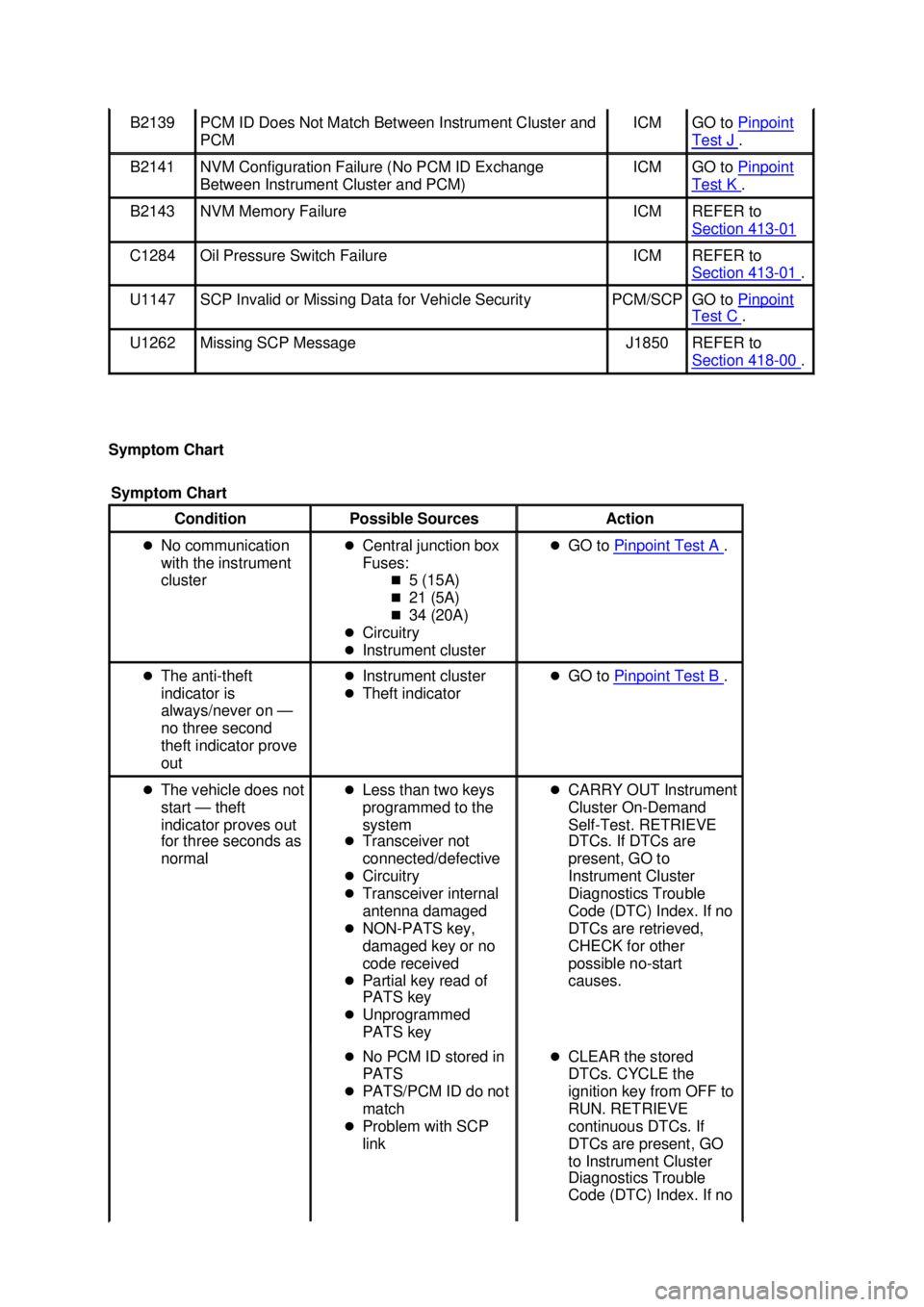

Symptom Chart B2139 PCM ID Does Not Match Between Instrument Cluster and
PCM ICM GO to
Pinpoint Test J .
B2141 NVM Configuration Failure (No PCM ID Exchange
Between Instrument Cluster and PCM) ICM GO to
Pinpoint Test K .
B2143 NVM Memory Failure ICM REFER to
Section 413
- 01
C1284 Oil Pressure Switch Failure ICM REFER to
Section 413
- 01 .
U1147 SCP Invalid or Missing Data for Vehicle Security PCM/SCP GO to
Pinpoint Test C .
U1262 Missing SCP Message J1850 REFER to
Section 418
- 00 .
Symptom Chart Condition
Possible Sources Action
z No communication
with the instrument
cluster z
Central junction box
Fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z Circuitry
z Instrument cluster z
GO to Pinpoint Test A .
z The anti- theft
indicator is
always/never on —
no three second
theft indicator prove
out z
Instrument cluster
z Theft indicator z
GO to Pinpoint Test B .
z The vehicle does not
start — theft
indicator proves out
for three seconds as
normal z
Less than two keys
programmed to the
system
z Transceiver not
connected/defective
z Circuitry
z Transceiver internal
antenna damaged
z NON- PATS key,
damaged key or no
code received
z Partial key read of
PATS key
z Unprogrammed
PATS key z
CARRY OUT Instrument
Cluster On- Demand
Self- Test. RETRIEVE
DTCs. If DTCs are
present, GO to
Instrument Cluster
Diagnostics Trouble
Code (DTC) Index. If no
DTCs are retrieved,
CHECK for other
possible no- start
causes.
z No PCM ID stored in
PATS
z PATS/PCM ID do not
match
z Problem with SCP
link z
CLEAR the stored
DTCs. CYCLE the
ignition key from OFF to
RUN. RETRIEVE
continuous DTCs. If
DTCs are present, GO
to Instrument Cluster
Diagnostics Trouble
Code (DTC) Index. If no Klj . 3 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Rear View Mirrors
Refer to Wiring Diagrams Cell
124 , Power Mirrors for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
Symptom Chart
Refer to the Wiring Diagrams for connector numbers stated in the pinpoint tests. SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Flex Probe Kit
105-
R025B or equivalent
Visual Inspection Chart Mechanical Electrical
z
Exterior rear view mirrors
z Interior rear view mirror z
Central junction box (CJB) fuse 19 (15A)
z Wiring harness
z Connections
z Exterior rear view mirror control
z Exterior rear view mirror motor
SYMPTOM CHART Condition
Possible Sources Action
z The mirrors are inoperative zExterior rear view
mirror control. z
Go To Pinpoint Test A . Klj . 1 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Seats
Refer to Wiring Diagrams Cell
120 , Power Seats for schematic and connector information.
Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart .
Symptom Chart
Refer to the Wiring Diagram manual for the connector numbers cited in the pinpoint tests. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Front seat track.
z Seat at limit(s) of travel. z
Battery junction box (BJB) Fuse Power Seat (25A).
z Loose, corroded or damaged connectors.
z Seat regulator control switch.
z Lumbar seat control switch.
z Lumbar motor.
z Bolster and lumbar control switches (cobra)
SYMPTOM CHART Condition
Possible Sources Action
z The power seat is
inoperative z
BJB Fuse Power Seat
(25A).
z Seat regulator control
switch.
z Circuitry. z
Go To Pinpoint Test
A . Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

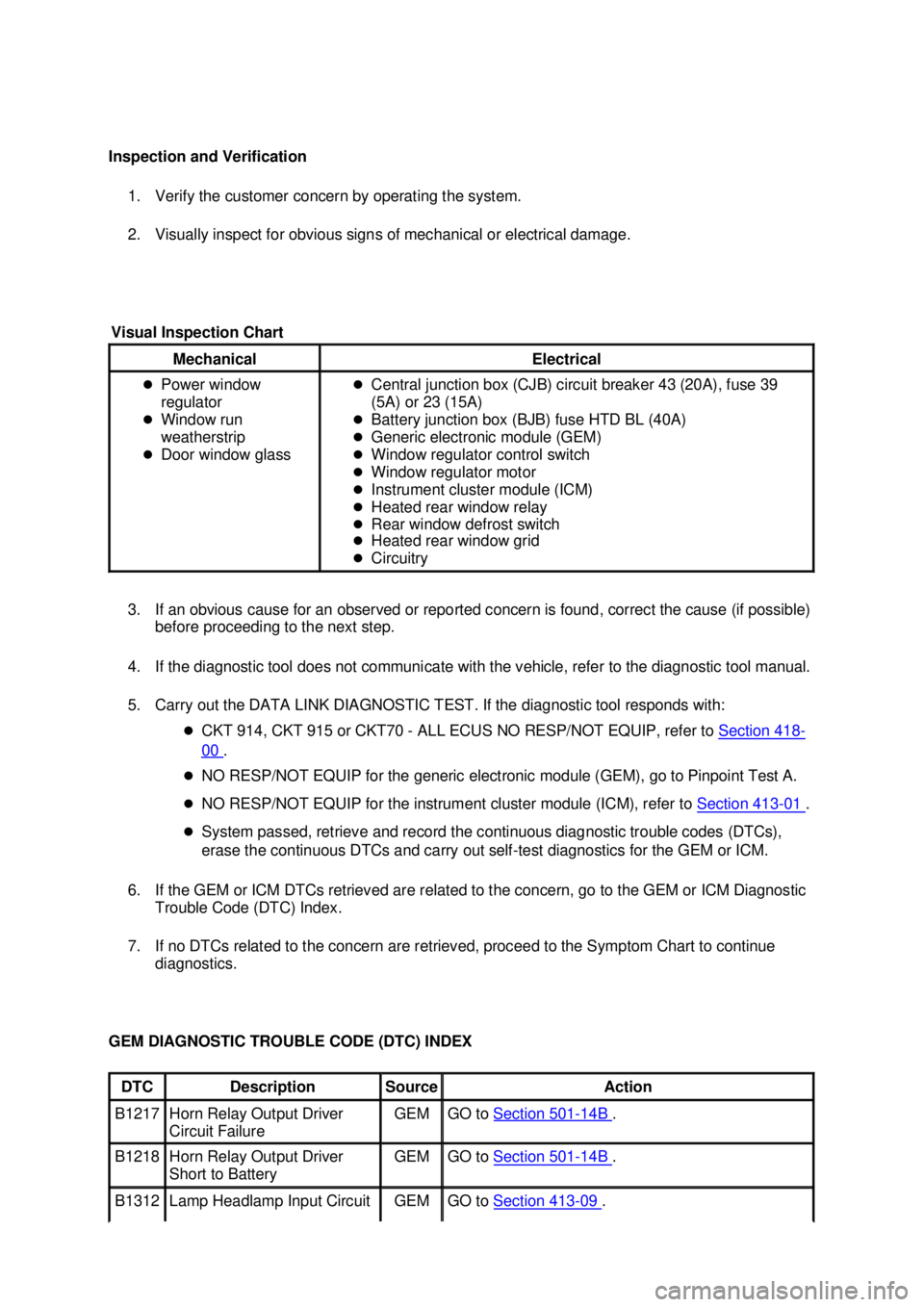

Inspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the diagnostic tool does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with: zCKT 914, CKT 915 or CKT70 - ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the generic electronic module (GEM), go to Pinpoint Test A.
z NO RESP/NOT EQUIP for the instrument cluster module (ICM), refer to Section 413 - 01 .
z System passed, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM or ICM.
6. If the GEM or ICM DTCs retrieved are related to the concern, go to the GEM or ICM Diagnostic Trouble Code (DTC) Index.
7. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
GEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX Visual Inspection Chart Mechanical Electrical
z
Power window
regulator
z Window run
weatherstrip
z Door window glass z
Central junction box (CJB) circuit breaker 43 (20A), fuse 39
(5A) or 23 (15A)
z Battery junction box (BJB) fuse HTD BL (40A)
z Generic electronic module (GEM)
z Window regulator control switch
z Window regulator motor
z Instrument cluster module (ICM)
z Heated rear window relay
z Rear window defrost switch
z Heated rear window grid
z Circuitry DTC Description Source Action
B1217 Horn Relay Output Driver
Circuit Failure GEM GO to
Section 501 - 14B .
B1218 Horn Relay Output Driver
Short to Battery GEM GO to
Section 501 - 14B .
B1312 Lamp Headlamp Input Circuit GEM GO to
Section 413 - 09 . Klj . 2 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart
Refer to the Wiring Diagrams for the connector numbers stated in pinpoint tests.
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module
(GEM) z
Central junction box
(CJB) fuse 39 (5A).
z GEM.
z Circuitry. z
GO to Pinpoint Test A .
z All power windows are
inoperative — convertible z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test B .
z All power windows are
inoperative — coupe z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test C .
z A single power window is
inoperative — driver,
convertible z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test D .
z A single power window is
inoperative — driver, coupe z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test E .
z The one- touch down feature
is inoperative z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
For convertible,
GO to Pinpoint Test D .
z For coupe, GO to
Pinpoint Test E .
z A single power window is
inoperative — passenger z
Circuitry.
z Driver window
regulator control
switch.
z Window regulator
motor.
z Passenger window
regulator control
switch. z
GO to Pinpoint Test F .
z A single power window is zCircuitry. zGO to Pinpoint Klj . 5 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

4. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
6. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs, and carry out the self- test diagnostics for the GEM.
7. If the DTCs retrieved are related to the concern, go to the GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index Mechanical Electrical
z
Binding latches z
CJB Fuses:
„39 (5A)
„ 19 (15A)
„ 25 (25A)
z BJB Fuse POWER WINDOWS (40A)
z Damaged wiring harness
z Loose or corroded connector(s)
z Circuitry open/shorted
z Damaged relays
z Remote transmitter
z Remote transmitter batteries DTC Description Source Action
B1217 Horn Relay Coil Circuit Failure GEM GO to
Pinpoint Test E .
B1218 Horn Relay Coil Circuit Short to
Vbatt GEM GO to
Pinpoint Test E .
B1312 Lamp Headlamp Input Circuit
Short to Battery GEM REFER to
Section 417 - 01 .
B1317 Battery Voltage High GEM REFER to
Section 414 - 00 .
B1318 Battery Voltage Low GEM REFER to
Section 414 - 00 .
B1322 Driver Door Ajar Circuit Short to
Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door Circuit GEM REFER to
Section 417 - 02 . Klj . 3 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
