2003 FORD MUSTANG audio

REMOVAL AND INSTALLATION

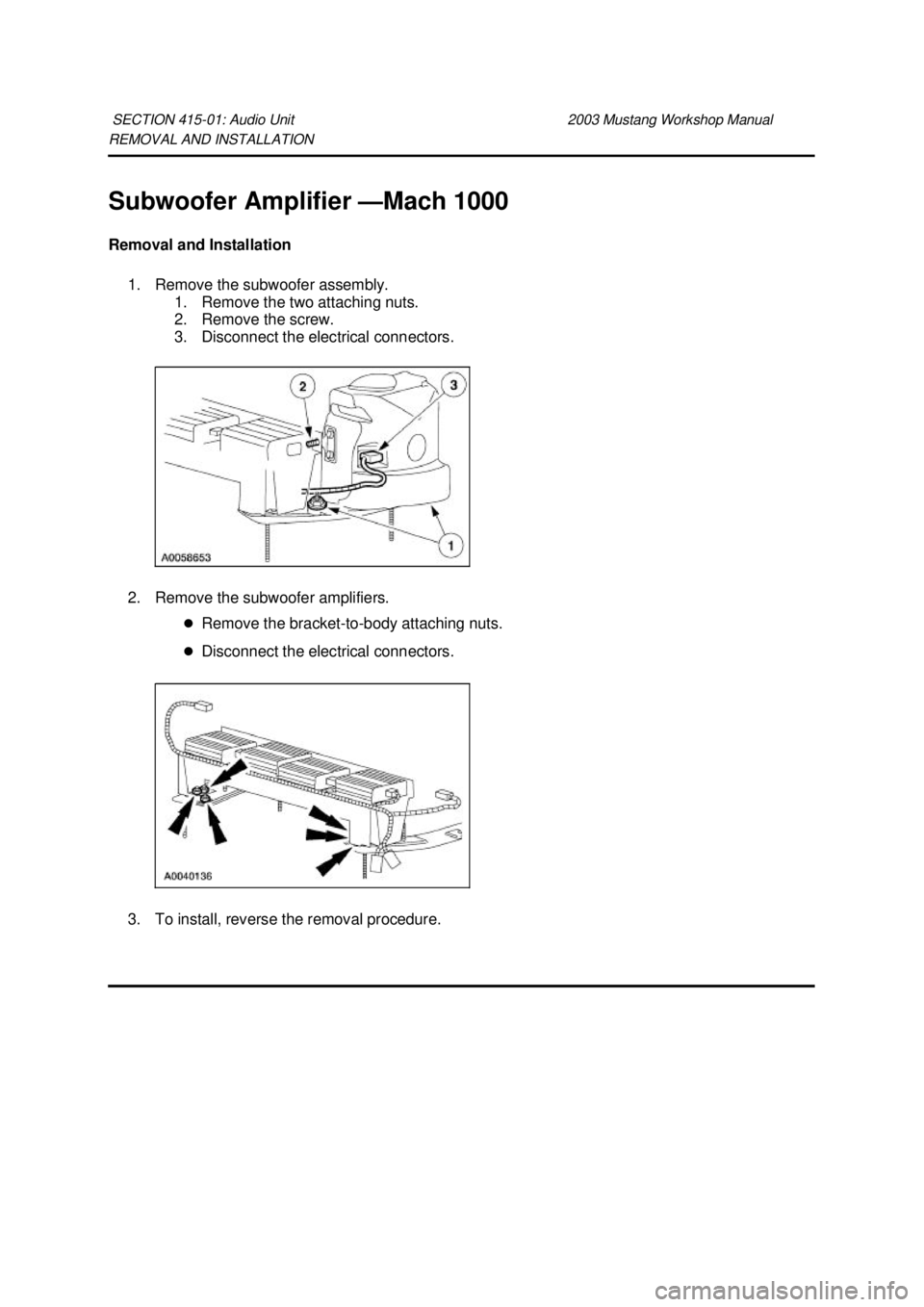

Subwoofer Amplifier —
Mach 1000
Removal and Installation 1. Remove the subwoofer assembly. 1. Remove the two attaching nuts.
2. Remove the screw.
3. Disconnect the electrical connectors.
2. Remove the subwoofer amplifiers. zRemove the bracket- to-body attaching nuts.
z Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION

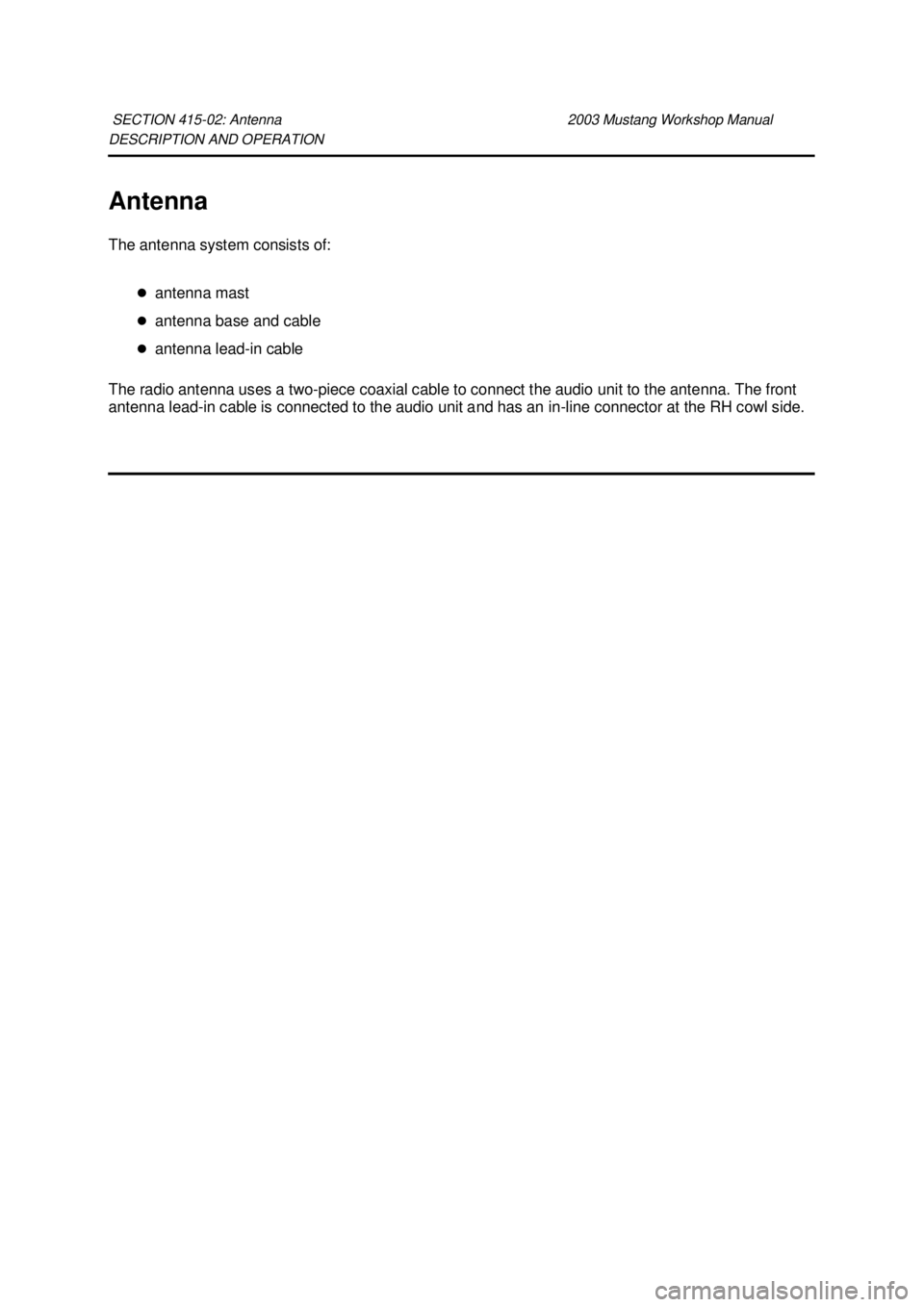

Antenna
The antenna system consists of:
zantenna mast
z antenna base and cable
z antenna lead- in cable
The radio antenna uses a two- piece coaxial cable to connect the audio unit to the antenna. The front
antenna lead- in cable is connected to the audio unit and has an in- line connector at the RH cowl side.
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

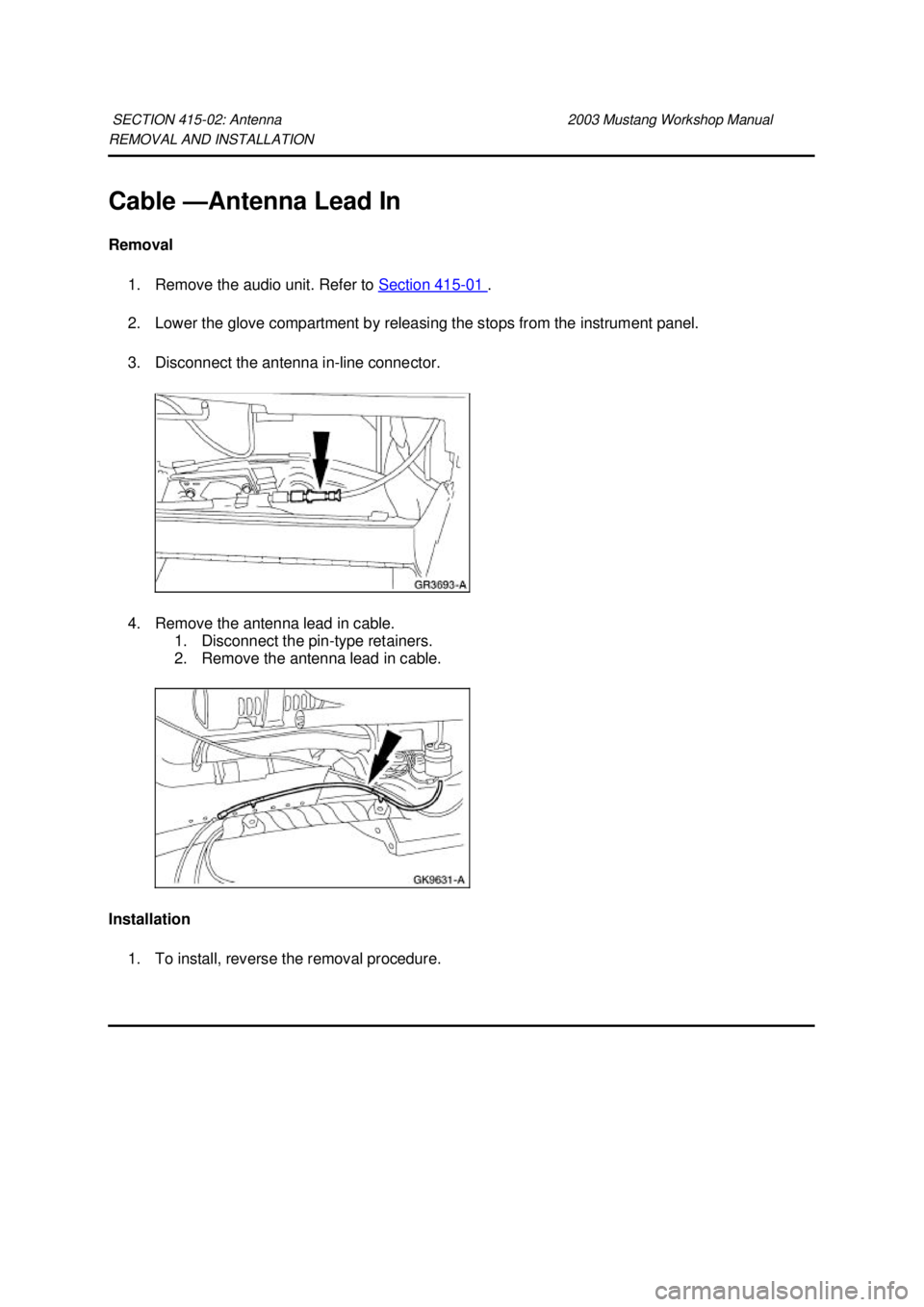

Cable —
Antenna Lead In
Removal 1. Remove the audio unit. Refer to Section 415 - 01 .
2. Lower the glove compartment by releasing the stops from the instrument panel.
3. Disconnect the antenna in- line connector.
4. Remove the antenna lead in cable. 1. Disconnect the pin- type retainers.
2. Remove the antenna lead in cable.
Installation 1. To install, reverse the removal procedure.
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Instrument Panel
The instrument panel consists of the following components:
zinstrument cluster
z instrument panel finish panels
z audio unit
z A/C controls
z glove compartment door
z passenger air bag module
z glove compartment
z instrument panel steering column cover
z instrument panel reinforcement
z instrument panel defroster grille
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

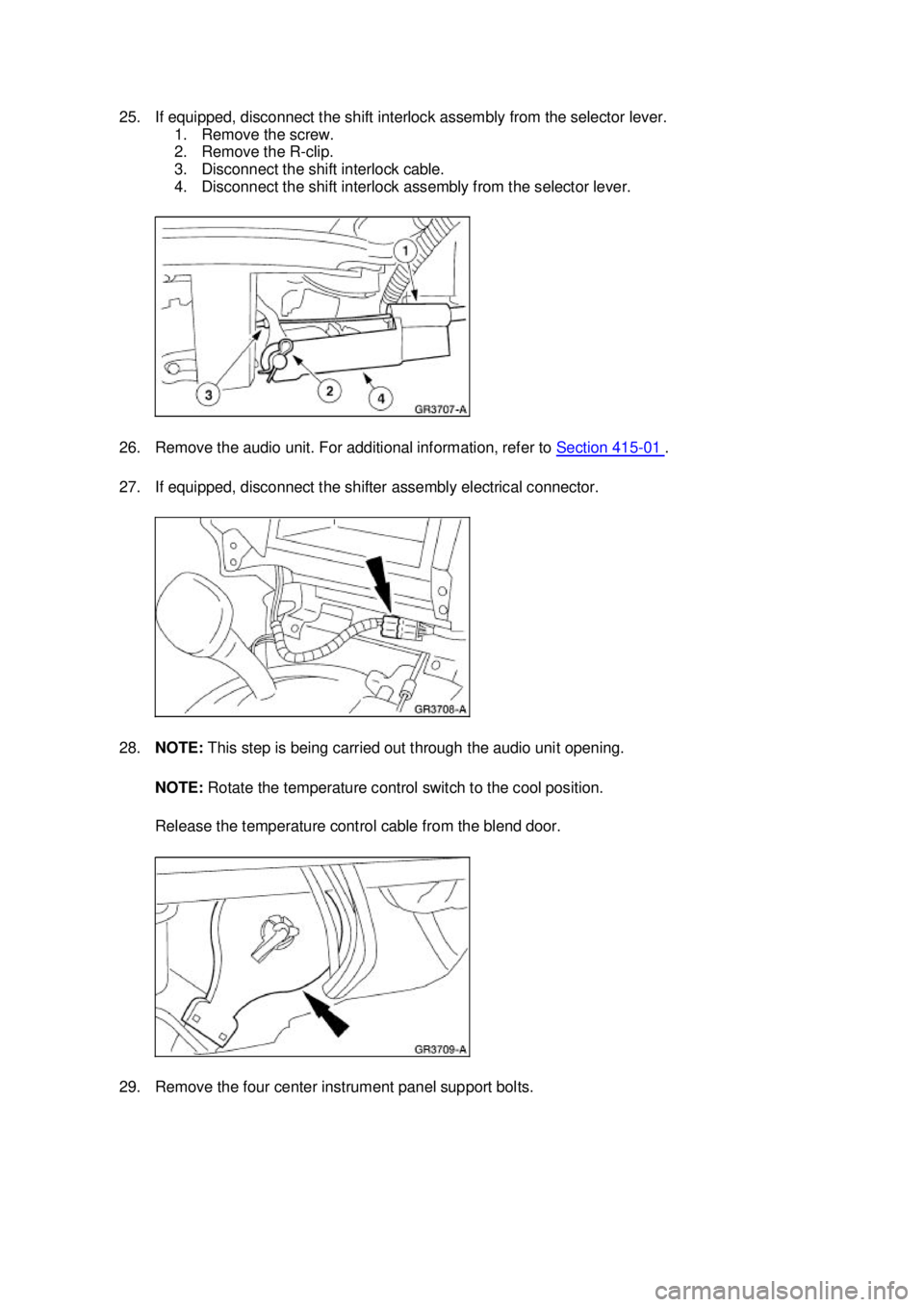

25. If equipped, disconnect the shift interlock assembly from the selector lever.
1. Remove the screw.
2. Remove the R- clip.
3. Disconnect the shift interlock cable.
4. Disconnect the shift interlock assembly from the selector lever.
26. Remove the audio unit. For additional information, refer to Section 415 - 01 .
27. If equipped, disconnect the shifter assembly electrical connector.
28. NOTE: This step is being carried out through the audio unit opening.
NOTE: Rotate the temperature control switch to the cool position.
Release the temperature control cable from the blend door.
29. Remove the four center instrument panel support bolts. Klj . 6 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

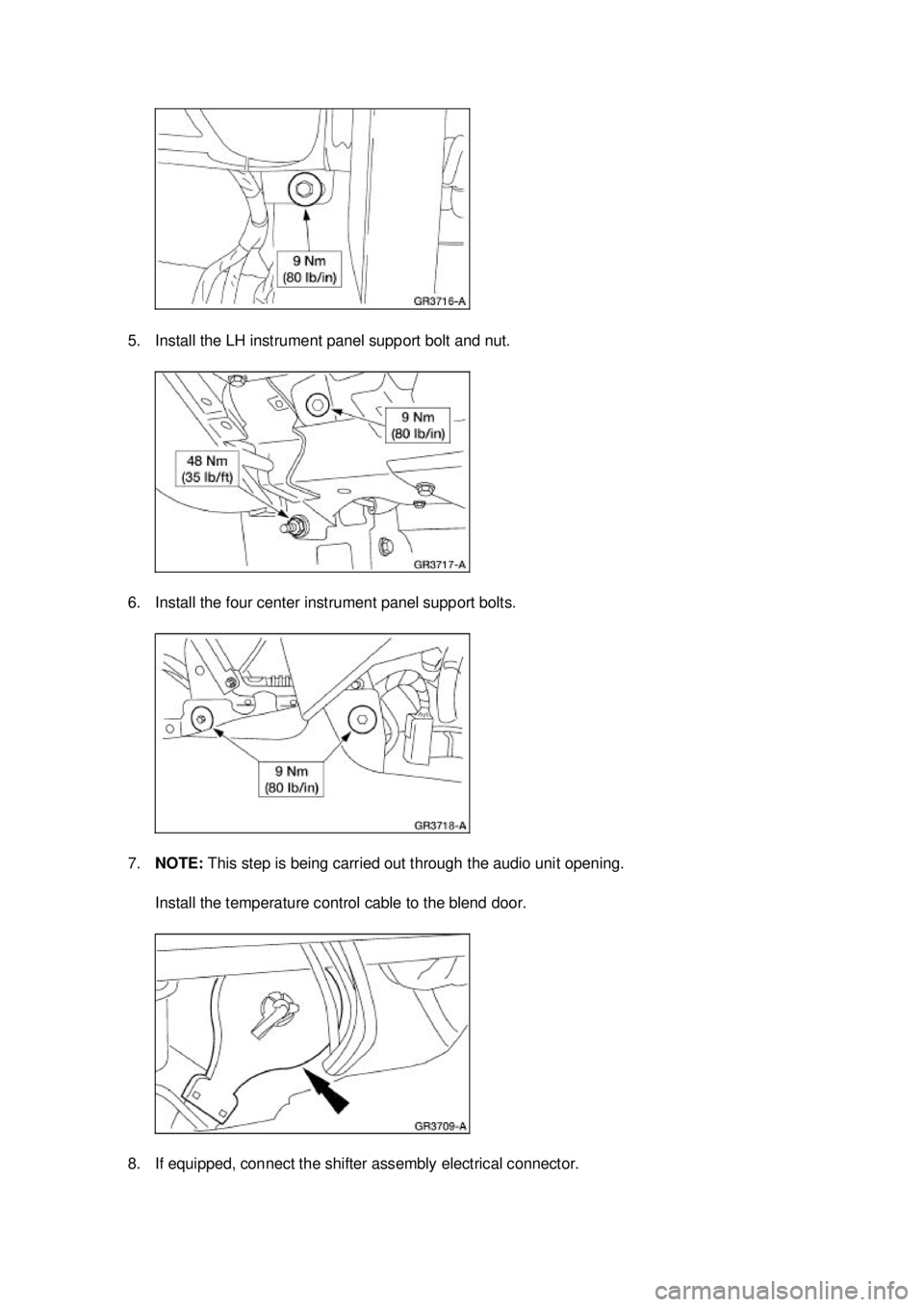

5. Install the LH instrument panel support bolt and nut.
6. Install the four center instrument panel support bolts.
7.
NOTE: This step is being carried out through the audio unit opening.
Install the temperature control cable to the blend door.
8. If equipped, connect the shifter assembly electrical connector. Klj . 9 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

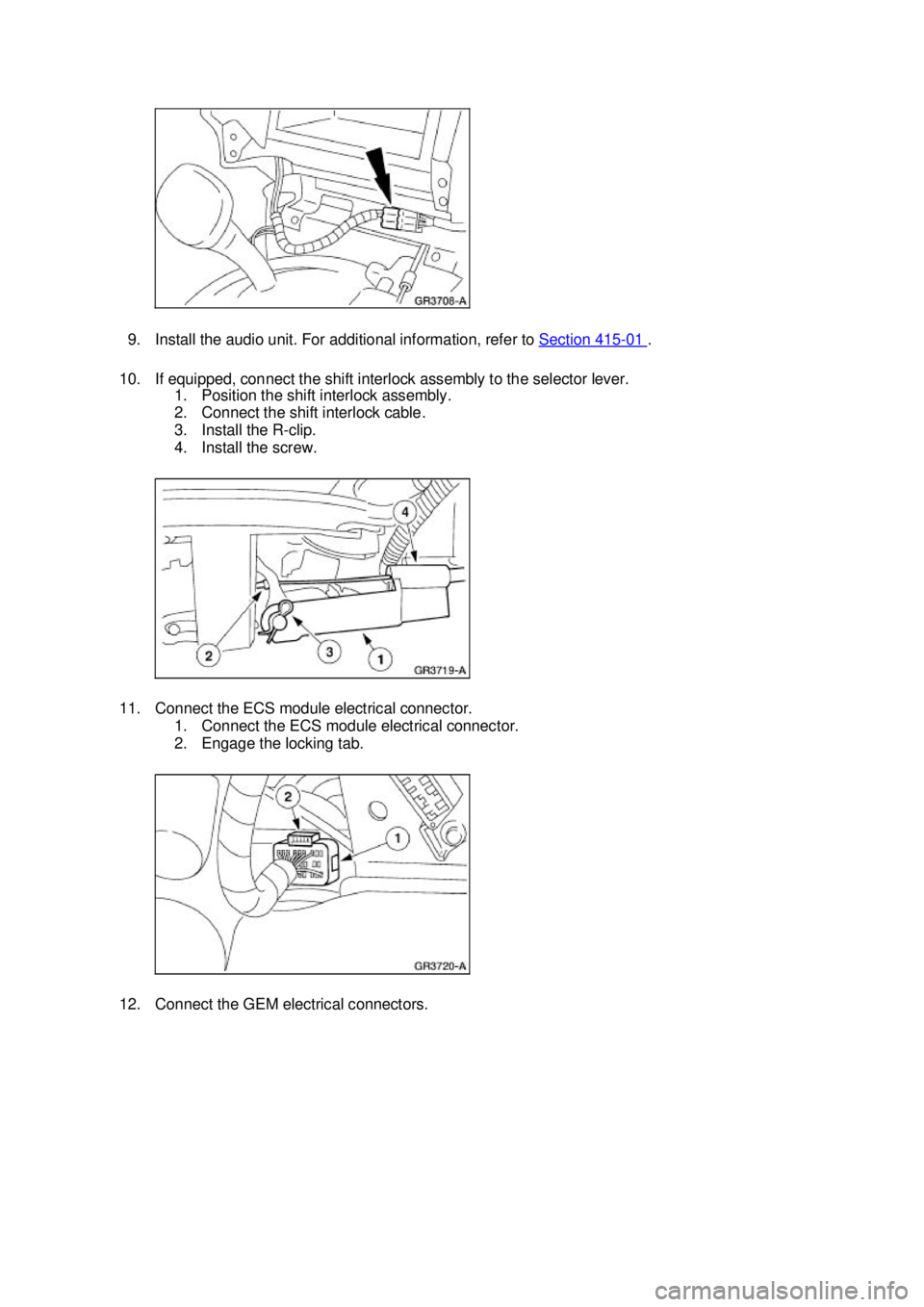

9. Install the audio unit. For additional information, refer to
Section 415 - 01 .
10. If equipped, connect the shift interlock assembly to the selector lever. 1. Position the shift interlock assembly.
2. Connect the shift interlock cable.
3. Install the R- clip.
4. Install the screw.
11. Connect the ECS module electrical connector. 1. Connect the ECS module electrical connector.
2. Engage the locking tab.
12. Connect the GEM electrical connectors. Klj . 10 ba
152003 Mustang Workshop Manual
