2003 FORD MUSTANG service indicator

PINPOINT TEST T: THE TURN/HAZARD INDICATOR IS
NEVER/ALWAYS ON CLUSTER SERVICE ENGINE SOON
INDICATOR ACTIVE COMMAND
z
Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode
on the diagnostic tool: Instrument
Cluster Active Command.
z Trigger the instrument cluster active
command MIL.
z Did the SERVICE ENGINE SOON
indicator illuminate? Yes
REFER to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
No
GO to
S2 .
S2 CHECK FOR CORRECT
INSTRUMENT CLUSTER OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they seat
correctly.
z Operate the system and verify the
concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the
system for normal operation.
No
The system is operating correctly at this time.
Concern may have been caused by a loose or
corroded connector. CLEAR the DTCs. REPEAT
the self- test. Test Step Result / Action to
Take T1 CHECK THE TURN SIGNAL AND HAZARD LAMPS OPERATION
CAUTION: Use the correct probe adapter(s) when making
measurements. Failure to use the correct probe adapter(s) may
damage the connector.
z Key in ON position.
z Operate the left and right turn signals.
z Operate the hazard lamps.
z Do the turn signals and hazard lamps operate correctly? Yes
GO to
T2 .
No
REFER to Section 417 - 01 .
T2 CHECK THE CIRCUIT IN QUESTION —
CIRCUIT 2 (WH/LB) (RH)
OR CIRCUIT 3 (LG/WH) (LH) z
Key in OFF position.
z Disconnect: Instrument Cluster C220a (RH) or C220b (LH).
z Key in ON position.
z Measure the voltage between the instrument cluster C220a pin 3,
circuit 3 (LG/WH), harness side and ground, while the steering
column multifunction switch is placed in the left turn position (LH); or
between the instrument cluster C220b pin 3, circuit 2 (WH/LB),
harness side and ground, while the steering column multifunction
switch is placed in the right turn position (RH). Yes
GO to
T3 .
No
REPAIR the circuit
(s) in question.
TEST the system for
normal operation. Klj . 36 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z

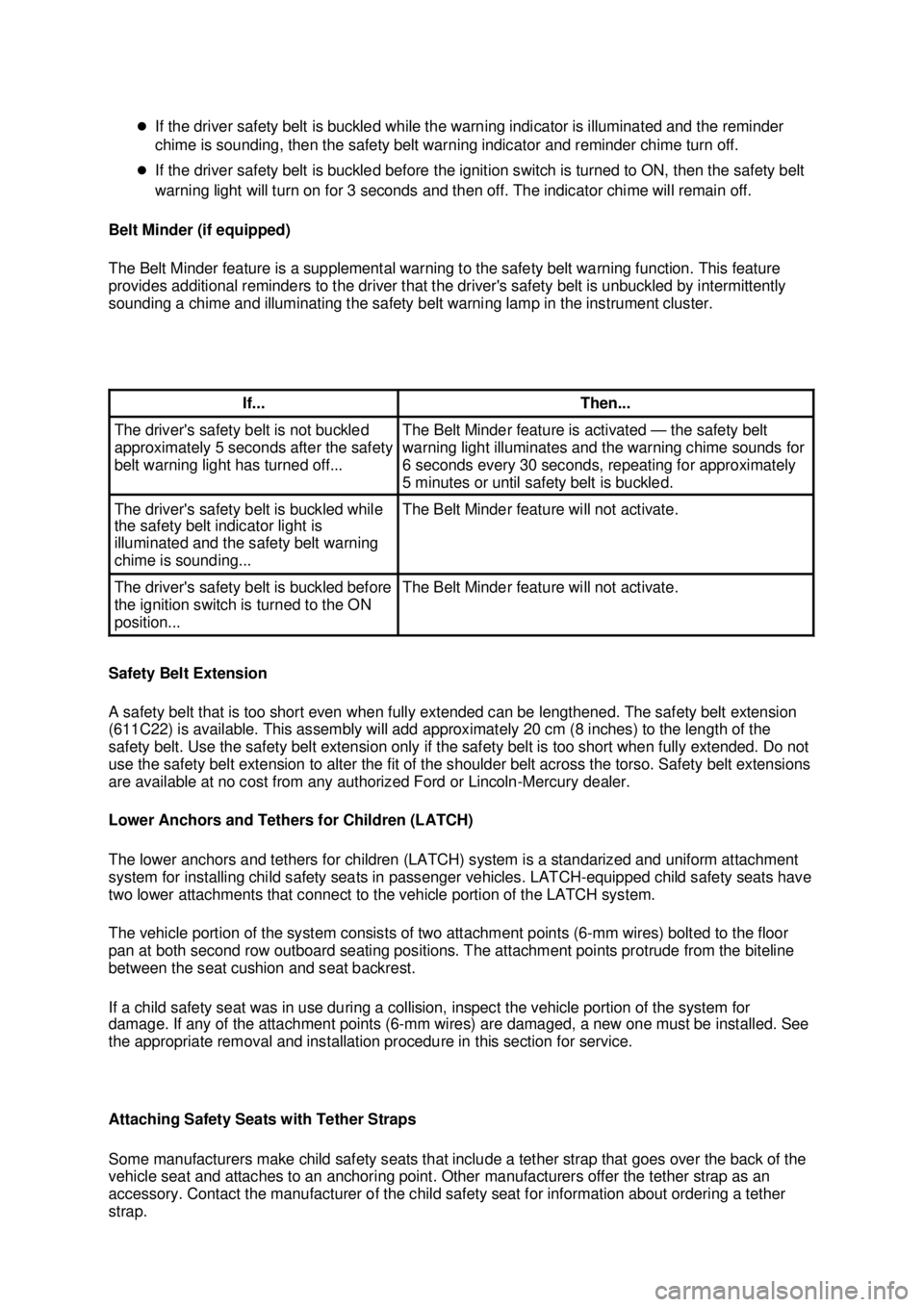

If the driver safety belt is buckled while the warning indicator is illuminated and the reminder
chime is sounding, then the safety belt warning indicator and reminder chime turn off.
z If the driver safety belt is buckled before the ignition switch is turned to ON, then the safety belt
warning light will turn on for 3 seconds and then off. The indicator chime will remain off.
Belt Minder (if equipped)
The Belt Minder feature is a supplemental warning to the safety belt warning function. This feature
provides additional reminders to the driver that the driver's safety belt is unbuckled by intermittently
sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.
Safety Belt Extension
A safety belt that is too short even when fully extended can be lengthened. The safety belt extension
(611C22) is available. This assembly will add approximately 20 cm (8 inches) to the length of the
safety belt. Use the safety belt extension only if the safety belt is too short when fully extended. Do not
use the safety belt extension to alter the fit of the shoulder belt across the torso. Safety belt extensions
are available at no cost from any authorized Ford or Lincoln- Mercury dealer.
Lower Anchors and Tethers for Children (LATCH)
The lower anchors and tethers for children (LATCH) system is a standarized and uniform attachment
system for installing child safety seats in passenger vehicles. LATCH- equipped child safety seats have
two lower attachments that connect to the vehicle portion of the LATCH system.
The vehicle portion of the system consists of two attachment points (6- mm wires) bolted to the floor
pan at both second row outboard seating positions. The attachment points protrude from the biteline
between the seat cushion and seat backrest.
If a child safety seat was in use during a collision, inspect the vehicle portion of the system for
damage. If any of the attachment points (6- mm wires) are damaged, a new one must be installed. See
the appropriate removal and installation procedure in this section for service.
Attaching Safety Seats with Tether Straps
Some manufacturers make child safety seats that include a tether strap that goes over the back of the
vehicle seat and attaches to an anchoring point. Other manufacturers offer the tether strap as an
accessory. Contact the manufacturer of the child safety seat for information about ordering a tether
strap. If... Then...
The driver's safety belt is not buckled
approximately 5 seconds after the safety
belt warning light has turned off... The Belt Minder feature is activated —
the safety belt
warning light illuminates and the warning chime sounds for
6 seconds every 30 seconds, repeating for approximately
5 minutes or until safety belt is buckled. The driver's safety belt is buckled while
the safety belt indicator light is
illuminated and the safety belt warning
chime is sounding... The Belt Minder feature will not activate.
The driver's safety belt is buckled before
the ignition switch is turned to the ON
position... The Belt Minder feature will not activate. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

steering column.
4. WARNING: Carry a live air bag module with the air bag and trim cover pointed away
from your body. This will reduce the risk of injury in the event of an accidental
deployment.
Install the driver air bag module. Refer to Driver Air Bag Module in this section.
5. WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and
possible violation of vehicle safety standards.
Remove the restraint system diagnostic tool from the vehicle harness connector at the
passenger air bag module.
6. Connect the passenger air bag module electrical connector.
7. Reconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
8. Prove out the system.
Prove Out Procedure
Turn the ignition switch from the OFF to the RUN position and visually monitor the air bag indicator
with the air bag modules or restraint system diagnostic tools installed. The air bag indicator will light
continuously for approximately six seconds and then turn off. If an air bag supplemental restraint
system (SRS) fault is present, the air bag indicator will either: zfail to light.
z remain lit continuously.
z flash.
The flashing might not occur until approximately 30 seconds after the ignition switch has been turned
from the OFF to the RUN position. This is the time required for the restraints control module (RCM) to
complete the testing of the SRS. If the air bag indicator is inoperative and an SRS fault exists, a chime
will sound in a pattern of five sets of five beeps. If this occurs, the air bag indicator will need to be
repaired before diagnosis can continue.
Glossary
Restraint System Diagnostic Tool
Restraint system diagnostic tools are used to simulate air bag module connections to the system.
Disconnect the Component
Disconnect the component means disconnect the component vehicle harness connector. It does not
mean remove the component. Do not reconnect a disconnected component unless instructed to do so. Deactivate the System Klj . 4 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

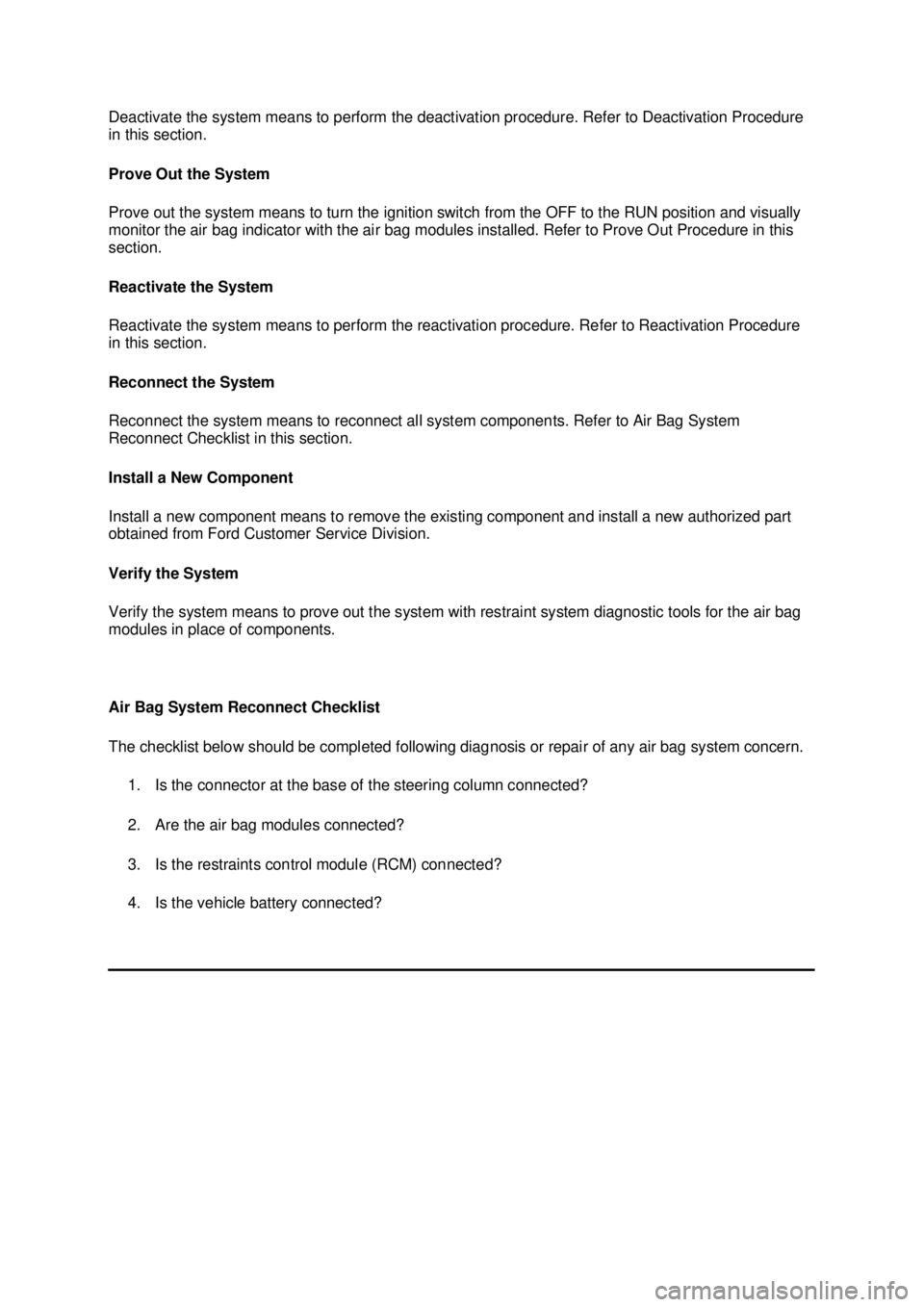

Deactivate the system means to perform the deactivation procedure. Refer to Deactivation Procedure
in this section.
Prove Out the System
Prove out the system means to turn the ignition switch from the OFF to the RUN position and visually
monitor the air bag indicator with the air bag modules installed. Refer to Prove Out Procedure in this
section.
Reactivate the System
Reactivate the system means to perform the reactivation procedure. Refer to Reactivation Procedure
in this section.
Reconnect the System
Reconnect the system means to reconnect all system components. Refer to Air Bag System
Reconnect Checklist in this section.
Install a New Component
Install a new component means to remove the existing component and install a new authorized part
obtained from Ford Customer Service Division.
Verify the System
Verify the system means to prove out the system with restraint system diagnostic tools for the air bag
modules in place of components.
Air Bag System Reconnect Checklist
The checklist below should be completed following diagnosis or repair of any air bag system concern.
1. Is the connector at the base of the steering column connected?
2. Are the air bag modules connected?
3. Is the restraints control module (RCM) connected?
4. Is the vehicle battery connected? Klj . 5 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

a
DTC: Diagnostic Trouble Code, retrieved using a scan tool.
b LFC: Lamp fault code, flashed on air bag indicator.
c Tone will sound only if additional DTCs are present.
Inspection and Verification 1. Verify the customer concern by checking the air bag indicator in the instrument cluster. Refer to Prove Out the System in this section.
2. Visually inspect for obvious signs of mechanical and electrical damage using the following chart:
3. If the concern is not visually evident, use the scan tool to retrieve diagnostic trouble codes (DTCs) and perform the on- demand self test.
4. WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and
possible violation of vehicle safety standards.
If the on- demand self test is passed and no DTCs are retrieved, GO to Symptom Chart .
5. If DTCs are retrieved, proceed to the Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Priority Table.
Symptom Chart — — — No Communication with the Restraints Control Module Go To Pinpoint
Test P .
Visual Inspection Chart Mechanical Electrical
z
Damaged restraints control module (RCM) bracket z
Open fuse(s)
z Damaged wiring harness
z Loose or corroded connectors
z Circuitry open/shorted Symptom Chart
Condition
Possible Sources Action
z Air bag warning indicator is
illuminated continuously z
Circuitry.
z Worn or damaged
connector component.
z RCM.
z Instrument cluster. z
Go To Pinpoint Test A .
z Air bag indicator flashing zAir bag SRS system
fault. z
REFER to DTC
Priority Table.
z Audible tone — DTCs
retrieved z
Air bag SRS system
fault. z
Go To Pinpoint Test N .
z Go To Pinpoint Test O .
z No communication with the zScan Tool. zGo To Pinpoint Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Pinpoint Tests —
Air Bag Supplemental Restraint System
(SRS)
Restraint System Diagnostic Tool Warning
WARNING: This tool is for restraint system service only. Remove from vehicle prior to
road use. Failure to remove could result in injury and possible violation of vehicle safety
standards.
Pinpoint Test Note
Do not carry out any pinpoint test unless directed by the Symptom Chart.
Pinpoint Test A: The Air Bag Warning Indicator Is Illuminated Continuously — RCM
Disconnected, Inoperative or Lost/Low Ignition Feed
Normal Operation
NOTE: During normal operation the air bag indicator will be lit continuously for 6 seconds after the
ignition switch is placed in the RUN position and after five cycles of a lamp fault code (LFC) if a fault
exists. Be sure to cycle the ignition switch and look for a 6 second indicator prove- out without LFCs.
The restraints control module (RCM) will communicate diagnostic trouble codes (DTCs) to the scan
tool through the data link connector (DLC). If the scan tool displays NO COMMUNICATION when
retrieving continuous DTCs, Go To Pinpoint Test P to troubleshoot the system.
Possible Causes SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Diagnostic Tool, Restraint
System
418-
F088 (105- R0012) Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

An air bag indicator that is illuminated continuously can be caused by one of the following:
zworn or damaged shorting bar or camming beam.
z the ignition circuit damaged.
z the RCM disconnected from the vehicle harness.
z a loss of RCM ground circuits.
z the RCM inoperative.
z circuitry.
PINPOINT TEST A: THE AIR BAG WARNING INDICATOR IS
ILLUMINATED CONTINUOUSLY — RCM DISCONNECTED,
INOPERATIVE, OR LOST/LOW IGNITION FEED Test Step Result / Action to
Take A1 CHECK FOR CONTINUOUS OR ON-
DEMAND SELF TEST DTCs z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this pinpoint
test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Were any continuous or on- demand self test DTCs retrieved? Yes
If continuous
DTCs were
retrieved, GO to
A3
. If on-
demand
DTCs were
retrieved, GO to
the Restraints
Control Module
(RCM) Diagnostic
Trouble Code
(DTC) Priority
Table in this
section for
pinpoint test
direction.
No
GO to A2 .
A2 CHECK THE RCM CONNECTION
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or Yes
GO to
A3 .
No
CONNECT C2041
and engage the
locking tabs. GO
to A7 . Klj . 2 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Test K: LFC 35/DTC B1935 —
Passenger Air Bag Circuit Resistance Low
Normal Operation
The restraints control module (RCM) monitors the resistance of the passenger air bag ignitor by
measuring the resistance between pins 6 and 7. If the RCM detects low resistance between these
pins, it will store a diagnostic trouble code (DTC) B1935 in memory and flash a lamp fault code (LFC)
35 (or higher priority code if one exists) on the air bag indicator.
Possible Causes
Passenger air bag low resistance can be caused by:
za short in the wiring harness.
z a low resistance in the passenger air bag module.
z an RCM internal concern.
z a worn or damaged connector shorting bar or camming beam.
PINPOINT TEST K: LFC 35/DTC B1935 — PASSENGER AIR BAG
CIRCUIT RESISTANCE LOW (SRS) in this
section. CLEAR all
DTCs. Test Step Result / Action to
Take K1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this
pinpoint test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1935 retrieved during the on- demand self test? Yes
This is a hard fault.
The fault condition
is still present. This
fault cannot be
cleared until it is
corrected and the
DTC is no longer
retrieved during the
on-
demand self
test. GO to K2 .
No
This is an
intermittent fault.
The fault condition
is not present at
this time. GO to
K4 .
K2 CHECK THE PASSENGER AIR BAG MODULE
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section. Yes
GO to
K3 .
No
INSTALL a new Klj . 29 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
