2003 FORD MUSTANG key

PINPOINT TEST W: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE (GEM) z
Is the resistance less than 5 ohms? V6 CHECK FOR CORRECT INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster connectors and make sure
they seat correctly.
z Operate the system and verify the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument
cluster. REFER to
Instrument Cluster
in this
section. TEST the system
for normal operation.
No
The system is operating
correctly at this time.
Concern may have been
caused by a loose or
corroded connector. CLEAR
the DTCs. REPEAT the self-
test. Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to
use the correct probe adapter(s) may damage the connector. W1 CHECK THE GENERIC ELECTRONIC MODULE (GEM)
POWER SUPPLY z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a.
z Disconnect: GEM C201b.
z Key in ON position.
z Using the following table, measure the voltage between the
GEM, harness side and ground.
z Are the voltages greater than 10 volts? Connector Pin Circuit
C201a 4 400 (LB/BKK)
C201a 1 1006 (DG/WH)
C201b 2 1001 (WH/YE)
C201b 3 193 (YE/LG) Yes
GO to
W2 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. W2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR Klj . 40 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

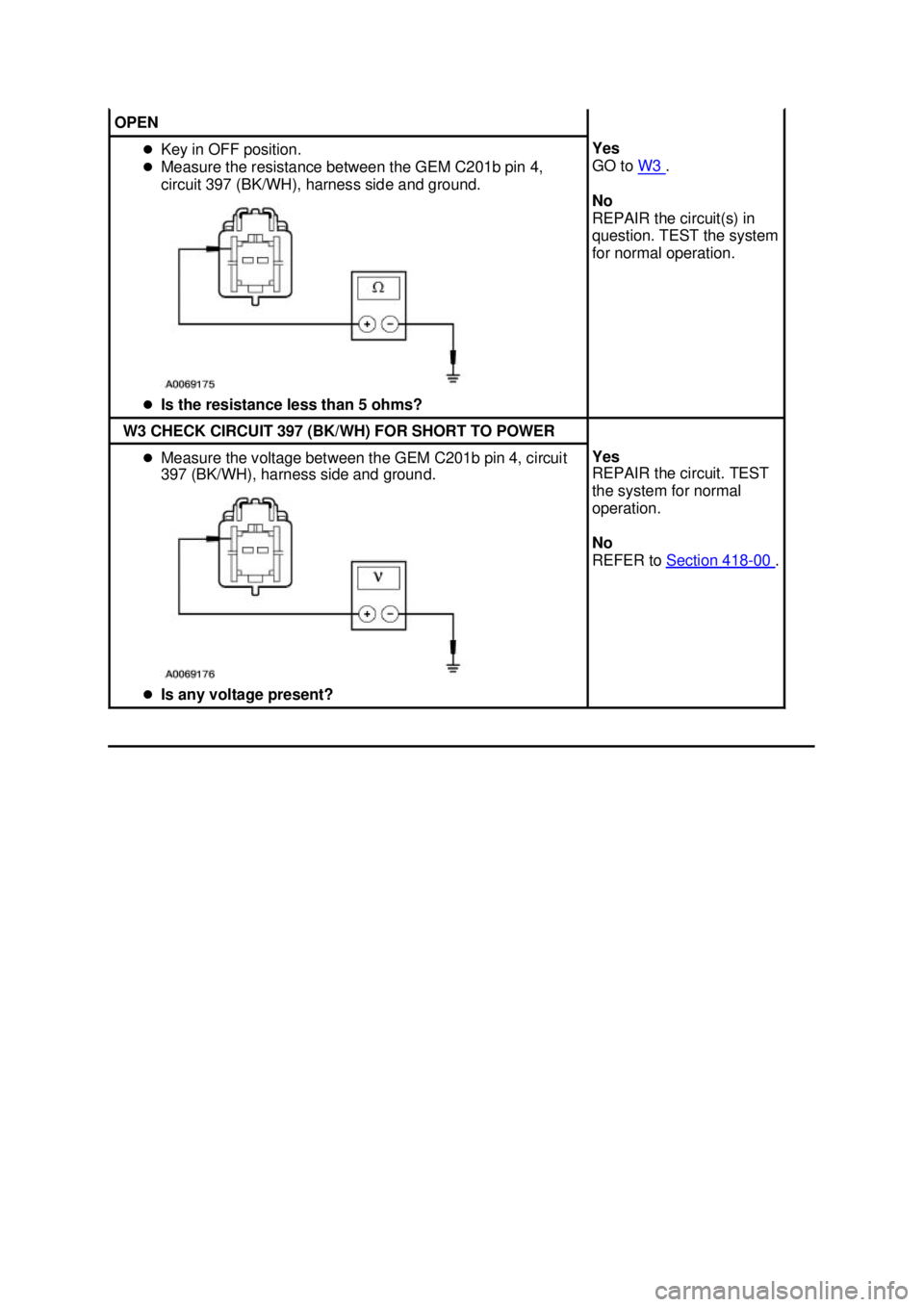

OPEN
z
Key in OFF position.
z Measure the resistance between the GEM C201b pin 4,
circuit 397 (BK/WH), harness side and ground.
z Is the resistance less than 5 ohms? Yes
GO to
W3 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. W3 CHECK CIRCUIT 397 (BK/WH) FOR SHORT TO POWER
z
Measure the voltage between the GEM C201b pin 4, circuit
397 (BK/WH), harness side and ground.
z Is any voltage present? Yes
REPAIR the circuit. TEST
the system for normal
operation.
No
REFER to
Section 418 - 00 . Klj . 41 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Are the resistances correct? A4 CHECK WIRE BETWEEN HORN RELAY AND HORN
z
Key in OFF position.
z Disconnect: Horn C1262.
z Disconnect: Horn C1261.
z Measure the resistance between the horn relay connector Pin 3,
Circuit 1 (DB), harness side and horn C1261 or horn C1256
harness side; and between the horn relay connector Pin 3, Circuit
1 (DB), harness side and ground.
z Is the resistance less than 5 ohms between the horn relay and
the horns, and greater than 10,000 ohms between the horn
relay and ground? Yes
INSTALL new horns.
TEST the system for
normal operation.
No
REPAIR the circuit.
TEST the system for
normal operation.
A5 CHECK WIRE BETWEEN HORN RELAY AND AIR BAG SLIDING
CONTACT z
Key in OFF position.
z Deactivate the air bag system; refer to Section 501 - 20B .
z Disconnect: Air Bag Sliding Contact C218a.
z Measure the resistance between air bag sliding contact C218a Pin
2, Circuit 6 (YE/LG), harness side and horn relay connector Pin 1,
Circuit 6 (YE/LG) harness side.
z Is the resistance less than 5 ohms? Yes
GO to
A6 .
No
REPAIR the circuit.
TEST the system for
normal operation. A6 CHECK AIR BAG SLIDING CONTACT
z
Disconnect the steering wheel switch harness from the air bag
sliding contact.
z Measure the resistance between upper air bag sliding contact Yes
GO to
A7 . Klj . 3 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST B: THE HORN SOUNDS CONTINUOUSLY connector Pin 3, Circuit 6 (component side), and air bag sliding
contact C218a Pin 2, Circuit 6 (component side).
z Is the resistance less than 5 ohms? No
INSTALL a new air
bag sliding contact.
REFER to
Section 501 - 20B . TEST the
system for normal
operation. A7 CHECK THE STEERING WHEEL SWITCH HARNESS
z
Inspect the steering wheel switch harness for chafing, opens or
possible short to ground.
z Is the steering wheel switch harness OK? Yes
INSTALL a new horn
switch. REFER to
Switch
— Horn . TEST
the system for normal
operation.
No
INSTALL a new
steering wheel switch
harness. TEST the
system for normal
operation. Test Step Result / Action to Take
B1 CHECK HORN CIRCUIT 1 (DB)
z
Key in OFF position.
z Disconnect: Horn Relay.
z Does the horn continue to sound? Yes
REPAIR Circuit 1 (DB) for short to battery. TEST
the system for normal operation.
No
GO to
B2 .
B2 CHECK HORN RELAY
z
Check the horn relay; refer to Wiring
Diagrams Cell 149.
z Is the horn relay OK? Yes
REINSTALL the horn relay. GO to
B3 .
No
INSTALL a new horn relay. TEST the system for
normal operation. B3 CHECK CIRCUIT 6 (YE/LG)
z
Disconnect: Air Bag Sliding Contact
C218a .
z Does the horn continue to sound? Yes
GO to
B4 .
No
RECONNECT the air bag sliding contact. GO to
B5 .
B4 CHECK GEM INPUT
z
Disconnect: GEM C201e. Yes Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

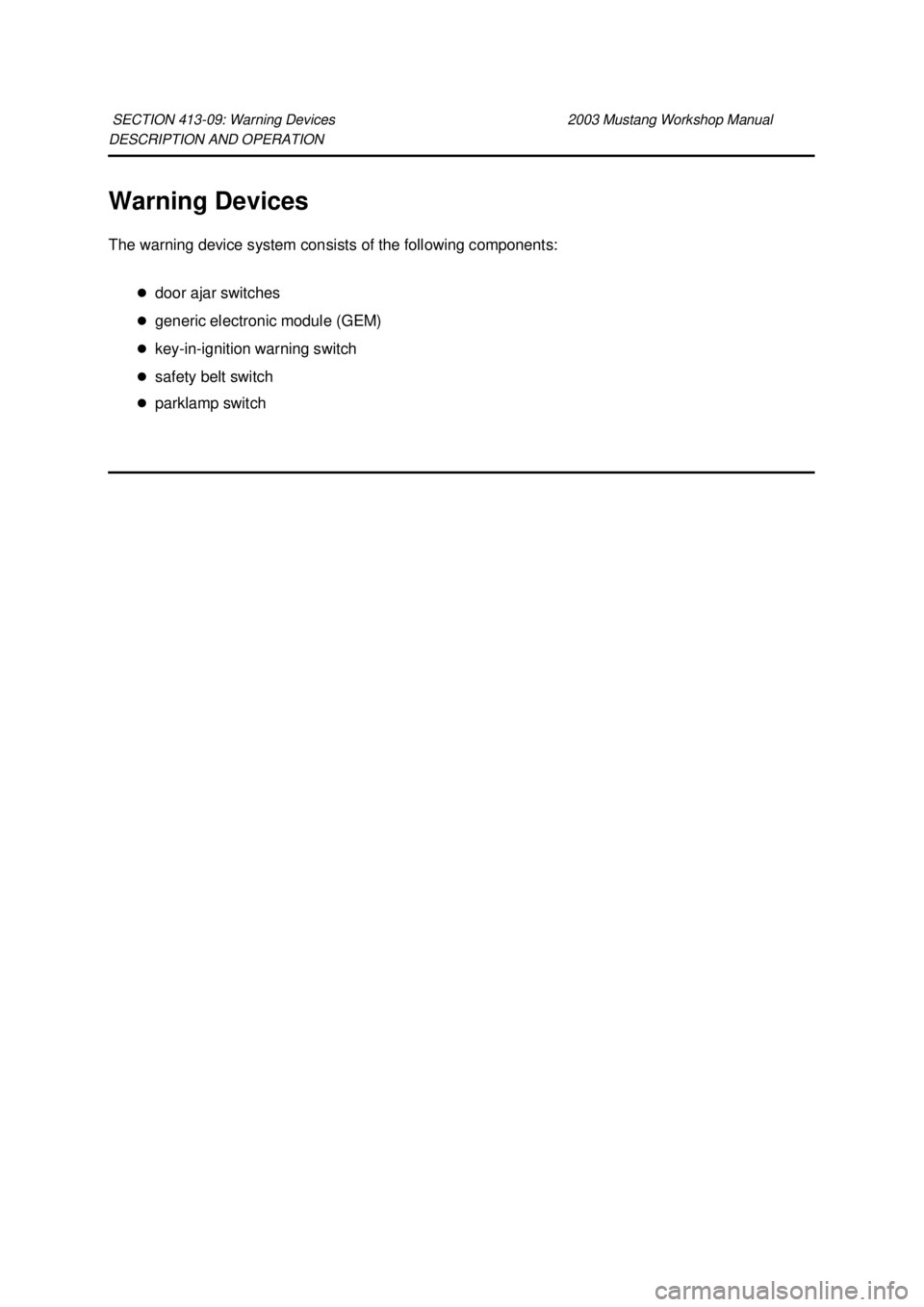

DESCRIPTION AND OPERATION
Warning Devices
The warning device system consists of the following components:
zdoor ajar switches
z generic electronic module (GEM)
z key- in-ignition warning switch
z safety belt switch
z parklamp switch
SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

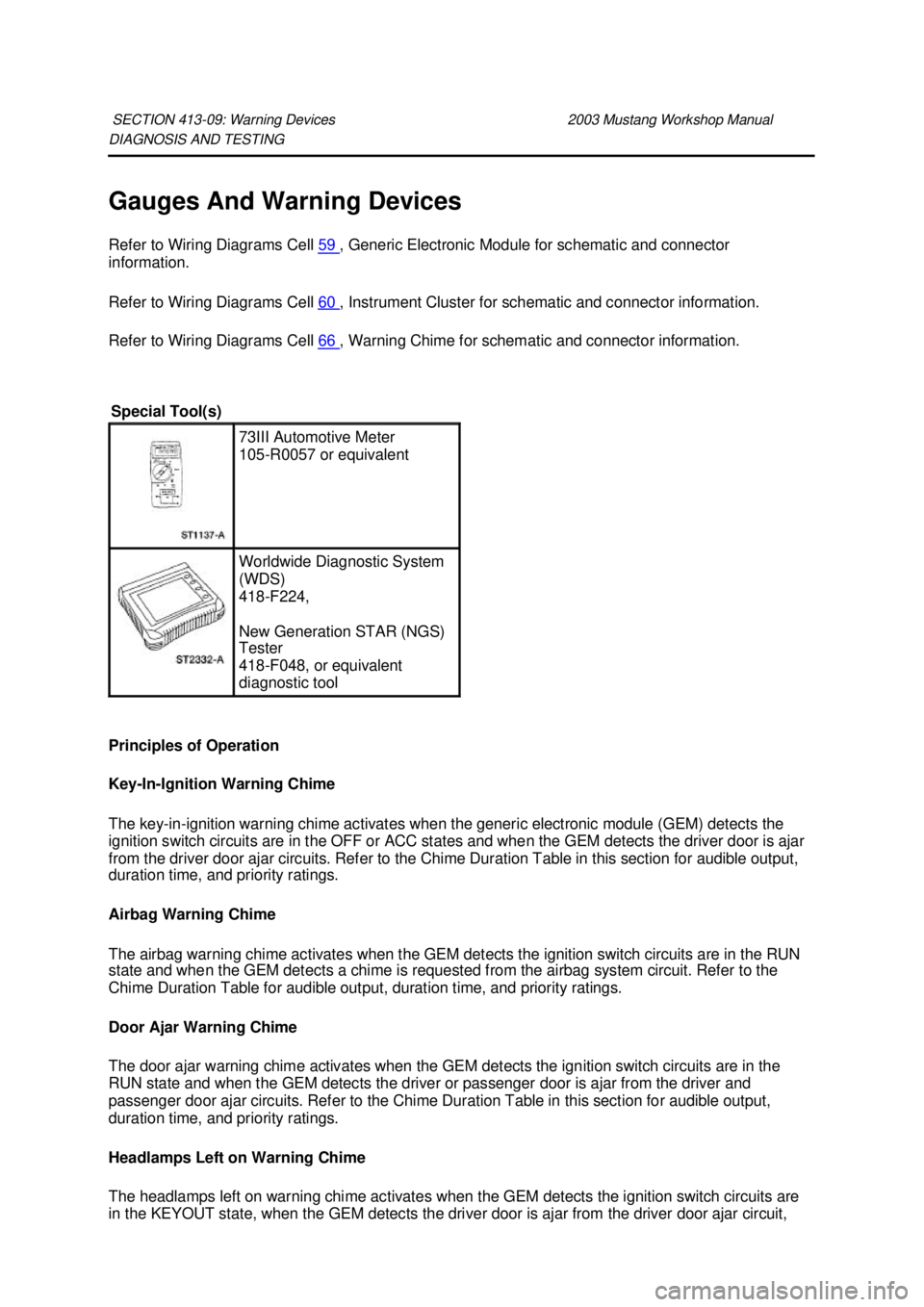

DIAGNOSIS AND TESTING
Gauges And Warning Devices
Refer to Wiring Diagrams Cell
59 , Generic Electronic Module for schematic and connector
information.
Refer to Wiring Diagrams Cell 60 , Instrument Cluster for schematic and connector information.
Refer to Wiring Diagrams Cell 66 , Warning Chime for schematic and connector information.
Principles of Operation
Key- In-Ignition Warning Chime
The key- in-ignition warning chime activates when the generic electronic module (GEM) detects the
ignition switch circuits are in the OFF or ACC states and when the GEM detects the driver door is ajar
from the driver door ajar circuits. Refer to the Chime Duration Table in this section for audible output,
duration time, and priority ratings.
Airbag Warning Chime
The airbag warning chime activates when the GEM detects the ignition switch circuits are in the RUN
state and when the GEM detects a chime is requested from the airbag system circuit. Refer to the
Chime Duration Table for audible output, duration time, and priority ratings.
Door Ajar Warning Chime
The door ajar warning chime activates when the GEM detects the ignition switch circuits are in the
RUN state and when the GEM detects the driver or passenger door is ajar from the driver and
passenger door ajar circuits. Refer to the Chime Duration Table in this section for audible output,
duration time, and priority ratings.
Headlamps Left on Warning Chime
The headlamps left on warning chime activates when the GEM detects the ignition switch circuits are
in the KEYOUT state, when the GEM detects the driver door is ajar from the driver door ajar circuit, SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F048, or equivalent
diagnostic tool Klj . 1 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

and when the GEM detects the headlamps or parklamps are on from the exterior lamp circuits. Refer
to the Chime Duration Table in this section for audible output, duration time, and priority ratings.
Safety Belt Warning Chime
The safety belt warning chime and safety belt warning lamp activate when the GEM detects the
ignition switch circuits are in the RUN or START state and when the GEM detects the safety belt is
unbuckled from the safety belt circuit. The safety belt warning lamp indicator will prove out for three
seconds whenever the GEM detects that the ignition circuits make a transition to RUN from OFF, ACC,
or KEYOUT state. Refer to the Chime Duration Table in this section for audible output, duration time,
and priority ratings.
Belt Minder
NOTE:
Belt minder is a configurable item. If configuring using a diagnostic tool, refer to Section 418 -
01 . To configure without using a diagnostic tool, refer to
Belt Minder Deactivating/Activating in this
section.
The belt minder feature supplements the current safety belt warning function. The belt minder feature
is enabled after the current safety belt warning is complete. If the driver safety belt is not buckled
approximately five seconds after the safety belt warning light has turned off, the belt minder reminds
the driver that their safety belt is unbuckled by intermittently sound a chime and illuminating the safety
belt warning lamp in the instrument cluster. While activated, the belt minder alternates the chime and
indicator from on for six seconds to off for 30 seconds.
The belt minder reminder stops when:
zthe drive seat belt is buckled.
z the ignition is turned to OFF or ACC.
z five minutes have elapsed since belt minder has started.
Inspection and Verification
NOTE: Upon installation of a new GEM, the module must be reconfigured. For additional information,
refer to Section 418 - 01 .
1. The warning lamps are a GEM controlled system; refer to Section 419 - 10 .
2. Verify the customer concern by operating the system in question.
3. Visually inspect for the following obvious signs of mechanical and electrical damage.
Chime Duration Table Feature Audible Output Duration Priority
Safety belt Chime, 60/minute 740 Hz 6.0 seconds 1
Key-
in-ignition Chime, 120/minute 740 Hz Continuous 2
Headlamps left on Chime, 240/minute 740 Hz Continuous 3
Airbag Single tone, 1,000 Hz Continuous 4
Door ajar Single tone, 1,000 Hz 1.0 second 7 Klj . 2 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

4. If the concern remains after the inspection, connect the diagnostic tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
6. Carry out the Data Link Diagnostic Test. If the diagnostic tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for GEM, go to Pinpoint Test A.
z NO RESP/NOT EQUIP for RCM, refer to Section 501 - 20B .
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
7. If the DTCs retrieved are related to the concern, go to the GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
9. If the DTCs retrieved are for the RCM, refer to Section 501 - 20B .
Visual Inspection Chart Mechanical Electrical
z
Switch(es) z
Central junction box (CJB) fuses:
„28 (15A)
„ 32 (15A)
„ 39 (5A)
z Circuitry
GEM Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1340 Chime Input Request
Circuit Short to Ground GEM Go To Pinpoint Test C .
B1342 ECU Is Defective GEM CLEAR the DTCs. TEST the system for normal operation.
RETRIEVE the DTCs. If DTC B1342 is retrieved, INSTALL
a new GEM. REFER to
Section 419 - 10 .
B1353 Ignition Key-
In Circuit
Open GEM Go To Pinpoint Test B .
B1462 Safety Belt Switch
Circuit Failure GEM Go To Pinpoint Test F . Klj . 3 ba
