2003 FORD MUSTANG coolant

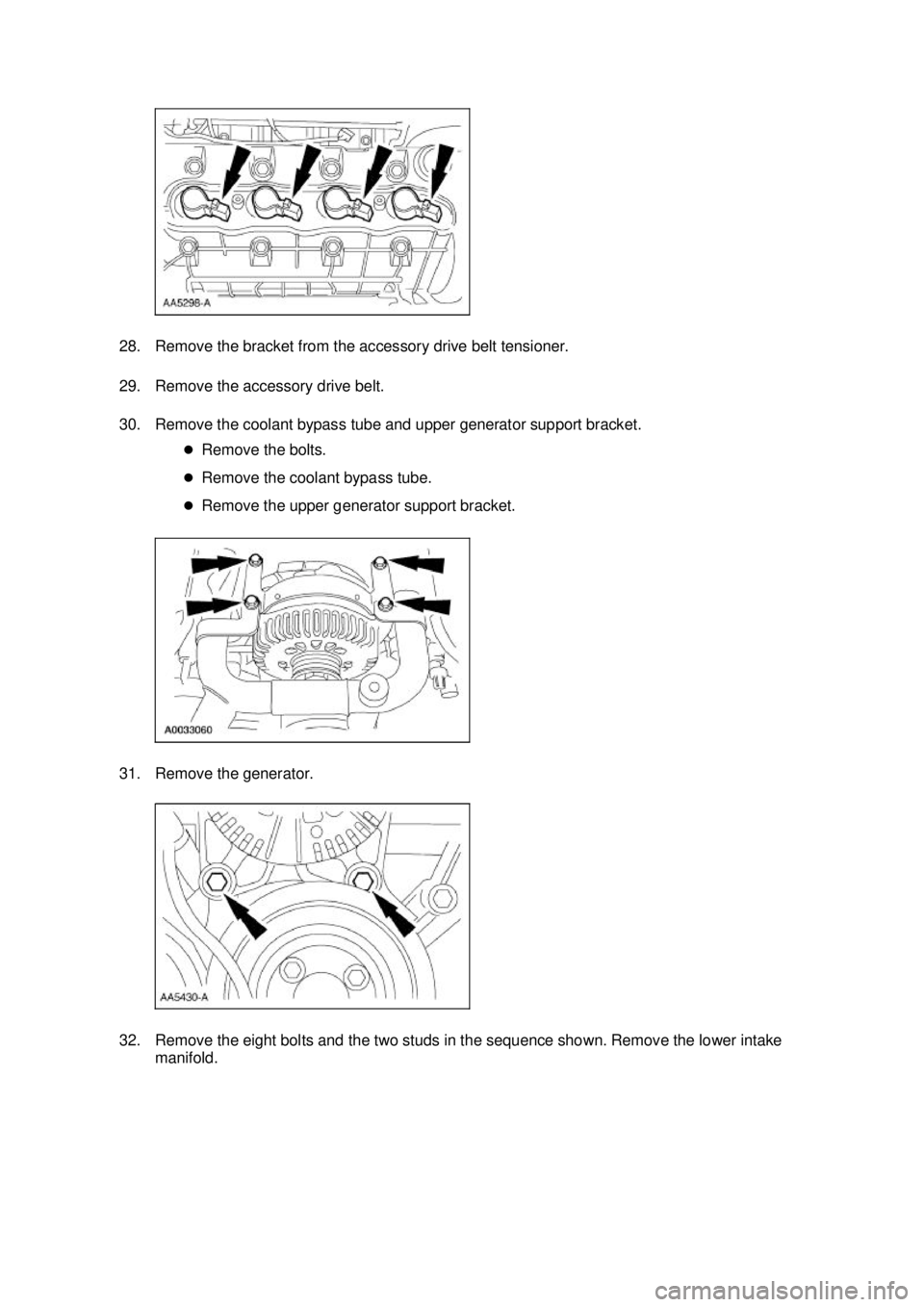

28. Remove the bracket from the accessory drive belt tensioner.
29. Remove the accessory drive belt.
30. Remove the coolant bypass tube and upper generator support bracket.
zRemove the bolts.
z Remove the coolant bypass tube.
z Remove the upper generator support bracket.
31. Remove the generator.
32. Remove the eight bolts and the two studs in the sequence shown. Remove the lower intake manifold. Klj . 9 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

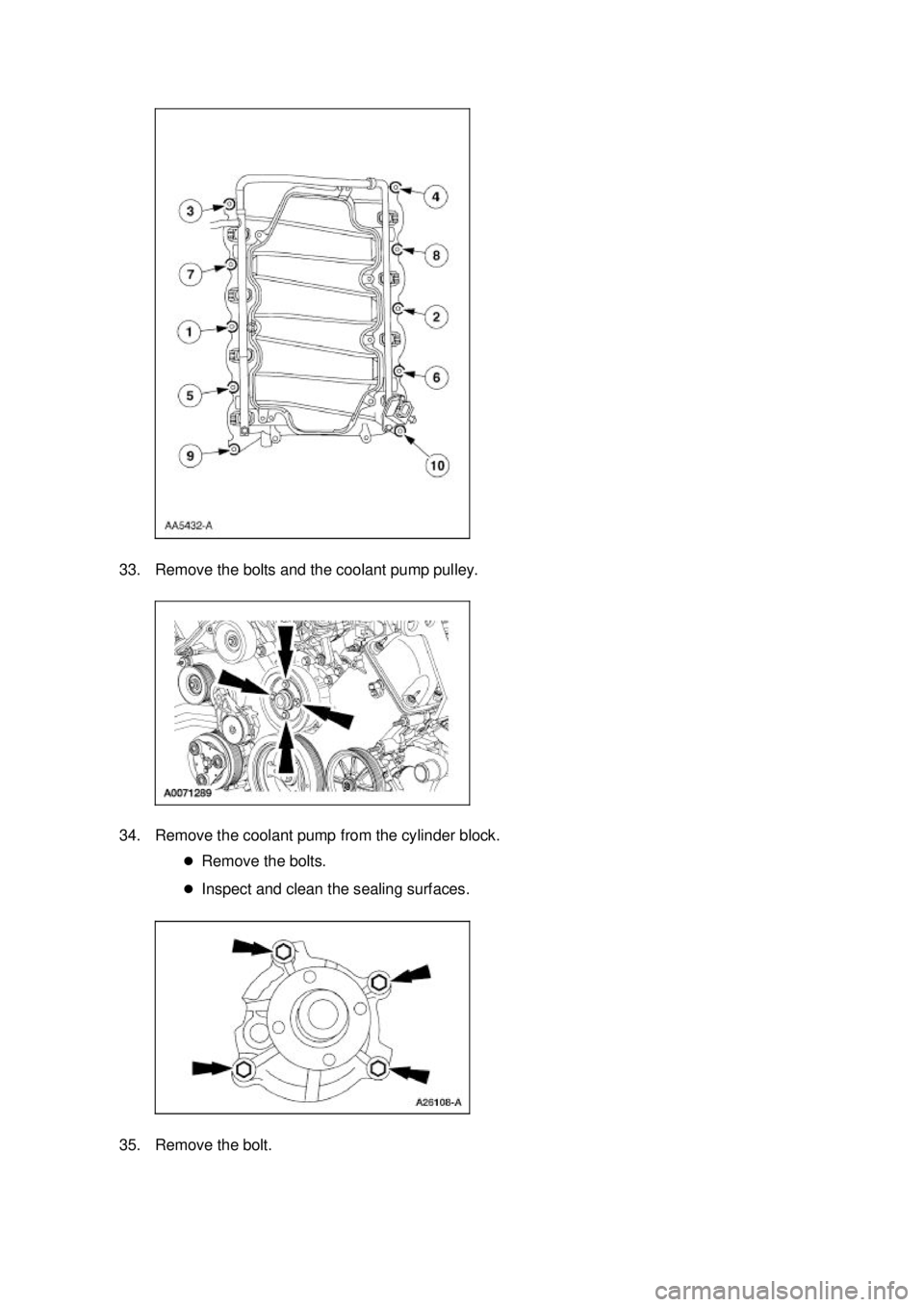

33. Remove the bolts and the coolant pump pulley.
34. Remove the coolant pump from the cylinder block.
zRemove the bolts.
z Inspect and clean the sealing surfaces.
35. Remove the bolt. Klj . 10 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Assembly
All vehicles
1. Record the main bearing code found on the front of the engine block.
2. Record the main bearing code found on the back of the crankshaft. 303-
516 (T95P-6701- BH) Compressor, Piston Ring
303-
D032 (D81L-6002- C) or
equivalent Holding Tool, Crankshaft
303-
448 (T93P-6303- A)
Material Item Specification
Metal Surface Cleaner
F4AZ-
19A536- RA or equivalent WSE-
M5B392-
A Silicone Gasket and Sealant
F7AZ-
19554- EA or equivalent WSE-
M4G323-
A4 Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Motorcraft Premium Gold
Engine Coolant VC-7-
A (in
Oregon VC-7- B) (yellow color) WSS-
M97B51-
A1 Klj . 2 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
Before assembling the cylinder block, all sealing surfaces must be free from chips, dirt, paint
and foreign material. Also, make sure the coolant and oil passages are clear.
5. Install the upper main bearings into the cylinder block and the lower main bearing into the crankshaft main bearing caps. Lubricate the main bearings with clean engine oil.
6. Install the crankshaft into the cylinder block.
7. CAUTION: Make sure the coated side of the thrust washer with the 5- mm wide oil
grooves faces the crankshaft thrust surface.
Push the crankshaft rearward and install the crankshaft thrust washer at the back of the No. 5
main boss. Klj . 4 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

56.
NOTE: Lubricate the O- ring seal with clean engine oil.
Install the coolant pump.
57. NOTE: The RH is shown; the LH is similar. Use new gaskets when installing the exhaust
manifolds.
Install the exhaust manifold.
58. Install the knock sensors. Klj . 20 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

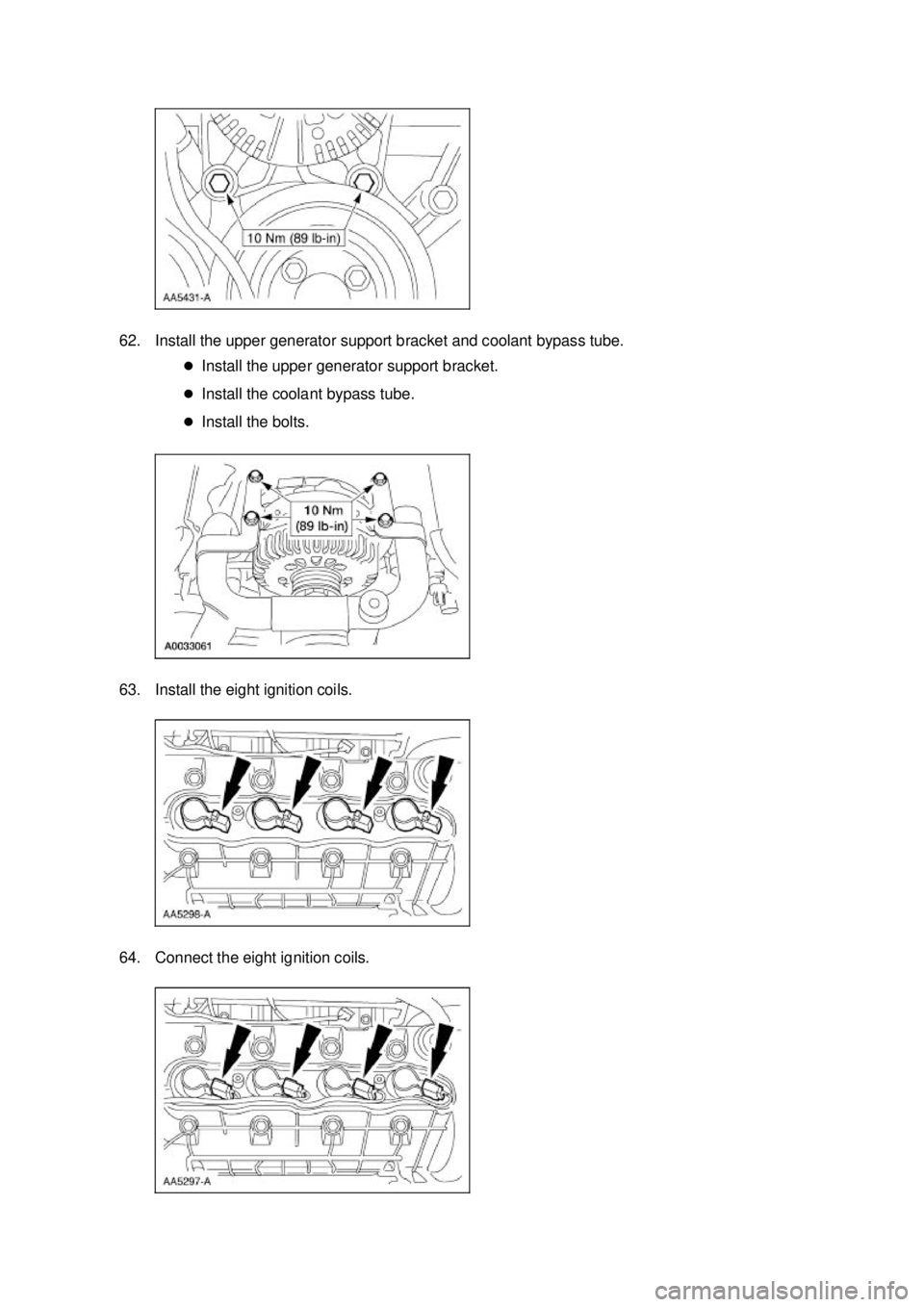

62. Install the upper generator support bracket and coolant bypass tube.
zInstall the upper generator support bracket.
z Install the coolant bypass tube.
z Install the bolts.
63. Install the eight ignition coils.
64. Connect the eight ignition coils. Klj . 22 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

65. Connect the engine coolant temperature (ECT) sensor.
66. Connect the eight fuel injectors.
67. Install the RH ignition coil cover.
68.
NOTE: The fastener at location five is a stud. Install the gasket and the upper intake. Klj . 23 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

INSTALLATION
Engine
Installation
All vehicles
1. Install the engine in the vehicle and remove the floor crane and the spreader bar.
SECTION 303-
01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D087 (D93P-6001- A1) Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) Installer Set, Teflon Seal
211-
D027 (D90P- 3517A) or
equivalent Spreader Bar
303-
D089 (D93P-6001- A3) or
equivalent
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Motorcraft Premium Gold
Engine Coolant VC-7-
A (in
Oregon VC-7- B) (yellow color) WSS-
M97B51-
A1 Threadlock and Sealer
E0AZ-
19554- AA WSK-
M2G351-
A5 Klj . 1 ba
182003 Mustang Workshop Manual
