2003 FORD EXCURSION relay

Locks and Security 75
Keys 75
Locks 75
Anti-theft system 77
Seating and Safety Restraints 86
Seating 86
Safety restraints 98
Air bags 109
Child restraints 113
Driving 124
Starting 124
Brakes 128
Transmission operation 131
Trailer towing 149
Roadside Emergencies 154
Getting roadside assistance 154
Hazard flasher switch 155
Fuel pump shut-off switch 155
Fuses and relays 156
Changing tires 161
Jump starting 166
Wrecker towing 172
Customer Assistance 174
Reporting safety defects (U.S. only) 182
Table of Contents
2

Loaded vehicles, with a higher center of gravity, may handle
differently than unloaded vehicles. Extra precautions, such as
slower speeds and increased stopping distance, should be taken when
driving a heavily loaded vehicle.
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the ON position unless brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed:
1. Apply the parking brake, turn ignition key to LOCK, then remove the
key.
2. Insert the key and turn it to OFF.Apply the brake pedal and shift
to N (Neutral).
In the ignition OFF position, the automatic transmission shift
lever can be moved from the P (Park) position without the brake
pedal depressed. To avoid unwanted vehicle movement, always set the
parking brake.
3. Start the vehicle.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
Driving
131

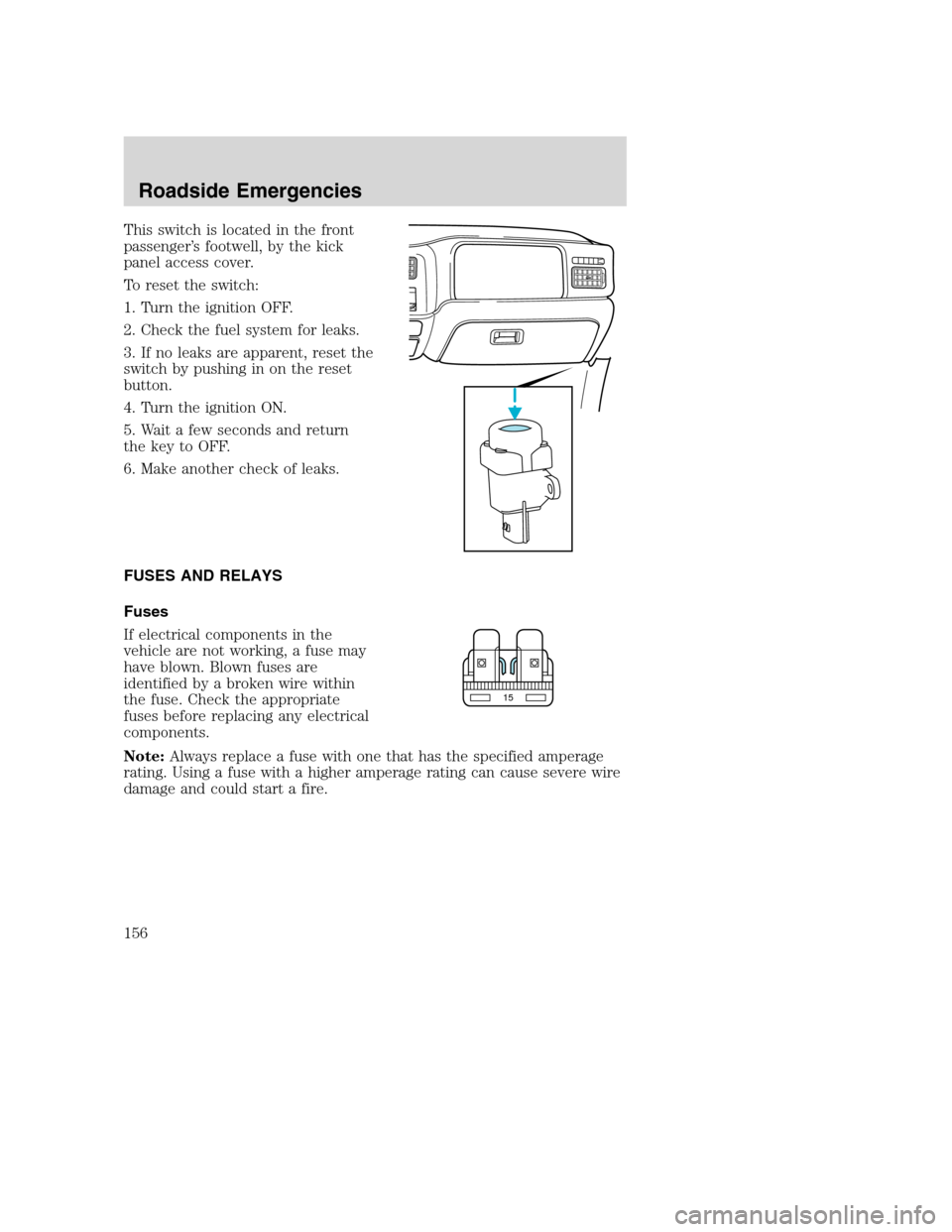

This switch is located in the front
passenger’s footwell, by the kick
panel access cover.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check of leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
156

To remove a fuse use the fuse puller
tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 15A* Adjustable pedals
2 20A* Power point - floor console
3 20A* Power point – 3rd row
4 20A* Power point - I/P
5 20A* Power point - right rear quarter
6 20A* Trailer tow turn/stop relay
7 30A* High beam headlamps/Flash to
pass
8 — Not used
9 20A* Heated mirrors
10 10A* A/C clutch
Roadside Emergencies
158

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
11 20A* Radio (main)
12 20A* Cigar lighter/OBD II
13 5A* Power mirrors/switches
14 15A* Daytime running lamps (DRL)
15 10A* Driver’s seat module memory
16 15A* Rear seat controller
17 15A* Exterior lamps
18 20A* Turn lamps/Brake on-off switch
(high)
19 10A* Body Security Module (BSM)/4x4
module
20 — Not used
21 25A* Rear smart wiper motor
22 20A* Engine control
23 20A* Engine control (gasoline engine
only)
24 15A* Not used
25 10A* 4-Wheel Anti-Lock Brake System
(4WABS) module
26 10A* Airbags
27 15A* Ignition switch Run feed
28 10A* EATC module/Front blower relay
coil
29 10A* Customer access
30 15A* Highbeam headlamps
31 15A* Transmission range sensor (then
to starter relay coil)
32 5A* Radio (start)
33 15A* Front wiper
34 10A* Brake on-off switch
35 10A* Instrument cluster
36 10A* PCM Keep-Alive
Roadside Emergencies
159

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
37 15A* Horn
38 20A* Trailer tow park lamps and
backup lamps
39 — Not used
40 20A* Fuel pump
41 10A* Instrument cluster
42 15A* Delayed accessory
43 10A* Fog lamps
44 10A* PATS module, Transceiver
45 10A* Ignition switch Run/Start feed
46 10A* Left-hand lowbeam
47 10A* Right-hand lowbeam
48 10A* Rear smart wiper motor
101 30A** Trailer tow electric brake
102 30A** Door locks, BSM
103 50A** Ignition switch
104 40A** Heated backlite
105 30A** Injector driver module (Diesel
engine only)
106 30A** Front wiper main
107 40A** Front blower motor
108 40A** Auxiliary blower motor
109 30A** Heated seats
110 50A** Ignition switch
111 30A** 4WD/Shift on the fly
112 30A** Left-hand power seats
113 30A** Starter motor
114 30A** Right-hand power seats
115 20A** Trailer tow battery charge
116 30A** Ignition switch
601 30A CB*** Door window motors
Roadside Emergencies
160

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
602 60A** 4WABS module
210 — Not used
211 — Not used
212 — Not used
301 — Front blower motor relay
302 — Powertrain (EEC) relay
303 — Injector driver module relay
(Diesel engine only)
304 — Heated backlite relay
305 — Trailer tow battery charge relay
306 — Delayed accessory relay
307 — Starter relay
* Mini Fuses ** Maxi Fuses ***Circuit Breaker
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may
compromise the integrity of your tires.
Spare tire information
Your vehicle may be equipped with a spare tire that can be used as
either a spare or a regular tire. The spare tire is not equipped with wheel
trim. The wheel trim from the original wheel/tire may be used on the
spare.
If your vehicle is equipped with 4WD, a spare tire of a different
size than the road tires should not be used. Use of such a tire
could result in damage to driveline components and an increased risk
of loss of vehicle control, vehicle rollover, personal injury or death.
Roadside Emergencies
161

Parts (see Motorcraft parts) ....222
Pedals (see Power
adjustable foot pedals) ...............61
Power adjustable foot
pedals .....................................61, 88
Power distribution box
(see Fuses) ...............................157
Power door locks ........................75
Power point .................................57
Power steering ..........................129
fluid, checking and adding ....213
fluid, refill capacity ................222
fluid, specifications .........225, 227
Power Windows ...........................58
Preparing to drive your
vehicle ........................................130
R
Radio ......................................17, 21
Relays ........................................156
Remote entry system .................77
illuminated entry ......................79
locking/unlocking doors ...........75
Reverse sensing system ...........134
Roadside assistance ..................154
Roof rack .....................................73
S
Safety belts (see
Safety restraints) ................98–102
Safety defects, reporting ..........182
Safety restraints ..................98–102
belt minder .............................104
cleaning the safety belts ........108extension assembly ................108
for adults ...........................99–101
for children .....................113–114
lap belt ....................................103
warning light and chime ........104
Safety seats for children ..........116
Seat belts (see
Safety restraints) ........................98
Seats ............................................86
child safety seats ....................116
memory seat .............................88
Servicing your vehicle ..............189
Snowplowing .................................7
Spare tire (see
Changing the Tire) ...................161
Spark plugs,
specifications .............222, 227–228
Special notice
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................225, 227
Speed control ..............................61
Starting your vehicle .......124–125,
127
jump starting ..........................166
Steering wheel
controls ......................................64
tilting .........................................55
T
Temperature control
(see Climate control) .................43
Tires ...........................161, 218–219
changing ..........................161–162
checking the pressure ............219
Index
239
