Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
7Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
8If your vehicle is equipped with a single row radiator, there will be a
label on the top side of the radiator indicating“1 Row Radiator”.
9Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door weatherstrips Silicone
LubricantF5AZ-19553-AA ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A
WSS -M97B51-A1
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
215
ProCarManuals.com

Item Ford part
nameFord part
numberFord
specification
Engine oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
with API
Certification
Mark
Engine oil-diesel
engineRefer to the7.3 Liter Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates, fuel
filler door hinge,
and seat tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R100)
1
Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
tranmission
(4R70W)
1
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Disc brake caliper
railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-4 ESE-M1C171-A
Parking brake
assembly
(E-450/550 Super
Duty)Motorcraft
MERCON
Automatic
Transmission
FluidXT-2-QDX MERCON
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
216
ProCarManuals.com

Item Ford part
nameFord part
numberFord
specification
Visteon
conventional and
Traction-Lok axles
(E-150)
2
Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle LubricantXY-75W90–QFEHP Meets API GL-5
Dana 9.75 inch
(M60–1U)
3Hypoid Gear Oil
SAE 90C6AZ-19580–E ESW-M2C105–E
10.5 inch (M70–2U)
(M70–1HD)
(E-250/350/450/550)
3
Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Windshield washer
fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Visteon
Traction-Lok rear axles.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
217
ProCarManuals.com

3Add 237 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Dana Traction-Lok rear axles.
ENGINE DATA
Engine*4.2L V6
engine4.6L V8
engine5.4L V8
engine6.8L V10
engine
Cubic inches 256 281 330 415
Required fuel 87 octane 87 octane 87 octane 87 octane
Firing order1-4-2-5-3-6
1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-81-6-5-10-2-7-
3-8-4-9
Spark plug
gap1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition
systemEDIS Coil on plug Coil on plug Coil on plug
Compression
ratio9.3:1 9.4:1 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.

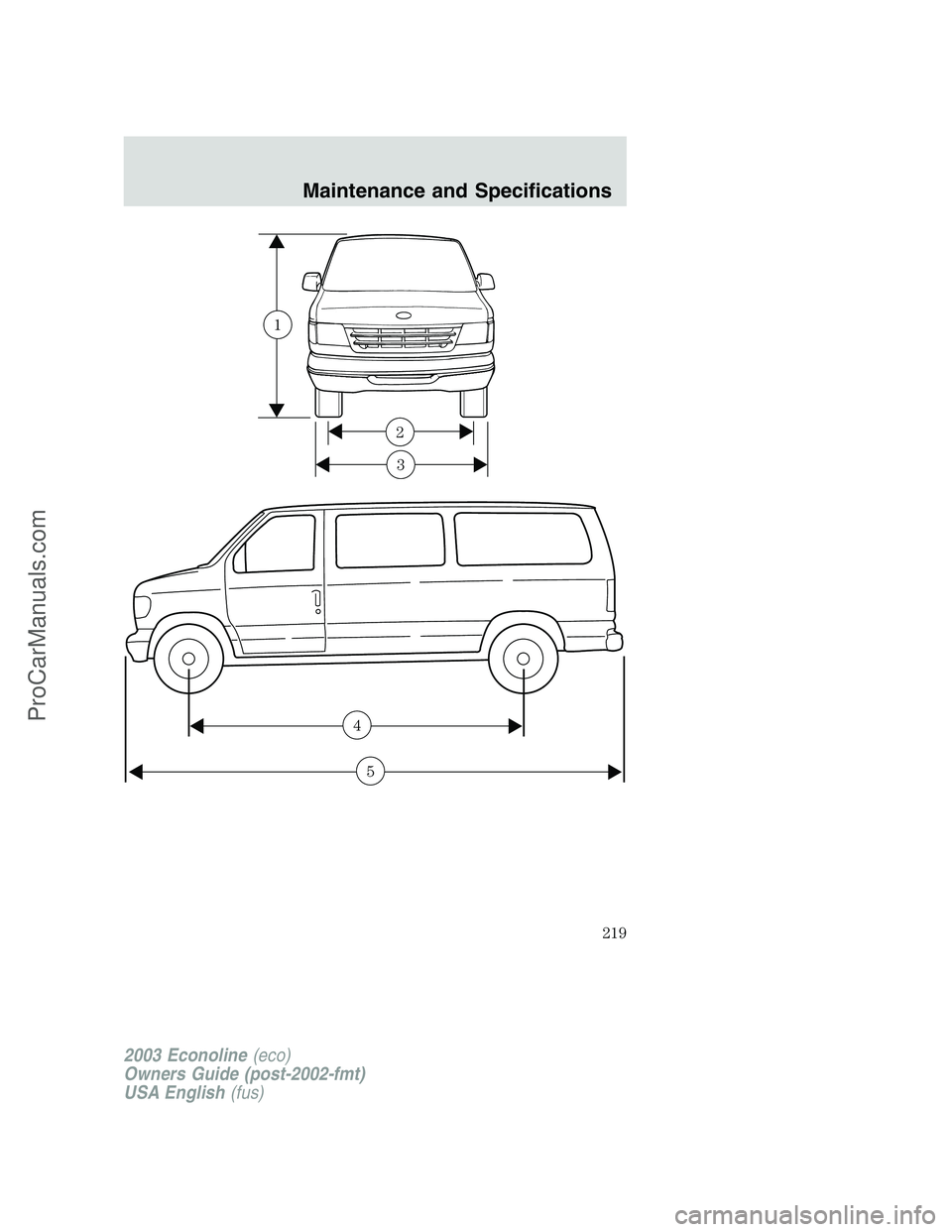

VEHICLE DIMENSIONS
Van/wagon models
E-150 E-250 E-350
(1) Overall height 2050 mm (80.7
in)2118 mm (83.4
in)2136 mm
(84.1 in)
(2) Track front/rear 1763 mm (69.4 in)/ 1 702 mm (67.0 in)
(3) Overall width
(excluding mirrors)2014 mm (79.3 in)
(4) Wheelbase 3505 mm (138 in)
(5) Overall length Regular van, 5382 mm (211.9 in)
Extended, 5890 mm (231.9 in)
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
218
ProCarManuals.com

3
2
1
4
5
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
219
ProCarManuals.com

Cutaway/commercial stripped chassis models
Dimension Body style
E-250 E-350 E-450
Super DutyE-550
Super Duty
(1) Overall
heightRefer to Body Builder for specifications.
(2) Track
(Front /
Rear)1 763 mm
(69.4 in)/
1 689 mm
(66.5 in)1 763 mm
(69.4 in)/
SRW 1689
mm (66.5
in),
DRW 1 859
mm (73.2 in)1 763 mm
(69.4 in)/
1 973 mm
(77.7 in)1 999 mm
(78.7 in)/
1 970 mm
(77.5 in)
(3) Overall
widthRefer to Body Builder for specifications.
(4)
Wheelbase3 149.6 mm
(124 in)3 505 mm
(138 in)
4 013 mm
(158 in)
4 470 mm
(176 in)4 013 mm
(158 in)
4 470 mm
(176 in)4 051 mm
(159.5 in)
4 508 mm
(177.5 in)
4 864 mm
(191.5 in)
5 321 mm
(209.5 in)
5 930 mm
(233.5 in)
(5) Overall
lengthRefer to Body Builder for specifications.
VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•On the metal tag attached to the top of the instrument panel on the
driver’s side.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
220
ProCarManuals.com

•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221
ProCarManuals.com

A
Air bag supplemental restraint
system ..........................................93
and child safety seats ..............95
description ................................93
disposal ......................................97
driver air bag ............................95
indicator light ...........................97
operation ...................................95
passenger air bag .....................95
Air cleaner filter .......203–204, 210
Ambulance packages ....................6
Antifreeze
(see Engine coolant) ................184
Anti-lock brake system
(see Brakes) ......................116–117
Audio system
(see Radio) ................16, 18, 21, 25
Automatic transmission
driving an automatic
overdrive .................................120
fluid, adding ............................201
fluid, checking ........................201
fluid, refill capacities ..............211
fluid, specification ..................218
Auxiliary power point .................67
Axle
lubricant specifications ..215, 218
refill capacities ........................211
traction lok ..............................118
B
Battery .......................................179
acid, treating emergencies .....179
disconnecting ..........................181
jumping a disabled battery ....152
maintenance-free ....................179replacement, specifications ...210
servicing ..................................179
BeltMinder ...................................89
Brakes ........................................116
anti-lock ...........................116–117
anti-lock brake system (ABS)
warning light ...........................117
fluid, checking and adding ....201
fluid, refill capacities ..............211
fluid, specifications .........215, 218
lubricant specifications ..215, 218
parking ....................................117
shift interlock ..........................119
Break-in period .............................5
Bulbs ............................................57
C
Calculating load ........................126
Capacities for refilling fluids ....211
Cassette tape player ...................25
CD-single premium .........16, 18, 21
Cell phone use ............................67
Child safety restraints ................98
child safety belts ......................98
Child safety seats ......................101
in front seat ............................103
in rear seat ..............................103
tether anchorage hardware ...105
Cleaning your vehicle
engine compartment ..............168
exterior ....................................171
instrument panel ....................170
interior .....................................170
interior trim ............................170
plastic parts ............................169
safety belts ..............................170
washing ....................................167
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
225
ProCarManuals.com
