2003 DODGE RAM Ignition switch

CAPACITOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A142 16DG/OR AUTO SHUT DOWN RELAY OUTPUT
2- -
CENTER HIGH MOUNTED STOP LAMP/CARGO LAMP-4WAY
CAV CIRCUIT FUNCTION
1 F32 18RD/YL FUSED B(+)
2 M3 20PK/DB CARGO LAMP DRIVER
3 Z56 18BK GROUND
4 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
CIGAR LIGHTER OUTLET - RED 3 WAY
CAV CIRCUIT FUNCTION
1 F30 18RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2- -
3 Z301 18TN/BK GROUND
CLEARANCE LAMP NO. 1 (HEAVY DUTY)-2WAY
CAV CIRCUIT FUNCTION
1 L7 20BK/YL HEADLAMP SWITCH OUTPUT
2 Z253 20BK/RD GROUND
CLEARANCE LAMP NO. 2 (HEAVY DUTY)-2WAY
CAV CIRCUIT FUNCTION
1 L7 20BK/YL HEADLAMP SWITCH OUTPUT
2 Z253 20BK/RD GROUND
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 43

COIL ON PLUG NO. 6 (3.7L/4.7L/5.7L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K96 18TN/LB COIL ON PLUG DRIVER NO. 6
1 A142 16DG/OR (NGC) ASD RELAY OUTPUT
2 A142 16DG/OR AUTO SHUT DOWN RELAY OUTPUT
2 K96 18TN/LB (NGC) COIL CONTROL NO. 6
3- -
COIL ON PLUG NO. 7 (4.7L/5.7L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K97 18BR COIL CONTROL NO. 7
1 A142 16DG/OR (5.7L) ASD RELAY OUTPUT
2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K97 18BR (5.7L) COIL CONTROL NO. 7
3- -
COIL ON PLUG NO. 8 (4.7L/5.7L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K98 18LB/RD COIL CONTROL NO. 8
1 A142 16DG/OR (5.7L) ASD RELAY OUTPUT
2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K98 18LB/RD (5.7L) COIL CONTROL NO. 8
3- -
COMPASS/MINI-TRIP COMPUTER (EXCEPT BASE) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 Y107 20VT/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 Z104 20BK/OR GROUND
4 F32 20RD/YL FUSED B(+)
5 D25 20VT PCI BUS
6- -
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 47

CONDENSER FAN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z212 16LG/BK GROUND
2 C23 16DG CONDENSER FAN RELAY OUTPUT
CONTROLLER ANTILOCK BRAKE C1 - BLACK 14 WAY
CAV CIRCUIT FUNCTION
1 B113 20RD/VT REAR WHEEL SPEED SENSOR (+)
2 B222 20DG/WT (EXCEPT 4 WHEEL
ABS)VEHICLE SPEED SIGNAL NO.2
3 D25 20VT/BK PCI BUS
4 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
5- -
6 Z102 12BK/VT GROUND
7 A10 14RD/DG FUSED B(+)
8 B114 20WT/VT REAR WHEEL SPEED SENSOR (-)
9 K29 20WT/PK BRAKE SWITCH SENSE
10 - -
11 G9 20GY/BK BRAKE FLUID LEVEL SWITCH SENSE
12 G7 20WT/OR (EXCEPT 4.7L ABS/5.7L
ABS)VEHICLE SPEED SIGNAL NO.1
12 B22 20DG/YL (4.7L ABS/5.7 ABS) VEHICLE SPEED SIGNAL NO.1
13 Z101 12BK/PK (4 WHEEL ABS) GROUND
14 A10 14RD/DG (4 WHEEL ABS) FUSED B(+)
CONTROLLER ANTILOCK BRAKE C2 (ABS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 B9 20RD LEFT FRONT WHEEL SPEED SENSOR (+)
2 B8 20RD/DB LEFT FRONT WHEEL SPEED SENSOR (-)
3 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
4 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+)

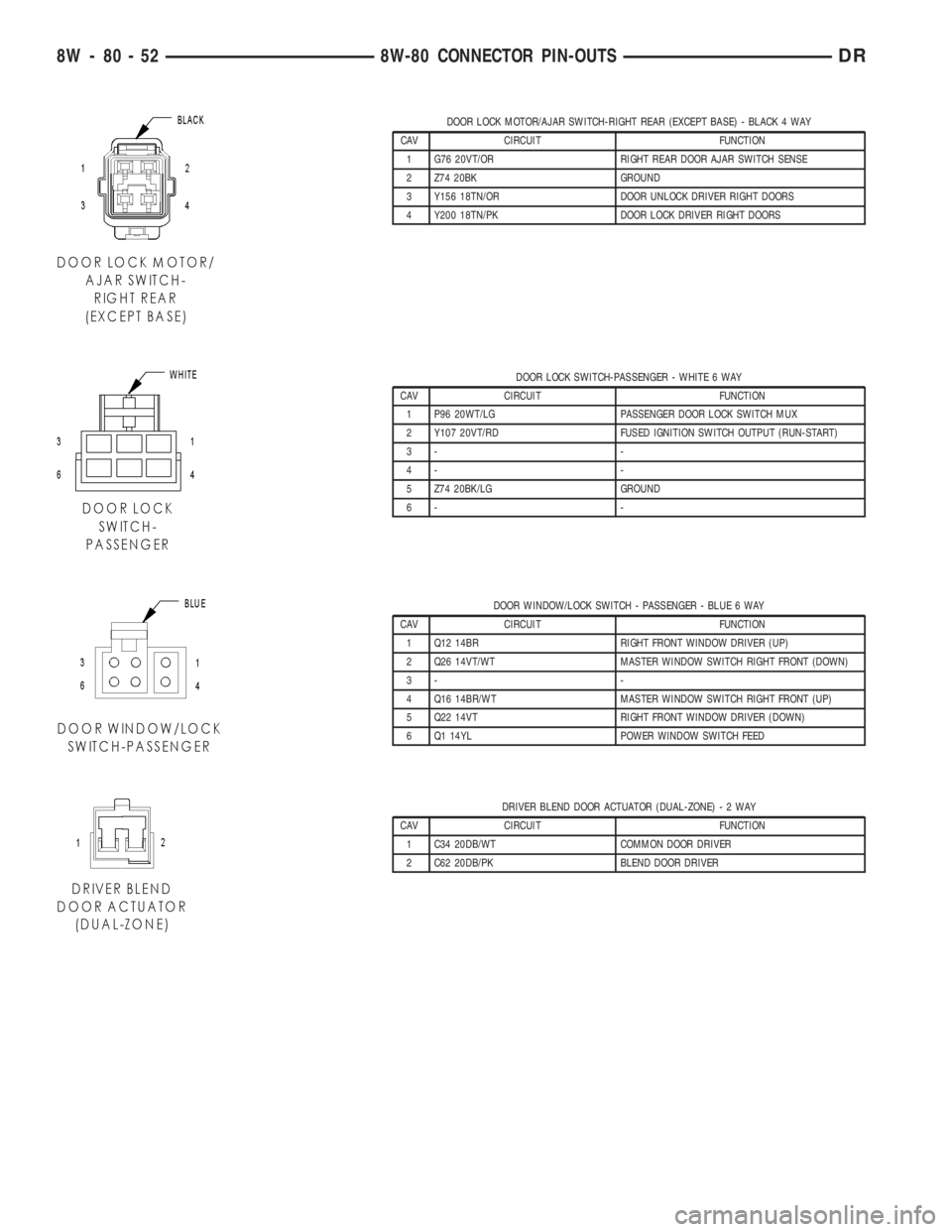

8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSDR

DOOR LOCK MOTOR/AJAR SWITCH-RIGHT REAR (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G76 20VT/OR RIGHT REAR DOOR AJAR SWITCH SENSE
2 Z74 20BK GROUND
3 Y156 18TN/OR DOOR UNLOCK DRIVER RIGHT DOORS
4 Y200 18TN/PK DOOR LOCK DRIVER RIGHT DOORS
DOOR LOCK SWITCH-PASSENGER - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 P96 20WT/LG PASSENGER DOOR LOCK SWITCH MUX
2 Y107 20VT/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
3- -
4- -
5 Z74 20BK/LG GROUND
6- -
DOOR WINDOW/LOCK SWITCH - PASSENGER - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 Q12 14BR RIGHT FRONT WINDOW DRIVER (UP)
2 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT (DOWN)
3- -
4 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT (UP)
5 Q22 14VT RIGHT FRONT WINDOW DRIVER (DOWN)
6 Q1 14YL POWER WINDOW SWITCH FEED
DRIVER BLEND DOOR ACTUATOR (DUAL-ZONE)-2WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/WT COMMON DOOR DRIVER
2 C62 20DB/PK BLEND DOOR DRIVER
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSDR

DRIVER DOOR MODULE C1 - BLUE 12 WAY
CAV CIRCUIT FUNCTION
1 Q28 14DG/WT RIGHT REAR WINDOW DRIVER (DOWN)
2 Q18 14GY/BK RIGHT REAR WINDOW DRIVER (UP)
3 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT (UP)
4 Q17 14DB/WT LEFT REAR WINDOW DRIVER (UP)
5 Q11 14LB LEFT FRONT WINDOW DRIVER (UP)
6 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT (DOWN)
7 P97 20WT/DG DRIVER DOOR LOCK SWITCH MUX
8 Z67 14BK GROUND
9 F21 14TN FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
10 Q27 14RD/BK LEFT REAR WINDOW DRIVER (DOWN)
11 Z75 20BK GROUND
12 Q21 14WT LEFT FRONT WINDOW DRIVER (DOWN)
DRIVER DOOR MODULE C2 - BLUE 8 WAY
CAV CIRCUIT FUNCTION
1 P71 20YL LEFT MIRROR UP DRIVER
2 P76 20OR/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
3 F32 18RD/YL FUSED B(+)
4 P74 20DB RIGHT MIRROR LEFT DRIVER
5 Z239 20BK GROUND
6 P75 20DB/WT LEFT MIRROR LEFT DRIVER
7 P72 20YL/BK RIGHT MIRROR UP DRIVER
8 Q1 14YL POWER WINDOW SWITCH FEED
DRIVER HEATED SEAT CUSHION - DK GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 P141 18TN/LB DRIVER SEAT TEMPERATURE SENSOR INPUT
2 Z121 20BK/LG GROUND
3 P143 20BK/DG DRIVER SEAT TEMPERATURE 5 VOLT SUPPLY
4 P86 20PK/BK SEAT HEATER DRIVER
ELECTRIC BRAKE PROVISION - BLUE 4 WAY
CAV CIRCUIT FUNCTION
1 Y133 14RD/OR FUSED B(+)
2 B40 14LB TRAILER TOW BRAKE B(+)
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
4 Z255 18DG/BK GROUND
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53

ELECTRONIC THROTTLE CONTROL MODULE (5.7L) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 K22 18OR/DB TP NO.1 SIGNAL
2 K7 18OR 5 VOLT SUPPLY
3 F888 18BR/PK ETC MOTOR(+)
4 K122 18DB/GY TP NO.2 SIGNAL
5 F855 18OR/PK ETC MOTOR(-)
6 K101 18WT TP SENSOR RETURN
ENGINE CONTROL MODULE - C1 (DIESEL) - 60 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 D1 18VT/BR CCD BUS (+)
5 D2 18WT/BK CCD BUS (-)
6 K65 18OR/RD FUEL PUMP SUPPLY
7 K20 18DG GENERATOR FIELD CONTROL
8- -
9- -
10 - -
11 - -
12 K102 18PK/BK FUEL PRESSURE SENSOR SIGNAL
13 - -
14 K232 18YL APPS SIGNAL
15 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
16 - -
17 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
18 - -
19 K31 18BR FUEL PUMP RELAY CONTROL
20 - -
21 - -
22 G17 18WT/TN SPEEDOMETER SIGNAL
23 K104 18RD/WT SENSOR GROUND
24 K53 18DB/RD HALL EFFECT
25 Y501 18DB/YL 5 VOLT SUPPLY
26 C18 18DB A/C PRESSURE SIGNAL
27 K6 18VT/WT 5 VOLT SUPPLY
28 - -
29 Y502 18DG/YL INLET AIR TEMPERATURE/PRESSURE RETURN
30 K118 16WT/DB BATTERY TEMPERATURE SENSOR SIGNAL
31 G20 18VT/YL IGNITION SWITCH SENSE
32 K55 18LB/WT MASS AIR FLOW SENSOR SIGNAL
33 K56 18LG/OR APPS SENSOR RETURN
34 K49 18VT/BK APPS IDLE SWITCH
35 - -
36 K14 16RD/WT FUEL INJECTOR NO. 4 DRIVER
37 - -
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSDR

ENGINE CONTROL MODULE - C2 (DIESEL) - 50 WAY
CAV CIRCUIT FUNCTION
28 D25 18VT/YL PCI BUS
29 - -
30 A140 16DG/WT FUSED B(+)
31 - -
32 Y135 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
33 - -
34 - -
35 K68 18BR/LG INLET AIR PRESSURE SENSE
36 V32 18YL/RD SPEED CONTROL SUPPLY
37 K29 18WT/PK BRAKE SWITCH SENSE
38 - -
39 - -
40 A140 16BG/WT FUSED B(+)
41 C13 18DB/OR A/C CLUTCH RELAY CONTROL
42 - -
43 Y1 18LG PARK LOCKOUT SOLENOID CONTROL
44 - -
45 - -
46 V37 18RD/YL S/C SWITCH SIGNAL
47 K118 18PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
48 - -
49 Z816 16BK/TN GROUND
50 Z816 16BK/TN GROUND
ENGINE COOLANT TEMPERATURE SENSOR (3.7L/4.7L/5.7L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K2 18TN/BK (4.7L/5.7L) ECT SIGNAL
ENGINE COOLANT TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K104 18RD/WT SENSOR GROUND
2 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSDR

ENGINE OIL PRESSURE SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G60 18GY/YL ENGINE OIL PRESSURE SWITCH SENSE
2- -
EVAP/PURGE SOLENOID (EXCEPT NGC)-2WAY
CAV CIRCUIT FUNCTION
1 K52 18PK/BK EVAPORATIVE SOLENOID CONTROL
2 Y134 20GY/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
EVAP/PURGE SOLENOID (NGC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K108 18WT/TN EVAP PURGE RETURN
2 K52 18PK/BK EVAP PURGE CONTROL
EVAPORATOR TEMPERATURE SENSOR-2WAY
CAV CIRCUIT FUNCTION
1 C57 20DB/GY SENSOR GROUND
2 C12 20LG/BK EVAPORATOR TEMPERATURE SENSOR SIGNAL
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 57
