2003 CHRYSLER VOYAGER engine

8W-33 VEHICLE SPEED CONTROL
Component Page
Brake Lamp Switch................ 8W-33-3, 5
Clockspring..................... 8W-33-2, 4, 6
Clutch Pedal Upstop Switch............ 8W-33-6
Engine Control Module................ 8W-33-6
G103............................ 8W-33-3, 5
G300.............................. 8W-33-6
Input Speed Sensor................ 8W-33-2, 4
Left Speed Control Switch......... 8W-33-2, 4, 6Component Page
Output Speed Sensor............... 8W-33-2, 4
Powertrain Control Module...... 8W-33-2, 3, 4, 5
Right Speed Control Switch........ 8W-33-2, 4, 6
Speed Control Servo................ 8W-33-3, 5
Transmission Control Module........... 8W-33-4
Vehicle Speed Sensor............... 8W-33-2, 6
RS8W-33 VEHICLE SPEED CONTROL8W-33-1
ProCarManuals.com

8W-35 ANTILOCK BRAKES
Component Page
Body Control Module................. 8W-35-2
Brake Lamp Switch.................. 8W-35-3
Controller Antilock Brake.......... 8W-35-2, 3, 4
Engine Control Module................ 8W-35-3
Front Control Module................. 8W-35-3
Fuse 9............................ 8W-35-2
Fuse 21............................ 8W-35-2
Fuse 26............................ 8W-35-3
G100.............................. 8W-35-2
G200.............................. 8W-35-2Component Page
G300.............................. 8W-35-3
Integrated Power Module............ 8W-35-2, 3
Left Front Wheel Speed Sensor......... 8W-35-4
Left Rear Wheel Speed Sensor.......... 8W-35-4
Powertrain Control Module............ 8W-35-3
Right Front Wheel Speed Sensor........ 8W-35-4
Right Rear Wheel Speed Sensor......... 8W-35-4
Traction Control Switch............... 8W-35-2
Transmission Control Module........... 8W-35-3
RS8W-35 ANTILOCK BRAKES8W-35-1
ProCarManuals.com

8W-40 INSTRUMENT CLUSTER
Component Page
Airbag Control Module................ 8W-40-2
Body Control Module . . . 8W-40-2, 3, 4, 5, 6, 7, 8, 9,
10, 12, 13
Brake Fluid Level Switch............. 8W-40-10
Clockspring........................ 8W-40-11
Controller Antilock Brake.......... 8W-40-11, 15
Engine Control Module.......... 8W-40-9, 11, 15
Engine Coolant Temp Sensor....... 8W-40-7, 8, 9
Engine Oil Pressure Sensor........... 8W-40-15
Engine Oil Pressure Switch........... 8W-40-15
Front Control Module....... 8W-40-10, 11, 14, 15
Fuel Pump Module................... 8W-40-2
Fuse 24............................ 8W-40-2
G200..................... 8W-40-2, 12, 13, 14
G300............................. 8W-40-10
Instrument Cluster...... 8W-40-2, 3, 4, 5, 6, 7, 8,
9, 10, 12, 13, 14
Integrated Power Module........ 8W-40-2, 7, 8, 9,
10, 11, 14, 15
Left Front Door Ajar Switch............ 8W-40-3
Left Front Door Lock Motor/Ajar Switch . . 8W-40-3
Left Sliding Door Control Module........ 8W-40-4Component Page
Left Sliding Door Latch Sensing Switch . . . 8W-40-4
Left Sliding Door Lock Motor/Ajar
Switch.......................... 8W-40-4
Left Speed Control Switch............ 8W-40-11
Liftgate Ajar Switch.................. 8W-40-3
Liftgate Cinch/Release Motor........... 8W-40-3
Message Center.................. 8W-40-6, 14
Multi- Function Switch................ 8W-40-6
Parking Brake Switch............. 8W-40-12, 13
Powertrain Control Module..... 8W-40-7, 8, 11, 15
Right Front Door Ajar Switch........... 8W-40-3
Right Front Door Lock Motor/Ajar
Switch.......................... 8W-40-3
Right Sliding Door Control Module...... 8W-40-5
Right Sliding Door Latch Sensing Switch . . 8W-40-5
Right Sliding Door Lock Motor/Ajar
Switch.......................... 8W-40-5
Traction Control Switch........... 8W-40-7, 8, 9
Transmission Control Module........... 8W-40-8
Vehicle Speed Sensor............... 8W-40-7, 9
Washer Fluid Level Switch............ 8W-40-10
RS8W-40 INSTRUMENT CLUSTER8W-40-1
ProCarManuals.com

8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch......... 8W-42-14, 16, 19
A/C Compressor Clutch Relay.... 8W-42-14, 16, 19
A/C Pressure Sensor........... 8W-42-14, 16, 19
A/C-Heater Control............. 8W-42-2, 3, 4, 5
A/C-Heater Control................... 8W-42-7
ATC Remote Sensor................. 8W-42-11
Auto Temp Control..... 8W-42-8, 9, 10, 11, 12, 13
Battery........................... 8W-42-17
Blower Motor Resistor................ 8W-42-2
Body Control Module.......... 8W-42-4, 7, 9, 13
Driver Blend Door Actuator......... 8W-42-5, 10
ECM/PCM Relay................... 8W-42-17
Engine Control Module............ 8W-42-16, 17
Evaporator Temperature Sensor...... 8W-42-5, 10
Front Blower Module................ 8W-42-11
Front Blower Motor............... 8W-42-2, 11
Front Blower Motor Relay.......... 8W-42-2, 11
Front Control Module......... 8W-42-2, 6, 11, 12
Fuse 10......................... 8W-42-2, 11
Fuse 12......................... 8W-42-6, 12
Fuse 14............................ 8W-42-8
Fuse 16........................... 8W-42-17
Fuse 18..................... 8W-42-14, 16, 19
Fuse 27..................... 8W-42-15, 18, 20
Fuselink.......................... 8W-42-17
G102....................... 8W-42-15, 18, 20Component Page
G103....................... 8W-42-14, 16, 19
G200.............. 8W-42-2, 3, 4, 6, 8, 9, 11, 12
G300........................... 8W-42-7, 13
G302............................. 8W-42-12
Integrated Power Module....... 8W-42-2, 6, 8, 11,
12, 14, 15, 16, 17, 18, 19, 20
Mode Door Actuator............... 8W-42-5, 10
Passenger Blend Door Actuator...... 8W-42-5, 10
Powertrain Control Module . . . 8W-42-14, 15, 19, 20
Radiator Fan No. 1......... 8W-42-15, 17, 18, 20
Radiator Fan No. 2............ 8W-42-15, 18, 20
Radiator Fan Relay............... 8W-42-15, 20
Radiator Fan Relay No. 1.......... 8W-42-17, 18
Radiator Fan Relay No. 2............. 8W-42-18
Radiator Fan Relay No. 3............. 8W-42-18
Rear A/C-Heater Unit............... 8W-42-6, 7
Rear Auto Temp Control Switch........ 8W-42-13
Rear Blower Front Control Switch....... 8W-42-6
Rear Blower Motor.................. 8W-42-12
Rear Blower Motor Power Module...... 8W-42-12
Rear Blower Motor Relay........... 8W-42-6, 12
Rear Blower Rear Control Switch...... 8W-42-6, 7
Rear Mode Motor................... 8W-42-12
Rear Temperature Motor............. 8W-42-12
Recirculation Door Actuator......... 8W-42-5, 10
RS8W-42 AIR CONDITIONING-HEATER8W-42-1
ProCarManuals.com

Component Page
C313 (Rear Console)................. 8W-80-39
C313 (Rear Console)................. 8W-80-39
C314 (Highline).................... 8W-80-40
C314 (Highline).................... 8W-80-40
C315 (Highline).................... 8W-80-41
C315 (Highline).................... 8W-80-41
C316 (Power Sliding Door)............ 8W-80-41
C316 (Power Sliding Door)............ 8W-80-42
C317 (Power Sliding Door)............ 8W-80-42
C317 (Power Sliding Door)............ 8W-80-42
C318 (Trailer Tow).................. 8W-80-43
C318 (Trailer Tow).................. 8W-80-43
C319 (Lowline)..................... 8W-80-43
C319 (Lowline)..................... 8W-80-44
C320............................. 8W-80-44
C320............................. 8W-80-44
C321............................. 8W-80-44
C321............................. 8W-80-45
C322 (Memory)..................... 8W-80-45
C322 (Memory)..................... 8W-80-45
C324 (Manual Sliding Door)........... 8W-80-46
C324 (Manual Sliding Door)........... 8W-80-46
C325 (Manual Sliding Door)........... 8W-80-46
C325 (Manual Sliding Door)........... 8W-80-46
C326............................. 8W-80-46
C326............................. 8W-80-47
C327............................. 8W-80-47
C327............................. 8W-80-47
C328 (Sunroof)..................... 8W-80-47
C328 (Sunroof)..................... 8W-80-47
C329 (Diesel)...................... 8W-80-48
C329 (Diesel)...................... 8W-80-48
C330 (Diesel)...................... 8W-80-48
C330 (Diesel)...................... 8W-80-48
C331 (Diesel)...................... 8W-80-48
C331 (Diesel)...................... 8W-80-49
C332 (3 Zone ATC).................. 8W-80-49
C332 (3 Zone ATC).................. 8W-80-49
Cabin Heater Assist C1 (Diesel)........ 8W-80-50
Cabin Heater Assist C2 (Diesel)........ 8W-80-50
Camshaft Position Sensor (Diesel)...... 8W-80-50
Camshaft Position Sensor (Gas)........ 8W-80-50
CD Changer....................... 8W-80-51
Center Dome Lamp (Base/Highline)..... 8W-80-51
Center High Mounted Stop Lamp....... 8W-80-51
Clockspring C1..................... 8W-80-51
Clockspring C2..................... 8W-80-52
Clockspring C3..................... 8W-80-52
Clockspring C4..................... 8W-80-52
Clutch Pedal Interlock Switch (MTX).... 8W-80-52
Clutch Pedal Upstop Switch (Diesel).... 8W-80-52
Controller Antilock Brake............. 8W-80-53
Crank Case Ventilation Heater (Diesel) . . 8W-80-53
Crankshaft Position Sensor (Diesel)..... 8W-80-53Component Page
Crankshaft Position Sensor (Gas)....... 8W-80-54
Data Link Connector................ 8W-80-54
Dosing Pump (Diesel)................ 8W-80-54
Driver Airbag Squib 1................ 8W-80-55
Driver Airbag Squib 2................ 8W-80-55
Driver Blend Door Actuator (ATC)...... 8W-80-55
Driver Blend Door Actuator (MTC)...... 8W-80-55
Driver Door Courtesy Lamp........... 8W-80-56
Driver Door Lock Switch............. 8W-80-56
Driver Heated Seat Back............. 8W-80-56
Driver Heated Seat Cushion........... 8W-80-56
Driver Heated Seat Module C1......... 8W-80-56
Driver Heated Seat Module C2......... 8W-80-57
Driver Heated Seat Module C3......... 8W-80-57
Driver Power Seat Front Riser Motor.... 8W-80-57
Driver Power Seat Front Riser Position
Sensor......................... 8W-80-57
Driver Power Seat Horizontal Motor.... 8W-80-58
Driver Power Seat Horizontal Position
Sensor......................... 8W-80-58
Driver Power Seat Rear Riser Motor.... 8W-80-58
Driver Power Seat Rear Riser Position
Sensor......................... 8W-80-58
Driver Power Seat Recliner Motor...... 8W-80-58
Driver Power Seat Recliner Position
Sensor......................... 8W-80-59
Driver Power Seat Switch............ 8W-80-59
Driver Power Window Motor.......... 8W-80-59
Driver Power Window Switch
(LHD Except Lowline)............. 8W-80-60
Driver Power Window Switch (LHD
Lowline)........................ 8W-80-60
Driver Power Window Switch (RHD).... 8W-80-60
Driver Seat Belt Switch.............. 8W-80-61
Driver Seat Belt Tensioner............ 8W-80-61
DVD Screen....................... 8W-80-61
DVD/CD Changer C1................ 8W-80-61
DVD/CD Changer C2................ 8W-80-62
DVD/CD Changer C3................ 8W-80-62
EGR Solenoid (3.3L/3.8L Export)....... 8W-80-62
EGR Solenoid (Diesel)............... 8W-80-62
Engine Control Module C1 (Diesel)..... 8W-80-63
Engine Control Module C2 (Diesel)..... 8W-80-64
Engine Coolant Temp Sensor (Diesel).... 8W-80-65
Engine Coolant Temp Sensor (Gas)..... 8W-80-65
Engine Oil Pressure Sensor (Diesel)..... 8W-80-66
Engine Oil Pressure Switch (Gas)...... 8W-80-66
EVAP/Purge Solenoid (Gas)........... 8W-80-66
Evaporator Temperature Sensor........ 8W-80-66
Floor Console Lamp................. 8W-80-67
Floor Console Power Outlet........... 8W-80-67
Front Blower Module C1 (ATC)........ 8W-80-67
Front Blower Module C2 (ATC)........ 8W-80-67
Front Cigar Lighter................. 8W-80-68
8W - 80 - 2 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

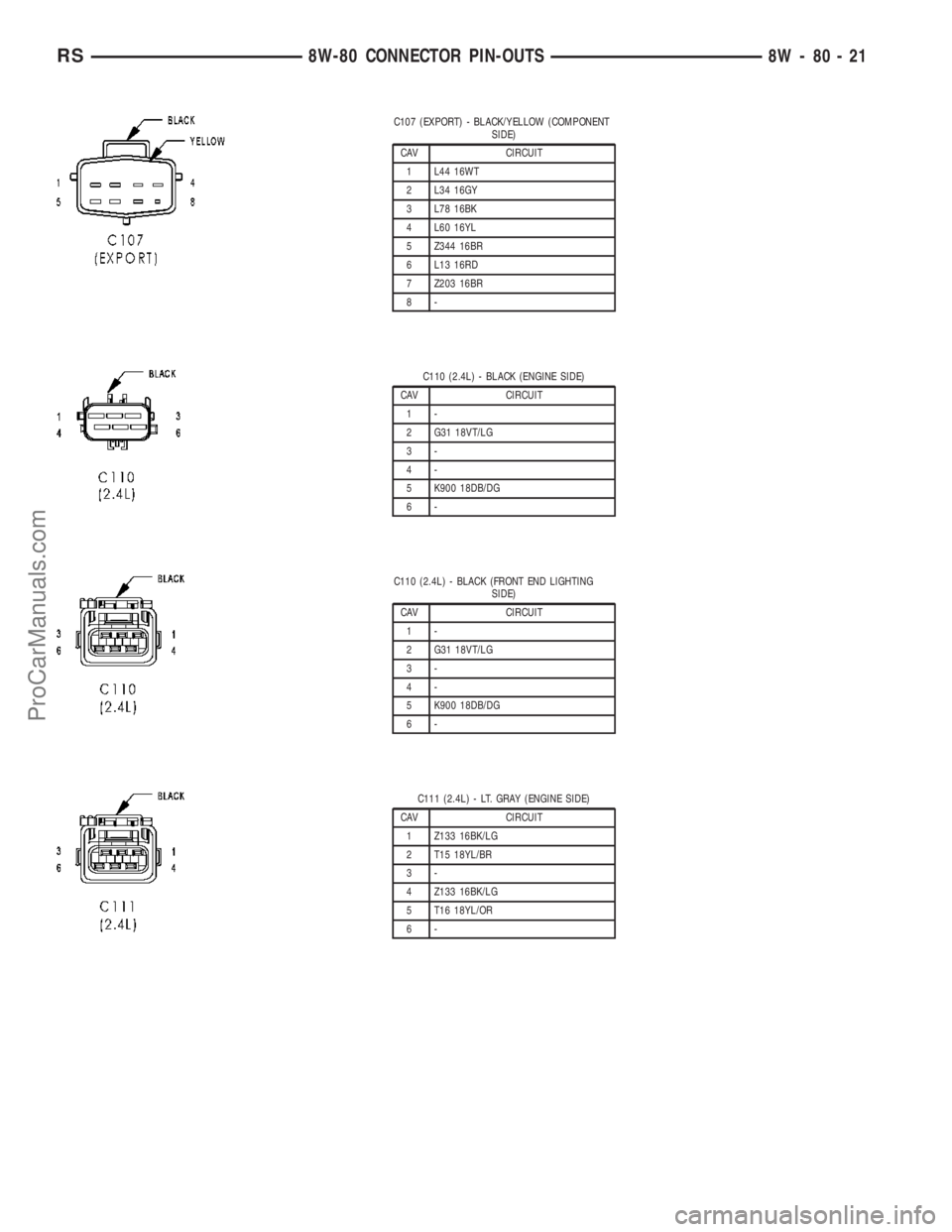

C107 (EXPORT) - BLACK/YELLOW (COMPONENT
SIDE)
CAV CIRCUIT
1 L44 16WT
2 L34 16GY
3 L78 16BK
4 L60 16YL
5 Z344 16BR
6 L13 16RD
7 Z203 16BR
8-
C110 (2.4L) - BLACK (ENGINE SIDE)
CAV CIRCUIT
1-
2 G31 18VT/LG
3-
4-
5 K900 18DB/DG
6-
C110 (2.4L) - BLACK (FRONT END LIGHTING
SIDE)
CAV CIRCUIT
1-
2 G31 18VT/LG
3-
4-
5 K900 18DB/DG
6-
C111 (2.4L) - LT. GRAY (ENGINE SIDE)
CAV CIRCUIT
1 Z133 16BK/LG
2 T15 18YL/BR
3-
4 Z133 16BK/LG
5 T16 18YL/OR
6-
RS8W-80 CONNECTOR PIN-OUTS8W-80-21
ProCarManuals.com

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY
CAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 K342 20BR/WT ECM/PCM RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 - -
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL FUSED IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-63
ProCarManuals.com

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY
CAV CIRCUIT FUNCTION
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 - -
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT (ECM)
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
