AUTOMATIC DAY / NIGHT
MIRROR
DESCRIPTION
An automatic dimming inside day/night rear view
mirror and an automatic dimming driver side outside
rear view mirror are available factory-installed
options on this model. Following is a general descrip-
tion of this optional equipment.
The automatic day/night mirror is able to automat-
ically change its reflectance. A thin layer of electro-
chromic material between two pieces of conductive
glass make up the face of the mirror. Two photocell
sensors are used to monitor light levels and adjust
the reflectance of the mirror to reduce the glare of
headlamps approaching the vehicle from the rear.
For removal procedures, (Refer to 23 - BODY/IN-
TERIOR/REAR VIEW MIRROR - REMOVAL).
OPERATION
The ambient photocell sensor faces forward, to
detect the outside light levels. A second sensor faces
rearward to detect the light level received through
the vehicles back window. When the difference
between the two light levels becomes too great (the
light level received at the rear of the mirror is much
higher than that at the front of the mirror), the mir-
ror begins to darken.
The mirror switch allows the driver a manual con-
trol of whether the automatic dimming feature is
operational. When AUTO is selected a small Light-
Emitting Diode (LED), to the right of the mirror
switch, is illuminated. The automatic dimming fea-
ture will only operate when the ignition switch is in
the On position. The mirror also senses the backup
lamp circuit, and will automatically disable its self-
dimming feature whenever the transmission gear
selector is in the Reverse position.
NOTE: The mirror always defaults to an ON state
upon ignition.
The driver side automatic dimming mirror is stan-
dard with the automatic dimming inside mirror. The
signal to control the dimming of that mirror is gen-
erated by the automatic day/night inside rear view
mirror circuitry. That signal is then delivered to the
driver side outside rear view mirror on a hard wired
circuit.
The automatic day/night mirror cannot be
repaired. If faulty or damaged, the entire inside rear
view mirror assembly must be replaced.
DIAGNOSIS AND TESTING - AUTOMATIC DAY /
NIGHT MIRROR
For circuit descriptions and diagrams, refer to the
appropriate wiring information. The wiring informa-
tion includes wiring diagrams, proper wire and con-
nector repair procedures, details of wire harness
routing and retention, connector pin-out information
and location views for the various wire harness con-
nectors, splices and grounds.
(1) Check the fuse in the intelligent power module.
If OK, go to Step 2. If not OK, repair the shorted cir-
cuit or component as required and replace the faulty
fuse.
(2) Turn the ignition switch to the On position.
Check for battery voltage at the fuse in the intelli-
gent power module. If OK, go to Step 3. If not OK,
repair the open circuit to the ignition switch as
required.
(3) Unplug the wire harness connector from the
automatic day/night mirror. Check for battery voltage
at the fused ignition switch output circuit cavity of
the automatic day/night mirror wire harness connec-
tor. If OK, go to Step 4. If not OK, repair the open
circuit to the junction block as required.
(4) Turn the ignition switch to the Off position.
Check for continuity between the ground circuit cav-
ity of the automatic day/night mirror wire harness
connector and a good ground. There should be conti-
nuity. If OK, go to Step 5. If not OK, repair the cir-
cuit to ground as required.
(5) Turn the ignition switch to the On position. Set
the parking brake. Place the transmission gear selec-
tor lever in the Reverse position. Check for battery
voltage at the backup lamp switch output circuit cav-
ity of the automatic day/night mirror wire harness
connector. If voltage is present, reinstall the auto-
matic day/night mirror wire harness connector and
go to Step 6. If not OK, repair the open circuit as
required.
(6) Place the transmission gear selector lever in
the Neutral position. Place the automatic day/night
mirror switch in the On (LED in the switch is
lighted) position. Cover the forward facing ambient
photocell sensor to keep out any ambient light.
NOTE: The ambient photocell sensor must be cov-
ered completely, so that no light reaches the sen-
sor. Use a finger pressed tightly against the sensor,
or cover the sensor completely with electrical tape.
(7)
Shine a light into the rearward facing headlamp
photocell sensor. The automatic day/night mirror
should darken. The automatic day/night mirror should
darken within 2 minutes if testing for the first time.
For immediate response, turn the vehicle OFF and
back ON with the forward-facing light sensor still cov-
RSPOWER MIRRORS8N-47
ProCarManuals.com

TESTING POWER SEAT TRACK MOTORS
(1) Check the power seat circuit breaker under the
seat. If OK, go to Step 2. If not OK, replace the
faulty power seat circuit breaker.
(2) Check for battery voltage at the power seat cir-
cuit breaker under the seat. If OK, go to Step 3. If
not OK, repair the open fused B(+) circuit to the fuse
in the Intelligent Power Module as required.
(3) Remove the outboard seat cushion side shield
from the seat. Disconnect the seat wire harness con-
nector from the power seat switch connector recepta-
cle. Check for battery voltage at the fused B(+)
circuit cavity of the power seat wire harness connec-
tor for the power seat switch. If OK, go to Step 4. If
not OK, repair the open fused B(+) circuit to the
power seat circuit breaker under the seat as
required.
(4) Check for continuity between the ground cir-
cuit cavity of the power seat wire harness connector
for the power seat switch and a good ground. There
should be continuity. If OK, go to Step 5. If not OK,
repair the open ground circuit to ground as required.
(5) Test the power seat switch. Refer toDiagnosis
and Testing Power Seat Switchin this section. If
the switch tests OK, test the circuits of the power
seat wire harness between the inoperative power seat
track adjuster motor and the power seat switch for
shorts or opens. If the circuits check OK, replace the
faulty power seat track unit. If the circuits are not
OK, repair the power seat wire harness as required.
REMOVAL
WARNING: SOME VEHICLES ARE EQUIPPED WITH
SEATBACK MOUNTED AIRBAGS. BEFORE
ATTEMPTING TO DIAGNOSE OR SERVICE ANY
SEAT OR POWER SEAT SYSTEM COMPONENT
YOU MUST FIRST DISCONNECT AND ISOLATE THE
BATTERY NEGATIVE CABLE. THEN WAIT TWO MIN-
UTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE FURTHER SYSTEM SERVICE.
THIS IS THE ONLY SURE WAY TO DISABLE THE
AIRBAG SYSTEM. FAILURE TO DO SO COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.
(1) Remove the appropriate seat from the vehicle
and place it on a clean work surface(Refer to 23 -
BODY/SEATS/SEAT - REMOVAL).
(2) If the vehicle is so equipped, remove the Mem-
ory Seat/Mirror Module (MSMM) retaining screws.
(3) If the vehicle is so equipped, disconnect the
MSMM electrical connectors and remove the MSMM
from the power seat track.
(4) Remove the rear fabric blocker trim panel from
the rear of the front seat.(5) Remove the seat side cover and power seat
switch as an assembly (Refer to 23 - BODY/SEATS/
SEAT CUSHION SIDE COVERS - REMOVAL).
(6) Disconnect all electrical connectors connecting
the power seat track to the seat assembly.
(7) Pull the seat back trim cover up slightly to
access and remove the two seat back frame mounting
bolts and also remove two seat back recliner bolts.
(8) Remove four seat track mounting bolts from
the seat cushion pan.
(9) Remove the power seat track from the seat.
INSTALLATION
(1) Position the seat cushion on the seat track.
(2) Install the four seat track retaining bolts in the
seat cushion pan. Torque the bolts to 28.5 N´m.
(3) Position the seat back and install the two seat
back frame mounting bolts and the two seat back
recliner bolts. Torque the bolts to 55 N´m.
(4) Route and connect the electrical connectors
between the power seat track and the seat assembly.
(5) Install the seat side cover and power seat
switch as an assembly (Refer to 23 - BODY/SEATS/
SEAT CUSHION SIDE COVERS - INSTALLATION).
(6) Install the rear fabric blocker trim panel on the
rear of the front seat.
(7) If the vehicle is so equipped, position the Mem-
ory Seat/Mirror Module (MSMM) and connect the
MSMM electrical connectors.
(8) Install the MSMM retaining screws.
(9) Install the seat assembly in the vehicle (Refer
to 23 - BODY/SEATS/SEAT - INSTALLATION).
PASSENGER POWER SEAT
TRACK
DESCRIPTION
The four-way passenger side power seat option
includes a electrically operated power seat track unit
located under the passenger side front seat. The
power seat circuit breaker is mounted on the rear of
the power seat track, just behind the seat rear trim
panel. The lower half of the power seat track is
secured to the floor panel via four studs and nuts
that must be accessed from the underside of the vehi-
cle. Four bolts secure the bottom of the seat cushion
frame to the upper half of the power seat track unit.
Four additional bolts secure the seat back frame to
the power seat track unit.
The passenger side power seat track unit includes
two reversible electric motors that are secured to the
upper half of the track unit. Each motor moves the
seat adjuster through a combination of worm-drive
gearboxes and screw-type drive units. The horizontal
adjustment motor moves the seat track in the for-
RSPOWER SEAT SYSTEM8N-59
DRIVER POWER SEAT TRACK (Continued)
ProCarManuals.com

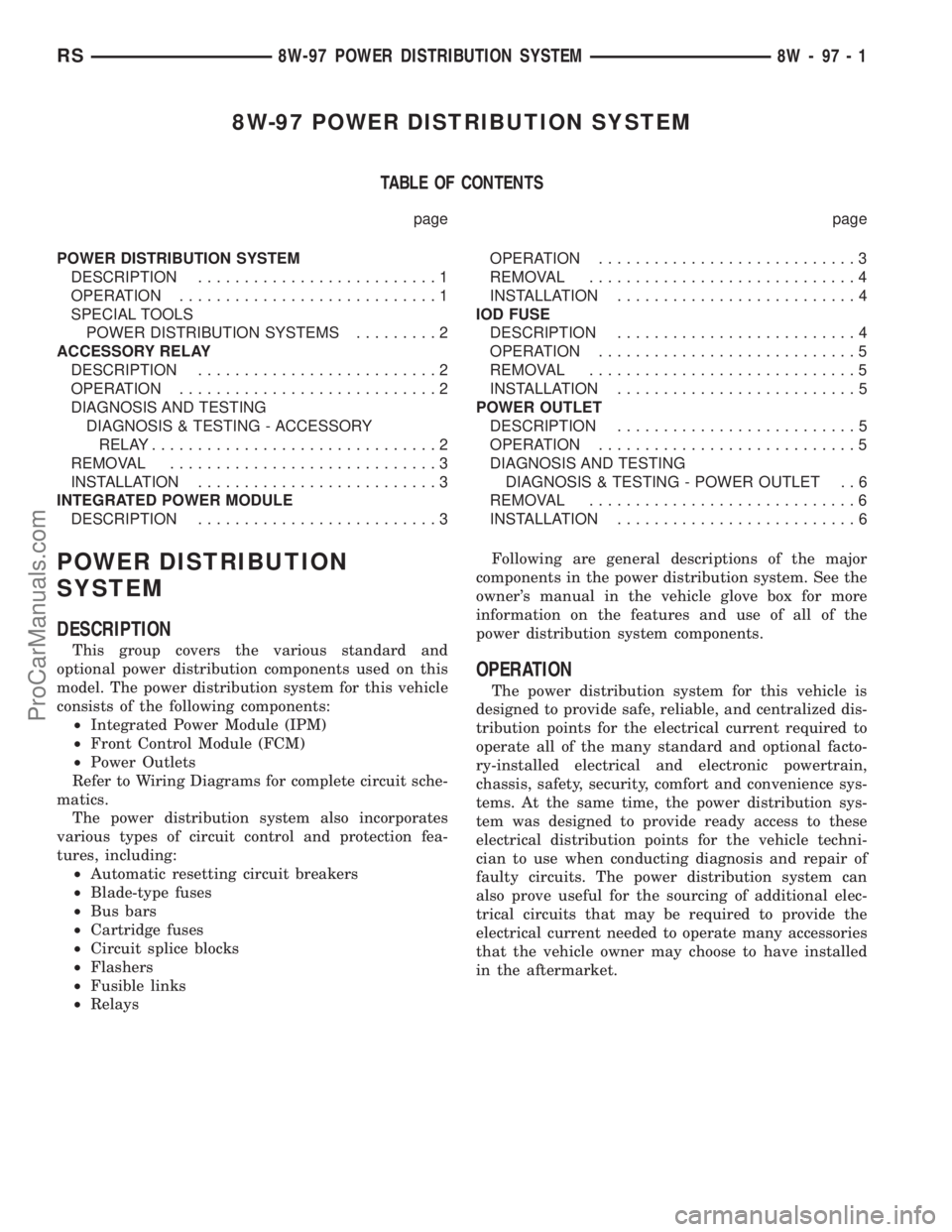

8W-97 POWER DISTRIBUTION SYSTEM
TABLE OF CONTENTS
page page
POWER DISTRIBUTION SYSTEM
DESCRIPTION..........................1
OPERATION............................1
SPECIAL TOOLS
POWER DISTRIBUTION SYSTEMS.........2
ACCESSORY RELAY
DESCRIPTION..........................2
OPERATION............................2
DIAGNOSIS AND TESTING
DIAGNOSIS & TESTING - ACCESSORY
RELAY...............................2
REMOVAL.............................3
INSTALLATION..........................3
INTEGRATED POWER MODULE
DESCRIPTION..........................3OPERATION............................3
REMOVAL.............................4
INSTALLATION..........................4
IOD FUSE
DESCRIPTION..........................4
OPERATION............................5
REMOVAL.............................5
INSTALLATION..........................5
POWER OUTLET
DESCRIPTION..........................5
OPERATION............................5
DIAGNOSIS AND TESTING
DIAGNOSIS & TESTING - POWER OUTLET . . 6
REMOVAL.............................6
INSTALLATION..........................6
POWER DISTRIBUTION
SYSTEM
DESCRIPTION
This group covers the various standard and
optional power distribution components used on this
model. The power distribution system for this vehicle
consists of the following components:
²Integrated Power Module (IPM)
²Front Control Module (FCM)
²Power Outlets
Refer to Wiring Diagrams for complete circuit sche-
matics.
The power distribution system also incorporates
various types of circuit control and protection fea-
tures, including:
²Automatic resetting circuit breakers
²Blade-type fuses
²Bus bars
²Cartridge fuses
²Circuit splice blocks
²Flashers
²Fusible links
²RelaysFollowing are general descriptions of the major
components in the power distribution system. See the
owner's manual in the vehicle glove box for more
information on the features and use of all of the
power distribution system components.
OPERATION
The power distribution system for this vehicle is
designed to provide safe, reliable, and centralized dis-
tribution points for the electrical current required to
operate all of the many standard and optional facto-
ry-installed electrical and electronic powertrain,
chassis, safety, security, comfort and convenience sys-
tems. At the same time, the power distribution sys-
tem was designed to provide ready access to these
electrical distribution points for the vehicle techni-
cian to use when conducting diagnosis and repair of
faulty circuits. The power distribution system can
also prove useful for the sourcing of additional elec-
trical circuits that may be required to provide the
electrical current needed to operate many accessories
that the vehicle owner may choose to have installed
in the aftermarket.
RS8W-97 POWER DISTRIBUTION SYSTEM8W-97-1
ProCarManuals.com

FRONT SUSPENSION, SPECIAL TOOLS.....2-3
FRONT WASHER PUMP MOTOR -
INSTALLATION.......................8R-8
FRONT WASHER PUMP MOTOR -
REMOVAL...........................8R-8
FRONT WHEEL SPEED SENSOR -
INSTALLATION........................5-80
FRONT WHEEL SPEED SENSOR -
REMOVAL...........................5-79
FRONT WHEELHOUSE SPLASH SHIELD -
INSTALLATION.......................23-54
FRONT WHEELHOUSE SPLASH SHIELD -
REMOVAL..........................23-54
FRONT WIPER ARM ALIGNMENT -
STANDARD PROCEDURE...............8R-8
FRONT WIPER ARMS - INSTALLATION....8R-9
FRONT WIPER ARMS - REMOVAL........8R-9
FRONT WIPER MOTOR - INSTALLATION . . . 8R-9
FRONT WIPER MOTOR - REMOVAL.......8R-9
FRONT WIPER SYSTEM - DIAGNOSIS
AND TESTING........................8R-2
FRONT WIPER/WASHER SWITCH -
DIAGNOSIS AND TESTING..............8R-2
FRONT/QUAD SEAT CUSHION -
INSTALLATION.......................23-92
FRONT/QUAD SEAT CUSHION -
REMOVAL..........................23-92
FRONT-WHEEL-DRIVE - INSTALLATION....2-36
FRONT-WHEEL-DRIVE - REMOVAL........2-35
FUEL CORRECTION OR ADAPTIVE
MEMORIES, OPERATION...............14-20
FUEL DELIVERY SYSTEM - DIAGNOSIS
AND TESTING........................14-2
FUEL DOSING PUMP - DESCRIPTION....24-108
FUEL DOSING PUMP - INSTALLATION . . . 24-108
FUEL DOSING PUMP - OPERATION.....24-108
FUEL DOSING PUMP - REMOVAL.......24-108
FUEL ENGINE OIL - DESCRIPTION,
FLEXIBLE.............................0-3
FUEL FILL DOOR - INSTALLATION.......23-51
FUEL FILL DOOR - REMOVAL...........23-51
FUEL FILL DOOR BLOCKER LATCH -
INSTALLATION.......................23-52
FUEL FILL DOOR BLOCKER LATCH -
REMOVAL..........................23-52
FUEL FILL DOOR BLOCKER LATCH
STRIKER - INSTALLATION..............23-52
FUEL FILL DOOR BLOCKER LATCH
STRIKER - REMOVAL.................23-52
FUEL FILL DOOR BLOCKER LOCKOUT
LINK - INSTALLATION.................23-53
FUEL FILL DOOR BLOCKER LOCKOUT
LINK - REMOVAL.....................23-52
FUEL FILLER CAP - DESCRIPTION.......25-12
FUEL FILLER CAP - OPERATION.........25-12
FUEL FILTER - INSTALLATION............14-4
FUEL FILTER - REMOVAL...............14-4
FUEL INJECTOR - DESCRIPTION.........14-26
FUEL INJECTOR - OPERATION..........14-26
FUEL LEVEL SENDING UNIT / SENSOR -
DESCRIPTION........................14-4
FUEL LEVEL SENDING UNIT / SENSOR -
INSTALLATION........................14-5
FUEL LEVEL SENDING UNIT / SENSOR -
OPERATION..........................14-5
FUEL LEVEL SENDING UNIT / SENSOR -
REMOVAL...........................14-5
FUEL LINE - INSTALLATION...........24-110
FUEL LINE - REMOVAL...............24-109
FUEL LINES/HOSES AND CLAMPS -
DESCRIPTION........................14-6
FUEL PRESSURE REGULATOR -
INSTALLATION........................14-7
FUEL PRESSURE REGULATOR -
OPERATION..........................14-7
FUEL PRESSURE REGULATOR -
REMOVAL...........................14-7
FUEL PUMP - DESCRIPTION.............14-7
FUEL PUMP - OPERATION..............14-7
FUEL PUMP MODULE - DESCRIPTION.....14-8
FUEL PUMP MODULE - INSTALLATION....14-9
FUEL PUMP MODULE - OPERATION.......14-8
FUEL PUMP MODULE - REMOVAL
........14-8
FUEL PUMP RELAY - DESCRIPTION
......14-28
FUEL PUMP RELAY - OPERATION
........14-28
FUEL REQUIREMENTS - DESCRIPTION
......0-4
FUEL REQUIREMENTS - DIESEL ENGINE
- DESCRIPTION
........................0-6FUEL, SPECIAL TOOLS............14-23,14-3
FUEL SYSTEM PRESSURE RELEASE
PROCEDURE - STANDARD
PROCEDURE.........................14-2
FUEL SYSTEM PRESSURE,
SPECIFICATIONS......................14-3
FUEL TANK - DESCRIPTION............14-10
FUEL TANK - INSTALLATION............14-11
FUEL TANK - OPERATION..............14-10
FUEL TANK - REMOVAL...............14-11
FUEL TANK - STANDARD PROCEDURE,
DRAINING...........................14-2
FUEL TANK FILLER TUBE -
INSTALLATION.......................14-12
FUEL TANK FILLER TUBE - REMOVAL....14-12
FULL OPEN SWITCH - DESCRIPTION....8N-12,
8N-31
FULL OPEN SWITCH - INSTALLATION....8N-13
FULL OPEN SWITCH - OPERATION . 8N-12,8N-31
FULL OPEN SWITCH - REMOVAL........8N-13
FUNCTIONS - DESCRIPTION, CIRCUIT . . 8W-01-6
FUSE - DESCRIPTION, IOD...........8W-97-4
FUSE - INSTALLATION, IOD..........8W-97-5
FUSE - OPERATION, IOD.............8W-97-5
FUSE - REMOVAL, IOD..............8W-97-5
FUSES POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A SHORT TO GROUND ON......8W-01-10
FWD - INSTALLATION..............2-41,2-44
FWD - INSTALLATION, REAR WHEEL
SPEED SENSOR.......................5-81
FWD - REMOVAL..................2-40,2-44
FWD - REMOVAL, REAR WHEEL SPEED
SENSOR............................5-81
GALLERY PLUGS - STANDARD
PROCEDURE, ENGINE CORE AND OIL . 9-10,9-86
GAP - STANDARD PROCEDURE,
COMPRESSOR CLUTCH AIR............24-17
GAP AND FLUSH MEASUREMENTS -
SPECIFICATIONS....................23-121
GAP, SPECIFICATIONS - WHEEL SPEED
SENSOR AIR.........................5-79
GAS - INSTALLATION, MODULAR
CLUTCH ASSY - 2.4L..................6-11
GAS - REMOVAL, MODULAR CLUTCH
ASSY - 2.4L..........................6-11
GASKET - DIAGNOSIS AND TESTING,
CYLINDER HEAD..................9-24,9-99
GASKET SURFACE PREPARATION -
STANDARD PROCEDURE, ENGINE....9-11,9-85
GASKETS AND SEALERS - STANDARD
PROCEDURE, FORM-IN-PLACE.......9-11,9-84
GEAR - DESCRIPTION.................19-26
GEAR - INSTALLATION, LHD............19-32
GEAR - INSTALLATION, RHD............19-33
GEAR & LINK ROD - DESCRIPTION, LIFT . 8N-16
GEAR & LINK ROD - INSTALLATION,
LIFT...............................8N-16
GEAR & LINK ROD - OPERATION, LIFT . . . 8N-16
GEAR & LINK ROD - REMOVAL, LIFT.....8N-16
GEAR - OPERATION...................19-27
GEAR - REMOVAL, LHD...............19-27
GEAR - REMOVAL, RHD...............19-31
GEAR END PLAY - ADJUSTMENT,
DIFFERENTIAL SIDE..................21-70
GEAR SHIFT CABLE - INSTALLATION....21-205
GEAR SHIFT CABLE - REMOVAL........21-204
GEAR SHIFT LEVER - INSTALLATION.....19-21
GEAR SHIFT LEVER - REMOVAL.........19-21
GEAR, SPECIAL TOOLS - POWER
STEERING..........................19-34
GEARSHIFT BOOT - INSTALLATION......21-73
GEARSHIFT BOOT - REMOVAL..........21-72
GEARSHIFT CABLE - CROSSOVER -
INSTALLATION.......................21-76
GEARSHIFT CABLE - CROSSOVER -
REMOVAL..........................21-73
GEARSHIFT CABLE - SELECTOR -
INSTALLATION.......................21-84
GEARSHIFT CABLE - SELECTOR -
REMOVAL..........................21-81
GEARSHIFT CABLE ADJUSTMENT,
ADJUSTMENTS
.....................21-206
GEARSHIFT KNOB - INSTALLATION
......21-87
GEARSHIFT KNOB - REMOVAL
..........21-87
GEARSHIFT MECHANISM -
INSTALLATION
.......................21-89
GEARSHIFT MECHANISM - REMOVAL
....21-87GEARTRAIN - DESCRIPTION,
PLANETARY........................21-232
GEARTRAIN - OPERATION, PLANETARY . . 21-232
GENERAL - WARNINGS.............8W-01-7
GENERAL DIAGNOSIS - DIAGNOSIS AND
TESTING, 41TE TRANSAXLE...........21-119
GENERATOR - DESCRIPTION...........8F-23
GENERATOR - OPERATION.............8F-23
GENERATOR DECOUPLER PULLEY -
DESCRIPTION.......................8F-25
GENERATOR DECOUPLER PULLEY -
DIAGNOSIS AND TESTING..............8F-25
GENERATOR DECOUPLER PULLEY -
INSTALLATION.......................8F-26
GENERATOR DECOUPLER PULLEY -
OPERATION.........................8F-25
GENERATOR DECOUPLER PULLEY -
REMOVAL..........................8F-26
GENERATOR, SPECIFICATIONS..........8F-22
GLASS - DESCRIPTION, HEATED.........8G-1
GLASS - INSTALLATION, DOOR.........23-17
GLASS - INSTALLATION, REAR DOOR . . . 23-108
GLASS - INSTALLATION, SIDE VIEW
MIRROR...........................23-58
GLASS - INSTALLATION, SLIDING DOOR . 23-107
GLASS - OPERATION, HEATED...........8G-1
GLASS - REMOVAL, DOOR.............23-17
GLASS - REMOVAL, REAR DOOR.......23-108
GLASS - REMOVAL, SIDE VIEW MIRROR . . 23-58
GLASS - REMOVAL, SLIDING DOOR.....23-107
GLASS INTEGRAL ANTENNA - EXPORT -
DESCRIPTION, QUARTER...............8A-9
GLASS INTEGRAL ANTENNA - EXPORT -
DIAGNOSIS AND TESTING, QUARTER.....8A-9
GLASS INTEGRAL ANTENNA - EXPORT -
OPERATION, QUARTER.................8A-9
GLASS PANEL - INSTALLATION........23-117
GLASS PANEL - REMOVAL............23-117
GLASS PANEL ADJUSTMENT,
ADJUSTMENTS - SUNROOF...........23-117
GLASS RUN WEATHERSTRIP -
INSTALLATION, FRONT DOOR..........23-110
GLASS RUN WEATHERSTRIP -
REMOVAL, FRONT DOOR.............23-110
GLOVE BOX - INSTALLATION...........23-63
GLOVE BOX - REMOVAL...............23-63
GLOVE BOX LAMP SWITCH -
INSTALLATION.......................8L-26
GLOVE BOX LAMP SWITCH - REMOVAL . . 8L-26
GLOVE BOX LATCH - INSTALLATION.....23-63
GLOVE BOX LATCH - REMOVAL.........23-63
GLOVE BOX LATCH STRIKER -
INSTALLATION.......................23-64
GLOVE BOX LATCH STRIKER - REMOVAL . 23-64
GRID LINE AND TERMINAL REPAIR -
STANDARD PROCEDURE...............8G-3
GRID LINE REPAIR REAR - STANDARD
PROCEDURE.........................8G-2
GRILLE - INSTALLATION, COWL.........23-50
GRILLE - REMOVAL, COWL............23-49
GRILLE OPENING REINFORCEMENT -
INSTALLATION
.......................23-53
GRILLE OPENING REINFORCEMENT -
REMOVAL
..........................23-53
GROCERY BAG RETAINER -
INSTALLATION, PLASTIC
..............23-103
GROCERY BAG RETAINER - REMOVAL,
PLASTIC
..........................23-103
GROMMET REPLACEMENT - STANDARD
PROCEDURE, PUSH-PIN
...............8N-28
GROUND - OPERATION, PCM
...........8E-15
GROUND - STANDARD PROCEDURE,
TESTING FOR A SHORT TO
..........8W-01-9
GROUND AND SPLICE INFORMATION -
DESCRIPTION, CONNECTOR
..........8W-01-7
GROUND ON FUSES POWERING
SEVERAL LOADS - STANDARD
PROCEDURE, TESTING FOR A SHORT
TO
.............................8W-01-10
GUIDE - INSTALLATION, UNDER SEAT
STORAGE BIN
......................23-104
GUIDE - REMOVAL, UNDER SEAT
STORAGE BIN
......................23-104
GUIDE PIN BUSHINGS (DISC/DISC
BRAKES) - ASSEMBLY, CALIPER
..........5-25
GUIDE PIN BUSHINGS (DISC/DISC
BRAKES) - DISASSEMBLY, CALIPER
.......5-24
14 INDEXRS
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com

INPUT - OPERATION, DATA BUS
COMMUNICATION RECEIVE - PCM.......8E-15
INPUT - OPERATION, IGNITION SENSE -
PCM...............................8E-15
INPUT - OPERATION, SENSOR RETURN -
PCM...............................8E-15
INPUT - OPERATION, SPEED SENSOR . . . 21-240
INPUT - REMOVAL, SPEED SENSOR.....21-240
INPUT CLUTCH ASSEMBLY - ASSEMBLY . 21-216
INPUT CLUTCH ASSEMBLY -
DISASSEMBLY......................21-208
INPUT FLANGE SEAL - INSTALLATION.....3-45
INPUT FLANGE SEAL - REMOVAL.........3-44
INPUT SHAFT - ASSEMBLY.............21-96
INPUT SHAFT - DESCRIPTION..........21-93
INPUT SHAFT - DISASSEMBLY..........21-93
INPUT SHAFT COVER SEAL -
INSTALLATION.......................21-14
INPUT SHAFT COVER SEAL - REMOVAL . . . 21-13
INPUT SHAFT END SEAL -
INSTALLATION.......................21-16
INPUT SHAFT END SEAL - REMOVAL.....21-15
INPUT SHAFT SEAL - INSTALLATION.....21-18
INPUT SHAFT SEAL - REMOVAL.........21-17
INSIDE HANDLE CABLE - INSTALLATION . . 23-37
INSIDE HANDLE CABLE - REMOVAL......23-37
INSIDE LATCH HANDLE - INSTALLATION . . 23-33
INSIDE LATCH HANDLE - REMOVAL......23-33
INSPECT, INSPECTION...............21-114
INSTRUMENT CLUSTER - DESCRIPTION . . . 8J-1
INSTRUMENT CLUSTER - OPERATION.....8J-1
INSTRUMENT PANEL - INSTALLATION,
LOWER............................23-68
INSTRUMENT PANEL - REMOVAL,
LOWER............................23-68
INSTRUMENT PANEL ANTENNA CABLE -
INSTALLATION.......................8A-9
INSTRUMENT PANEL ANTENNA CABLE -
REMOVAL...........................8A-8
INSTRUMENT PANEL ASSEMBLY -
INSTALLATION.......................23-65
INSTRUMENT PANEL ASSEMBLY -
REMOVAL..........................23-64
INSTRUMENT PANEL CENTER BEZEL -
INSTALLATION.......................23-67
INSTRUMENT PANEL CENTER BEZEL -
REMOVAL..........................23-67
INSTRUMENT PANEL END CAP -
INSTALLATION.......................23-67
INSTRUMENT PANEL END CAP -
REMOVAL..........................23-67
INSTRUMENT PANEL OUTLET -
INSTALLATION.......................24-42
INSTRUMENT PANEL OUTLET -
REMOVAL..........................24-42
INSTRUMENT PANEL TOP COVER -
INSTALLATION.......................23-67
INSTRUMENT PANEL TOP COVER -
REMOVAL..........................23-67
INSTRUMENT PANEL TOP PAD
ASSEMBLY - INSTALLATION............23-70
INSTRUMENT PANEL TOP PAD
ASSEMBLY - REMOVAL................23-70
INTAKE MANIFOLD - DESCRIPTION . . 9-144,9-58
INTAKE MANIFOLD - INSTALLATION,
LOWER............................9-149
INTAKE MANIFOLD - INSTALLATION,
UPPER.............................9-147
INTAKE MANIFOLD - LOWER -
CLEANING..........................9-148
INTAKE MANIFOLD - LOWER -
INSPECTION....................9-148,9-60
INTAKE MANIFOLD - LOWER -
INSTALLATION........................9-60
INTAKE MANIFOLD - LOWER - REMOVAL . . 9-60
INTAKE MANIFOLD - REMOVAL, LOWER . . 9-148
INTAKE MANIFOLD - REMOVAL, UPPER . . . 9-145
INTAKE MANIFOLD - UPPER -
INSPECTION.........................9-59
INTAKE MANIFOLD - UPPER -
INSTALLATION........................9-59
INTAKE MANIFOLD - UPPER - REMOVAL
. . . 9-58
INTAKE MANIFOLD LEAKS - DIAGNOSIS
AND TESTING
...................9-145,9-58
INTAKE MANIFOLD VACUUM PORT
REPAIR - STANDARD PROCEDURE
.......9-145
INTAKE PIPE - INSTALLATION, AIR
......24-113
INTAKE PIPE - REMOVAL, AIR
.........24-112INTAKE/EXHAUST VALVES & SEATS -
CLEANING......................9-105,9-32
INTAKE/EXHAUST VALVES & SEATS -
DESCRIPTION...................9-104,9-32
INTAKE/EXHAUST VALVES & SEATS -
INSPECTION........................9-105
INTAKE/EXHAUST VALVES & SEATS -
INSTALLATION.......................9-106
INTAKE/EXHAUST VALVES & SEATS -
OPERATION.........................9-104
INTAKE/EXHAUST VALVES & SEATS -
REMOVAL..........................9-105
INTEGRAL ANTENNA - EXPORT -
DESCRIPTION, QUARTER GLASS.........8A-9
INTEGRAL ANTENNA - EXPORT -
DIAGNOSIS AND TESTING, QUARTER
GLASS..............................8A-9
INTEGRAL ANTENNA - EXPORT -
OPERATION, QUARTER GLASS...........8A-9
INTEGRATED POWER MODULE -
DESCRIPTION.....................8W-97-3
INTEGRATED POWER MODULE -
INSTALLATION....................8W-97-4
INTEGRATED POWER MODULE -
OPERATION.......................8W-97-3
INTEGRATED POWER MODULE -
REMOVAL........................8W-97-4
INTERACTIVE SPEED CONTROL (4
SPEED EATX ONLY) - OPERATION........8P-2
INTERFACE (PCI) BUS, OPERATION -
PROGRAMMABLE COMMUNICATIONS....14-21
INTERIOR LAMPS, SPECIFICATIONS......8L-25
INTERLOCK - DESCRIPTION, IGNITION....19-17
INTERLOCK SOLENOID - DESCRIPTION,
SHIFT.............................21-233
INTERLOCK SOLENOID - DIAGNOSIS
AND TESTING, BRAKE/TRANSMISSION
SHIFT.............................21-235
INTERLOCK SOLENOID - INSTALLATION,
SHIFT.............................21-236
INTERLOCK SOLENOID - OPERATION,
SHIFT.............................21-233
INTERLOCK SOLENOID - REMOVAL,
SHIFT.............................21-235
INTERLOCK SWITCH - INSTALLATION,
CLUTCH PEDAL.......................6-14
INTERLOCK SWITCH - REMOVAL,
CLUTCH PEDAL.......................6-13
INTERMEDIATE SHAFT - ASSEMBLY.....21-107
INTERMEDIATE SHAFT - DESCRIPTION . . 21-100
INTERMEDIATE SHAFT - DISASSEMBLY . . 21-100
INTERNATIONAL SYMBOLS -
DESCRIPTION......................Intro.-5
INTERNATIONAL SYMBOLS -
DESCRIPTION.........................0-1
INTRODUCTION - DIAGNOSIS AND
TESTING, ENGINE DIAGNOSIS........9-3,9-76
IOD FUSE - DESCRIPTION...........8W-97-4
IOD FUSE - INSTALLATION...........8W-97-5
IOD FUSE - OPERATION.............8W-97-5
IOD FUSE - REMOVAL..............8W-97-5
JOINT - DESCRIPTION, LOWER BALL......2-10
JOINT - DIAGNOSIS AND TESTING,
LOWER BALL........................2-10
JOINT - OPERATION, LOWER BALL.......2-10
JOINT MOLDING - INSTALLATION, ROOF . . 23-57
JOINT MOLDING - REMOVAL, ROOF......23-57
JOINT SEAL BOOT - INSTALLATION,
BALL
...............................2-11
JOINT SEAL BOOT - REMOVAL, BALL
.....2-11
JOUNCE BUMPER - DESCRIPTION
........2-35
JOUNCE BUMPER - OPERATION
..........2-35
JUMP STARTING - STANDARD
PROCEDURE
.........................0-15
JUNCTION BLOCK - DESCRIPTION,
NON-ABS
............................5-33
JUNCTION BLOCK - INSTALLATION,
NON-ABS
............................5-33
JUNCTION BLOCK - OPERATION,
NON-ABS
............................5-33
JUNCTION BLOCK - REMOVAL, NON-ABS
. . 5-33
KEY - DESCRIPTION, TRANSPONDER
.....8Q-3
KEY - OPERATION, TRANSPONDER
.......8Q-3
KEY IMMOBILIZER MODULE -
DESCRIPTION, SENTRY
................8E-18
KEY IMMOBILIZER MODULE -
INSTALLATION, SENTRY
...............8E-19KEY IMMOBILIZER MODULE -
OPERATION, SENTRY.................8E-18
KEY IMMOBILIZER MODULE - REMOVAL,
SENTRY............................8E-18
KEY IMMOBILIZER SYSTEM -
DIAGNOSIS AND TESTING, SENTRY.......8Q-3
KEYLESS ENTRY MODULE -
DESCRIPTION, REMOTE...............8N-43
KEYLESS ENTRY MODULE - DIAGNOSIS
AND TESTING, REMOTE...............8N-43
KEYLESS ENTRY MODULE -
INSTALLATION, REMOTE..............8N-44
KEYLESS ENTRY MODULE - OPERATION,
REMOTE...........................8N-43
KEYLESS ENTRY MODULE - REMOVAL,
REMOTE...........................8N-44
KEYLESS ENTRY TRANSMITTER -
DIAGNOSIS AND TESTING.............8N-42
KEY/LOCK CYLINDER - DESCRIPTION....19-20
KEY/LOCK CYLINDER - INSTALLATION....19-20
KEY/LOCK CYLINDER - OPERATION......19-20
KEY/LOCK CYLINDER - REMOVAL.......19-20
KNOB - INSTALLATION, GEARSHIFT......21-87
KNOB - INSTALLATION, SEAT BELT
HEIGHT ADJUSTER...................8O-13
KNOB - REMOVAL, GEARSHIFT..........21-87
KNOB - REMOVAL, SEAT BELT HEIGHT
ADJUSTER.........................8O-13
KNOCK SENSOR - DESCRIPTION..........8I-8
KNOCK SENSOR - OPERATION...........8I-8
KNUCKLE - DESCRIPTION.................2-6
KNUCKLE - INSPECTION, STEERING........2-9
KNUCKLE - INSTALLATION, STEERING......2-9
KNUCKLE - OPERATION.................2-7
KNUCKLE - REMOVAL, STEERING.........2-7
LABEL - DESCRIPTION, E-MARK......Intro.-11
LABEL - DESCRIPTION, VECI.........Intro.-11
LABEL - DESCRIPTION, VEHICLE
EMISSION CONTROL INFORMATION.......25-1
LABEL - DESCRIPTION, VEHICLE SAFETY
CERTIFICATION....................Intro.-11
LAMP - DESCRIPTION, VTSS/SKIS
INDICATOR..........................8Q-5
LAMP - DIAGNOSIS AND TESTING,
FRONT FOG..........................8L-7
LAMP - EXPORT - DESCRIPTION, REAR
FOG ...............................8L-22
LAMP - EXPORT - INSTALLATION,
FRONT FOG..........................8L-9
LAMP - EXPORT - INSTALLATION,
FRONT POSITION....................8L-10
LAMP - EXPORT - INSTALLATION,
PARK/TURN SIGNAL..................8L-22
LAMP - EXPORT - INSTALLATION,
REPEATER..........................8L-22
LAMP - EXPORT - INSTALLATION, TAIL . . . 8L-23
LAMP - EXPORT - REMOVAL, FRONT
FOG ................................8L-9
LAMP - EXPORT - REMOVAL, FRONT
POSITION..........................8L-10
LAMP - EXPORT - REMOVAL,
PARK/TURN SIGNAL..................8L-22
LAMP - EXPORT - REMOVAL, REPEATER . . 8L-22
LAMP - EXPORT - REMOVAL, TAIL.......8L-23
LAMP - INSTALLATION, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP - INSTALLATION, COURTESY......8L-26
LAMP - INSTALLATION, DOME/CARGO....8L-26
LAMP - INSTALLATION, FRONT FOG.......8L-9
LAMP - INSTALLATION, LICENSE........8L-20
LAMP - INSTALLATION, LIFTGATE.......8L-27
LAMP - INSTALLATION, PARK/TURN
SIGNAL............................8L-21
LAMP - INSTALLATION, READING........8L-28
LAMP - INSTALLATION, TAIL...........8L-22
LAMP - INSTALLATION, VANITY.........8L-28
LAMP - OPERATION, VTSS/SKIS
INDICATOR..........................8Q-5
LAMP - REMOVAL, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP - REMOVAL, COURTESY..........8L-26
LAMP - REMOVAL, DOME/CARGO.......8L-26
LAMP - REMOVAL, FRONT FOG..........8L-9
LAMP - REMOVAL, LICENSE
............8L-20
LAMP - REMOVAL, LIFTGATE
...........8L-27
LAMP - REMOVAL, PARK/TURN SIGNAL
. . 8L-21
LAMP - REMOVAL, READING
...........8L-27
LAMP - REMOVAL, TAIL
...............8L-22
RSINDEX17
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
