25
Close the fuel filler cap carefully
after refueling until a click is
heard. While closing, be sure not to
squeeze the strap which is fastened to
the cap. A loose or missing cap will
activate the CHECK FILLER CAP
lamp.<
Tank capacity>Approx. 16.6 gal./63 liters, of which
>approx. 2.1 gal./8 liters are reserve
capacity.
Do not drive to the last drop of
fuel. This can prevent the engine
from operating properly and result in
damage.<
Fuel specificationsThe engine uses lead-free gasoline
only.
Required fuel:
>Premium Unleaded Gasoline,
min. 91 AKI.
AKI = Anti Knock Index
Never use leaded fuel, as it would
cause permanent and irreversible
damage to the oxygen sensor and the
catalytic converter.<
Tire inflation pressureThe specified inflation pressures are
provided on a sticker attached to the
B-pillar and are visible with the driver's
door open.Checking tire pressuresAll pressures are specified in the stan-
dard units of pressure, psi and kilopas-
cal, and apply to cold tires – tires at
ambient temperature – refer to tire
pressure table at the end of this chap-
ter.
Vehicles with Tire Pressure Monitor
(TPM)/Flat Tire Monitor:
After correcting the inflation pressures,
reinitialize the system, refer to
pages 85, 86.
Refueling
OverviewControlsMaintenanceRepairsDataIndex

155

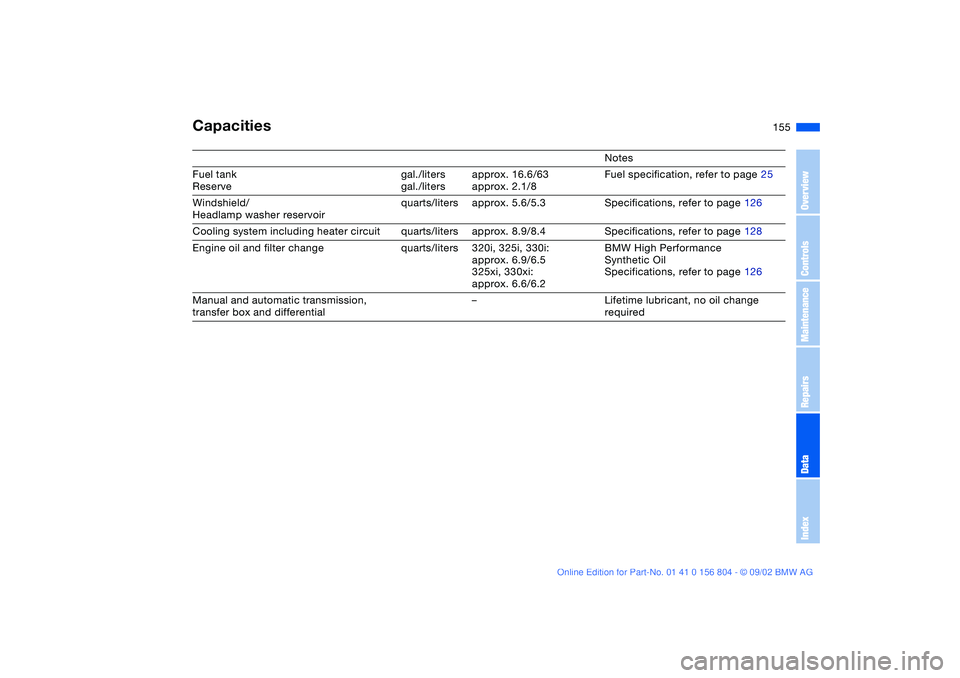

Capacities
Notes
Fuel tank
Reserve gal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification, refer to page 25
Windshield/
Headlamp washer reservoirquarts/liters approx. 5.6/5.3 Specifications, refer to page 126
Cooling system including heater circuit quarts/liters approx. 8.9/8.4 Specifications, refer to page 128
Engine oil and filter change quarts/liters 320i, 325i, 330i:
approx. 6.9/6.5
325xi, 330xi:
approx. 6.6/6.2BMW High Performance
Synthetic Oil
Specifications, refer to page 126
Manual and automatic transmission,
transfer box and differential–Lifetime lubricant, no oil change
required
OverviewControlsMaintenanceRepairsDataIndex

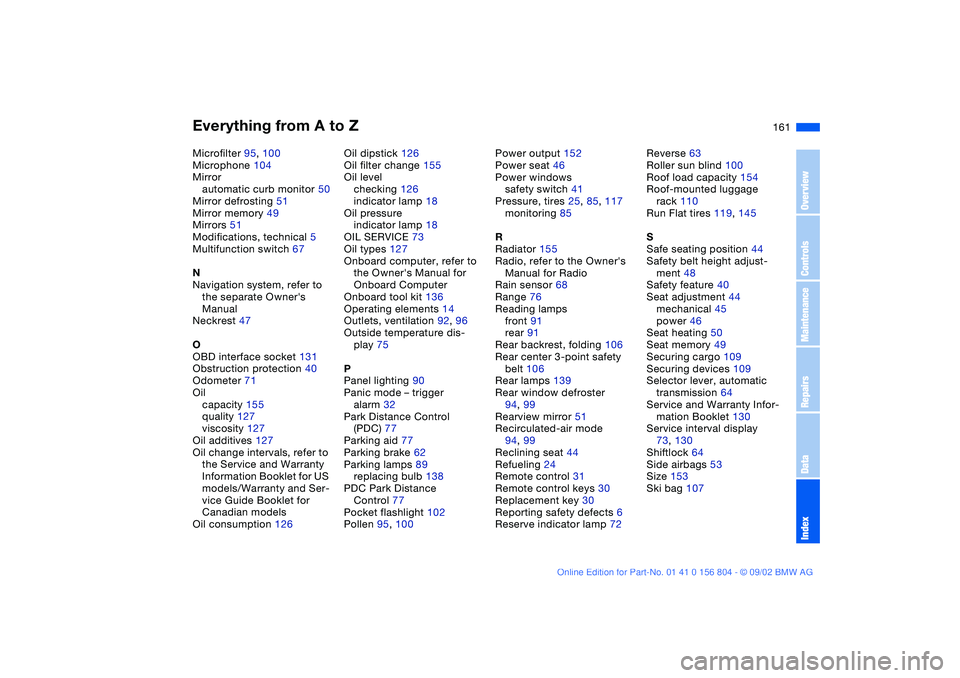

Everything from A to Z
161
Microfilter 95, 100
Microphone 104
Mirror
automatic curb monitor 50
Mirror defrosting 51
Mirror memory 49
Mirrors 51
Modifications, technical 5
Multifunction switch 67
N
Navigation system, refer to
the separate Owner's
Manual
Neckrest 47
O
OBD interface socket 131
Obstruction protection 40
Odometer 71
Oil
capacity 155
quality 127
viscosity 127
Oil additives 127
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 126Oil dipstick 126
Oil filter change 155
Oil level
checking 126
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 73
Oil types 127
Onboard computer, refer to
the Owner's Manual for
Onboard Computer
Onboard tool kit 136
Operating elements 14
Outlets, ventilation 92, 96
Outside temperature dis-
play 75
P
Panel lighting 90
Panic mode – trigger
alarm 32
Park Distance Control
(PDC) 77
Parking aid 77
Parking brake 62
Parking lamps 89
replacing bulb 138
PDC Park Distance
Control 77
Pocket flashlight 102
Pollen 95, 100Power output 152
Power seat 46
Power windows
safety switch 41
Pressure, tires 25, 85, 117
monitoring 85
R
Radiator 155
Radio, refer to the Owner's
Manual for Radio
Rain sensor 68
Range 76
Reading lamps
front 91
rear 91
Rear backrest, folding 106
Rear center 3-point safety
belt 106
Rear lamps 139
Rear window defroster
94, 99
Rearview mirror 51
Recirculated-air mode
94, 99
Reclining seat 44
Refueling 24
Remote control 31
Remote control keys 30
Replacement key 30
Reporting safety defects 6
Reserve indicator lamp 72Reverse 63
Roller sun blind 100
Roof load capacity 154
Roof-mounted luggage
rack 110
Run Flat tires 119, 145
S
Safe seating position 44
Safety belt height adjust-
ment 48
Safety feature 40
Seat adjustment 44
mechanical 45
power 46
Seat heating 50
Seat memory 49
Securing cargo 109
Securing devices 109
Selector lever, automatic
transmission 64
Service and Warranty Infor-
mation Booklet 130
Service interval display
73, 130
Shiftlock 64
Side airbags 53
Size 153
Ski bag 107
