2002 YAMAHA YZF-R6 key

EAU00005
IMPORTANT MANUAL INFORMATIONParticularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING
Failure to follow WARNING instructions could result in severe injury or death
to the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcycle.
CAUTION:A CAUTION indicates special precautions that must be taken to avoid damage to the
motorcycle.NOTE:
A NOTE provides key information to make procedures easier or clearer.
NOTE:@

This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.


Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
@
U5MTE1.book Page 1 Monday, August 6, 2001 6:10 PM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU00036
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF” or “LOCK”. @1. Push.
2. Turn.
U5MTE1.book Page 1 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01574
(Parking)
The steering is locked, and the taillights
and auxiliary lights are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:_ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. _

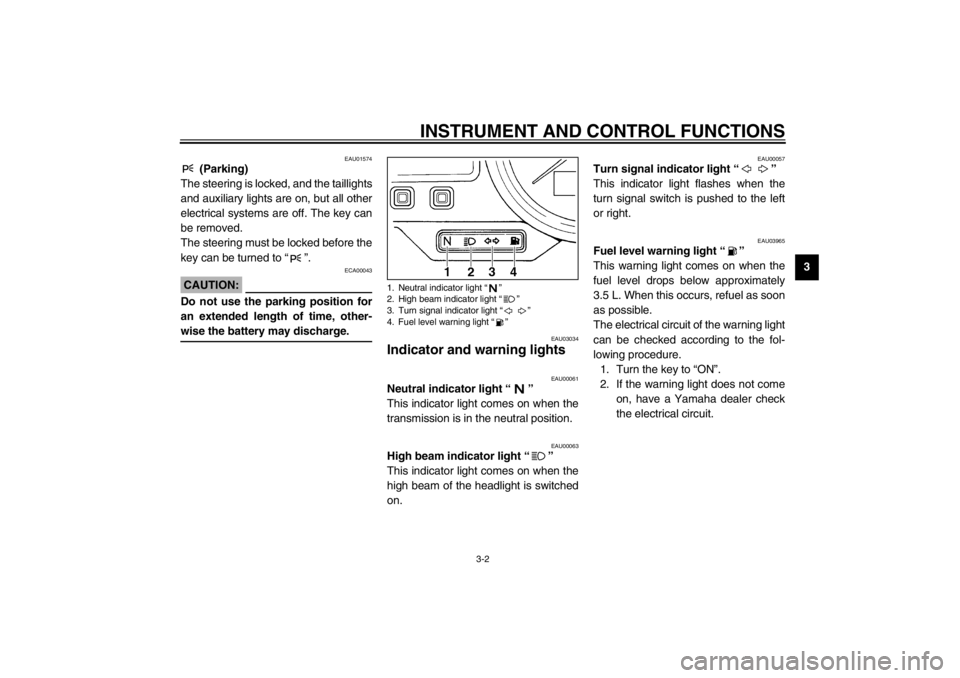

EAU03034
Indicator and warning lights
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU00057
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU03965
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.5 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on, have a Yamaha dealer check
the electrical circuit.
1. Neutral indicator light “”
2. High beam indicator light “”
3. Turn signal indicator light “”
4. Fuel level warning light “”
U5MTE1.book Page 2 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04222
Oil level/coolant temperature warn-
ing light “”
This warning light has the following
three functions.

When the engine oil level is low,
the warning light comes on and
symbol “” flashes. If this oc-
curs, stop the engine immediately
and add engine oil to the specified
level.


When the coolant temperature is
too high, the warning light comes
on and symbol “” flashes. Stop
the motorcycle and allow it to idle
until the coolant temperature goes
down. If the temperature does not
go down, stop the engine. (See
the “Engine overheating” section
on page 6-45 for further instruc-
tions.)


When the engine oil level is low
and the coolant temperature is too
high, the warning light flashes and
symbols “” and “” come on.
To check that the warning light is work-
ing properly:


Put the transmission in neutral or
apply the clutch lever.


Turn the engine stop switch to
“” and the key to “ON”.


The warning light will come on,
and symbols “” and “” will
appear in the display.
If the warning light does not come on,
have a Yamaha dealer inspect the
electrical circuit.
EC000118
CAUTION:_

Do not operate the motorcycle
until you know that the engine
oil level is sufficient.


Do not operate the engine if it is
overheated.
_NOTE:_ Even if the oil is filled to the specified
level, the warning light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal. _
1. Oil level symbol “”
2. Oil level/coolant temperature
warning light “”
3. Coolant temperature symbol “”U5MTE1.book Page 3 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU04254
Speedometer unit The speedometer unit is equipped with
the following:

a digital speedometer (which
shows riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock
NOTE:_

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.


For the U.K. only: To switch the
speedometer display between ki-
lometers and miles, press the “SE-
LECT” button and “RESET” button
together for at least two seconds.
_Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO
→ TRIP 1
→ TRIP 2
→ ODO
If the fuel level warning light comes on
(see page 3-2), the odometer display
will automatically change to the fuel re-serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→ TRIP 1
→ TRIP 2
→ ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km.
Clock mode
To change the display to the clock
mode, push the “SELECT” button for at
least one second.
To change the display back to the prior
mode, push the “SELECT” button.
1. Speedometer
2. Clock/odometer
3.“RESET” button
4.“SELECT” buttonU5MTE1.book Page 5 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU02935
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
NOTE:@ The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked. @
EWA00025
WARNING
@ Make sure that the fuel tank cap is
properly closed before riding. @
EAU03753
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
EW000130
WARNING
_

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot
engine.
_
1. Fuel tank cap lock cover
2. Unlock.
1. Fuel tank filler tube
2. Fuel level
U5MTE1.book Page 11 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
To install the rider seat
Insert the projection on the front of the
rider seat into the seat holder as
shown, place the seat in the original
position, and then install the bolts.Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the front of the passenger
seat and pull it forward.To install the passenger seat
1. Insert the projection on the rear of
the passenger seat into the seat
holder as shown, and then push
the front of the seat down to lock it
in place.
2. Remove the key.NOTE:_ Make sure that the seats are properly
secured before riding. _
1. Projection
2. Seat holder
1. Passenger seat lock
2. Unlock.Left side
1. Projection
2. Seat holder
U5MTE1.book Page 14 Monday, August 6, 2001 6:10 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-25
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
