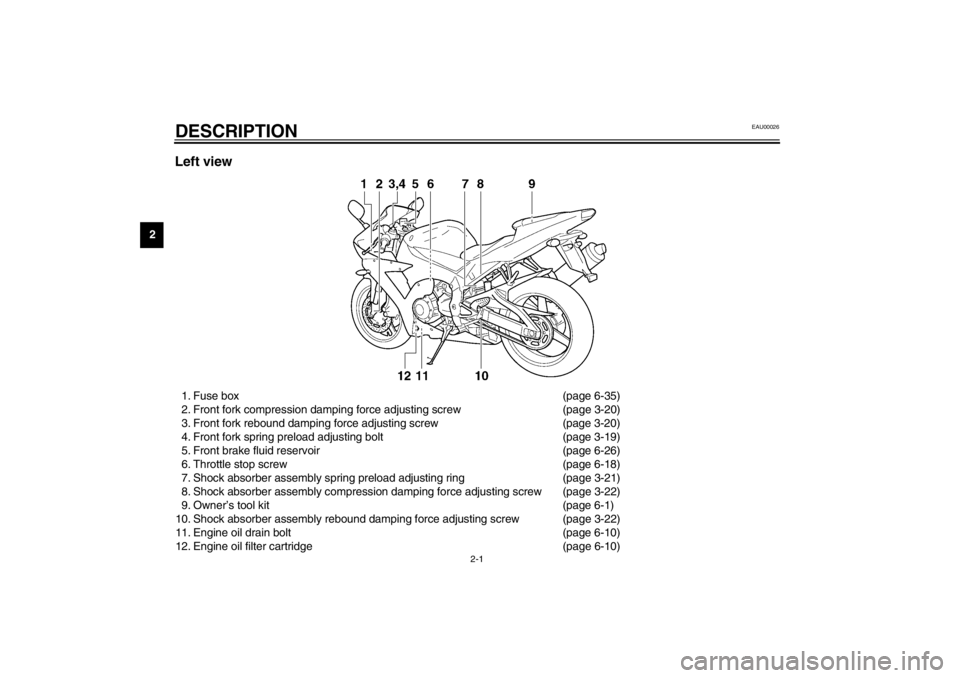

2-DESCRIPTION Left view1. Fuse box (page 6-35)
2. Front fork compression damping force adjusting screw (page 3-20)
3. Front fork rebound damping force adjusting screw (page 3-20)
4. Front fork spring preload adjusting bolt (page 3-19)
5. Front brake fluid reservoir (page 6-26)
6. Throttle stop screw (page 6-18)
7. Shock absorber assembly spring preload adjusting ring (page 3-21)
8. Shock absorber assembly compression damping force adjusting screw (page 3-22)
9. Owner’s tool kit (page 6-1)
10. Shock absorber assembly rebound damping force adjusting screw (page 3-22)
11. Engine oil drain bolt (page 6-10)
12. Engine oil filter cartridge (page 6-10)
U5PWE0.book Page 1 Friday, December 7, 2001 5:14 PM
PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU04548
Replacing the fuses The main fuse and the electronic fuel
injection fuse are located under the rid-
er seat. (See page 3-17 for rider seat
removal and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located un-
der panel B. (See page 6-7 for panel
removal and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Backup fuse (odometer and clock)
6. Parking lighting fuse
7. Spare fuse (× 3)
1. Main fuse
2. Electronic fuel injection fuse
3. Electronic fuel injection spare fuse
Specified fuses:
Main fuse: 50 A
Headlight fuse: 20 A
Signaling system fuse: 15 A
Radiator fan fuse: 15 A
Ignition fuse: 15 A
Electronic fuel injection
fuse: 15 A
Parking lighting fuse: 5 A
Backup fuse
(odometer and clock): 5 A
