2002 YAMAHA WR 426F key

EC080000
HOW TO USE
THIS MANUAL
EC081000
PARTICULARLY IMPORTANT
INFORMATION
The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could
result in severe injury or death to the machine
operator, a bystander, or a person inspecting
or repairing the machine.
A CAUTION indicates special precautions that
must be taken to avoid damage to the
machine.
NOTE:
A NOTE provides key information to make pro-
cedures easier or clearer.
WARNING
CAUTION:

EC082000
FINDING THE REQUIRED PAGE
1. This manual consists of seven chapters;
“General Information”, “Specifications”,
“Regular inspection and adjustments”,
“Engine”, “Chassis”, “Electrical” and “Tun-
ing”.
2. The table of contents is at the beginning of
the manual. Look over the general layout of
the book before finding then required chap-
ter and item.
Bend the book at its edge, as shown, to
find the required fore edge symbol mark
and go to a page for required item and
description.

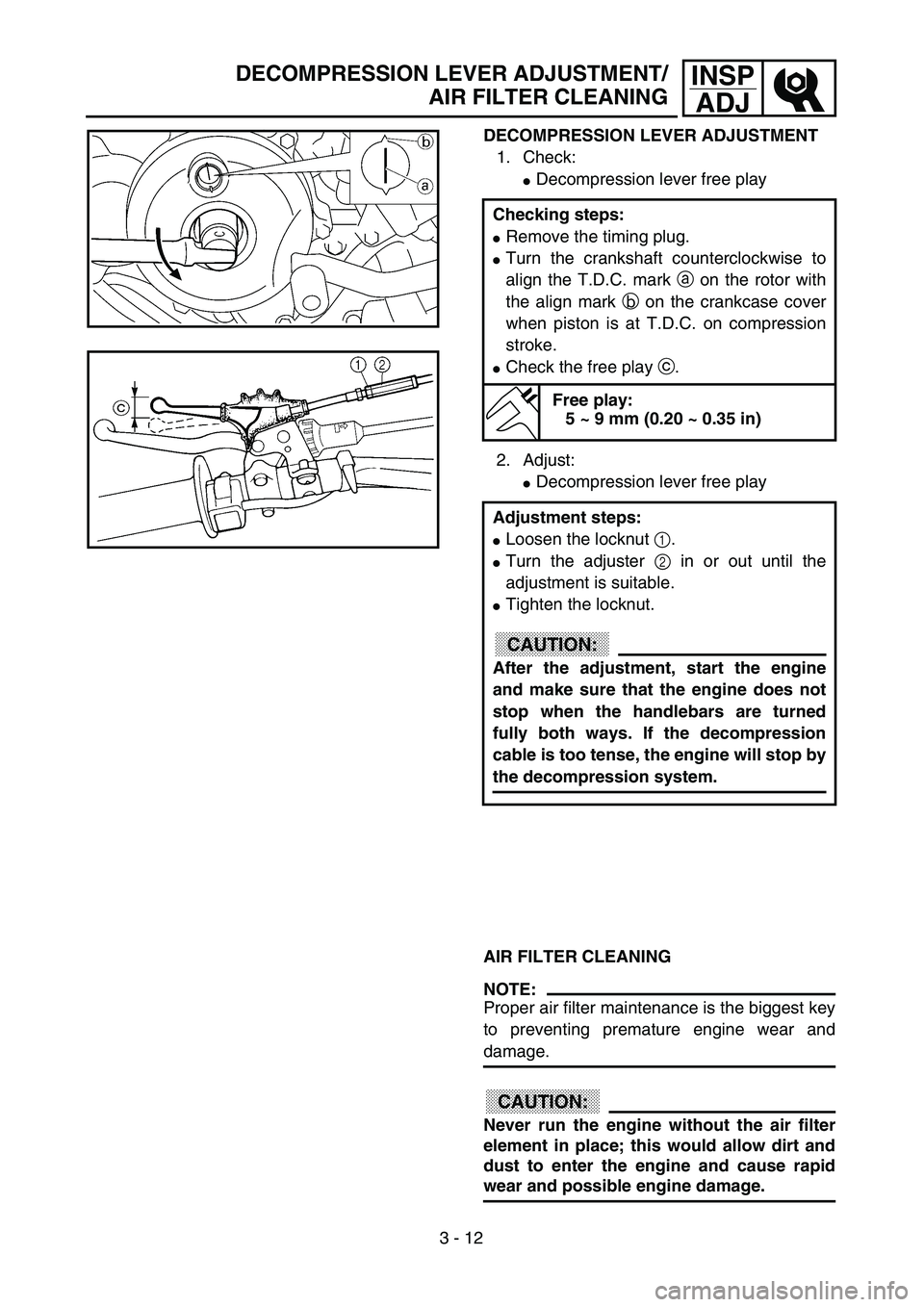

3 - 12
INSP
ADJDECOMPRESSION LEVER ADJUSTMENT/
AIR FILTER CLEANING
DECOMPRESSION LEVER ADJUSTMENT
1. Check:
Decompression lever free play
2. Adjust:
Decompression lever free play
AIR FILTER CLEANING
NOTE:
Proper air filter maintenance is the biggest key
to preventing premature engine wear and
damage.
CAUTION:
Never run the engine without the air filter
element in place; this would allow dirt and
dust to enter the engine and cause rapid
wear and possible engine damage.Checking steps:
Remove the timing plug.
Turn the crankshaft counterclockwise to
align the T.D.C. mark a on the rotor with
the align mark b on the crankcase cover
when piston is at T.D.C. on compression
stroke.
Check the free play c.
Free play:
5 ~ 9 mm (0.20 ~ 0.35 in)
Adjustment steps:
Loosen the locknut 1.
Turn the adjuster 2 in or out until the
adjustment is suitable.
Tighten the locknut.
CAUTION:
After the adjustment, start the engine
and make sure that the engine does not
stop when the handlebars are turned
fully both ways. If the decompression
cable is too tense, the engine will stop by
the decompression system.

ENG
4 - 84
CDI MAGNETO
EC4L0000
CDI MAGNETO
Extent of removal:1 CDI magneto removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO REMOVAL
Preparation for removal Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
Bolt [radiator (left)]
Disconnect the CDI magneto
lead.Refer to “RADIATOR” section.
1 Engine guard (left) 1
2 Shift pedal 1
3 Crankcase cover (left) 1
4 Gasket 1
5 Dowel pin 2
6 Nut (rotor) 1 Use special tool.
Refer to “REMOVAL POINTS”.
7 Rotor 1
8 Stator 1
9Woodruff key
1
1

4 - 85
ENGCDI MAGNETO
EC4L3000
REMOVAL POINTS
Rotor
1. Remove:
Nut (rotor) 1
Plain washer
Use the rotor holding tool 2.
2. Remove:
Rotor 1
Use the flywheel puller 2.
NOTE:
Install three bolts 3 of the proper size, as
shown in illustration.
Rotor holding tool:
YU-1235/90890-01235
Flywheel puller:
YU-33270-B/90890-01362
EC4L4000
INSPECTION
EC4L4101
CDI magneto
1. Inspect:
Rotor inner surface a
Stator outer surface b
Damage → Inspect the crankshaft run-
out and crankshaft bearing.
If necessary, replace CDI magneto and/
or stator.
EC4L4200
Woodruff key
1. Inspect:
Woodruff key 1
Damage → Replace.

4 - 86
ENGCDI MAGNETO
EC4L5000
ASSEMBLY AND INSTALLATION
CDI magneto
1. Install:
Stator 1
Screw (stator) 2
NOTE:
Apply the sealant to the grommet of the CDI
magneto lead.
Tighten the screws using the T30 bit.
Quick gasket®:
ACC-QUICK-GS-KT
YAMAHA Bond No. 1215:
90890-85505
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
2. Install:
Woodruff key 1
Rotor 2
NOTE:
Clean the tapered portions of the crankshaft
and rotor.
When installing the woodruff key, make sure
that its flat surface a is in parallel with the
crankshaft center line b.
When installing the rotor, align the keyway c
of the rotor with the woodruff key.
3. Install:
Plain washer
Nut (rotor) 1
Use the rotor holding tool 2.
Rotor holding tool:
YU-1235/90890-01235
T R..48 Nm (4.8 m · kg, 35 ft · lb)
