02_SEQUOIA_U (L/O 0108)
1112002 MY SEQUOIA_U (OM34418U)
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.

02_SEQUOIA_U (L/O 0108)
11 32002 MY SEQUOIA_U (OM34418U)
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
Emergency flashers

02_SEQUOIA_U (L/O 0108)
3002002 MY SEQUOIA_U (OM34418U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulbNo.WTy p e
Headlights—60/55A
Front fog lights900655B
Parking/front side
marker and front
turn signal lights3157 NA27/8C
Rear turn signal
lights744021D
Stop/tail and rear
side marker lights744321/5D
Backup lights92118D
Tail lights1685D
License plate lights1685D
High mounted stop
light1685D
Interior lights—8E
Personal lights—3.8D
Glove box light—1.2D
Luggage
compartment light—8E
Vanity lights—3D
Door courtesy
lights1943.4D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
Replacing light bulbs—

02_SEQUOIA_U (L/O 0108)
3012002 MY SEQUOIA_U (OM34418U)

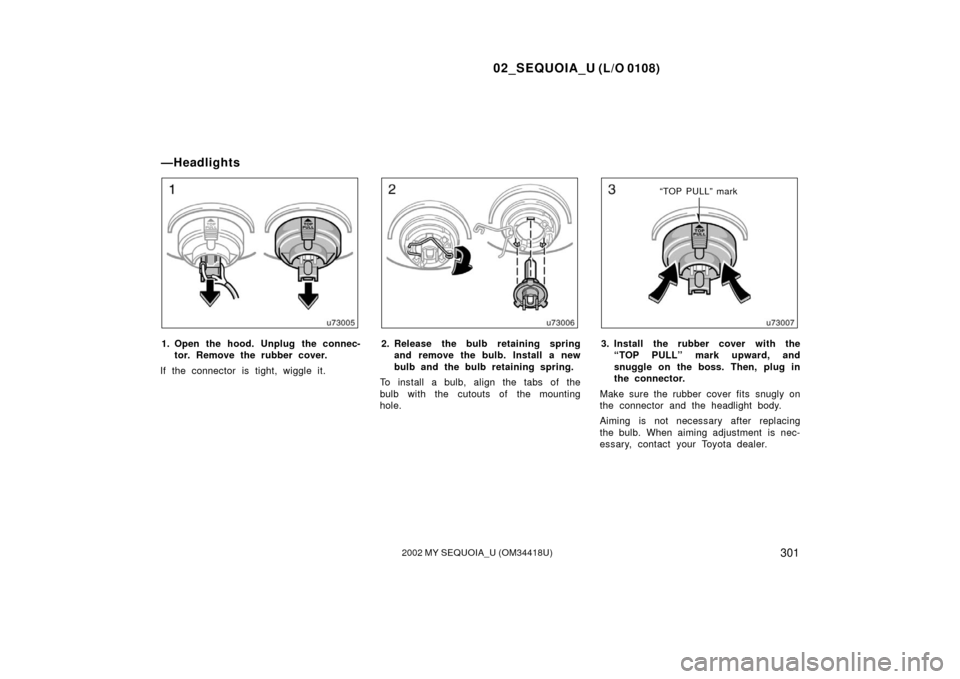

1. Open the hood. Unplug the connec-tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward, and
snuggle on the boss. Then, plug in
the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

02_SEQUOIA_U (L/O 0108)
3242002 MY SEQUOIA_U (OM34418U)
Loosening wheel nuts252
. . . . . . . . . . . . . . .
Lowering vehicle 255
. . . . . . . . . . . . . . . . . . .
Reinstalling w heel ornament 255
. . . . . . . . .
Removing wheel ornament 251
. . . . . . . . . .
Wheel block 251
. . . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 254
. . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level
Brake 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 287
. . . . . . . . . . . . . . . . . . . . .
Washer fluid 299
. . . . . . . . . . . . . . . . . . . . . . .
Fog light switch, Front 114
. . . . . . . . . . . . . . . .
Foreign countries, Operation in 215 . . . . . . . .
Fourwheel drive
Operating the fourwheel drive system 137
. . . . . . . . . . . . . . . . . . . . .
Front air conditioning system
Instrument panel 172
. . . . . . . . . . . . . . . . . . .
Front fog light switch 114
. . . . . . . . . . . . . . . . .
Front passenger ’s seat belt reminder light 125
. . . . . . . . . . . . . . . . . . . . . .
Front seats 36,37,38
. . . . . . . . . . . . . . . . . . . . .
Fuel
Filler door o pener 31
. . . . . . . . . . . . . . . . . . .
Fuel economy 240
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 215
. . . . . . . . . .
Gauge 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 215 . . . . . . .
Tank cap 31
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 213
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 215
. . . . . . . . . . . .
Fuse
Fuse box 298
. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 279
. . . . . . . . . . . . . . . . . . . . . . . G
Garage door opener 186
. . . . . . . . . . . . . . . . . .
Garage door opener box 197
. . . . . . . . . . . . . .
Gauge
Engine coolant temperature 122
. . . . . . . . .
Engine oil pressure 123
. . . . . . . . . . . . . . . . .
Fuel 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 197
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice 133
. . . . . . . . . . . . . . . . .
Grocery bag hooks 207
. . . . . . . . . . . . . . . . . . .
H
Hazard switch 113
. . . . . . . . . . . . . . . . . . . . . . .
Head restraints 52
. . . . . . . . . . . . . . . . . . . . . . .
Headlight switch 110,112
. . . . . . . . . . . . . . . . .
High speed operation
During breakin 213
. . . . . . . . . . . . . . . . . . . .
Hood release, Engine 29
. . . . . . . . . . . . . . . . . .
How to start the engine 228
. . . . . . . . . . . . . . .
I
I/M test 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification
Vehicle 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 132
. . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 117
. . . . . . . . . . . . . . . . . . .
Indicator symbols 5
. . . . . . . . . . . . . . . . . . . . . .
Instrument panel
Brightness control 114
. . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 195
. . . . . . . . .
Clock 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 123
. . . . . . . . . . . Fuel gauge
122
. . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5
. . . . . . . . . . . . . . . . . . . .
Odometer 124
. . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 124
. . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 124
. . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 114
. . . . . . . . . .
Instrument panel overview 2,4
. . . . . . . . . . . .
J
Jack
Location 250 . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 245 . . . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 125
. . . . . . . . . . . . . . . . .
Keys 8,261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
Light bulbs
Backup light 303 . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 302 . . . . . . . . . . . . . . . . . . . . .
Front side marker lights 302 . . . . . . . . . . . . .
Front turn signal lights 302 . . . . . . . . . . . . . .
Headlights 301 . . . . . . . . . . . . . . . . . . . . . . . .
High mounted stoplight 305 . . . . . . . . . . . . .
Licence plate lights 305 . . . . . . . . . . . . . . . . .
Parking lights 302 . . . . . . . . . . . . . . . . . . . . . .
Rear turn signal light 303 . . . . . . . . . . . . . . .
Stop/tail/rear side marker light 303 . . . . . . .
Tail lights 304 . . . . . . . . . . . . . . . . . . . . . . . . . .
