2002 TOYOTA RAV4 washer fluid

’02 Rav4_U (L/O 0108)
2222002 MY RAV4_U (OM42503U)
Tools:
Screwdriver (for driver’s side instru-
ment lower panel nut)
Conventional wrench (for passenger ’s
side kick panel nut)
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 244 in
Section 73.)
Tools:
Screwdriver
Front
Rear (twowheel drive models)
Rear (fourwheel drive models)

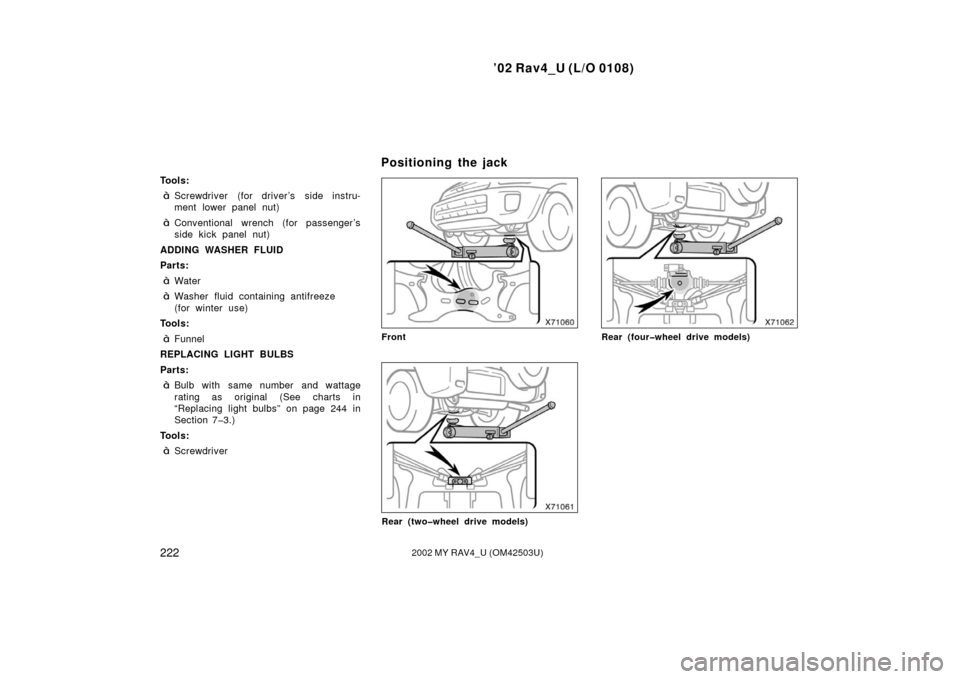

Positioning the jack

’02 Rav4_U (L/O 0108)
2392002 MY RAV4_U (OM42503U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’02 Rav4_U (L/O 0108)
2432002 MY RAV4_U (OM42503U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid
