2002 TOYOTA RAV4 light

’02 Rav4_U (L/O 0108)
2462002 MY RAV4_U (OM42503U)
“TOP” mark
3. Install the rubber cover with the“TOP” mark upward, and snuggle on
the boss. Plug in the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-

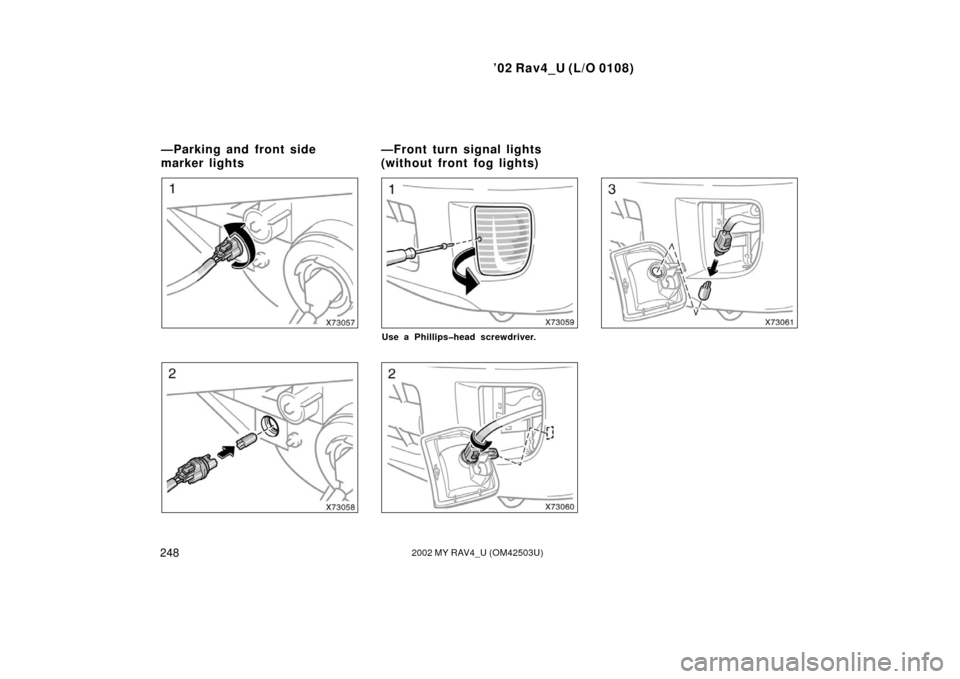

essary, contact your Toyota dealer.1. Loosen the retainer screw with a Phillipshead screwdriver and take
out the front turn signal light unit.2. Remove the front fog light unit.
—Front fog lights

’02 Rav4_U (L/O 0108)
2472002 MY RAV4_U (OM42503U)
3. Unplug the connector while depress-ing on the tab.
If the connector is tight, wiggle it.4. Turn the bulb and remove it.5. Install a new bulb and the connector into the mounting hole. Install the
front fog light unit then the front
turn signal light unit, and tighten the
retainer screw.

’02 Rav4_U (L/O 0108)
2482002 MY RAV4_U (OM42503U)
Use a Phillipshead screwdriver.

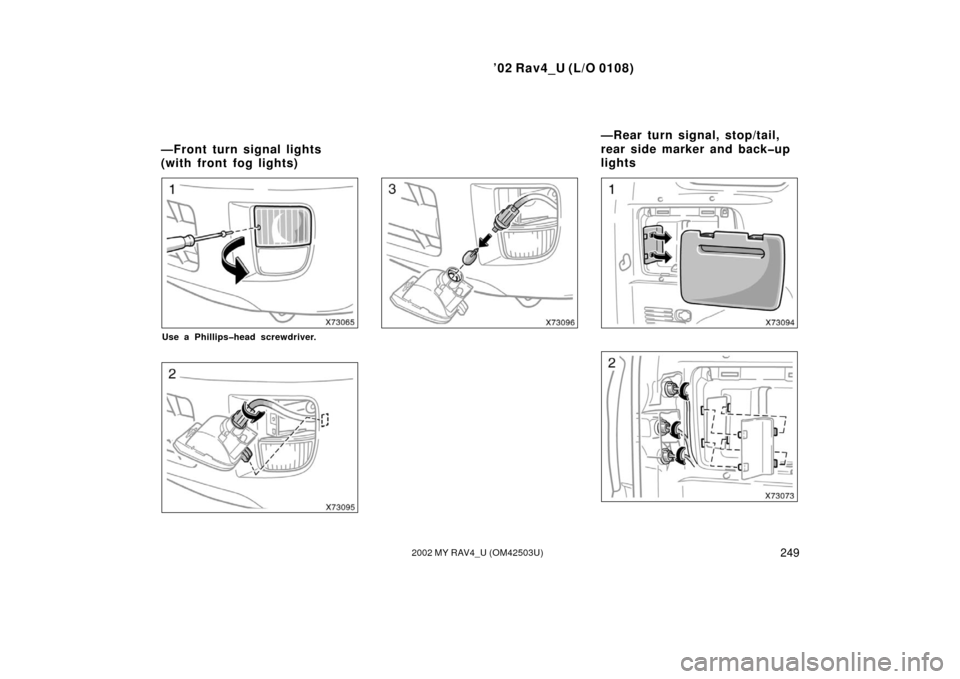

—Parking and front side
marker lights—Front turn signal lights
(without front fog lights)

’02 Rav4_U (L/O 0108)
2492002 MY RAV4_U (OM42503U)
Use a Phillipshead screwdriver.
—Front turn signal lights
(with front fog lights)—Rear turn signal, stop/tail,
rear side marker and backup
lights

’02 Rav4_U (L/O 0108)
2502002 MY RAV4_U (OM42503U)

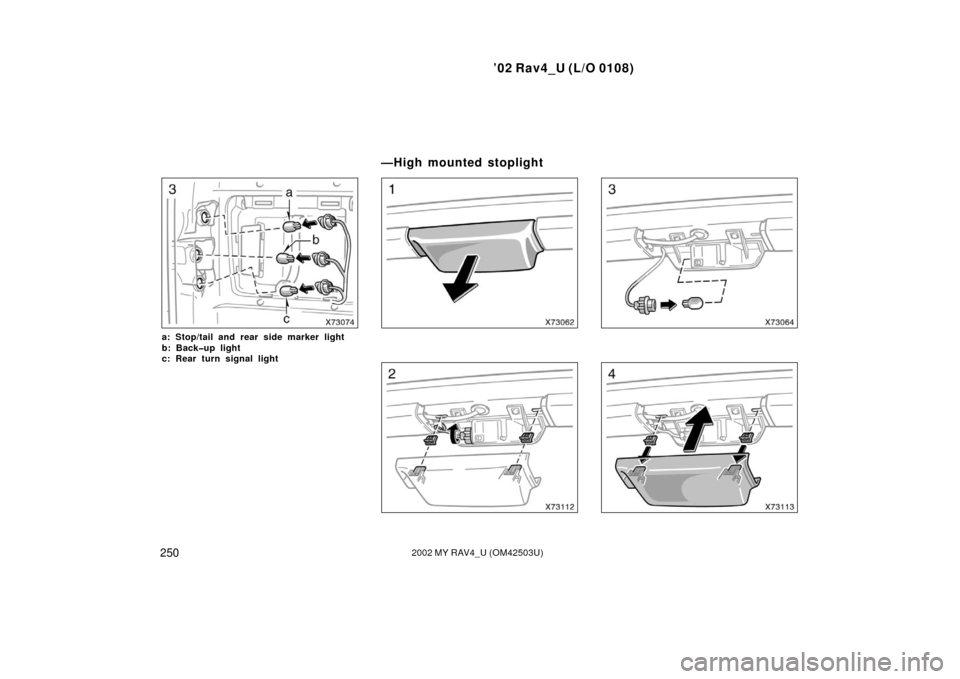

a: Stop/tail and rear side marker light
b: Backup light
c: Rear turn signal light
—High mounted stoplight

’02 Rav4_U (L/O 0108)
2512002 MY RAV4_U (OM42503U)
Use a Flatbladed screwdriver.
—License plate light

’02 Rav4_U (L/O 0108)
2562002 MY RAV4_U (OM42503U)
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Twowheel drive models2.5 (2.6, 2.2)
Fourwheel drive models
3.4 (3.6, 3.0)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and ref
ill), L (qt.,
Imp. qt.):
Twowheel drive modelsUp to 3.3 (3.5, 2.9)
Fourwheel drive models Up to 3.9 (4.1, 3.4)
Fluid type: Automatic transmission fluid Type TIV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type TIV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type TIV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle. TRANSFER
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.):
0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90 or 85W90
Below 18 C (0 F)
SAE 80W or 80W90
REAR DIFFERENTIAL
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.): 0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W90

’02 Rav4_U (L/O 0108)
2582002 MY RAV4_U (OM42503U)
Engine compartment
Instrument panel
Fuses (type A)1. RADIO 15 A: Car audio system
2. DOME 10 A: Clock, personal light, in-
terior lights, air conditioning system,
wireless remote control system, head-
light high beam indicator light, gauges
and meters
3. CUT 30 A: “RADIO” and “DOME” fuses
4. A/C 5 A: Air conditioning system
5. MAIN 30 A: “HLP RH” and “HLP LH”
fuses
6. HAZ 10 A: Emergency flashers 7. ALTS 5 A:
Charging system
8. IGN 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
9. EFI3 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
10. EFI2 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. A/F 20 A: A/F sensor
12. ABS2 30 A: Antilock brake system
13. EFI1 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI2” and “EFI3” fuses
14. HLP RH 10 A: Righthand headlight
15. HLP LH 10 A: Lefthand headlight
16. ST 5 A: Starting system
17. STOP 10 A: Stop lights, highmounted
stoplight, antilock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
18. CIG 15 A: Cigarette lighter
19. POWER OUTLET 15 A: Power outlets
20. SHTR 10 A: No circuit
Fuses
