34

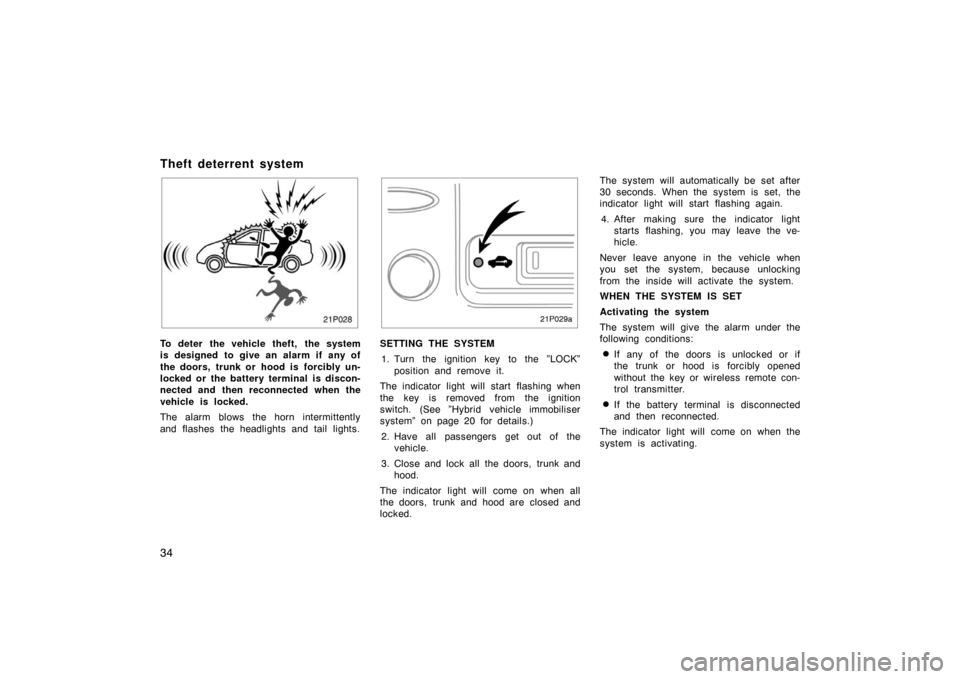

Theft deterrent system
21p028
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
21p029a
SETTING THE SYSTEM1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Hybrid vehicle immobiliser
system” on page 20 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter.
If the battery terminal is disconnected
and then reconnected.
The indicator light will come on when the
system is activating.

35
If any of the doors are unlocked without
the key or wireless remote control trans-
mitter and the key is not in the ignition
switch, all the doors will be automatically
locked again.
After 1 minute, the alarm will automatically
stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned three ways. If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the trunk, also check that the system
is activated when the auxiliary battery
terminal is disconnected and then re-
connected. When testing on the hood,
release the lock with the hood lock
release lever and raise the hood.
If the system does not work properly,
have it checked by your Toyota dealer.
21p030c
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the hybrid
system.
Fuel tank cap

167
IN CASE OF AN EMERGENCY
If your vehicle will not start168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your hybrid system stalls while driving 172
. . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheatss 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle needs to be towed 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift running mode selector lever 182
. . . . . . . . . . . . . . . . .
If you lose your keys 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 183
. . . . . . . . . . . . .
SECTION 5

183
50p027b
3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the hybrid system. For your safety, keep the brake pedal de-
pressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible. You can purchase a new key at your
Toyota dealer if you can give them the
key number and master key.
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole hybrid vehicle
immobiliser system must be replaced.
See the suggestion given in “Keys” on
page 18 in Section 2
−1.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass. You can purchase a new wireless re-
mote control transmitter at your Toyota
dealer.
Have the registered identification numbers
of your transmitters deleted from your ve-
hicle by your Toyota dealer as soon as
possible to avoid the possibility of theft or
an accident. Then, have the identification
number of your new transmitter registered.
At the same time, you must bring all of
the remaining transmitters to have them
registered again as well.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your keys
If you lose your wireless
remote control transmitter

238
90p006a
Engine compartment
8. AM2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, hybrid ve-
hicle immobiliser system
9. THRO 15 A: Electronic throttle control
system
10. HEAD (RH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (RH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Right −hand headlight
11. HEAD HI (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) 10
A: Left −hand headlight (high beam)
90p007a
Instrument panel
12. BATT FAN 10 A: Battery cooling fan
13. ABS NO.3 20 A: Hydraulic brake
booster
14. HV 20 A: Hybrid system
15. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
16. HEAD (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (LH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Left −hand headlight
90p008a
Trunk
17. DOME 15 A: Audio system, mult −infor-
mation display, interior light, trunk light,
power window system, wireless remote
control system
18. TURNHAZ 10 A: Turn signal lights,
Emergency flasher
19. PANEL 5 A: Audio system, ashtray
light, headlight beam level control sys-
tem, emergency flasher
20. GAUGE 10 A: Gauge and meter, emer-
gency flasher, rear window defogger,
service reminder indicator and warning
buzzers, back− up light, power window
system, air c onditioning system
