Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in personal death or injuries.
Antiglare inside rear view
mirror

02 MY MR2 SMT(U) L/O 0108
61
01 06 12
2002 MR2 (OM17493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Windshield wipers and washer 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 4

02 MY MR2 SMT(U) L/O 0108
62
01 06 12
2002 MR2 (OM17493U)
Headlights and turn signals
SB14009
HEADLIGHTS

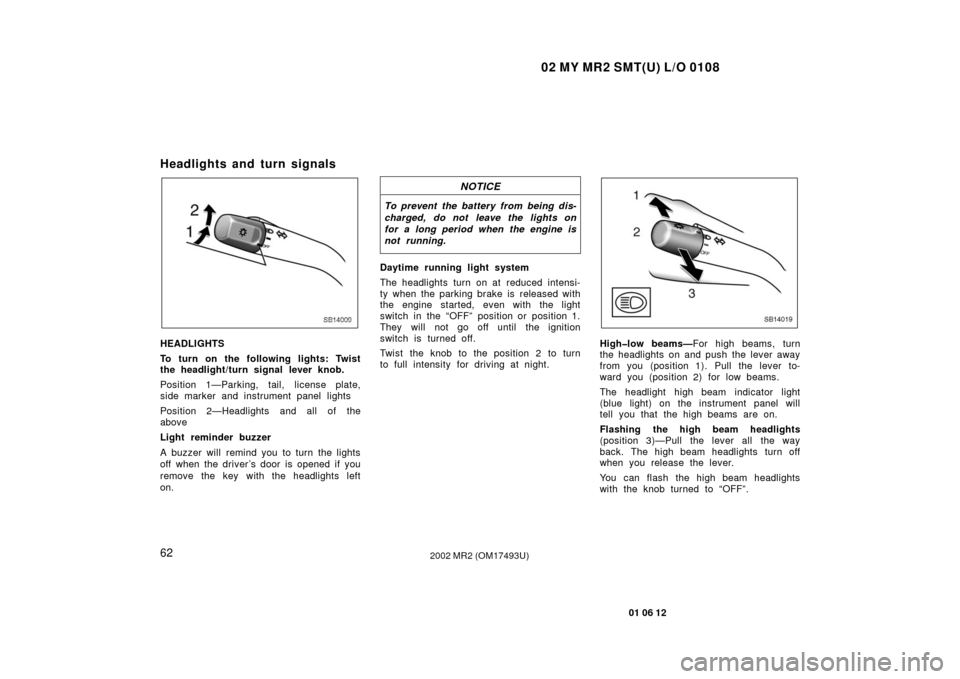

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights left
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position or position 1.
They will not go off until the ignition
switch is turned off.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
SB14019
Highlow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

02 MY MR2 SMT(U) L/O 0108
176
01 06 12
2002 MR2 (OM17493U)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles and retractors operate properly
and smoothly. Make sure the belt webbing
is not cut, frayed, worn or damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 203 in Section 73 for
additional information.
Engine coolant level
Make sure the coolant level is between
the “FULL” and “LOW” lines on the see
through reservoir when the engine is cold.
See page 189 in Section 72 for addition-
al information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt, or insects. See page 190 in
Section 72 for additional information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower lev-
el lines on the case. Add only distilled
water when replenishing. See pgae 200 in
Section 73 for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See page 191 in Section 72 for addition-
al information.

02 MY MR2 SMT(U) L/O 0108
202
01 06 12
2002 MR2 (OM17493U)
Checking and replacing fuses
SB73035
GoodBlown
Ty p e A
SB73036
Good Blown
Ty p e B
SB73037
Good Blown
Ty p e C
SB73066
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 182 in Sec-
tion 71 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 219 in Section 8 of this manual for
the functions controlled by each circuit.
Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.

02 MY MR2 SMT(U) L/O 0108
204
01 06 12
2002 MR2 (OM17493U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the wind-
shield fogged up in the rain. However, if
there is large drop of water on the inside
of the lens, or if there is water pooled
inside the light, contact your Toyota deal-
er.

02 MY MR2 SMT(U) L/O 0108
205
01 06 12
2002 MR2 (OM17493U)
Light bulbsBulbNo.WTy p e
Headlights—60/55A
Parking lights—5B
Front turn signal
lights—21B
Front side marker
lights—3.8B
Rear turn signal
lights—21C
Stop/tail lights—21/5B
Stop lights—21B
Backup lights—21B
License plate lights—5B
Interior light—8D
High mounted stop
light—5B
A: HB2 halogen bulbs
B: Wedge base bulbs
C: Single end bulbs
D: Double end bulbs BEFORE REPLACING LIGHT BULBS
Replacing headlights, parking lights and
front turn signal lights.
SB73069
1. Remove the front box cover.

02 MY MR2 SMT(U) L/O 0108
206
01 06 12
2002 MR2 (OM17493U)
SC73012
2. Remove the cover in the trunk.
Remove and install the cover clips as
shown in the following illustrations.
SC18005
Removing clips
SC18006
Installing clips
—Headlights
SB73043
1. Unplug the connector. Remove the rubber cover.
If the connector is tight, wiggle it.
