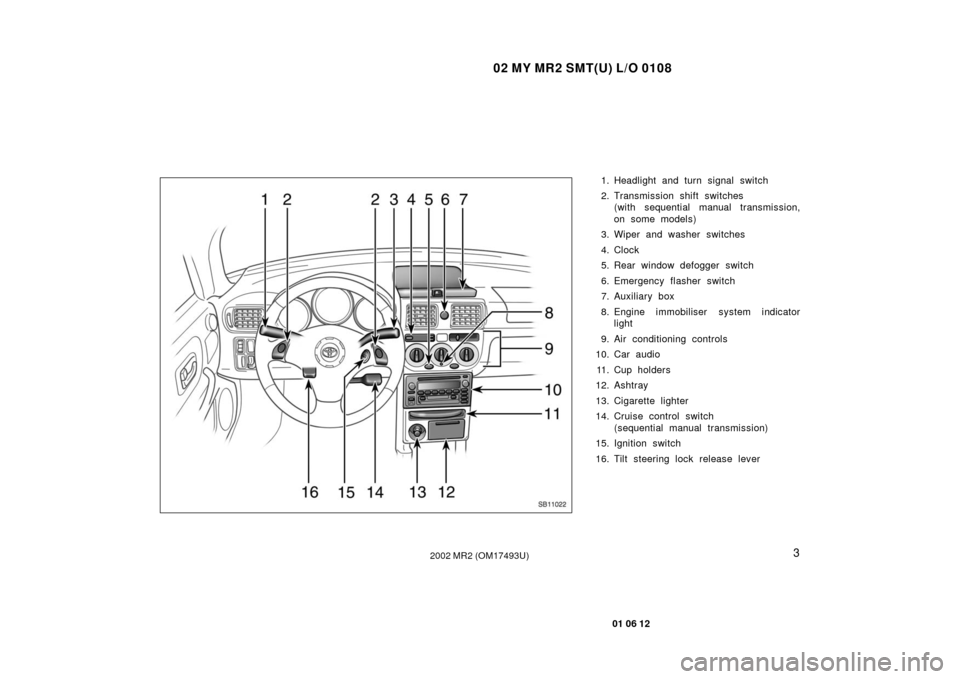

1. Headlight and turn signal switch
2. Transmission shift switches (with sequential manual transmission,
on some models)
3. Wiper and washer switches
4. Clock
5. Rear window defogger switch
6. Emergency flasher switch
7. Auxiliary box
8. Engine immobiliser system indicator light
9. Air conditioning controls
10. Car audio
11. Cup holders
12. Ashtray
13. Cigarette lighter
14. Cruise control switch (sequential manual transmission)
15. Ignition switch
16. Tilt steering lock release lever
SB11022

02 MY MR2 SMT(U) L/O 0108
16
01 06 12
2002 MR2 (OM17493U)
—Luggage security system
SB12091
If you do not want to activate the trunk
lid lock release lever, insert the master
key to the glove box, and turn it clock-
wise.
Engine hood
SB12086
To open the engine hood:1. Pull the engine hood lock release lever. The engine hood will spring up
slightly.
The engine hood lock release lever can
be locked by the key.
CAUTION
Before driving, be sure that the en-
gine hood is closed and securely
locked. Otherwise, the engine hood
may open unexpectedly while driving
and an accident may occur.
SB12044
2. In rear of the vehicle, lift the engine hood.
CAUTION
Be careful not to touch the engine
hood, the support rod, or surrounding
area which could be hot after driving,
to prevent burning yourself.

02 MY MR2 SMT(U) L/O 0108
17
01 06 12
2002 MR2 (OM17493U)
SB12038
3. Hold the engine hood open byinserting the support rod into the
slot.
Before closing the engine hood, check to
see that you have not forgotten any tools,
rags, etc. and return the support rod to its
clip—this prevents rattles. Then lower the
engine hood and make sure it locks into
place. If necessary, press down gently on
the rear edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the engine hood securely from falling
down on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the engine
hood. Closing the engine hood with
the support rod up could cause the
engine hood to bend.
SB12087
LOCKING AND UNLOCKING WITH
ENGINE HOOD
To lock: Turn the key clockwise.
The engine hood lock release lever can
be locked by the key.
When leaving the vehicle with the soft top
lowered, make sure to lock the engine
hood lock release lever with the key.
The fuel filler door o pener lever is locked
at the same time.

02 MY MR2 SMT(U) L/O 0108
19
01 06 12
2002 MR2 (OM17493U)
SC12051
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.SB12087
LOCKING AND UNLOCKING WITH FUEL
TANK CAP
To lock: Turn the key clockwise.
The fuel filler door o pener lever can be
locked by the key.
When leaving the vehicle with the soft top
lowered, make sure to lock the fuel filler
door opener lever with the key.
The engine hood lock release lever is
locked at the same time.

02 MY MR2 SMT(U) L/O 0108
37
01 06 12
2002 MR2 (OM17493U)
SB13106
Indicator light
The passenger airbag system is
equipped with a manual onoff switch
and indicator light. Turning the passen-
ger airbag manual onoff switch clock-
wise to the “ON” position makes the
passenger airbag system operational.
Turning the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position disables the passenger
airbag system. The indicator light on
the passenger airbag manual onoff
switch will come on when the passen-
ger airbag system has been disabled.
See “Passenger airbag manual onoff
switch” on page 45 in this section for
detail.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 is oc-
cupying the passenger seating posi-
tion.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.

02 MY MR2 SMT(U) L/O 0108
45
01 06 12
2002 MR2 (OM17493U)
SB13106
Indicator light
This onoff switch is designed to dis-
able the passenger airbag in order to
allow usage, if necessary, of a member
of a passenger risk group identified in
TABLE 1 (on page 38) is occupying the
passenger seating position (For details,
see “SRS driver and passenger airbags”
on page 36 in this section.)
Operate onoff switch as follows:
Insert key into the keyhole and turn it in
the glove box.
To turn passenger airbag on: Turn the key
clockwise to the “ON” position.
To turn passenger airbag off: Turn the key
counterclockwise to the “OFF” position.The indicator comes on when the passen-
ger airbag system is off.
To check the airbag cutoff system status,
turn the ignition switch to the “ON” posi-
tion. The “AIRBAG” warning light and the
“OFF” indicator light should go on for
approximately 4 seconds. If the airbag
switch is turned off, the “OFF” indicator
will continue to illuminate, and if the air-
bag switch is turned on, the “OFF” indica-
tor will not illuminate.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 (on
page 38) is occupying the passen-
ger seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
For details, see “SRS driver and
passenger airbags” on page 36 in this
section.
Passenger airbag manual
onoff switch

02 MY MR2 SMT(U) L/O 0108
49
01 06 12
2002 MR2 (OM17493U)
SB13101
CAUTION
Never put a rearfacing child restraint
system on the passenger seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the passenger air-
bag can cause death or serious injury
to the child.
SB13107
When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver and passenger airbags” on page
36 in this section.)
The indicator comes on when the system
is off.
CAUTION
If you must put a rearfacing child
restraint system on the passenger
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.

02 MY MR2 SMT(U) L/O 0108
52
01 06 12
2002 MR2 (OM17493U)
SB13062
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
struction about the applicable child’s
age and size as well as directions for
installing the child restraint system.
SB13101
CAUTION
Rearfacing child restraint system:
Never put a rearfacing child restraint
system on the passenger seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the passenger air-
bag can cause death or serious injury
to the child.
SB13107
When you put a forwardfacing or a
rearfacing child restraint system which
belongs to a passenger risk group on
the passenger seat, turn the passenger
airbag manual onoff switch counter-
clockwise to the “OFF” position. (For
details, see “SRS driver and passenger
airbags” on page 36 in this section.)
The indicator comes on when the system
is off.
