2002 TOYOTA ECHO service indicator

2002MY ECHO U L/O0109
v2002 ECHO (OM52463U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
3 Seats, Seat belts, Steering wheel and Mirrors25
. . . . . . . . . . . . . . . . . .
4 Lights, Wipers and Defogger73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicators79
. . . . . . . . . . . . . . .
6 Ignition switch, Transmission and Parking brake87
. . . . . . . . . . . . . . . .
7 Car audio system95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
8 Air conditioning system11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipment127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 133 . . . . . . . . . .
3 STARTING AND DRIVING 147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPE ARANCE CARE 173. . . . .
6 VEHICLE MAINTENANCE AND CARE 179 . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
2 Engine and Chassis193
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
3 Electrical components205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

8 SPECIFICATIONS 215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING 221 . . . . . . . . . . . . . . . . . . .
10 INDE X 225 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of
Contents

2001MY ECHO (U) L/O0008
42002 ECHO (OM52463U)
SU11007

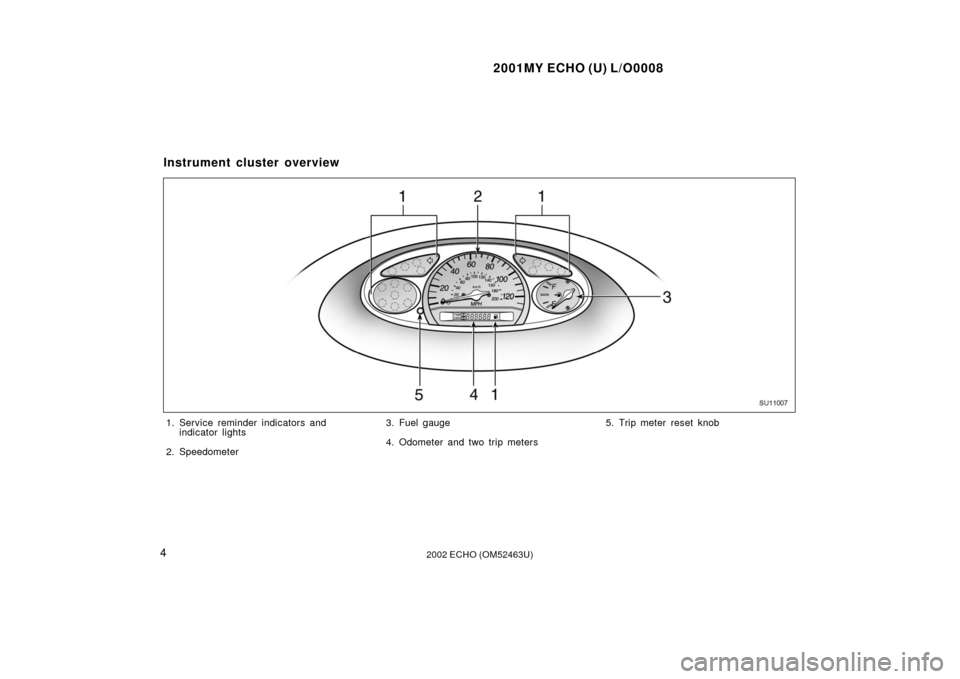

1. Service reminder indicators andindicator lights
2. Speedometer 3. Fuel gauge
4. Odometer and two trip meters
5. Trip meter reset knob
Instrument cluster overview

2002MY ECHO (U) L/O0109
52002 ECHO (OM52463U)
Indicator symbols on the instrument panel
orBrake system warning light∗
Driver ’s seat belt reminder light∗
Discharge warning light∗
Malfunction indicator lamp∗
Low engine oil pressure warning light∗
Anti-lock brake system warning light∗
SRS warning light∗
Low windshield washer fluid level warning light∗
Low fuel level warning light∗
Turn signal indicator lights
Headlight high beam indicator light
Overdriveoff indicator light
Low engine coolant temperature indicator light
(in blue)∗
High engine coolant temperature warning light
(in red)∗
Front passenger ’s seat belt reminder light∗
Open door warning light∗
∗
: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
or

2001MY ECHO (U) L/O0008
382002 ECHO (OM52463U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
—Front seat belt pretensioners
SY13021a
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the seat belt preten-
sioners and SRS airbags not to operate
all together.
SU13118
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 82 in Sec-
tion 15.)

2001MY ECHO (U) L/O0008
402002 ECHO (OM52463U)
SU13118
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the relevant
front seat belt pretensioner.
SU13019
In the following cases, contact your Toyota
dealer as soon as possible:
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.
SY13024
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver ’s or
front passenger ’s head or chest caused by
directly hitting the steering wheel or dash-
board. The front passenger airbag is acti-
vated even with no passenger in the front
seat.
Be sure to wear your seat belt properly.
SRS driver and front
passenger airbags

2002MY ECHO (U) L/O0109
412002 ECHO (OM52463U)
CAUTION
A driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured. To-
yota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
SU13118
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 82 in Sec-
tion 15.)
SU13021
The SRS front airbag system is de-
signed to activate in response to a se-
vere frontal impact within the shaded
area between the arrows in the illustra-
tion.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision in
the U.S.A. and 30 km/h (18 mph) collision
in Canada when impacting straight into a
fixed barrier that does not move or de-
form.
If the severity of the impact is below the
above threshold level, the SRS front air-
bags may not deploy.

2002MY ECHO (U) L/O0109
472002 ECHO (OM52463U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
SU13118
This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbags.
Contact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.
SU13030
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS front airbags to inflate.
The pad part of the steering wheel or
front passenger airbag cover (shaded
in the illustration) is scratched,
cracked, or otherwise damaged.

2002MY ECHO (U) L/O0109
492002 ECHO (OM52463U)
SU13118
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags are operat-
ing properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 82 in Sec-
tion 15.)
SU13125
The SRS side airbag system may not
activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
For the safety of all occupants, always
wear your seat belts properly.
SU13126
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not designed
to inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.
