Instrument panel overview

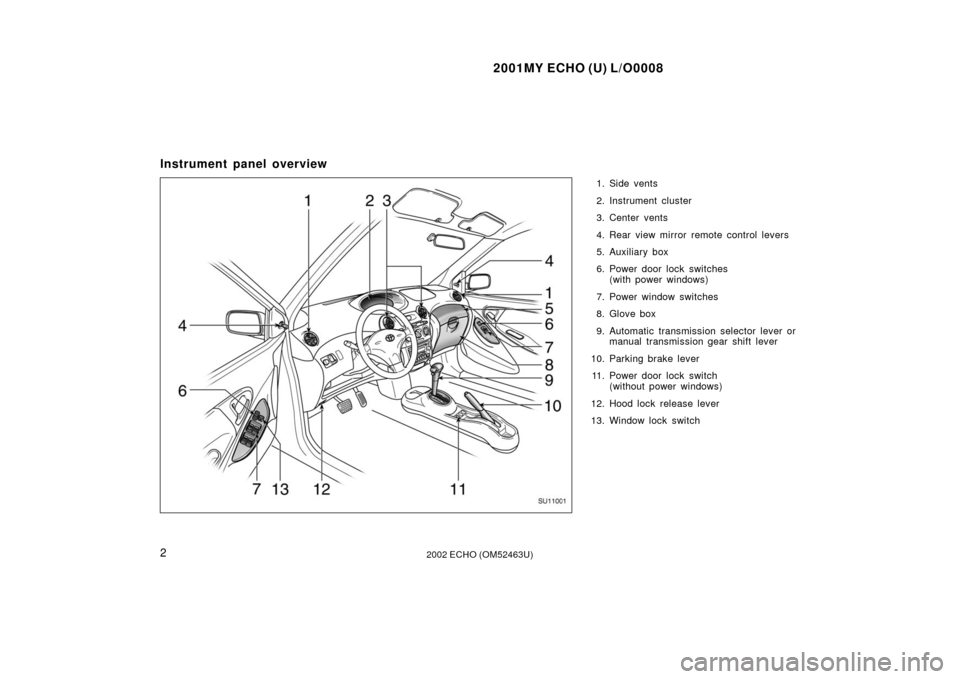

1. Side vents
2. Instrument cluster
3. Center vents
4. Rear view mirror remote control levers
5. Auxiliary box
6. Power door lock switches(with power windows)
7. Power window switches
8. Glove box
9. Automatic transmission selector lever or manual transmission gear shift lever
10. Parking brake lever 11. Power door lock switch (without power windows)
12. Hood lock release lever
13. Window lock switch
SU11001

2002MY ECHO (U) L/O0109
192002 ECHO (OM52463U)
Hood
SU12016

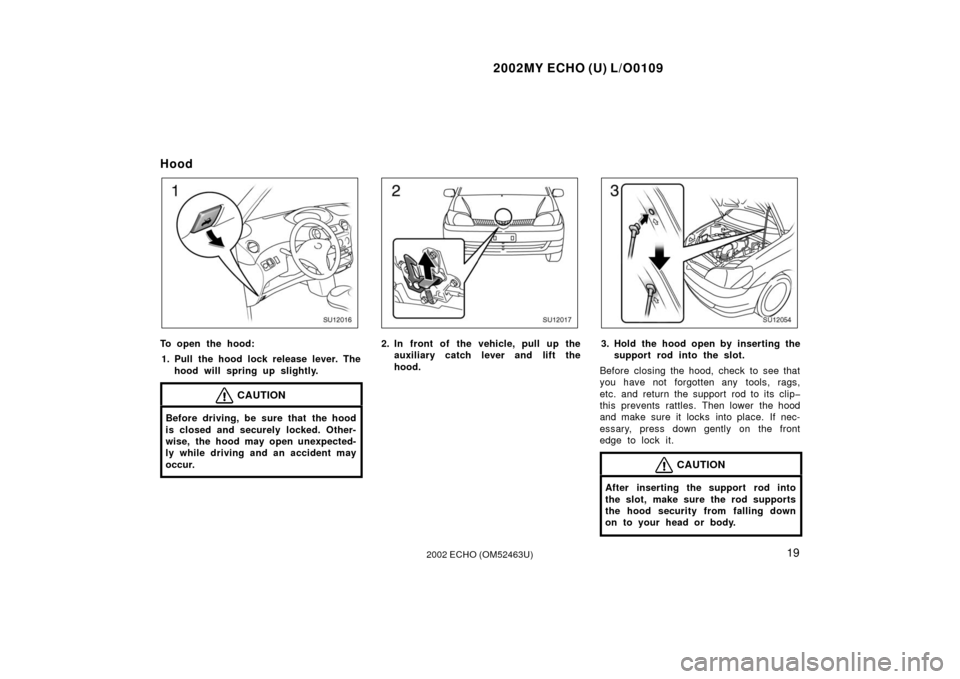

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
SU12017
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
SU12054
3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip
this prevents rattles. Then lower the hood
and make sure it locks into place. If nec-
essary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.

2002MY ECHO (U) L/O0109
272002 ECHO (OM52463U)
Do not put objects under the seats
except putting in the auxiliary box.
The objects may interfere with the
seatlock mechanism or unexpect-
edly push up the seat position ad-
justing lever. Otherwise, the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, you
may catch and injure your hands or
fingers.
—Adjusting front seats
SU13001

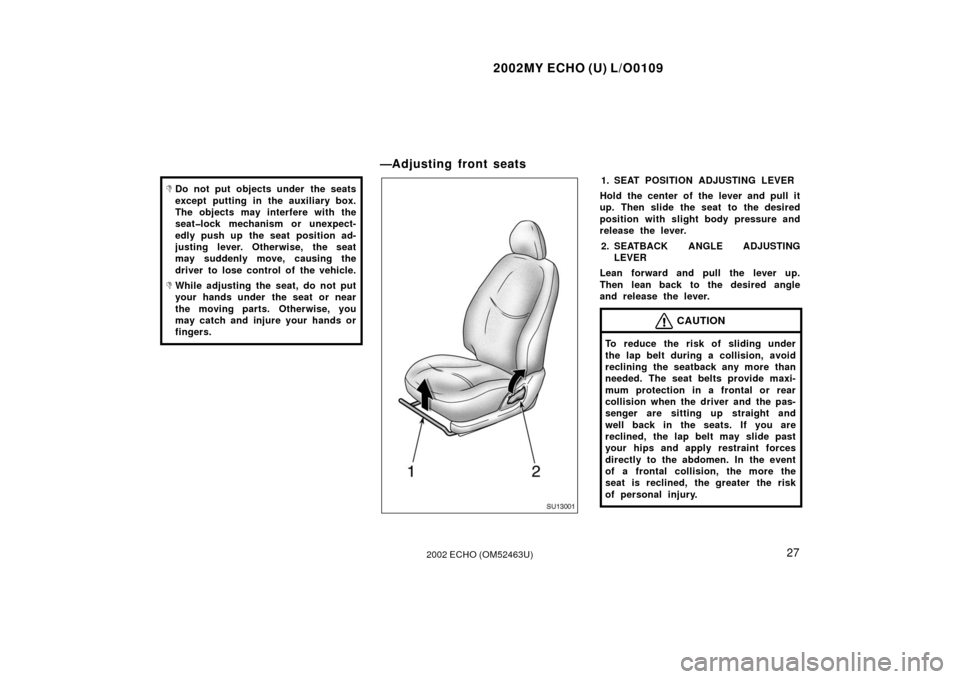

1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

2001MY ECHO (U) L/O0008
962002 ECHO (OM52463U)
Reference
SU17001
Type 1: AM·FM ETR radio (with cassette
and compact disc auto changer controller)
SU17002
Type 2: AM·FM ETR radio/cassette player
(with compact disc auto changer control-
ler)
SU17003
Type 3: AM·FM ETR radio/cassette player/
compact disc player (with compact disc
auto changer controller)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR/VOL” or “PWR·VOL” to turn
the audio system on and off.
Push “AM”, “FM1·2”, “TAPE”, “CD” or
“AUX” to turn on that function without
pushing “PWR/VOL” or “PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1·2”, “TAPE”, “CD” or
“AUX” if the system is already on but you
want to switch from one function to anoth-
er.
Using your audio system—
—Some basics

2001MY ECHO (U) L/O0008
1002002 ECHO (OM52463U)
Sound balance adjustment function—
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push “CTRL /
MODE” repeatedly until “FAd” appears on
the display. Then turn the knob to adjust
the front/rear balance.
The display will show the range from
“FAdF7” to “FAdR7”.
For left/right adjustment, push “CTRL /
MODE” repeatedly until “BAL” appears on
the display. Then turn the knob to adjust
the left/right balance.
The display will show the range from
“BALL7” to “BALR7”.
AUX (Auxiliary button)
This button is used to operate each player
when a cassette tape player, compact disc
player or compact disc auto changer is
equipped with this radio player.
With cassette tape player
Push “AUX” to switch from radio to cas-
sette operation. If the audio system is off,
you can turn on the cassette player by
pushing “AUX”. In both cases, a cassette
must already be loaded in the player.With compact disc player or compact
disc auto changer
Push “AUX” to switch from radio to com-
pact disc operation. If the audio system is
off, you can turn on the compact disc
player by pushing “AUX”. In both cases,
a disc must already be loaded in the
player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push “AUX”, the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If “WAIT” appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If “Err 1” appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted upside down. Clean the
disc or insert it correctly.
If “Err 2” appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc. If “Err 3” or “Err 4” appears on the
display,
it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If “OPEn” appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
Compact disc auto changer only—
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the doubleD
symbol. The doubleD symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.

2002MY ECHO (U) L/O0109
1272002 ECHO (OM52463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

2001MY ECHO (U) L/O0008
1302002 ECHO (OM52463U)
Glove box
SU19003

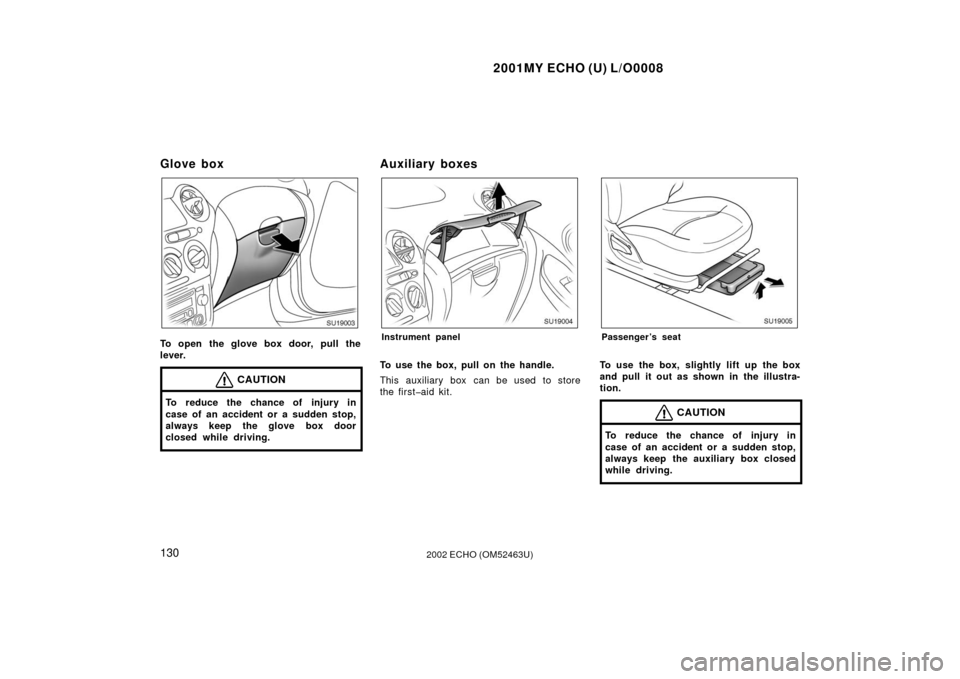

To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary boxes
SU19004
Instrument panel
To use the box, pull on the handle.
This auxiliary box can be used to store
the firstaid kit.
SU19005
Passenger’s seat
To use the box, slightly lift up the box
and pull it out as shown in the illustra-
tion.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.

2001MY ECHO (U) L/O0008
2262002 ECHO (OM52463U)
A
Adding washer fluid209
. . . . . . . . . . . . . . . .
Adjustment
Front seats 26
. . . . . . . . . . . . . . . . . . . . . . .
Seat belt 32
. . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system 120
. . . . . . . . . . . . .
Airbags 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 203 . . . . . . . .
Antiglare inside rear view mirror 71 . . . . .
Antilock brake system warning light 82
. . . . . . . . . . . . . . . . . . . . . .
Antitheft steering column lock 88 . . . . . . .
Appearance care Cleaning the interior 177
. . . . . . . . . . . . . .
Protecting your Toyota from
corrosion 174
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 175
. . . . . . . . . . . . . .
Automatic transmission
Driving with a automatic transmission 89
. . . . . . . . . . . . . . . . . . . .
Shift pattern 89
. . . . . . . . . . . . . . . . . . . . . .
Shift speed 89
. . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 130
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 19
. . . . . . . . .
B
Battery
Checking battery condition 206 . . . . . . . .
Gas caution 206 . . . . . . . . . . . . . . . . . . . . .
Handling safety 206 . . . . . . . . . . . . . . . . . .
Recharging precautions 207 . . . . . . . . . . .
Winter driving tips 150 . . . . . . . . . . . . . . . . Before starting the engine 148
. . . . . . . . . . .
Brake pad wear indicators 142 . . . . . . . . . . .
Brake system 139 . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 82 . . . . . . . . . .
Brakes Fluid level 194 . . . . . . . . . . . . . . . . . . . . . . .
Pad wear indicators 142 . . . . . . . . . . . . . .
Parking 94 . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin tips 134 . . . . . . . . . . . . . . . . . . . . . .
Brightness control 76 . . . . . . . . . . . . . . . . . . .
C
Car audio system 95
. . . . . . . . . . . . . . . . . . .
Carbon monoxide caution 138
. . . . . . . . . . .
Checking and replacing fuses 208 . . . . . . . .
Checking brake fluid 197
. . . . . . . . . . . . . . . .
Checking the engine oil level 194 . . . . . . . .
Checking the radiator 197
. . . . . . . . . . . . . . .
Child restraint Child restraint system 54
. . . . . . . . . . . . .
Installation 56
. . . . . . . . . . . . . . . . . . . . . . .
Precautions 53
. . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 55 . . . . . .
Cigarette lighter and ashtray 128
. . . . . . . . .
Cleaning the interior 177
. . . . . . . . . . . . . . . .
Clock 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold weather Operation 150
. . . . . . . . . . . . .
Controls, Instrument panel 2,4
. . . . . . . . . .
Cooling system
Coolant level 196
. . . . . . . . . . . . . . . . . . . .
Engine overheating 159
. . . . . . . . . . . . . . .
Radiator and reservoir 196
. . . . . . . . . . . . Radiator cap
159
. . . . . . . . . . . . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
Corrosion prevention 174
. . . . . . . . . . . . . . .
Cup holders 131
. . . . . . . . . . . . . . . . . . . . . . .
D
Defogger, Rear window 77
. . . . . . . . . . . . . .
Dimmer switch, Headlight 74
. . . . . . . . . . . .
Dinghy towing 151
. . . . . . . . . . . . . . . . . . . . .
Directional signals 74
. . . . . . . . . . . . . . . . . .
Discharge warning light 82
. . . . . . . . . . . . . .
Doityourself maintenance
Parts and tools 189
. . . . . . . . . . . . . . . . . . .
Service precautions 187
. . . . . . . . . . . . . .
Does your vehicle need repairing? 183 . . .
Driving Automatic transmission 89
. . . . . . . . . . . .
Driving tips 149,150
. . . . . . . . . . . . . . . . . .
Manual transmission 93
. . . . . . . . . . . . . .
Driving tips
Driving tips in various conditions 149
. . . . . . . . . . . . . . . . . . . . .
Driving with a
automatic transmission 89
. . . . . . . . . .
Driving with a manual transmission 93
. . . . . . . . . . . . .
Economical driving 153
. . . . . . . . . . . . . . .
Good driving practice 89,93
. . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
During Breakin 134
. . . . . . . . . . . . . . . . . . . . . . . .
