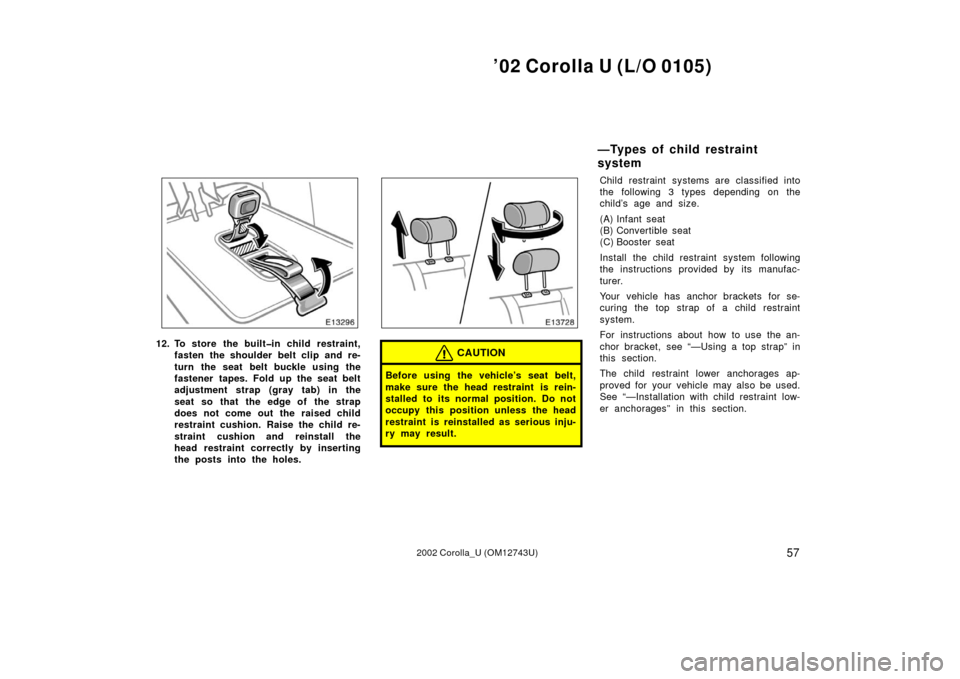

12. To store the builtin child restraint,fasten the shoulder belt clip and re-
turn the seat belt buckle using the
fastener tapes. Fold up the seat belt
adjustment strap (gray tab) in the
seat so that the edge of the strap
does not come out the raised child
restraint cushion. Raise the child re-
straint cushion and reinstall the
head restraint correctly by inserting
the posts into the holes.CAUTION
Before using the vehicle’s seat belt,
make sure the head restraint is rein-
stalled to its normal position. Do not
occupy this position unless the head
restraint is reinstalled as serious inju-
ry may result.
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” in
this section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this section.
—Types of child restraint
system

’02 Corolla U (L/O 0105)
682002 Corolla_U (OM12743U)

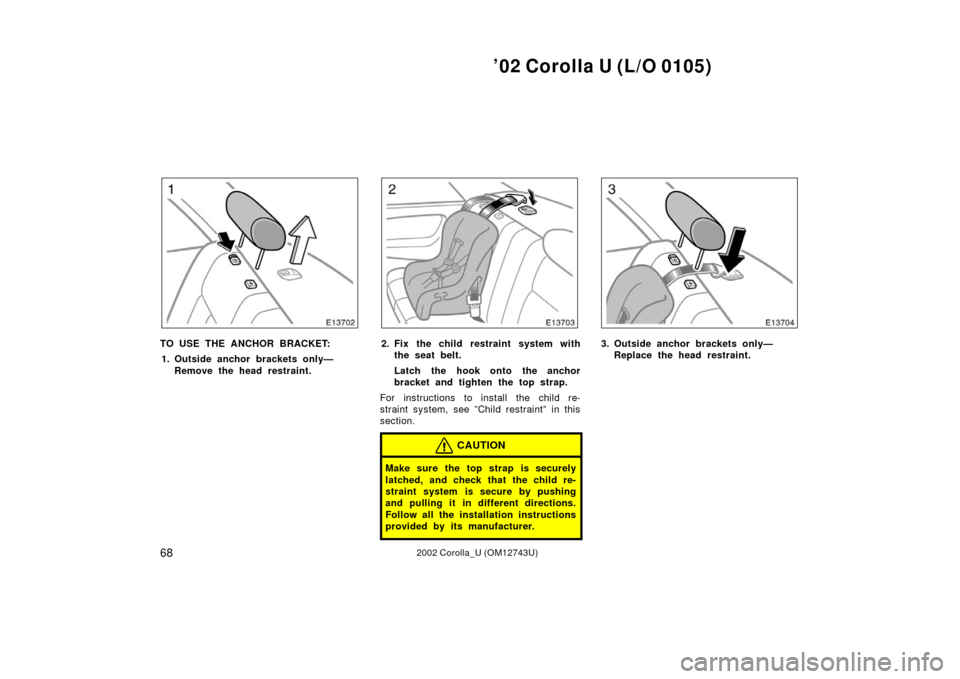

TO USE THE ANCHOR BRACKET:1. Outside anchor brackets only— Remove the head restraint.2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see ”Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Outside anchor brackets only— Replace the head restraint.

’02 Corolla U (L/O 0105)
702002 Corolla_U (OM12743U)
CHILD RESTRAINT SYSTEM
INSTALLATION1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Type A: Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B: Latch the buckles onto the
anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheel

’02 Corolla U (L/O 0105)
752002 Corolla_U (OM12743U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Ignition switch light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Personal lights 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 4

’02 Corolla U (L/O 0105)
812002 Corolla_U (OM12743U)
To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stopand
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window defogger

’02 Corolla U (L/O 0105)
832002 Corolla_U (OM12743U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Engine coolant temperature gauge ge84
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers rs86
. . . . . . . . . . . . . .
SECTION 1 5

’02 Corolla U (L/O 0105)
852002 Corolla_U (OM12743U)
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’02 Corolla U (L/O 0105)
882002 Corolla_U (OM12743U)
CAUTION
If the light does not turn off even
after the parking brake is released
while the engine is running, immedi-
ately stop your vehicle at a safe
place and contact your Toyota dealer.
In this case, the brakes may not work
properly and your stopping distance
will become longer. Depress the brake
pedal firmly and bring the vehicle to
an immediate stop.
(b) Seat Belt Reminder Light and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt out of the retractor, the light keeps
flashing and the buzzer stops after about
4 to 8 seconds. (c) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(d) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after
the several trips... or
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
Emissions inspection and maintenance
programs
We recommend you to contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(OnBoard Diagnostics) system before
taking your vehicle for a state emission
inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” in Section 6.
