If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.

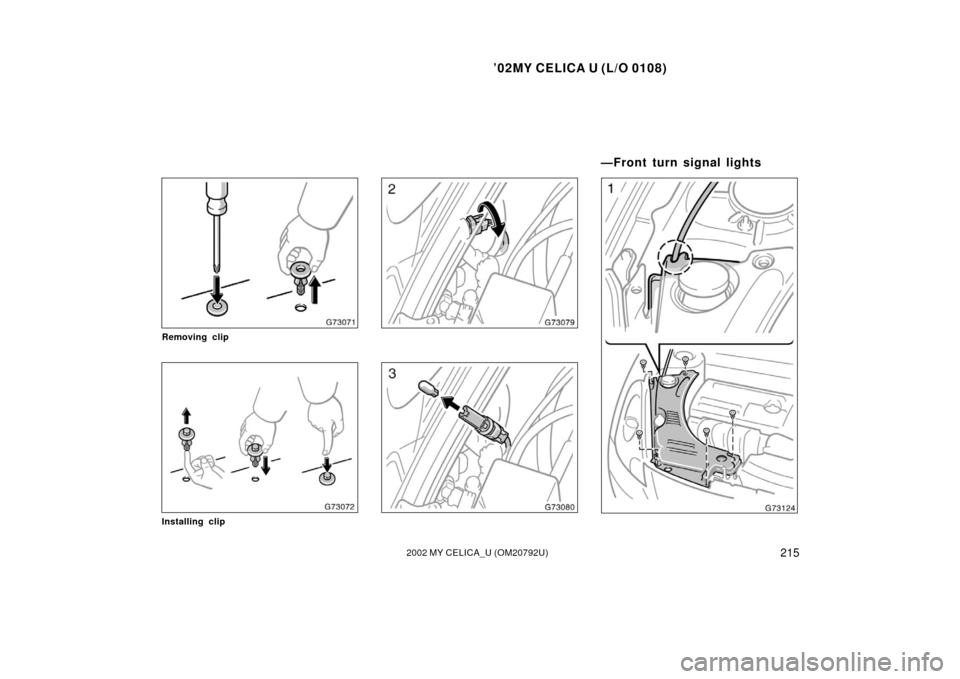

RIGHT SIDE PARKING LIGHT—Remove
and install the clips as shown in the
following illustrations.

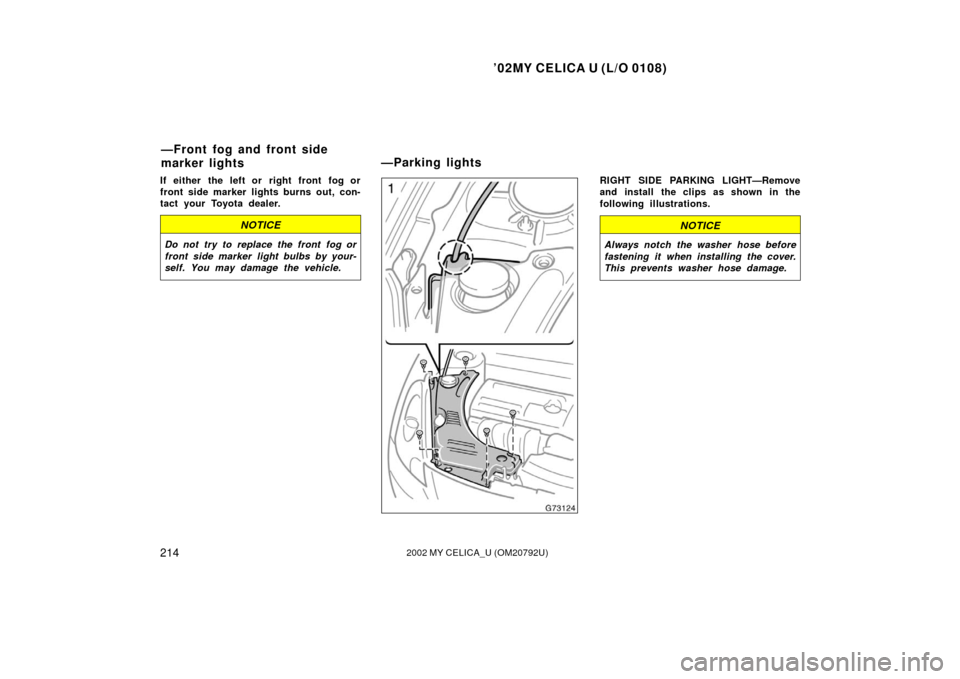

NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Front fog and front side
marker lights—Parking lights
Page 219 of 238
’02MY CELICA U (L/O 0108)
2152002 MY CELICA_U (OM20792U)
Removing clip
Installing clip
—Front turn signal lights
Page 221 of 238
’02MY CELICA U (L/O 0108)
2172002 MY CELICA_U (OM20792U)

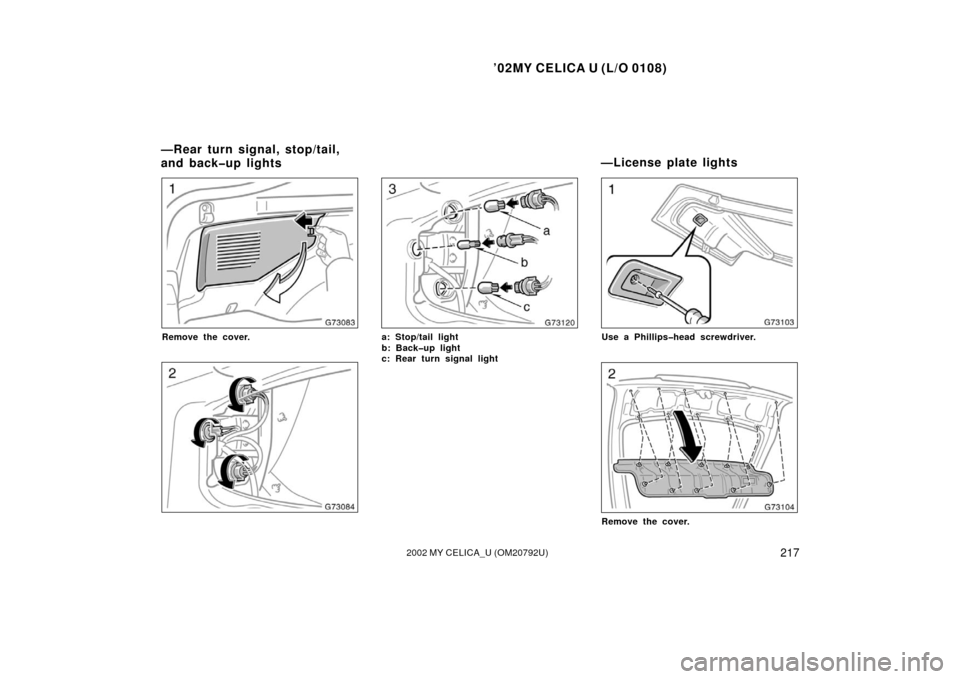

Remove the cover.a: Stop/tail light
b: Back up light
c: Rear turn signal lightUse a Phillips head screwdriver.
Remove the cover.
—Rear turn signal, stop/tail,
and back up lights—License plate lights
Page 225 of 238
’02MY CELICA U (L/O 0108)
2212002 MY CELICA_U (OM20792U)
ENGINE
Valve clearance (engine cold), mm (in.):1ZZ FE engineIntake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
2ZZ GE engine (on a roller side) Intake 0.08—0.18 (0.003—0.007)
Exhaust 0.22—0.32 (0.009—0.013)
Spark plug type: 1ZZ FE engineDENSO SK16R11
NGK IFR5A11
2ZZ GE engine DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and ref
ill),
L (qt., Imp. qt.):
1ZZ FE engineWith filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
2ZZ GE engine With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)
Oil grade: API grade SJ “Energy Conserving”, SL
“Energy Conserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 1ZZ FE engineManual transaxle 5.7 (6.0, 5.0)
Automatic transaxle 5.6 (5.9, 4.9)
2ZZ GE engine Manual transaxle 5.9 (6.2, 5.2)
Automatic transaxle 5.8 (6.1, 5.1)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethylene glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 °C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Service specifications
Page 228 of 238
’02MY CELICA U (L/O 0108)
2242002 MY CELICA_U (OM20792U)
Engine compartment
Fuses (type A)1. HEAD LH LWR 10 A: Left hand head-
light (low beam)
2. ABS NO.2 25 A: Anti lock brake sys-
tem
3. HEAD RH UPR 20 A: Right hand
headlight (high beam)
4. DRL NO.1 7.5 A: Daytime running light
system
5. HEAD RH LWR 10 A: Right hand
headlight (low beam)
6. HEAD LH UPR 10 A: Left hand head-
light (high beam)
Engine compartment
7. IG2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
8. HAZ 10 A: Emergency flashers, turn
signal lights
9. ST 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
10. AM2 7.5 A: Starting system
11. SPARE 10 A: Spare fuse
12. EFI NO.2 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
Instrument panel
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI NO.1” and “EFI NO.2”
fuses
14. SPARE 15 A: Spare fuse
15. EFI NO.1 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
16. DCC 25 A: “RADIO”, “DOME”, “MPX
B” and “ECU B” fuses
17. SPARE 30 A: Spare fuse
18. HORN 10 A: Horn
19. ALT S 7.5 A: Charging system
Fuses
Page 229 of 238
’02MY CELICA U (L/O 0108)
2252002 MY CELICA_U (OM20792U)
20. HEAD RH UPR 10 A: Right hand
headlight (high beam), daytime running
light system
21. HEAD LH UPR 10 A: Left hand head-
light (high beam)
22. S/ROOF 15 A: Electric moon roof
23. CIG 15 A: Cigarette lighter
24. FL P/W 20 A: Power windows
25. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRS IG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECU IG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS
IG” and “ECU IG” fuses
26. STOP 10 A: Stop lights, anti lock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. DOOR 20 A: Power door lock system
28. SRS IG 7.5 A: SRS airbag system
29. FR FOG 15 A: Front fog lights
30. WASHER 15 A: Windshield wipers and
washer, rear window wiper and washer
31. OBD 7.5 A: On board diagnosis sys-
tem 32. RADIO 15 A:
Car audio system
33. WIPER 25 A: Windshield wipers and
washer
34. TURN 7.5 A: Turn signal lights
35. MIR HTR 10 A: No circuit
36. HTR 10 A: Air conditioning system
37. RR WIPER 15 A: Rear window wiper
and washer
38. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
39. FR P/W 20 A: Power windows
Fuses (type B)
40. SPARE 7.5 A: Spare fuse
41. a. MPX B 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior light
d. ECU B 7.5 A: Air conditioning sys-
tem, gauges and meters
42. a. WARNING 5 A: Charging system,
gauges and meters
b. ECU IG 5 A: Cruise control system
c. ABS IG 5 A: Anti lock brake sys-
tem
d. FAN RLY 5 A: Electric cooling
fan 43. a. PANEL1 7.5 A:
Car audio system,
cigarette lighter, glove box light
b. PANEL2 7.5 A: Gauges and meters ,
air conditioning system, electronical-
ly controlled automatic transmission
system, h eadlight beam level control
system, front fog lights, emer gency
flasher, turn signal lights
c. ECU ACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols
44. a. BK/UP LP 5 A: Back up lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c.
BODY ECU IG 5 A: Multiplex com-
munication system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof
Fuses (type C)
45. CDS 30 A: Electric cooling fan
46. MAIN 40 A: Starting system, daytime
running light system
47. ABS NO.1 40 A: Anti lock brake sys-
tem
48. RDI 30 A: Electric cooling fan
49. HTR 50 A: Air conditioning system
50. DEF 30 A: Rear window defogger
Page 230 of 238
’02MY CELICA U (L/O 0108)
2262002 MY CELICA_U (OM20792U)
Fuses (type D)
51. ALT 120 A: Cooling system, electric
cooling fan, starting system, rear win-
dow defogger, tail lights, “ABS NO.1”,
“ABS NO.2”, “HTR”, “FR P/W”, “FL
P/W”, “DOOR”, “OBD”, “STOP”, “S/
ROOF”, “MIR HTR”, “FR FOG” and
“AM1” fuses
