2002 TOYOTA CELICA headlight

’02MY CELICA U (L/O 0108)
2132002 MY CELICA_U (OM20792U)

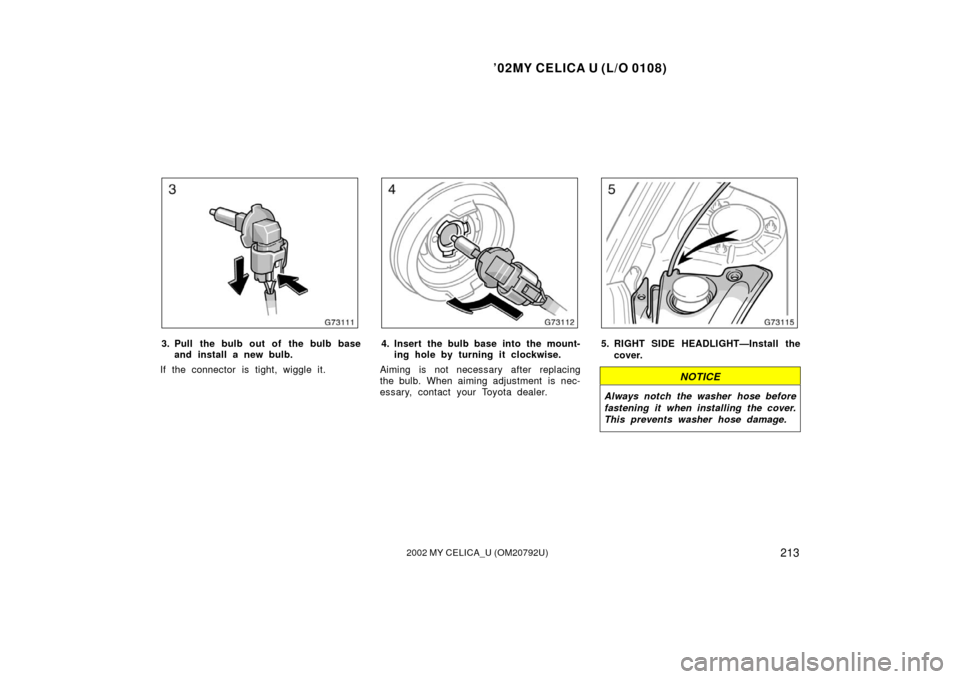

3. Pull the bulb out of the bulb baseand install a new bulb.
If the connector is tight, wiggle it.4. Insert the bulb base into the mount- ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT—Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.

’02MY CELICA U (L/O 0108)
2242002 MY CELICA_U (OM20792U)

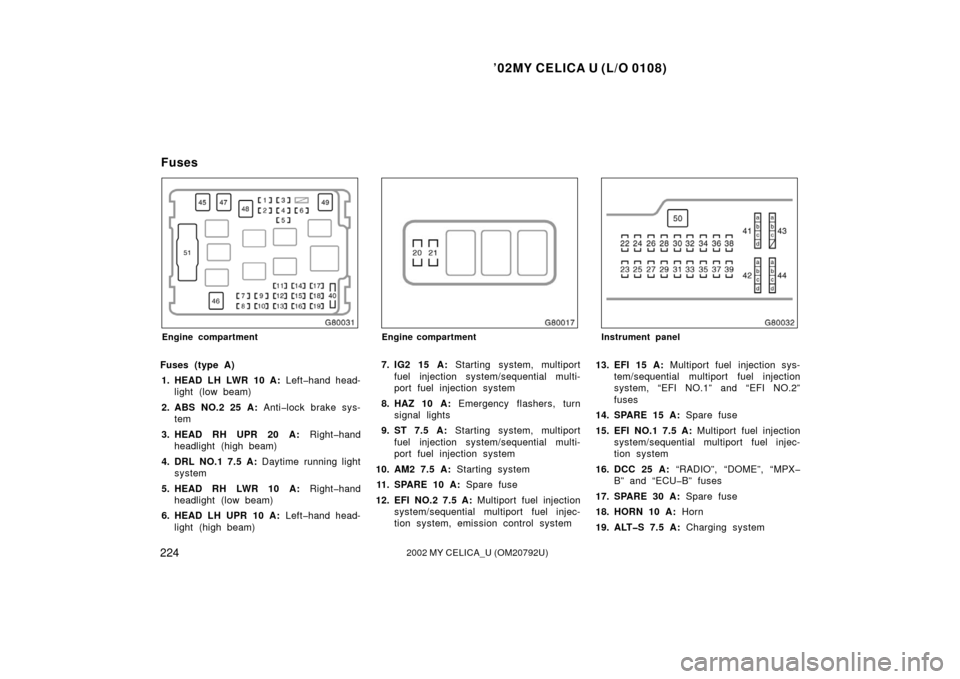

Engine compartment
Fuses (type A)1. HEAD LH LWR 10 A: Lefthand head-
light (low beam)
2. ABS NO.2 25 A: Antilock brake sys-
tem
3. HEAD RH UPR 20 A: Righthand
headlight (high beam)
4. DRL NO.1 7.5 A: Daytime running light
system
5. HEAD RH LWR 10 A: Righthand
headlight (low beam)
6. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
Engine compartment
7. IG2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
8. HAZ 10 A: Emergency flashers, turn
signal lights
9. ST 7.5 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
10. AM2 7.5 A: Starting system
11. SPARE 10 A: Spare fuse
12. EFI NO.2 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
Instrument panel
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI NO.1” and “EFI NO.2”
fuses
14. SPARE 15 A: Spare fuse
15. EFI NO.1 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
16. DCC 25 A: “RADIO”, “DOME”, “MPX
B” and “ECUB” fuses
17. SPARE 30 A: Spare fuse
18. HORN 10 A: Horn
19. ALTS 7.5 A: Charging system
Fuses

’02MY CELICA U (L/O 0108)
2252002 MY CELICA_U (OM20792U)
20. HEAD RH UPR 10 A: Righthand
headlight (high beam), daytime running
light system
21. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
22. S/ROOF 15 A: Electric moon roof
23. CIG 15 A: Cigarette lighter
24. FL P/W 20 A: Power windows
25. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRSIG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECUIG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS
IG” and “ECUIG” fuses
26. STOP 10 A: Stop lights, antilock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. DOOR 20 A: Power door lock system
28. SRSIG 7.5 A: SRS airbag system
29. FR FOG 15 A: Front fog lights
30. WASHER 15 A: Windshield wipers and
washer, rear window wiper and washer
31. OBD 7.5 A: Onboard diagnosis sys-
tem 32. RADIO 15 A:
Car audio system
33. WIPER 25 A: Windshield wipers and
washer
34. TURN 7.5 A: Turn signal lights
35. MIR HTR 10 A: No circuit
36. HTR 10 A: Air conditioning system
37. RR WIPER 15 A: Rear window wiper
and washer
38. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
39. FR P/W 20 A: Power windows
Fuses (type B)
40. SPARE 7.5 A: Spare fuse
41. a. MPXB 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior light
d. ECUB 7.5 A: Air conditioning sys-
tem, gauges and meters
42. a. WARNING 5 A: Charging system,
gauges and meters
b. ECUIG 5 A: Cruise control system
c. ABSIG 5 A: Antilock brake sys-
tem
d. FAN RLY 5 A: Electric cooling
fan 43. a. PANEL1 7.5 A:
Car audio system,
cigarette lighter, glove box light
b. PANEL2 7.5 A: Gauges and meters ,
air conditioning system, electronical-
ly controlled automatic transmission
system, h eadlight beam level control
system, front fog lights, emer gency
flasher, turn signal lights
c. ECUACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols
44. a. BK/UP LP 5 A: Backup lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c.
BODY ECUIG 5 A: Multiplex com-
munication system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof
Fuses (type C)
45. CDS 30 A: Electric cooling fan
46. MAIN 40 A: Starting system, daytime
running light system
47. ABS NO.1 40 A: Antilock brake sys-
tem
48. RDI 30 A: Electric cooling fan
49. HTR 50 A: Air conditioning system
50. DEF 30 A: Rear window defogger
