2002 TOYOTA CELICA lock

’02MY CELICA U (L/O 0108)
132002 MY CELICA_U (OM20792U)
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by
the manufacturer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.

’02MY CELICA U (L/O 0108)
152002 MY CELICA_U (OM20792U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.

’02MY CELICA U (L/O 0108)
162002 MY CELICA_U (OM20792U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Insert the master key into the keyhole
and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “Side doors” in this section.)
When closing the back door, make sure
it is securely closed.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.When closing the back door, use the
inside handle for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Back door

’02MY CELICA U (L/O 0108)
172002 MY CELICA_U (OM20792U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Hood

’02MY CELICA U (L/O 0108)
192002 MY CELICA_U (OM20792U)
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built
in check valve to reduce fuel tank
pressure.
Tilting operation
Sliding operation
Electric moon roof

’02MY CELICA U (L/O 0108)
202002 MY CELICA_U (OM20792U)
To operate the moon roof, use the
switch beside the interior light.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either side door is opened.
Tilting operation—
To tilt up: Push the switch briefly on the
“OPEN” side. The roof will tilt up com-
pletely.
To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will open lightly with the
moon roof. To open the sun shade com-
pletely, pull it back by hand.
To lower: Push the switch briefly on the
“CLOSE” side. The roof will lower com-
pletely.
Sliding operation—
To open (with the roof tilting up): Push the
switch on the “OPEN” side briefly. The
roof will open completely.
To open (with the roof tilting down): Push
the switch on the “OPEN” side for more
than 2 seconds. The roof will open com-
pletely after tilting up. To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch briefly on the
“CLOSE” side. The roof will close com-
pletely.
Sun shade operation—
The sun shade can be closed by hand.
Jam protection function:
During closing
operation, the moon roof stops and opens
half way if something gets caught between
the moon roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
When the battery is disconnected, the
moon roof cannot operate automatically
and the jam protection function will not
function correctly. Therefore, you need to
normalize the moon roof as follows.
To normalize: Close the moon roof, and
continue to hold the switch up briefly after
the moon roof reaches the completely
closed position and the motor is blocked.
If the moon roof cannot be operated prop-
erly, have it checked by your Toyota deal-
er. There are cases where malfunctions may
activate the jam protection function, which
will prevent the roof from closing com-
pletely. In this case, pushing and holding
the switch on the “CLOSE” side will close
the roof completely.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.

’02MY CELICA U (L/O 0108)
242002 MY CELICA_U (OM20792U)

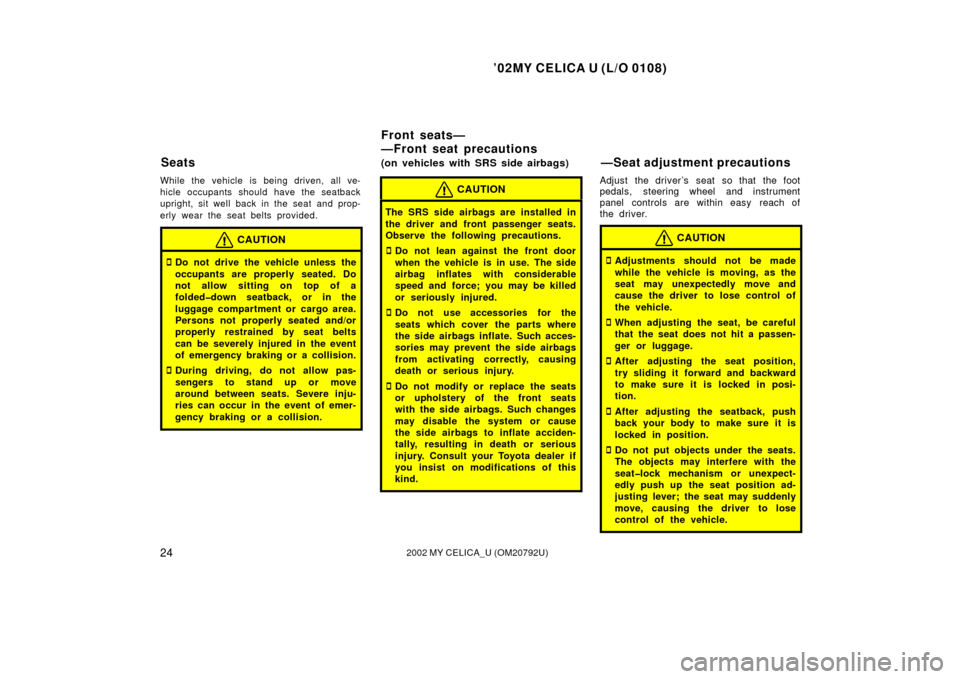

While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.
Do not use accessories for the
seats which cover the parts where
the side airbags inflate. Such acces-
sories may prevent the side airbags
from activating correctly, causing
death or serious injury.
Do not modify or replace the seats
or upholstery of the front seats
with the side airbags. Such changes
may disable the system or cause
the side airbags to inflate acciden-
tally, resulting in death or serious
injury. Consult your Toyota dealer if
you insist on modifications of this
kind.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seatlock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
SeatsFront seats—
—Front seat precautions(on vehicles with SRS side airbags)—Seat adjustment precautions

’02MY CELICA U (L/O 0108)
262002 MY CELICA_U (OM20792U)

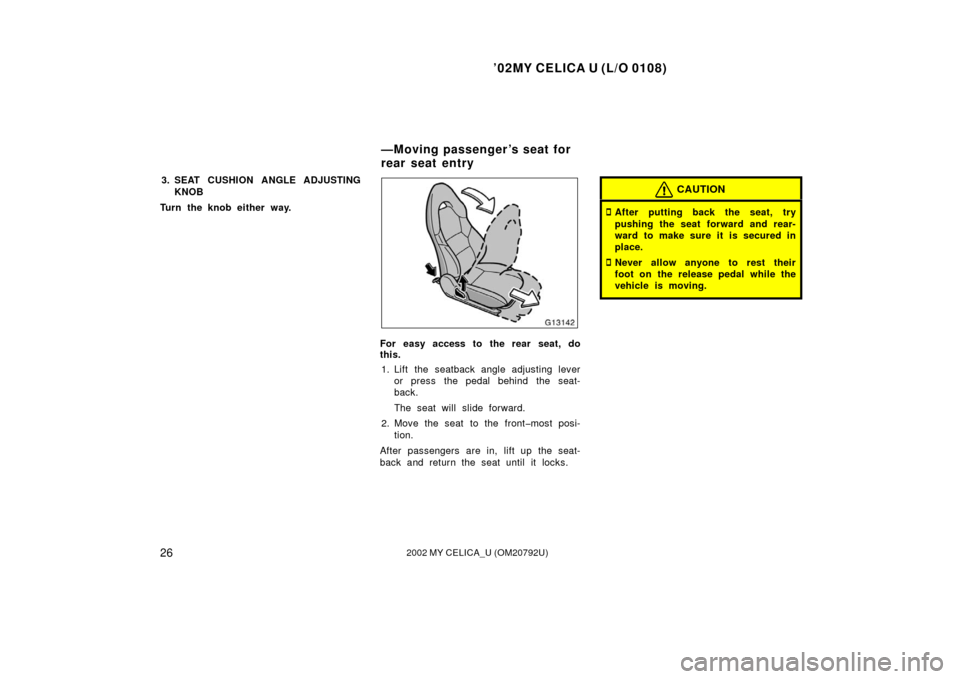

3. SEAT CUSHION ANGLE ADJUSTINGKNOB
Turn the knob either way.
For easy access to the rear seat, do
this. 1. Lift the seatback angle adjusting lever or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the frontmost posi- tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.
—Moving passenger ’s seat for
rear seat entry
