Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the bucklerelease buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle−release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.

AP_Camry_U (L/O 0201)
1262002 MY CAMRY_U (OM33567U)

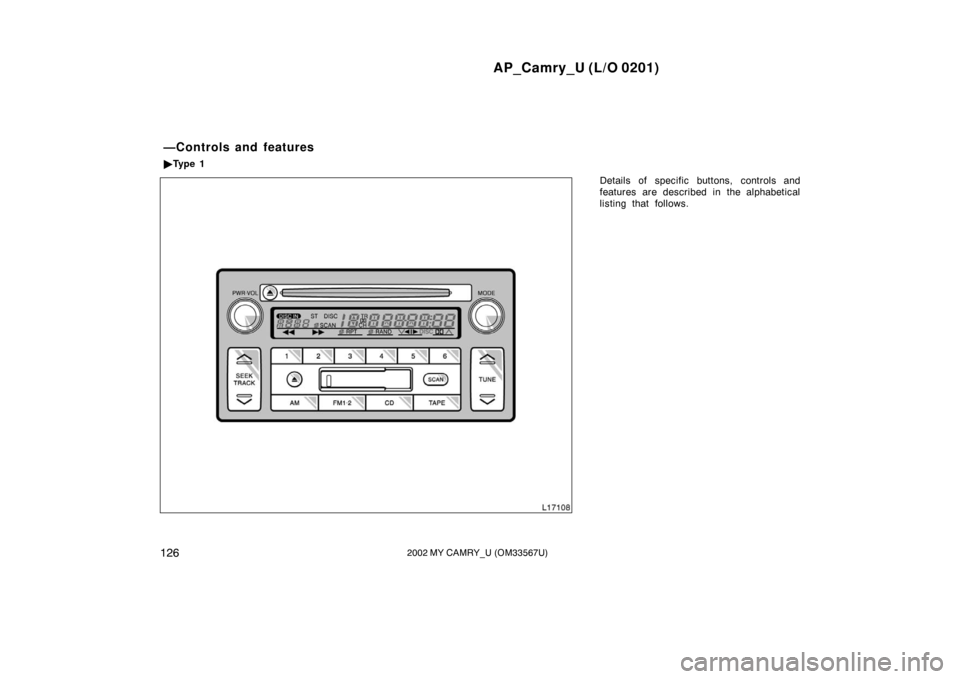

Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.
—Controls and features
Ty p e 1

AP_Camry_U (L/O 0201)
1272002 MY CAMRY_U (OM33567U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see “TUNE” or “SEEK”
button). Push and hold down the button
until you hear a beep—this will set the
station to the button. The button number
will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” “FM1·2”).
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to “LOCK”, you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push “
” to select the other side of a
cassette tape. The display indicates which
side is currently selected (“
” indicates
top side, “
” indicates bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette player
Push the fast forward button to fast for-
ward a cassette tape. “FF” will appear on
the display. Push the reverse button to
rewind a tape. “REW” will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto −re-
verse feature. Compact disc player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to radio operation.
CD (Compact disc player)
Push “CD” to switch from radio or cas-
sette operation to compact disc player op-
eration. If the audio system is off, you
can turn on the compact disc player by
pushing “CD”. In both cases, a disc must
already be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track cur-
rently being played.
If the player malfunctions, your audio sys-
tem will display one of the four following
error messages.

AP_Camry_U (L/O 0201)
1312002 MY CAMRY_U (OM33567U)

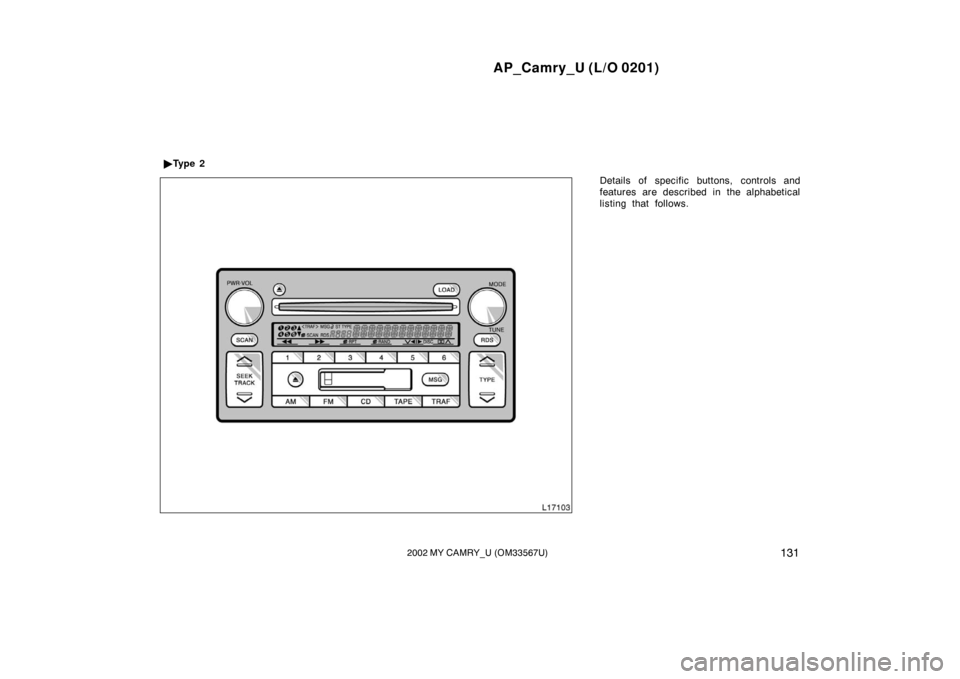

Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.

Ty p e 2

AP_Camry_U (L/O 0201)
1322002 MY CAMRY_U (OM33567U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see “TUNE” knob or
“SEEK” button). Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
RDS stations will be preset to the buttons
when you turn on the RDS (see “RDS”
button).
To tune in to a preset station: Push the
button for the station you want. The pre-
set button number and station frequency
will appear on the display.
This radio can store one AM, two FM and
RDS stations for each button (The display
will show “AM”, “FM1”, “FM2” or “FM
TYPE” when you push “AM” “FM”). (Eject button)
Cassette tape
This button is used to eject a cassette.
While the ignition is in “LOCK”, you can
eject a cassette but you cannot reinsert
it.
Compact disc
This button is used to eject one or all
compact discs. To eject the current com-
pact disc, push and release the compact
disc eject button. To eject all specific
discs, push either side of the “DISC” but-
ton until the number of the disc you want
to eject is displayed. Push and release
the eject button. To eject all discs, press
and hold the eject button until you hear
a beep. The last compact disc played be-
fore pushing the button will be ejected
first. If the ejected disc is not removed for
a long time, the eject function will be
cancelled.
While the ignition is in “LOCK”, you can
eject one or all discs but you cannot rein-
sert them. (Program)
Push “
” to select the other side of a
cassette tape. The display indicates which
side is currently selected (“
” indicates
top side, “
” indicates bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward button)
Cassette player
Push the fast −forward button to fast −for-
ward a cassette tape. “FF” will appear on
the display. Push the reverse button to
rewind a tape. “REW” will appear on the
display.
To stop the tape while it is fast −forward-
ing, push the fast −forward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.

AP_Camry_U (L/O 0201)
1342002 MY CAMRY_U (OM33567U)
DISC
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
”. “” will appear on the
display. Push the button again to turn off
Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push “FM” to turn on the radio to FM
band. “FM1”, “FM2” or “FM TYPE” will
appear on the display. This system allows
you to set twelve FM stations, two for
each of the six preset button. If the RDS
is off or RDS stations are not preset to
the preset buttons, “FM TYPE” will not
appear on the display.
If the audio system is off, you can turn
on the radio by pushing “FM”. Also, push
“FM” to switch from cassette or compact
disc operation to FM.
LOAD
This button is used to load the compact
discs in the compact disc auto changer
which is integrated with the radio and cas-
sette player. This compact disc auto
changer can store up to 6 di scs.
The key must be in the “ACC” or “ON”
position for the load function. Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep.), the
mechanism will change to the mode for
loading multiple compact discs. After
pushing the button, insert a compact disc.
After the disc is loaded, the shutter of the
slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.
Loading multiple compact di
scs—
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. After the
disc is loaded, the shutter of the slot will
close. After a few seconds, the shutter
will automatically open again so the next
disc can be inserted. The same process
can be applied for loading the rest of the
discs.
If no compact disc is inserted, the shutter
will close after 15 seconds.

AP_Camry_U (L/O 0201)
1352002 MY CAMRY_U (OM33567U)
MSG (Message)
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “MSG” will be displayed. At
this time, push “MSG” button to view the
text message. The message display will
be canceled if any button that affects the
display is pushed. To view the message
again, push the “MSG” button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64−character messages. To
store a message in memory, push and
hold the “MSG” button until you hear a
beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“MSG” button momentarily. This will dis-
play the most recent message. A second
push of the “MSG” button while the most
stored message(s) are displayed begins
with the newest one. If no messages have been stored, or if
there are no more messages to be re-
called, “NO MSG STORED” will appear on
the display, and the message display will
be canceled. The display then returns to
show the program service name. The
message display will be canceled if you
activate any function that affects the dis-
play.
Message display can be canceled by
pressing any of the following buttons:
“AM”, “FM”, “CD”, “TAPE”, “SEEK”, any
preset, “SCAN”, any audio control, “RDS”,
or “TYPE”. If the current station is not a
traffic program and traffic announcements
is off, pushing “TRAF” will cancel the dis-
play. The message will be canceled after
the entire message has been displayed.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RDS (Radio Data System)
Your audio system is equipped with Radio
Data Systems (RDS). RDS station provid-
ing good reception is automatically se-
lected if current reception worsens.To turn on the RDS, push and hold this
button until you hear a beep, the RDS
turns on and “RDS” will appear on the
display. At this time, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will appear on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found,
“NOTHING” will appear on the display and
you will hear a beep, and the display
returns to previous mode.
To turn the RDS off, push the button until
you hear a beep again.
If the FM radio, cassette player or com-
pact disc auto changer is on, pushing this
button will turn RDS on or off.

AP_Camry_U (L/O 0201)
1502002 MY CAMRY_U (OM33567U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. “AUTO”
will appear on the display to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “OFF” button.
Fan speed selector
Push the “ ” (increase) or “ ” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. Temperature selector
To increase the temperature, press the
“
 ” side, to decrease it, press the “ ”
side.
“MAX. COLD” appears when you adjust to
maximum cooling, and “MAX. HOT” when
you adjust to maximum warming.
“OFF” button
Push the button to turn off the air condi-
tioning system.
Air flow selector
Push the buttons to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
