2002 TOYOTA CAMRY headlight

AP_Camry_U (L/O 0201)
2672002 MY CAMRY_U (OM33567U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Front fog lights900651B
Parking, front side
marker and front
turn signal lights
345730/8C
Tail and rear side
marker lights1943.8C
Rear turn signal
lights92118C
Stop/tail lights305727/7C
Back −up lights92118C
License plate lights—5C
High mounted
stoplight92118C
Personal lights—4.9C
Interior light
(type A)—8D
Interior light
(type B)—5D
Vanity lights—1.4D
Glove box light—5C
Light bulbsBulb
No.WTy p e
Trunk light (type A)—5C
Trunk light (type B)—3D
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs
D: Double end bulbs

AP_Camry_U (L/O 0201)
2682002 MY CAMRY_U (OM33567U)

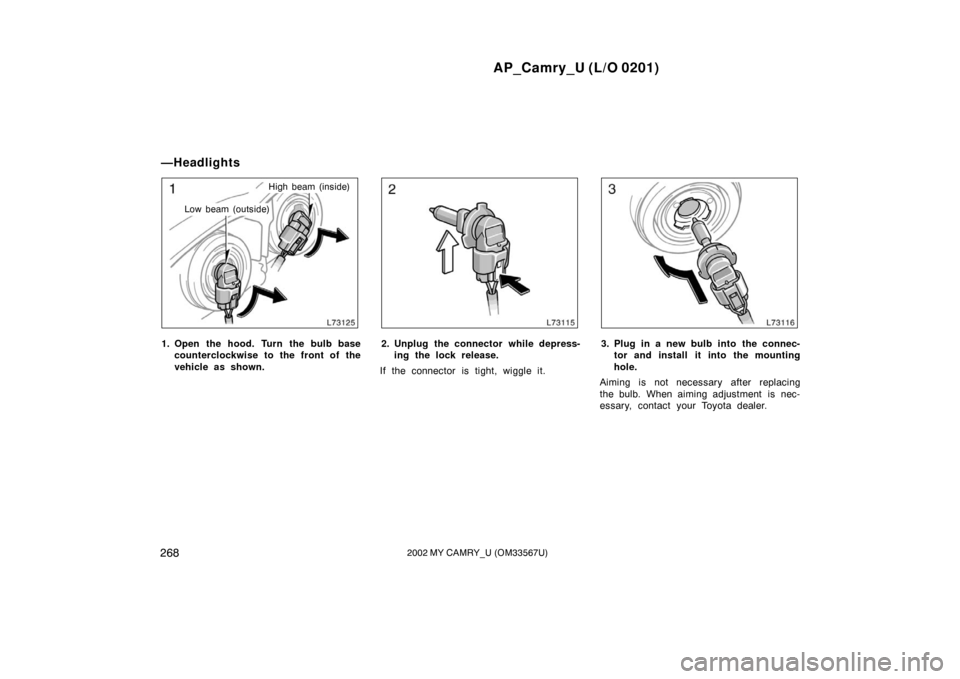

Low beam (outside)High beam (inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

AP_Camry_U (L/O 0201)
2792002 MY CAMRY_U (OM33567U)
Engine compartment
(with vehicle skid control system)
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. SPARE 10 A: Spare fuse
6. SPARE 15 A: Spare fuse
7. SPARE 5 A: Spare fuse
8. AM2 30 A: Starting system, “IGN” and
“IG2” fuses
Instrument panel
9. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
10. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
11. ST 5 A: Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
12. TEL 5 A: No circuit
13. ALTS 5 A: Charging system
14. IGN 15 A: Starting system 15. IG2 10 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, front seat
belt pretensioners, cruise control sys-
tem
16. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
17. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
18. HORN 10 A: Horns
19. D.C.C 30 A: “ECU−B”, “RAD NO.1”
and “DOME” fuses
20. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
22. HAZ 15 A: Emergency flashers
23. ABS NO.4 7.5 A: Anti−lock brake sys-
tem, vehicle skid control system, trac-
tion control system, brake assist sys-
tem
