2002 TOYOTA 4RUNNER weight

’02 4Runner_U (L/O 0108)
962002 MY 4RUNNER_U (OM 35787U)
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the engine is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is
not a malfunction. (b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer come on if the driver’s seat belt
is not fastened. Unless the driver fastens
the belt, the light keeps on flashing and
the buzzer sounds for about 4 to 8 se-
conds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, builtin
sensors in the seat cushion may detect
the pressure, causing the reminder light to
come on. (d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.

’02 4Runner_U (L/O 0108)
2042002 MY 4RUNNER_U (OM 35787U)
For an explanation of this system’s warn-
ing light, see “Service reminder indicators
and warning buzzers” in Section 15.
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary. When stowing luggage or cargo in the
vehicle, observe the following:
Put luggage or cargo in the luggage
compartment when at all possible. Be
sure all items are secured in place.
Be careful to keep the vehicle bal-
anced. Locating the weight as far for-
ward as possible helps maintain bal-
ance.
For better fuel economy, do not carry
unneeded weight.
CAUTION
To prevent luggage or packages
from sliding forward during braking,
do not stack anything in the lug-
gage compartment higher than the
seatbacks. Keep luggage or pack-
ages low, as close to the floor as
possible.
Do not place anything on the flat-
tened seat or it may slide forward
during braking.
Brake pad wear limit
indicators
Luggage stowage pr
ecautions

’02 4Runner_U (L/O 0108)
2052002 MY 4RUNNER_U (OM 35787U)
Never allow anyone to ride in the
luggage compartment. It is not de-
signed for passengers. They should
ride in their seats with their seat
belts properly fastened. Otherwise,
they are much more likely to suffer
serious bodily injury, in the event
of sudden braking or a collision.
Do not place anything on the lug-
gage cover. Such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or an accident. Secure all
items in a safe place.
Do not drive with objects left on
top of the instrument panel. They
may interfere with the driver’s field
of view. Or they may move during
sharp vehicle acceleration or turn-
ing, and impair the driver’s control
of the vehicle. In an accident they
may injure the vehicle occupants.
NOTICE
Do not load the vehicle beyond the
vehicle capacity weight specified in
Section 8.

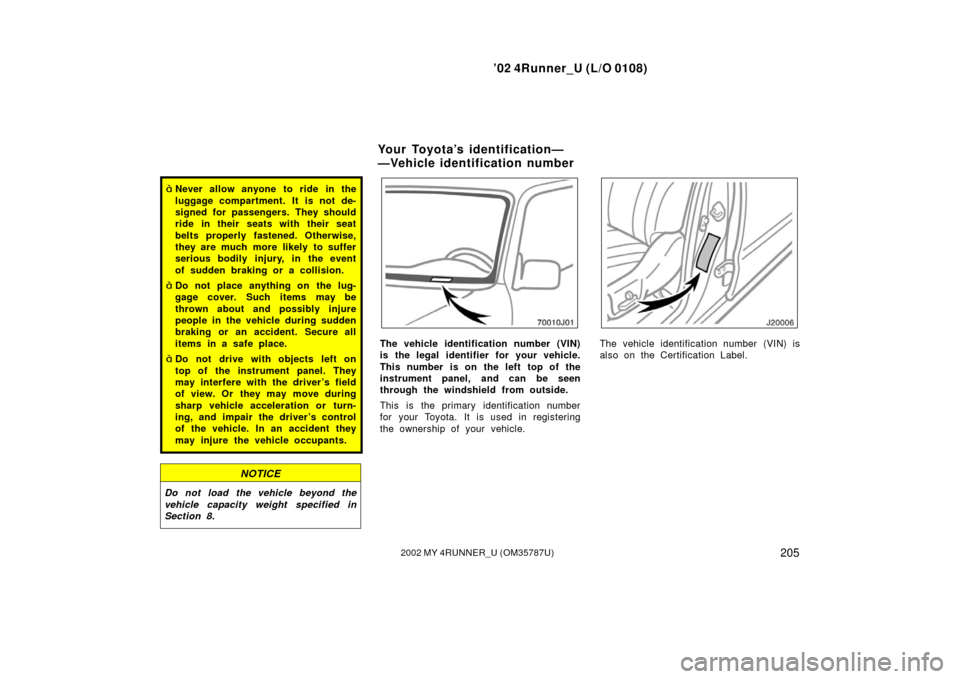

The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Label.
Your Toyota’s identification—
—Vehicle identification number

’02 4Runner_U (L/O 0108)
2152002 MY 4RUNNER_U (OM 35787U)
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the front wheels. Do not
use the parking brake, or snow or water
accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.

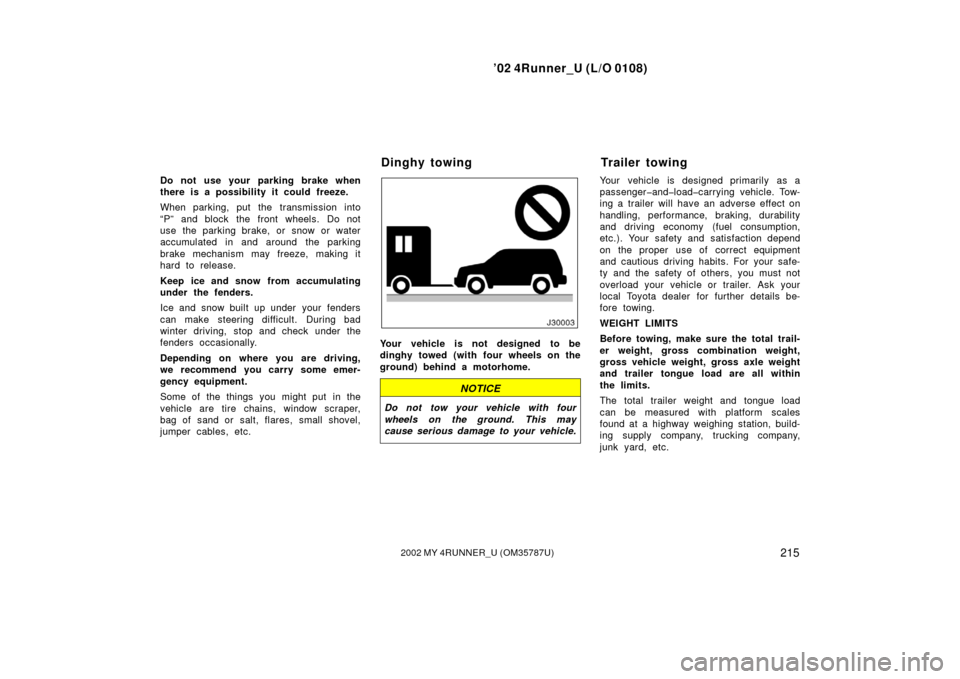

Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Your vehicle is designed primarily as a
passengerandloadcarrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durab ility
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Ask your
local Toyota dealer for further details be-
fore towing.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
Dinghy towing Trailer towing

’02 4Runner_U (L/O 0108)
2162002 MY 4RUNNER_U (OM 35787U)
CAUTION

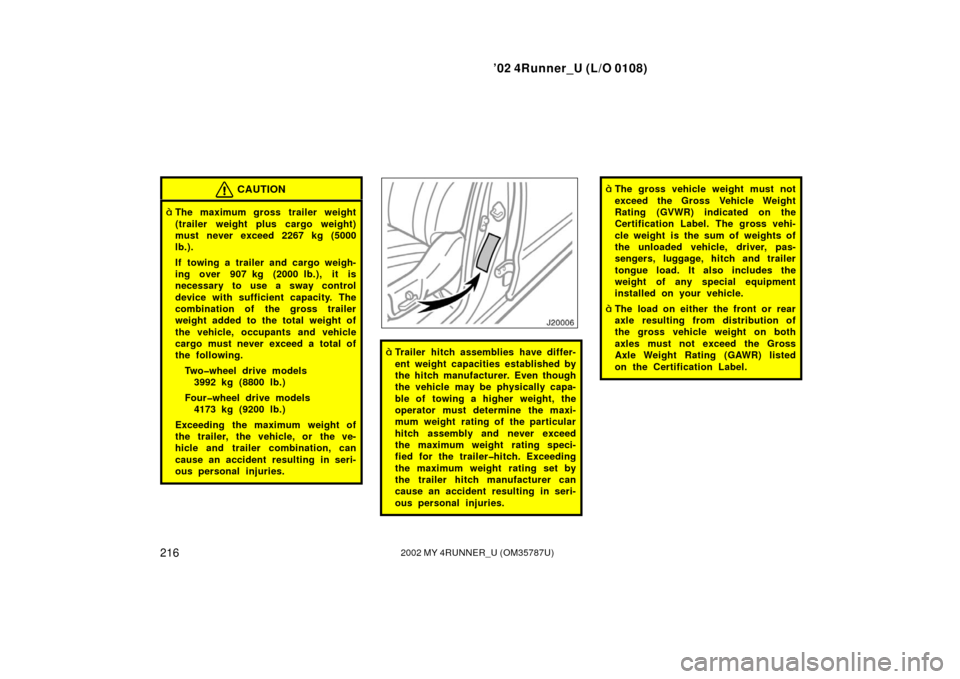

The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed 2267 kg (5000
lb.).
If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control
device with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
the following.
Twowheel drive models3992 kg (8800 lb.)
Fourwheel drive models 4173 kg (9200 lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailerhitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.
The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross vehi-
cle weight is the sum of weights of
the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the Gross
Axle Weight Rating (GAWR) listed
on the Certification Label.

’02 4Runner_U (L/O 0108)
2172002 MY 4RUNNER_U (OM 35787U)

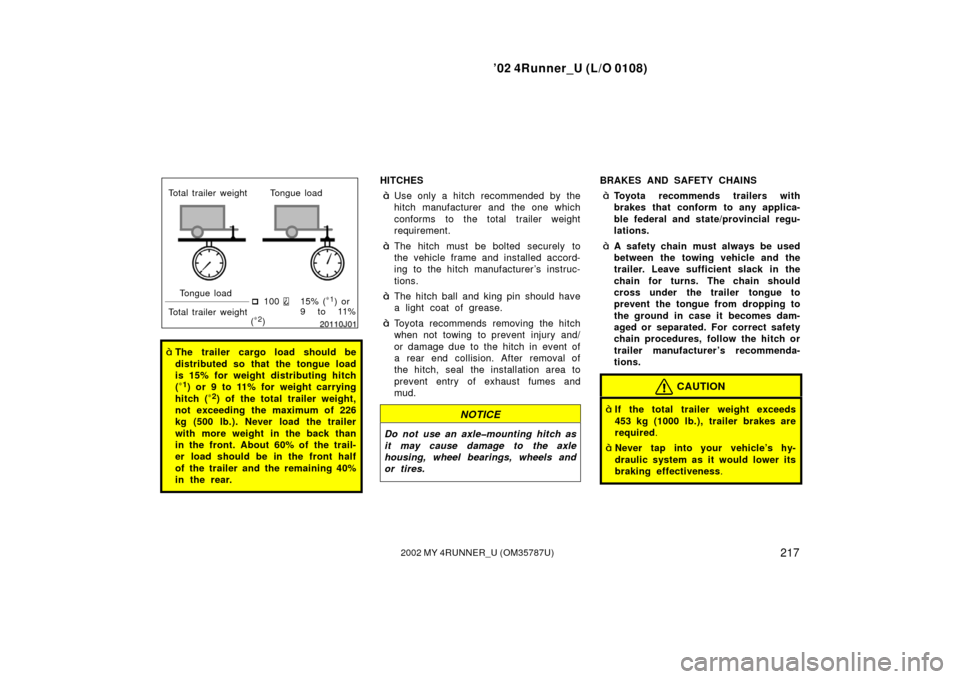

Total trailer weight Tongue load
Tongue load
Total trailer weight
 100 15% (∗
1) or
9 to 11%
(
∗ 2)
The trailer cargo load should be
distributed so that the tongue load
is 15% for weight distributing hitch
(
∗1) or 9 to 11% for weight carrying
hitch (∗ 2) of the total trailer weight,
not exceeding the maximum of 226
kg (500 lb.). Never load the trailer
with more weight in the back than
in the front. About 60% of the trail-
er load should be in the front half
of the trailer and the remaining 40%
in the rear.
HITCHES
Use only a hitch recommended by the
hitch manufacturer and the one which
conforms to the total trailer weight
requirement.
The hitch must be bolted securely to
the vehicle frame and installed accord-
ing to the hitch manufacturer ’s instruc-
tions.
The hitch ball and king pin should have
a light coat of grease.
Toyota recommends removing the hitch
when not towing to prevent injury and/
or damage due to the hitch in event of
a rear end collision. After removal of
the hitch, seal the installation area to
prevent entry of exhaust fumes and
mud.
NOTICE
Do not use an axlemounting hitch as
it may cause damage to the axle
housing, wheel bearings, wheels and
or tires.
BRAKES AND SAFETY CHAINS
Toyota recommends trailers with
brakes that conform to any applica-
ble federal and state/provincial regu-
lations.
A safety chain must always be used
between the towing vehicle and the
trailer. Leave sufficient slack in the
chain for turns. The chain should
cross under the trailer tongue to
prevent the tongue from dropping to
the ground in case it becomes dam-
aged or separated. For correct safety
chain procedures, follow the hitch or
trailer manufacturer ’s recommenda-
tions.
CAUTION
If the total trailer weight exceeds
453 kg (1000 lb.), trailer brakes are
required .
Never tap into your vehicle’s hy-
draulic system as it would lower its
braking effectiveness .

’02 4Runner_U (L/O 0108)
2182002 MY 4RUNNER_U (OM 35787U)
Never tow a trailer without using a
safety chain securely attached to
both the trailer and the vehicle. If
damage occurs to the coupling unit
or hitch ball, there is danger of the
trailer wandering over into another
lane.
TIRES
Ensure that your vehicle’s tires are
properly inflated. See Section 72 for
instructions.
The trailer tires should be inflated to
the pressure recommended by the trail-
er manufacturer in respect to the total
trailer weight.TRAILER LIGHTS
Your vehicle is equipped with a wire
harness stored in the rear end under
body. Some models are fitted with a
socket for trailer lights under the rear
bumper. Use either of them to connect
and operate the trailer lights. However,
the trailer lights must comply with fed-
eral, state/provincial and local regula-
tions. See your local recreational ve-
hicle dealer or rental agency for the
correct type of wiring and relays for
your trailer. Check for correct operation
of the turn signals and stop lights each
time you hitch up. Direct splicing may
damage your vehicle’s electrical system
and cause a malfunction of your lights. BREAKIN SCHEDULE
Toyota recommends that you do not
tow a trailer with a new vehicle or a
vehicle with any new power train com-
ponent (engine, transmission, differen-
tial, wheel bearing, etc.) for the first
800 km (500 miles) of driving.
MAINTENANCE
If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. For this informa-
tion, please refer to the scheduled
maintenance information in the “Sched-
uled Maintenance Guide” or “Owner ’s
Manual Supplement”.
Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.

’02 4Runner_U (L/O 0108)
2212002 MY 4RUNNER_U (OM 35787U)
Slow down and downshift before
descending steep or long downhill
grades. Do not make sudden down-
shifts.
Avoid holding the brake pedal down
too long or too frequently. This
could cause the brakes to overheat
and result in reduced braking effi-
ciency.
Improving fuel economy is easy—just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See Section
72 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Avoid lengthy warmup idling. Once
the engine is running smoothly, begin
driving—but gently. Remember, howev-
er, that on cold winter days this may
take a little longer.
Keep the automatic transmission
overdrive turned on when engine
braking is not required. Driving with
the overdrive off will reduce the fuel
economy. (For details, see “Automatic
transmission” in Section 16.)
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid long engine idling. If you have
a long wait and you are not in traffic,
it is better to turn off the engine and
start again later.
Avoid engine lugging or overrev-
ving. Use a gear position suitable for
the road on which you are travelling.
Avoid continuous speeding up and
slowing down. Stopandgo driving
wastes fuel.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on the brake
pedal. This causes premature wear,
overheating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
How to save fuel and make
your vehicle last longer
